KT200 ECU Programmer offline workstation Supports Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear.
Free Shipping from USA, EU , no tax.

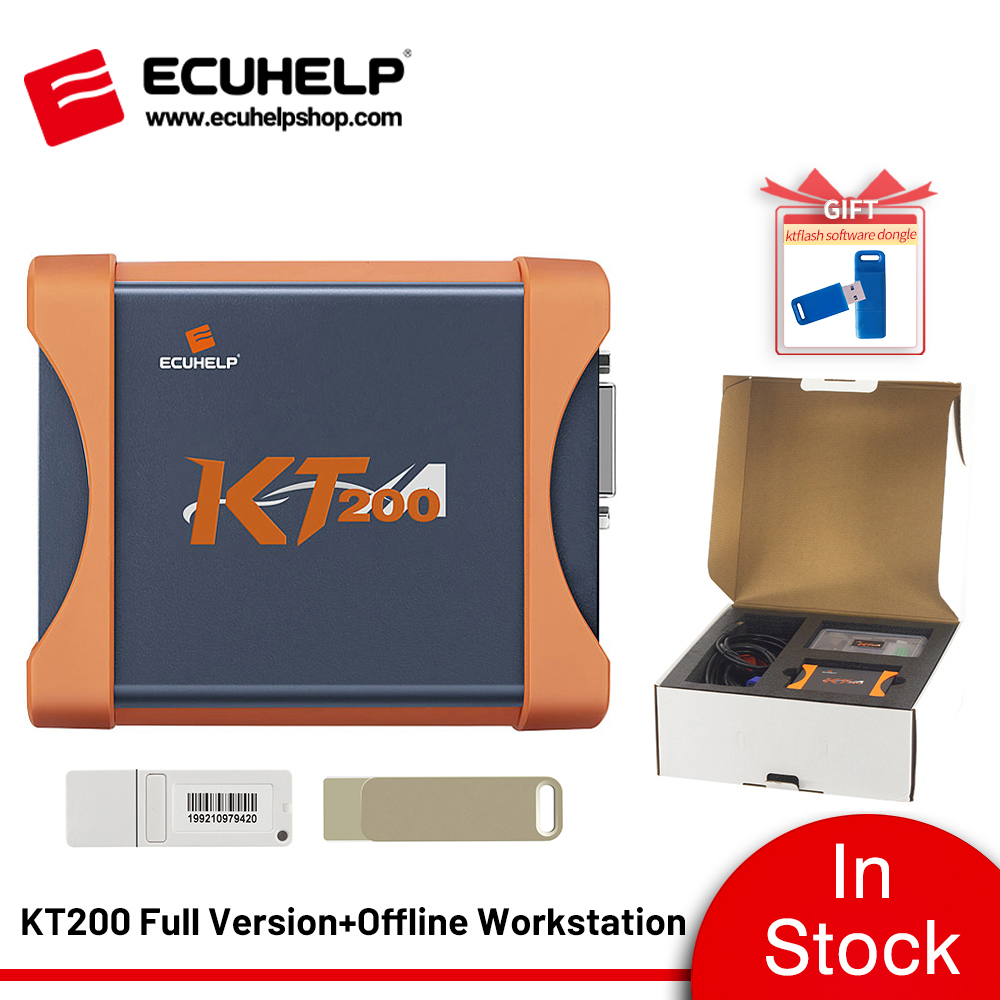

ECUHELP KT200 Offline Workstation Highlights:
Hardware: 2023 ECUHELP KT200 Offline Workstation is a combination of the full version and the
Offline Dongle.
Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
Update: Free update and no annual fee (If you want to add new modules in the future, need to pay for new modules)
Warranty: 1-year warranty period, after-sales service guarantee
Software: KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear.

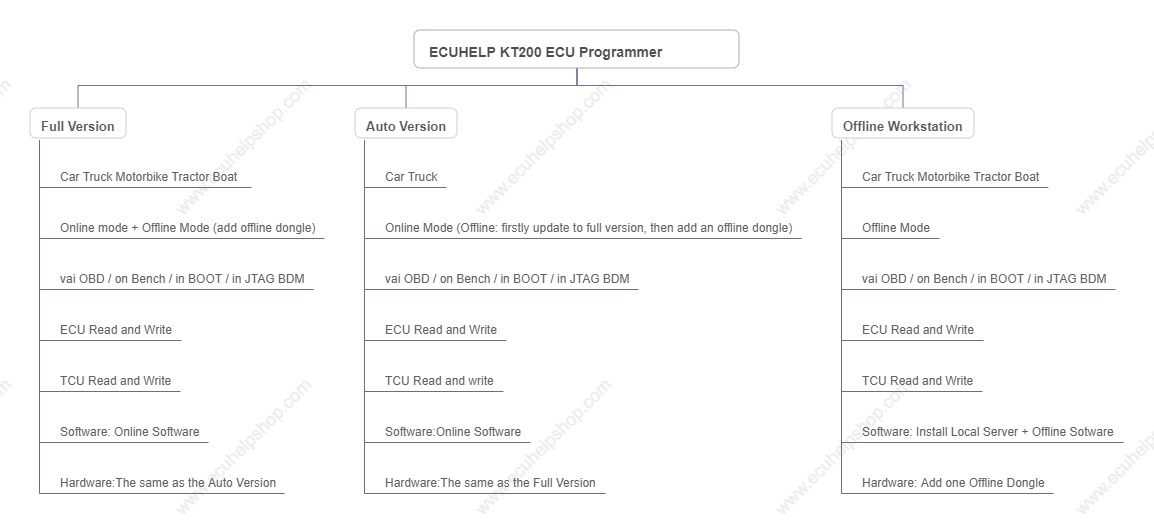

ECUHELP KT200 Full Version VS Auto Version VS Offline Workstation:
How to install KT200 offline workstation?

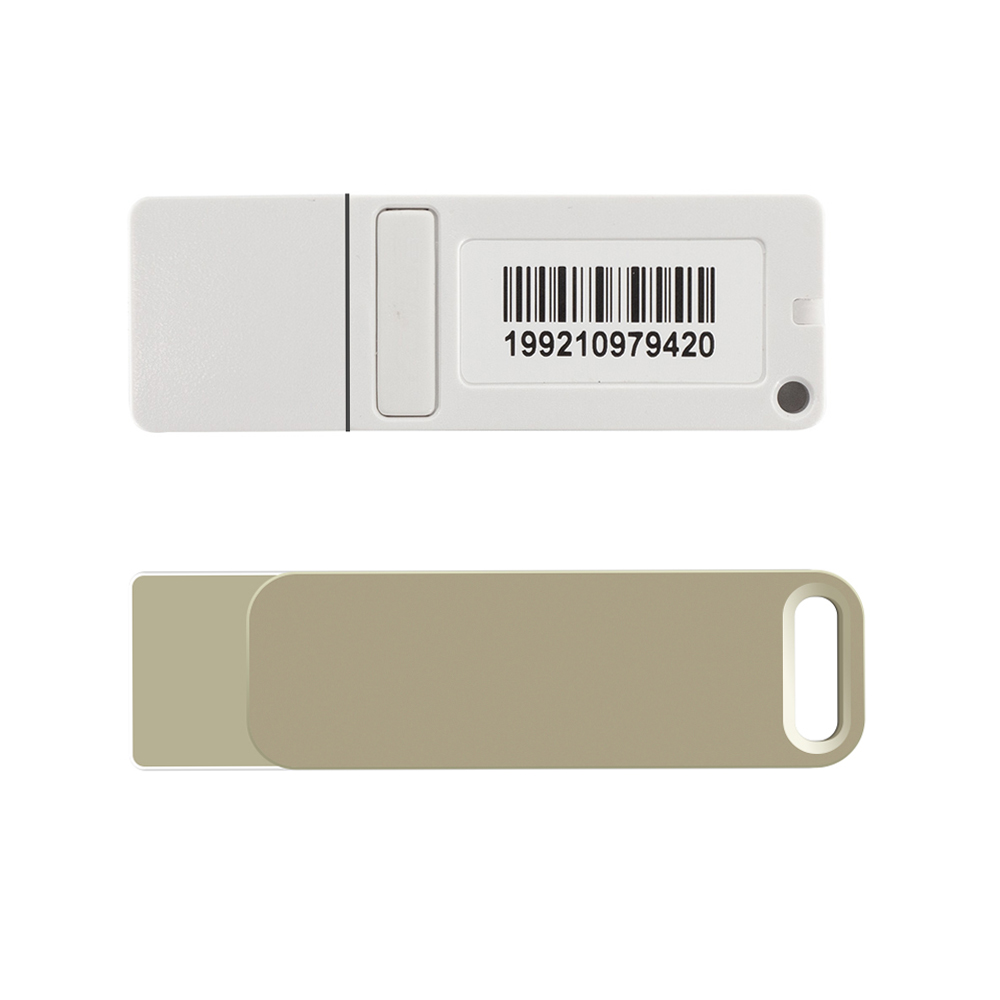

1. Install the local server (insert the write offline dongle to the computer)
Tip: make sure the C drive has more than 15GB of space available. open the KT200_ftp folder, and run offline installation. run KT200 to work.
2. Run setup to install KT200 software
ECUHELP KT200 Offline Software Free Download
***Refer to ECUHELP KT200 Quick Guide on KT200 in-depth installation.
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements: CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
Free Download KT200 wiring diagram
Get free VR file in this software ECUHelp V3.0
Download
patch if some protocols are not found after the update, then follow the Update video guide
ECUHELP KT200 Update(April 2023 ):
Add HTprog Clone Adapter
Cover more ECU Clone List: Confirmed
On Bench Chip Tuning / ECU Cloning: Confirmed
BDM read/write: Confirmed
Built-in Editors: Confirmed
Other functions: Confirmed
Key Features: Confirmed
IMMO BDM read/write: Confirmed
On Bench programmer List
ECU Clone List (added)
Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronized.
2. Optimized server connection time, high speed, and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, the EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
The software does not need to register and activate.
Compatible with any pc(no limit volume of PC)
ecuhelp kt200 offline software operation tips:
1. Please connect internet every 15 days
2. Go to Service to change a server (any of China, Germany and Hongkong)
3. Set time and timezone auto
4. Turn off windows defence (it may incorrectly identify the software as harmful and break it)
5. Set timezone to the same as server
6. Use V-P-N and set V-P-N to where server is at
7. Restart PC
8. Make sure tool is plugged in
9. Good battery voltage.
KT200 ECU Programmer features:
KT200 ECU Programmer is a complete tool for reading and programming ECU (engine control units) and TCU via OBD/Bench/Boot mode, the BDM/Jtag systems are also available.
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
Supports Checksum Calculation
Additional TCU package available for Automatic Transmissions for free
Full read and write TCU (Micro+EEPROM)
TCU Clone
TCU Coding
Covering up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs)
Get free VR files and Damaos files from ECUHelp V3.0
Supports Simos PCR2.1 unlock by OBD CAN.
Can perform a full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.
Support Audi/VW ECU Clone via Bench Mode pinout.
Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.
Allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
Covering a full range of German, ECU Programmer, Japanese, American, and Chinese models.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
We provide the following items: DTC code Removal EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42

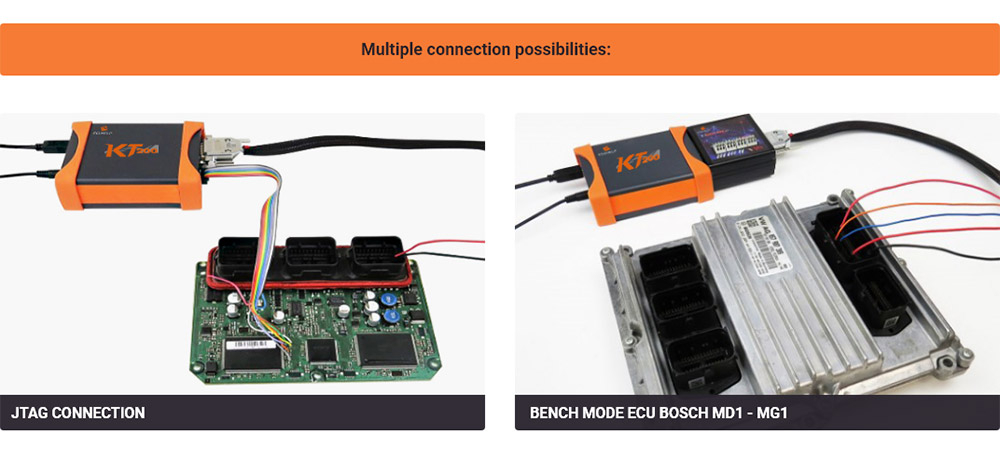

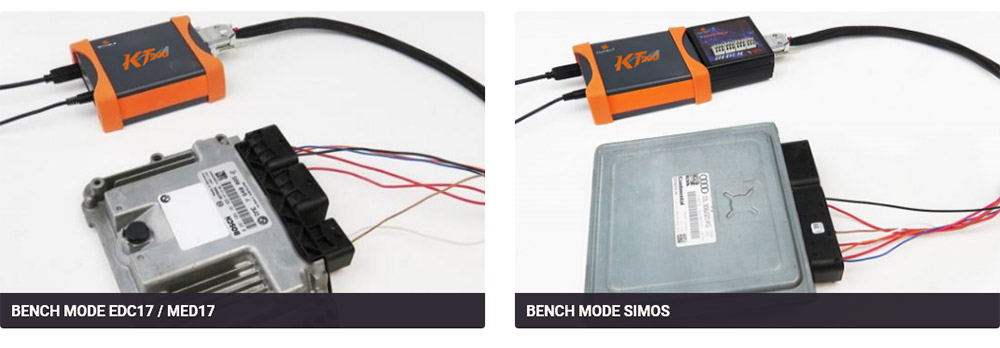

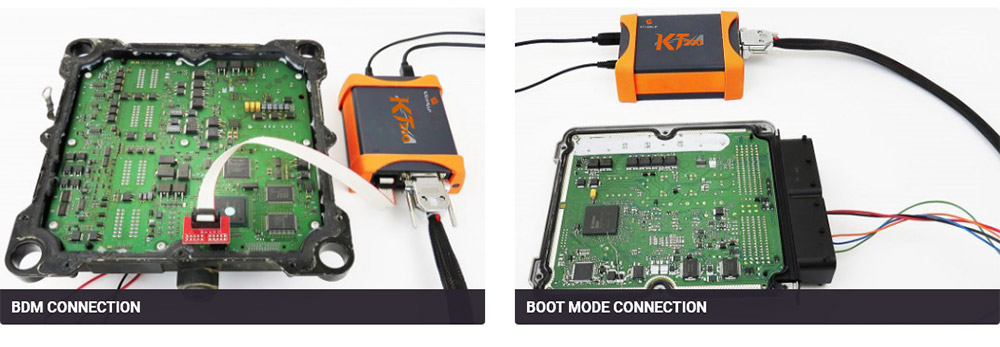

KT200 ECU Programmer Multiple connections:
What is the ECU service?
ECU service includes 2 major items:
1. Chip tuning.
Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data, Stage 2 data, and Stage 3 data.
2. ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal
Professional software for reading and programming the control units of:
CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT
Additional TCU package available for Automatic Transmissions
Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17 / ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout) |
Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC |
BDM EJTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx
|
JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085 |
BOOT MODEC16729Fxxx:
BOOT MODE ST K-LINE / RX-TX / CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296
|
BOOT Mode Tricore for micro:
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797 |
BOOT Mode Renesas:
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544 |
BOOT Mode Mitsubishi:
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F |
BOOT BAM System MOTOROLA:
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi |
Additional Package For Automatic Transmission
Full Read And Write TCU(MICRO + EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

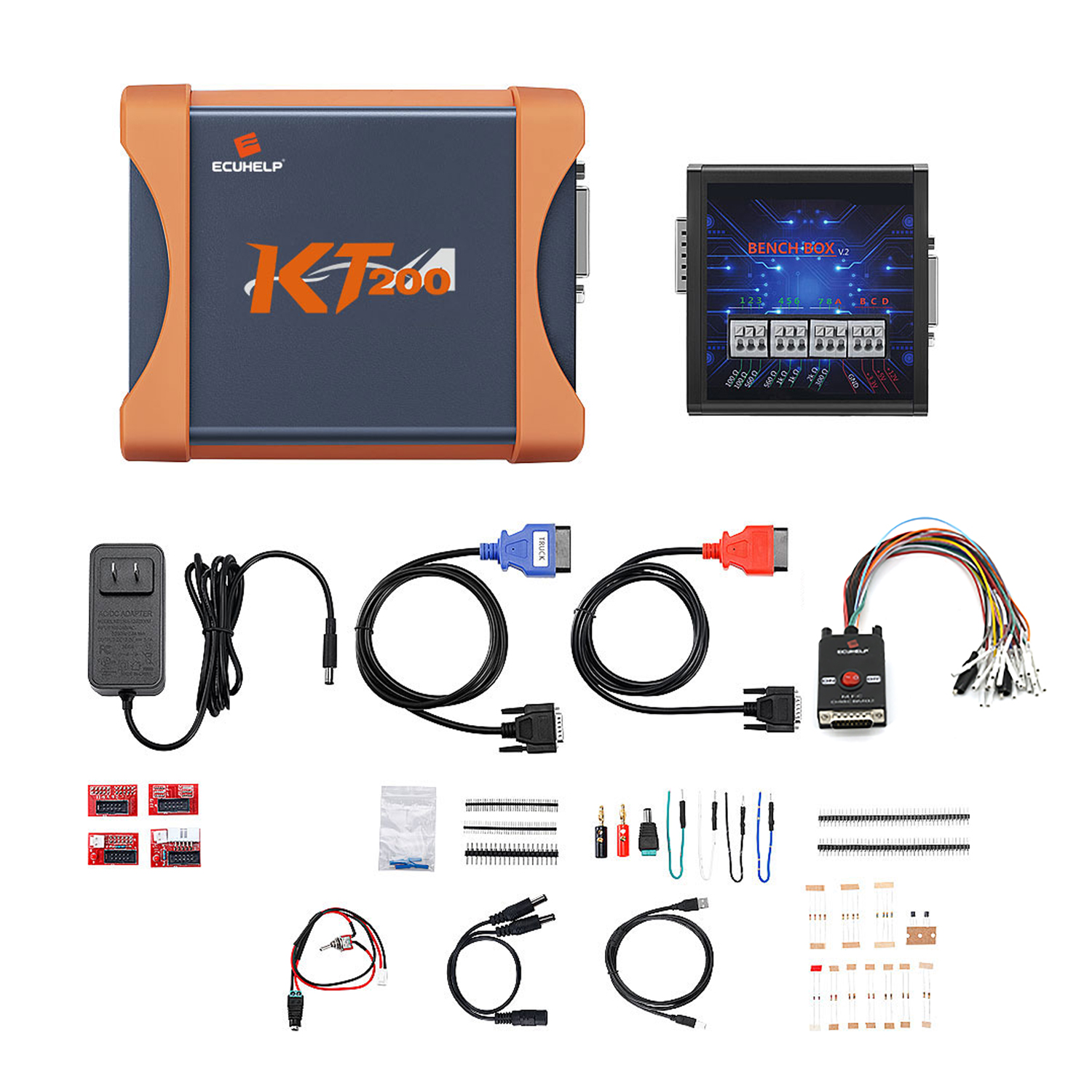

Package Includes:

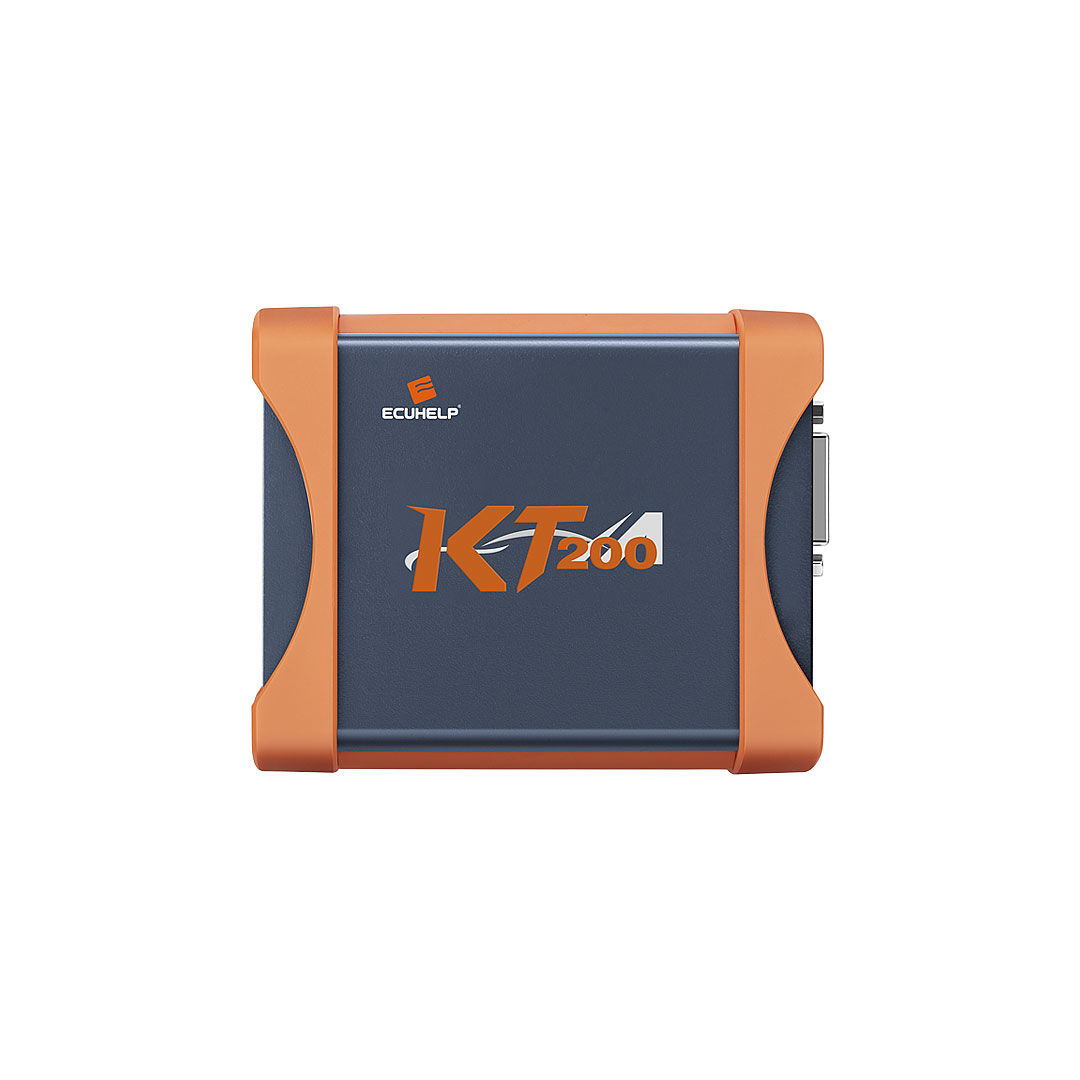

1pc x Master

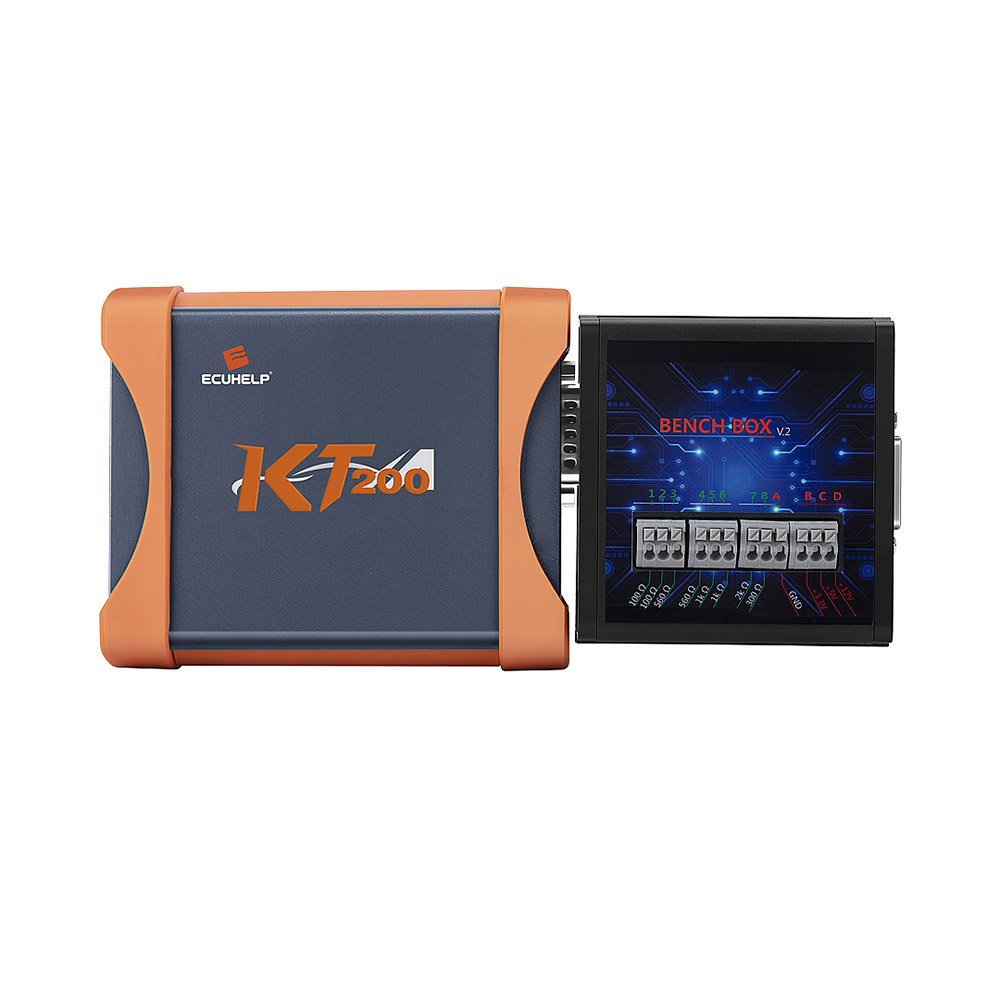

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
