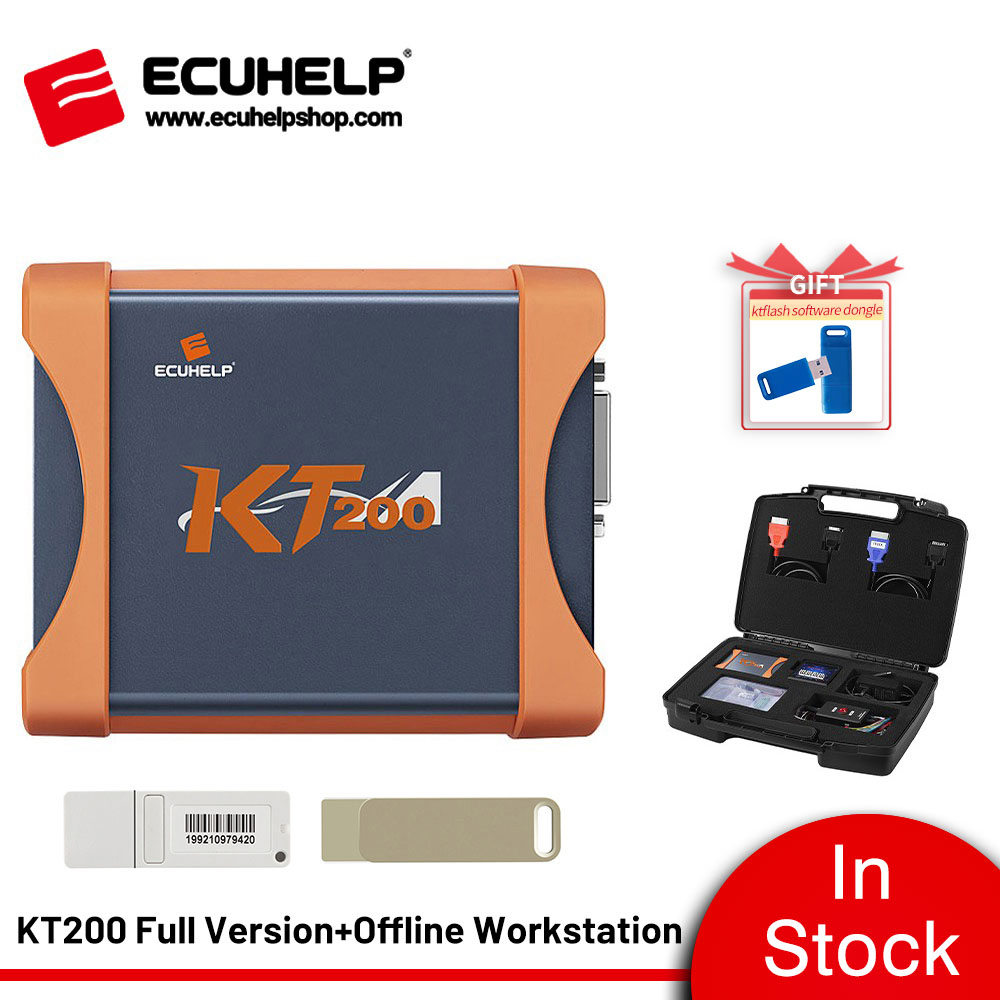

ECUHELP KT200 Offline Workstation Read/Write 5000+ECU, 500+TCU Gearbox of Car Truck Tractor Boat Motorbike on Bench, OBD, Full System, BDM/JTAG, TOOL BOOT Mode. Compatible with any computer. No registration & activation. EU/ USA delivery. Free update, no annual fee.
KT200 Update on September 26, 2023:
ECUHELP released a free software called "KT300". This software fixes the automatic checksum bugs presented in KT200 and offers support for multiple ECU data checksum.
To use "KT300", simply connect the KT200 to your computer and place the software on the desktop; there's no installation required.
Download: KT200 Checksum Software
2023.02.01 ECUHELP KT200 ECU Programmer Offline Workstation for Car Truck Motorbike Tractor Boat [with Suitcase]
ECUHELP KT200 is a complete ECU Programmer for reading and programming over 5400 ECU (engine control units) and over 500 TCU via OBD/Bench/Boot mode, the BDM/Jtag systems are also available.
KT200 is compatible with various car brands worldwide from Europe (i.e. Germany, France, Italy, etc.), USA, India, Japan, and China. It can read and write the EEPROM and flash memory of ECUs types of ECUs i.e Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental, Motorola, Valeo, Siemens Continental, etc. Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.

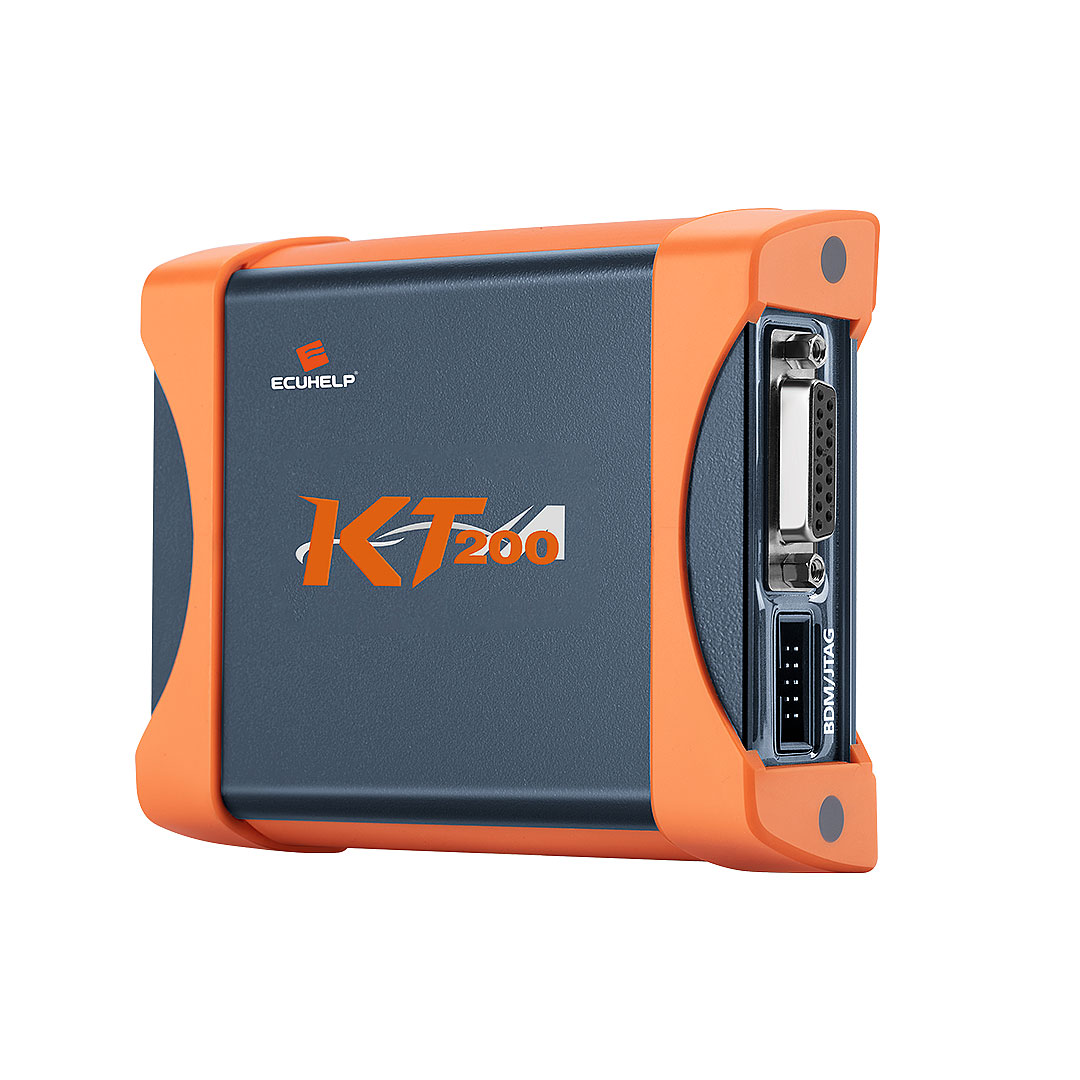

ECUHELP KT200 Master
ECUHELPshop provides the following items:
- KT200 ECU Programmer covers up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs).
- KT200 Full Read and Write TCU(MICRO + EEPROM): TCU CLONING and TCU CODING FUNCTIONS
- Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
- KT200 ECU programmer software allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
- ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
- Support Volkswagen Audi clone (local operation without sending data to manufacturers)
- Support Audi/VW ECU Clone via Bench Mode pinout.
- Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.
- Supports Simos PCR2.1 unlock by OBD CAN.
- Can perform a full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.
- KT200 supports a part of Auto Checksum Calculation, it is recommended that you do manual checksum using Winols / Davinci, Lsuite, and similar tools.
- Get free VR files and Damaos files from ECUHelp V3.0
DTC code Removal EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
KT200 Vehicle Coverage:
KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List
KT200 ECU Programmer from covering up to 5400 ECU, and over 500 TCU.
ECUHELP KT200 Full version with10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gearbox
|Full Read And Write Via Pin Out in Bench Mode:
BOSCH ME9 / MED9
BOSCH MED17 / ME17
(Unlocking also possible via pinout)
|Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
|BDM EJTAG Modes For:
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx
BOOT MODE ST K-LINE / RX-TX / CAN
|BOOT Mode Tricore for micro:
|BOOT Mode Renesas:
|BOOT Mode Mitsubishi:
|BOOT BAM System MOTOROLA:
-BOOT MODE Fujitsu
-BOOT MODE Hitachi
Abarth, Alfa Romeo, Aston Martin, Audi, Baic, Belarus, Bentley, BMW, Chery, Chevrolet, Chrysler, Citroen, Corvette, Cummins, Cupra, Dacia, Daewoo, Deutz, Dodge, Doosan, DR, Effedi, Faw Jiefang, Fendt， Ferrari, Ferrari - MaseratiFiat Alfa Lancia FCA, Fiat, Ford, Ford - Jaguar, Ford – Mazda, Ford – PSA, Ford - PSA - Volvo, Ford – Volvo, Geely, GM, GM-Opel, GMC, Great Wall, GWM, Hino, Honda, Hummer, Hyundai, Kia, Infini, Isuzu, Iran Khodro IKCO, Iveco, Jac, Jaguar, Jeep, Jeep - Chrysler, Kia, Kia - Ssangyong, Ktm, Lada, Lamborghini, Lancia, Land rover, Land rover Freelander， LDV, Lexus, Mahindra, Man, Maserati, Mazda, MC Laren, Mercedes Benz, MG, Mini, Mitsubishi, Nissan, Opel, Opel GM, Peugeot, Porsche, PSA, Renault, Rolls Royce, Rotax, Rover, Rover MG, Saab, Same, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Toyota, UAZ, VAG, Volkswagen, Volvo, XCMG.
***Covering a full range of cars from Europe, Germany, France, Italy, Japanese, American, and Chinese models.
Astra, Bugatti, Caterpillar, Claas, DAF, Deutz, Faw, Fendt, Fergusson, Ford Transit, Hino, International, Isuzu, Iveco,Iveco Daily, Iveco Stralis, New Holland truck, Iveco Tector - New Hollan truck, Iveco Tector - New Hollan truck, Jac, Kamaz, Kia, King Long, King Long Bus,Landini, Mack, MAN, Massey Ferguson, MC Cormic, New Holland, Nissan, Renault, Renault – Volvo，Renault Mascott, Scania, Seat, Shaanxi,Shacman, Sinotruck, Sisu,Steyr, Still, Thaco, Valtra,Volvo Truck.
AFT, Agco, Agrale, Agrifac, Artec, Axial-Flow, BCS, Bobcat, Bravo, Carraro, Caterpillar, Challenger, Claas, Deutz, Deutz Fahr, Dieci, Fendt, Gehl, Grim, Guaresi, JCB, Jhon deere, Kioti, Komatsu, Kramer, Kubota, Lamborghini, Landini, Lindner, Massey Ferguson, McCormick, Merlo, New Holland, Oxbo, Same, Sgariboldi, Supertino, Tecnoma, Valtra, Valtra Tractor, XCMG, Yanmar.
Case, Bobcat, Doosan, Hitachi, Steyr,
Aprilia, Benelli, BMW Moto, CF Moto, Derbi, Ducati, Gilera, Harley Davidson, Indian Motorcycle, Kawasaki, KTM, Moto Guzzi, MV Agusta, Piaggio, Royal Enfield, Suzuki, Yamaha
Iveco,Sea Doo, SISU Engine, Volvo Penta, Yanmar
KT200 Software Free Download:

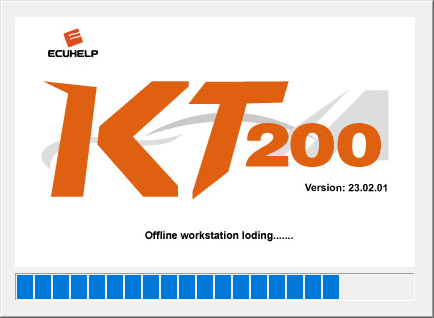

Free Download KT200 23.02.01 Software Offline
Free Download KT200 22.12.10 Software
KT200 wiring diagram
Operating system: 7, 8/8.1, 10, 11, CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB.
Ensure a stable internet connection when using ECUHELP KT200 software full version and auto version.
To switch servers, go to the Service option and select from available locations including China, Germany, and Hong Kong.
Set your PC's time and timezone to automatic.
Uninstall the antivirus program, and disable Windows Defender to prevent it from mistakenly flagging the software and interfering with its functionality.
Match your PC's timezone with the server you're using.
Restart your PC after making changes for smooth software operation.
Properly plug in and ensure recognition of the ECUHELP KT200 tool by your computer.
Verify sufficient battery voltage.

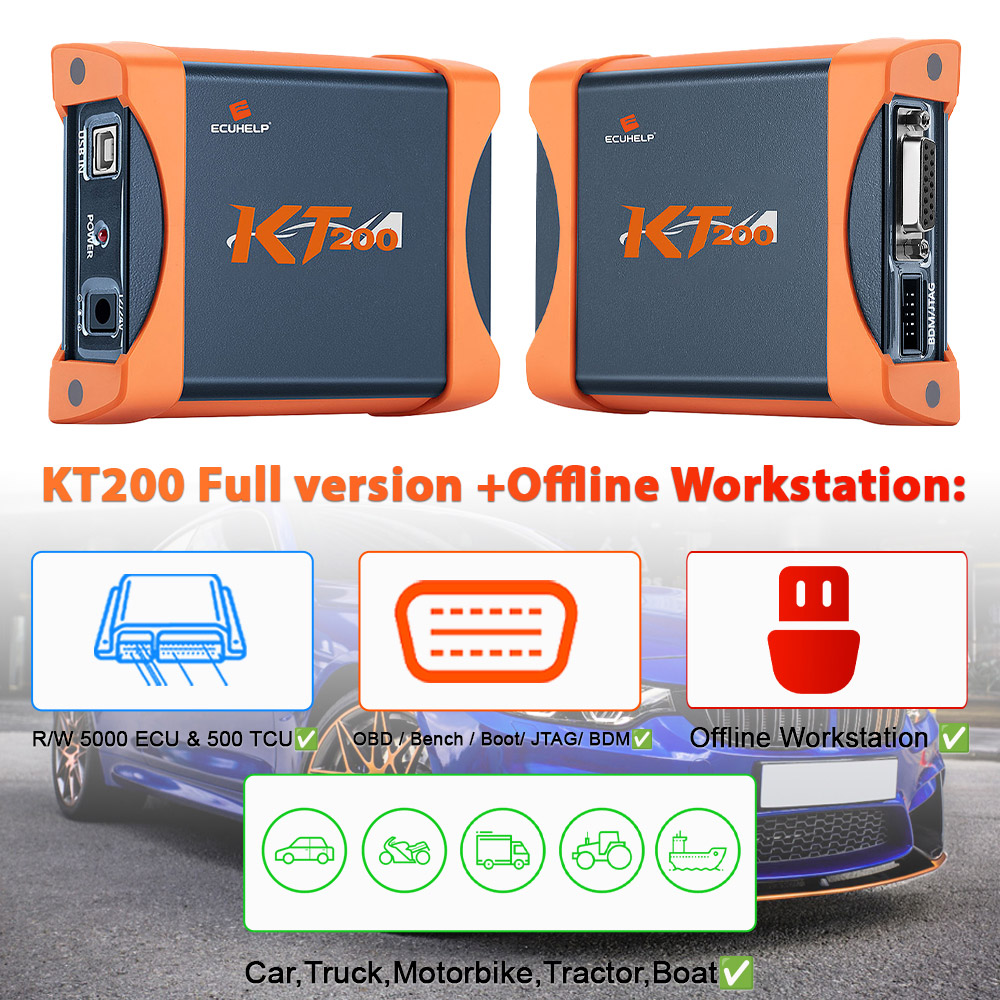

ECUHELP KT200 Offline Workstation Features:
1. Free Shipping from USA, EU, no tax.
Packed with solid Suitcase
3. Software Free Update Online, No Annual Subscription
4. Multilanguage available: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
ECUHELP KT200 Update(April, 2023 ): Add HTprog Clone Adapter to Cover more ECU Clone List
Chip Tuning / ECU Cloning
With HTprog you can read and write P-Flash, D-Flash, External Flash and external EEPROM with the option of automatically checksum correction, you will have many methods in most of ECUS :
1. Factory mode (On Bench for most of ECU / TCU): with this option you don' t have to open the ECU cover. Just plug some wires for power and signals and you are ready to go.
2. Tricore Boot Mode for all Tricore ECU: Opening the ECU is mandatory to connect the boot wire on the ECU board.This method is useful when the ECU is not responding
3. BDM (Background debug mode)
4. JTAG for Renesas and Freescale
BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW. EIZ / EIS in Mercedes Benz. BCM in Volkswagen and Porsche.etc.
With HTprog you can edit many Flash data like:
Edit CAS3+ VIN, ISN and keys
Edit CAS4, CAS4+ VIN, and ISN
Edit mileage for BMW instrument clusters
You can do key reset for many brands like Audi, BMW, MIN, Porsche, Toyota, Fiat, Renault...etc.
Read / Write a wide range of SOP8 EEPROMS.
Works side by side with Autohex to make keys.
Master version. One License for all protocols on bench.
Supports one of the largest ECU / TCU list in Cars and Trucks for ECU cloning and Chip Tuning. Supports both old and latest ECU / TCUs from Bosch, Continental, Delphi, Marelli, Denso, Tenic, TRW and Valeo.etc.
Reads all BMW long ISN from BMW DME and DDE including MD1 and MG in F/G series
IMMO BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW, EIZ / EIS in Mercedes Benz.BCM in Volkswagen and Porsche...etc.
Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronized.
2. Optimized server connection time, high speed, and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42
What is the ECU service?
ECU service includes 2 major items:

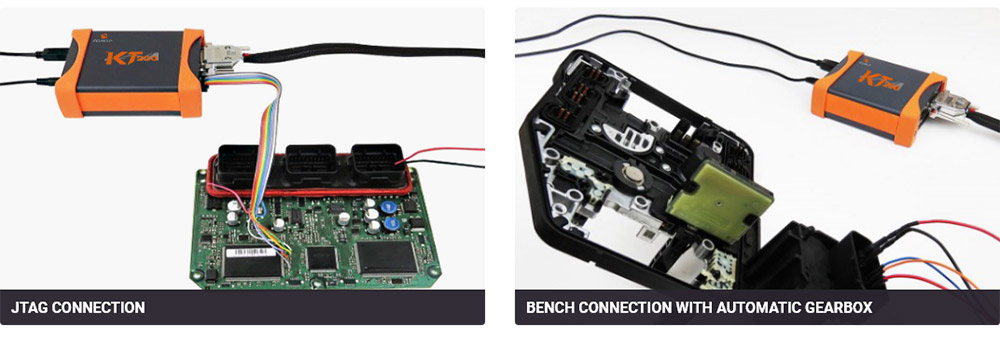

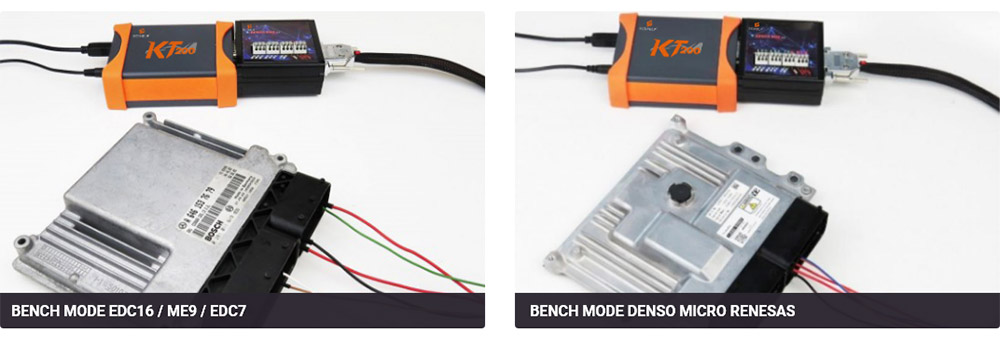

Here are some examples of KT200 ECU Programmer Multiple connections:

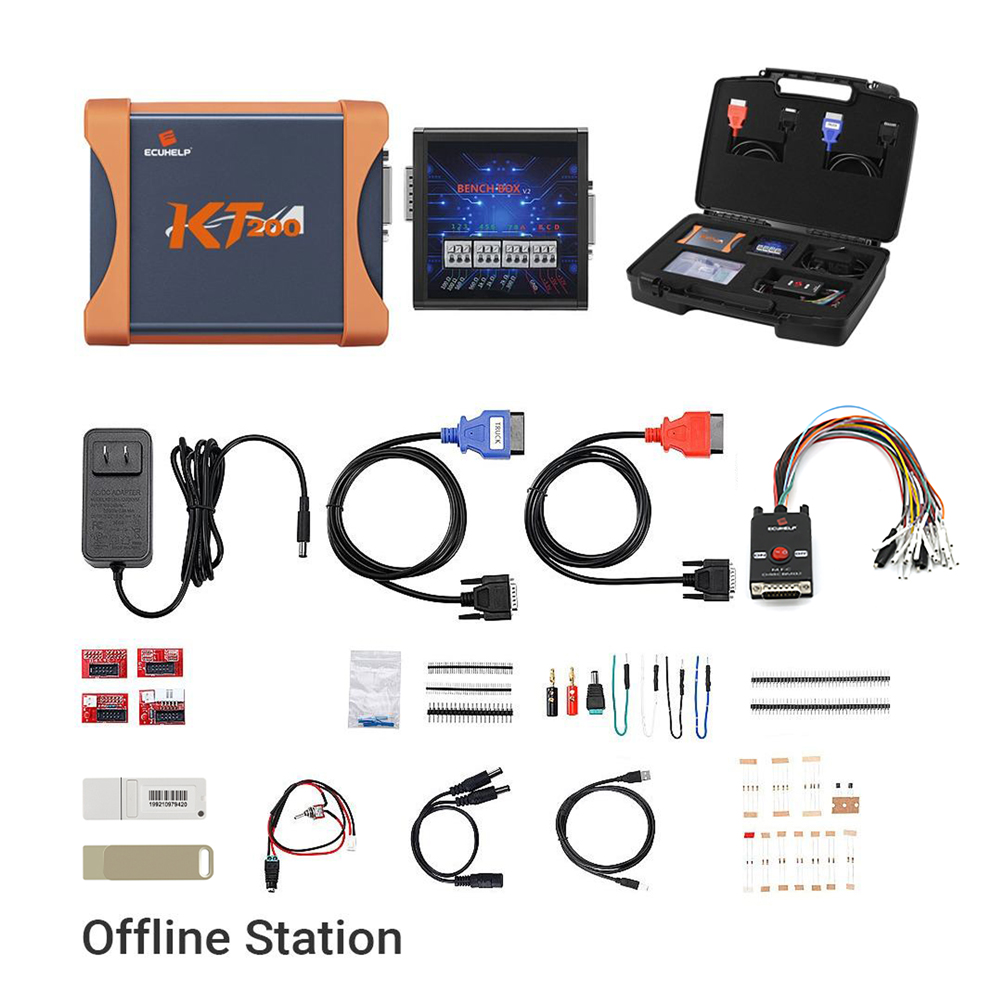

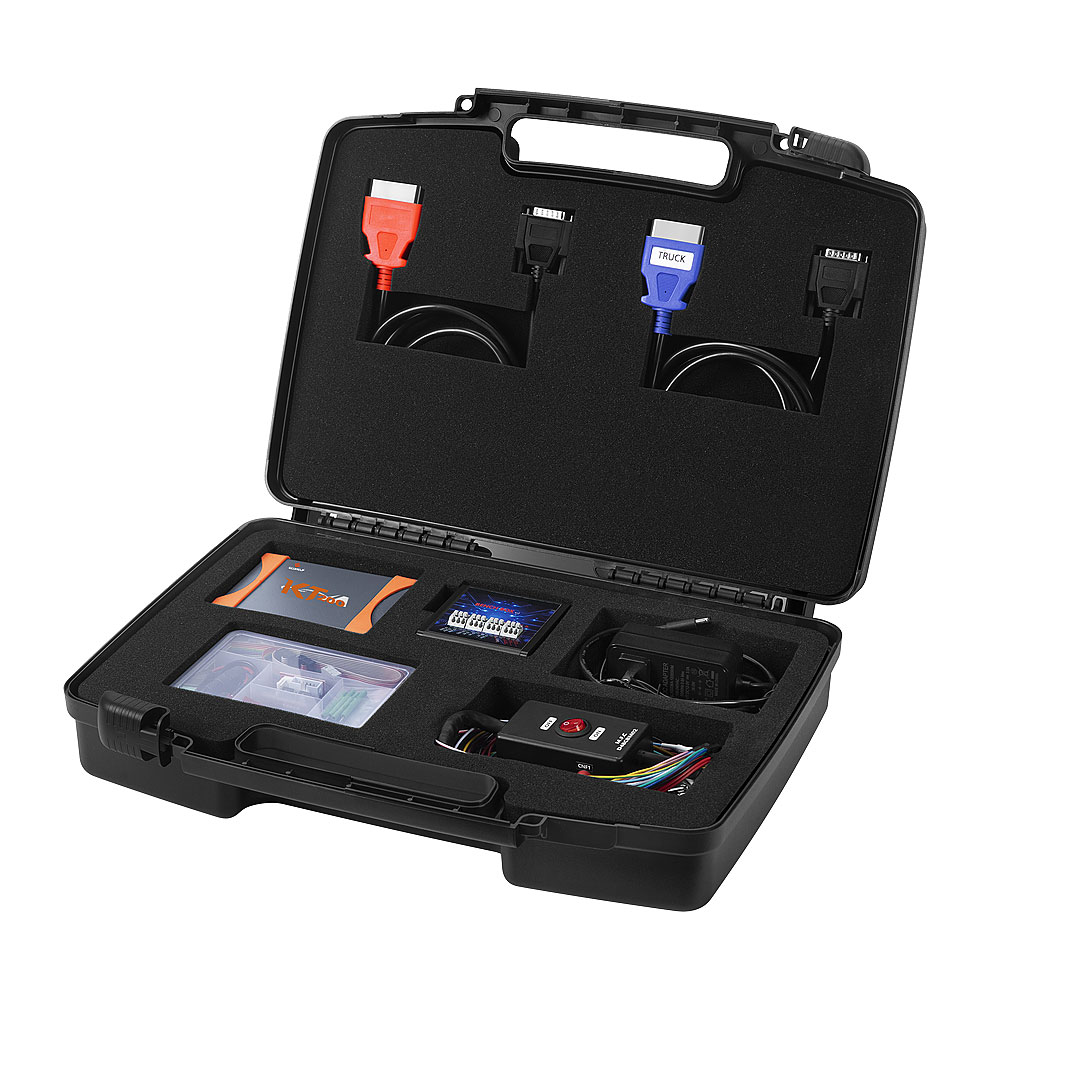

ECUHELP KT200 Offline Mode Package Includes:
1. Chip tuning.
Chip tuning improves engine performance by modifying the data read out by the equipment. The data is divided into Stage 1 data, Stage 2 data, and Stage 3 data.
2. ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items: DTC code Removal
1pc x Master

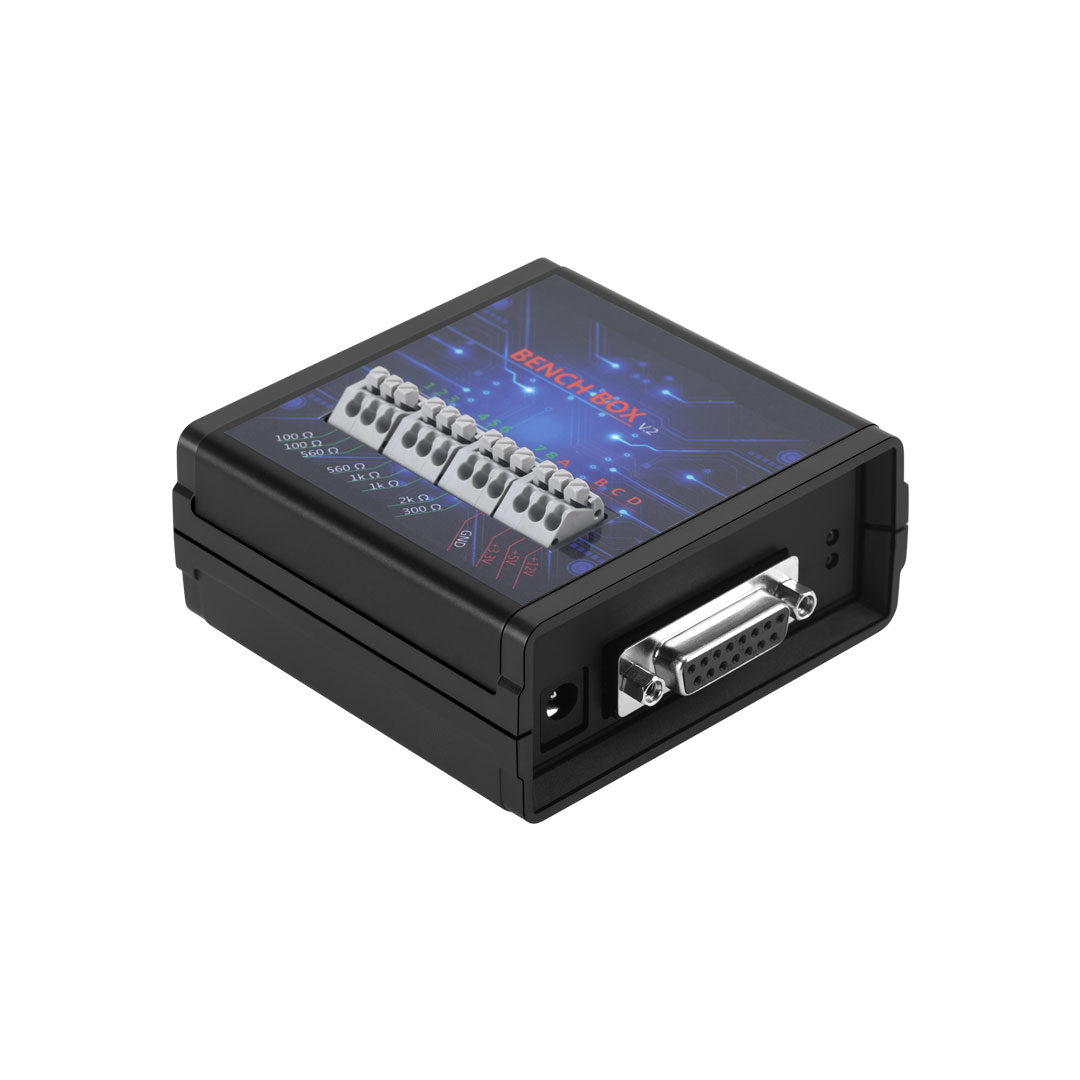

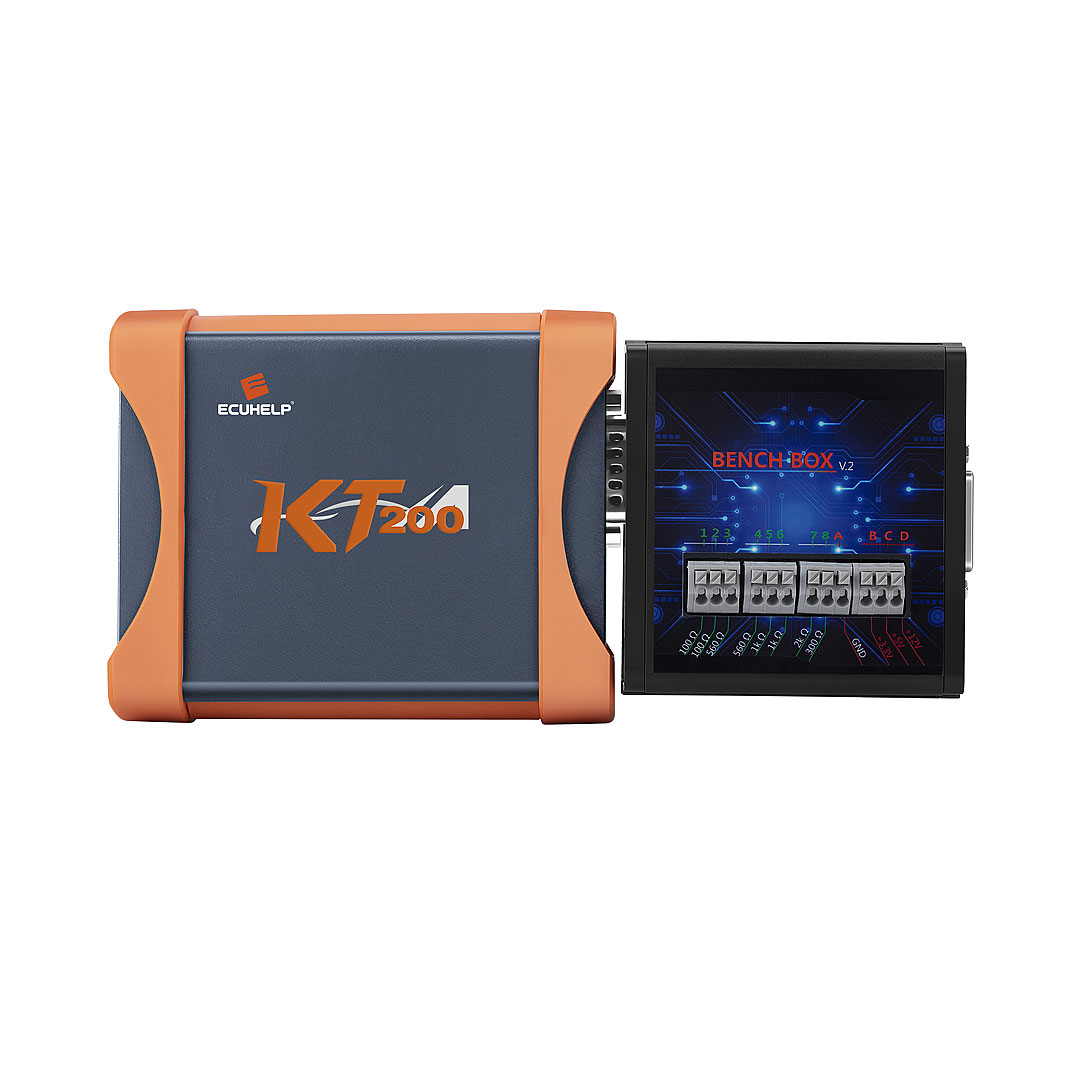

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
