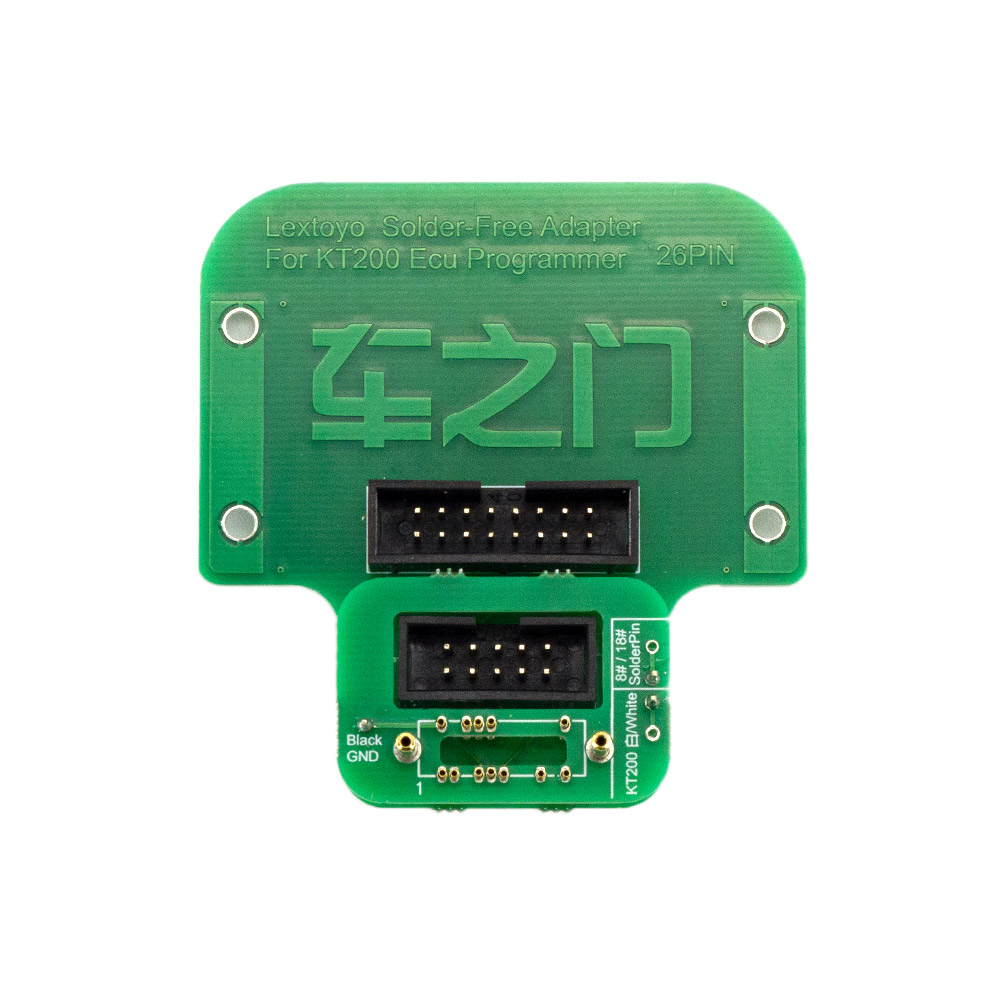

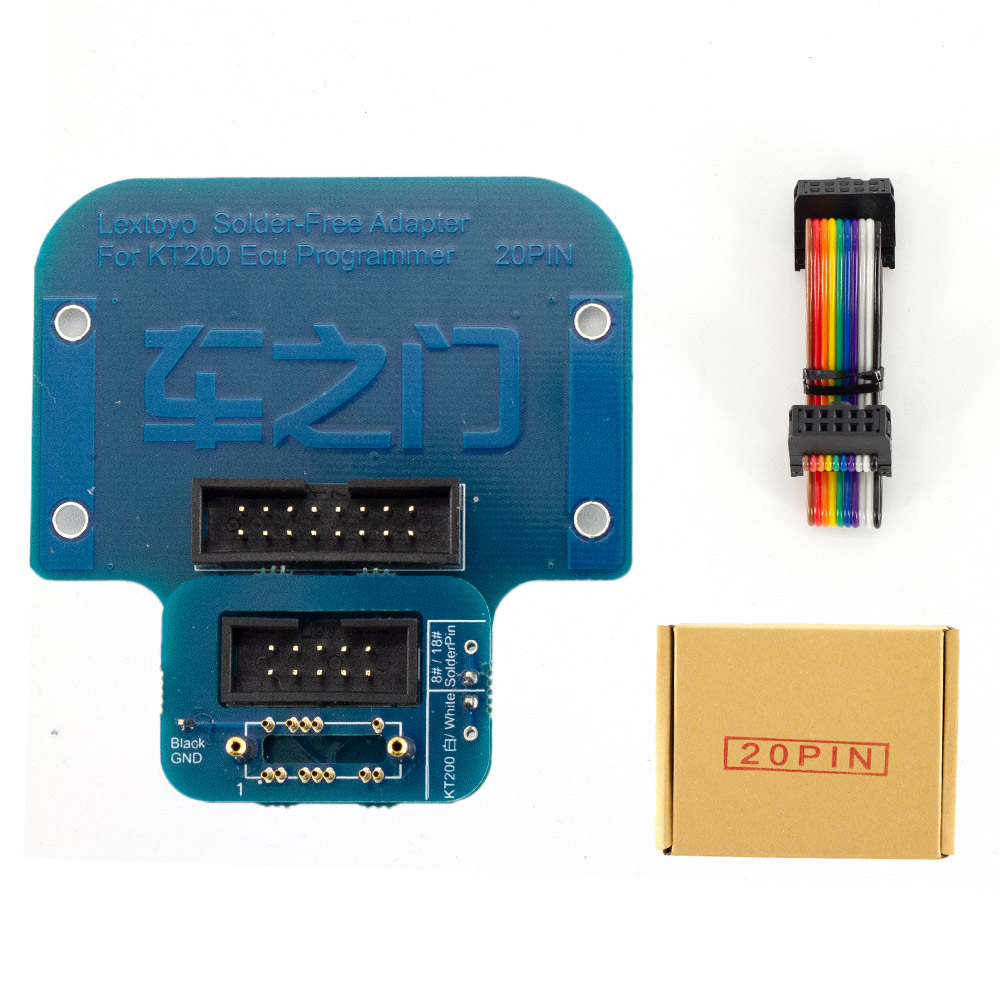

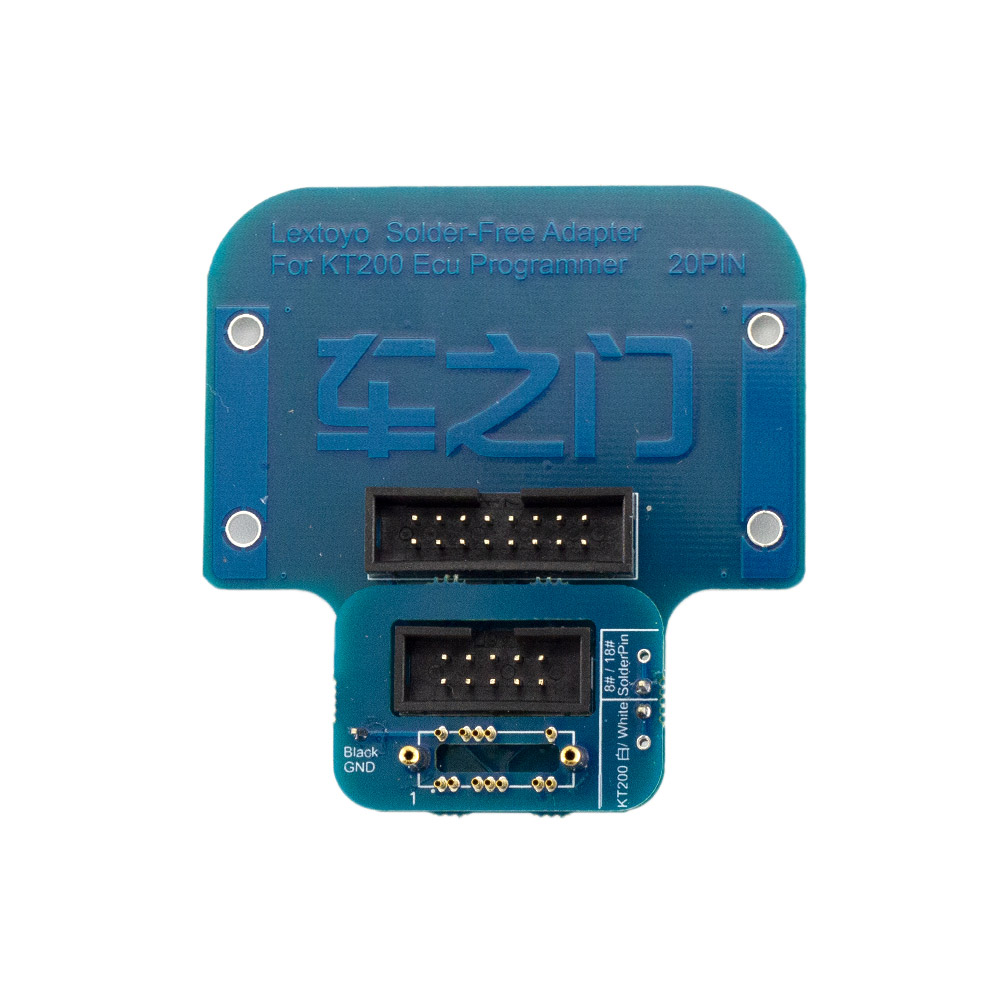

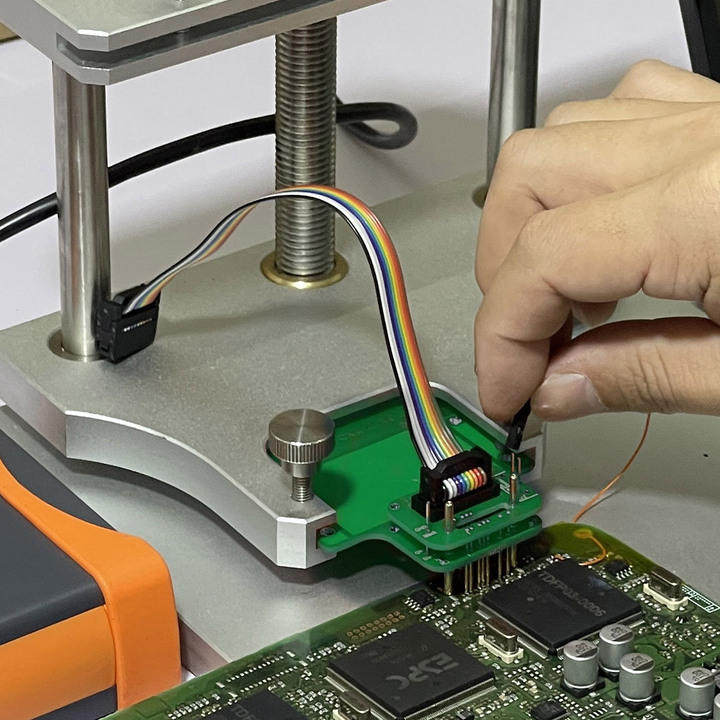

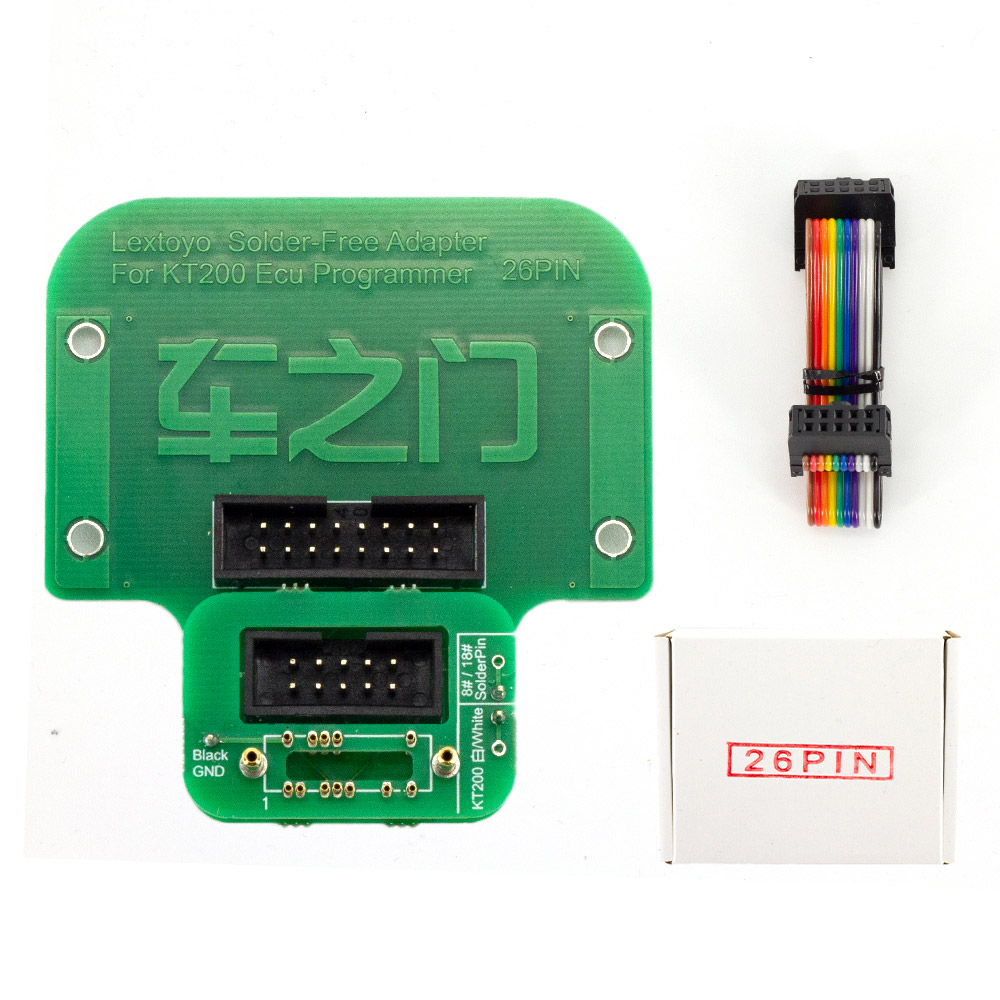

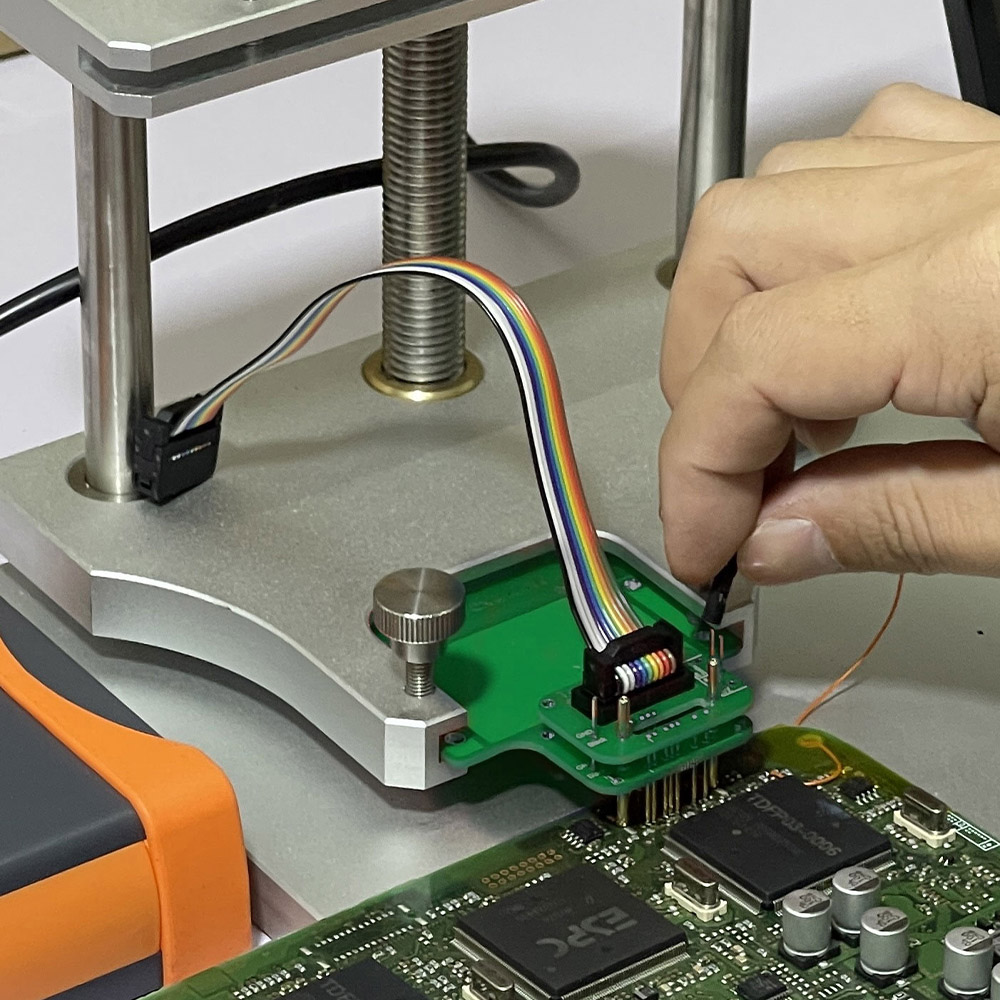

How to use the solder-free adapter with ECUHELP KT200:

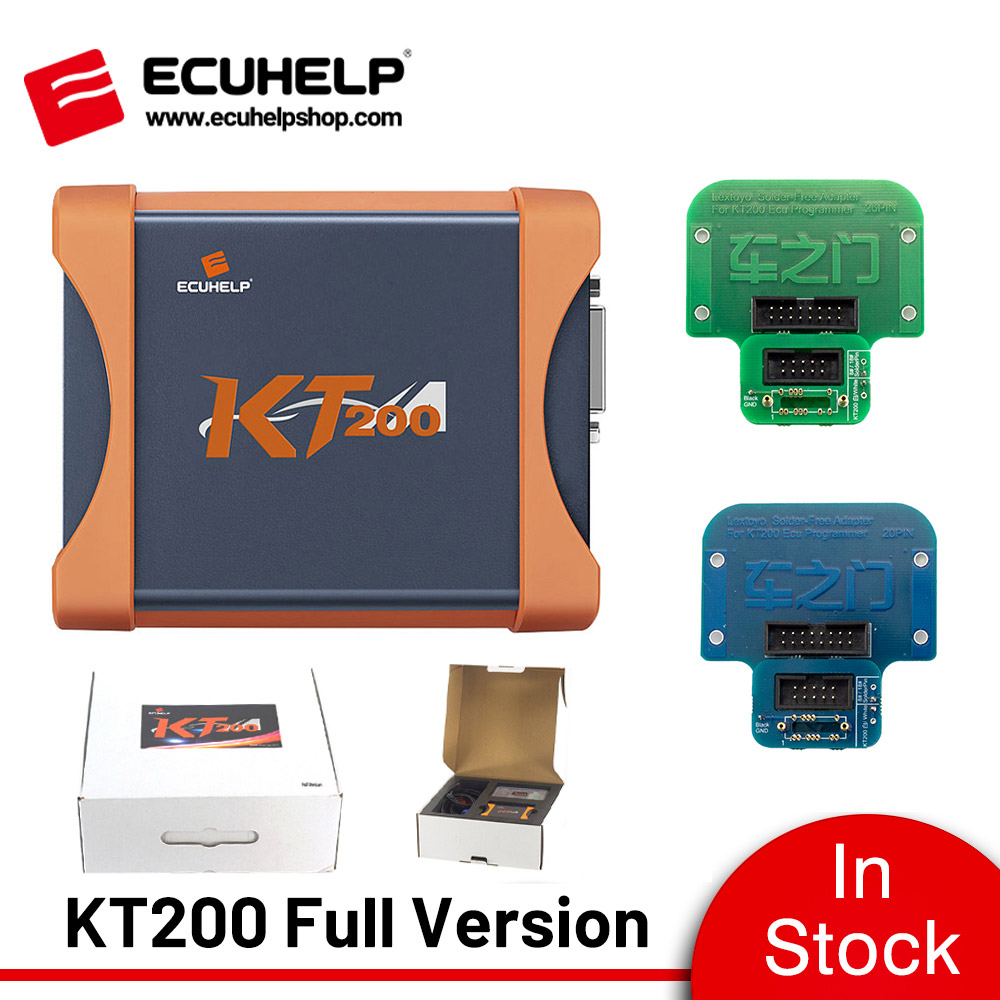

Part 2. 2023.02.01 ECUHELP KT200 ECU Programmer Full Version Highlights:
1. KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gearbox.
2. Free VR files and Damaos files available from ECUHelp V3.0
3. Free update and no annual fee (If you want to add new modules in the future, need to pay for new modules, for example HTprog clone adapter)
4. Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
5. 1-year warranty period, after-sales service guarantee

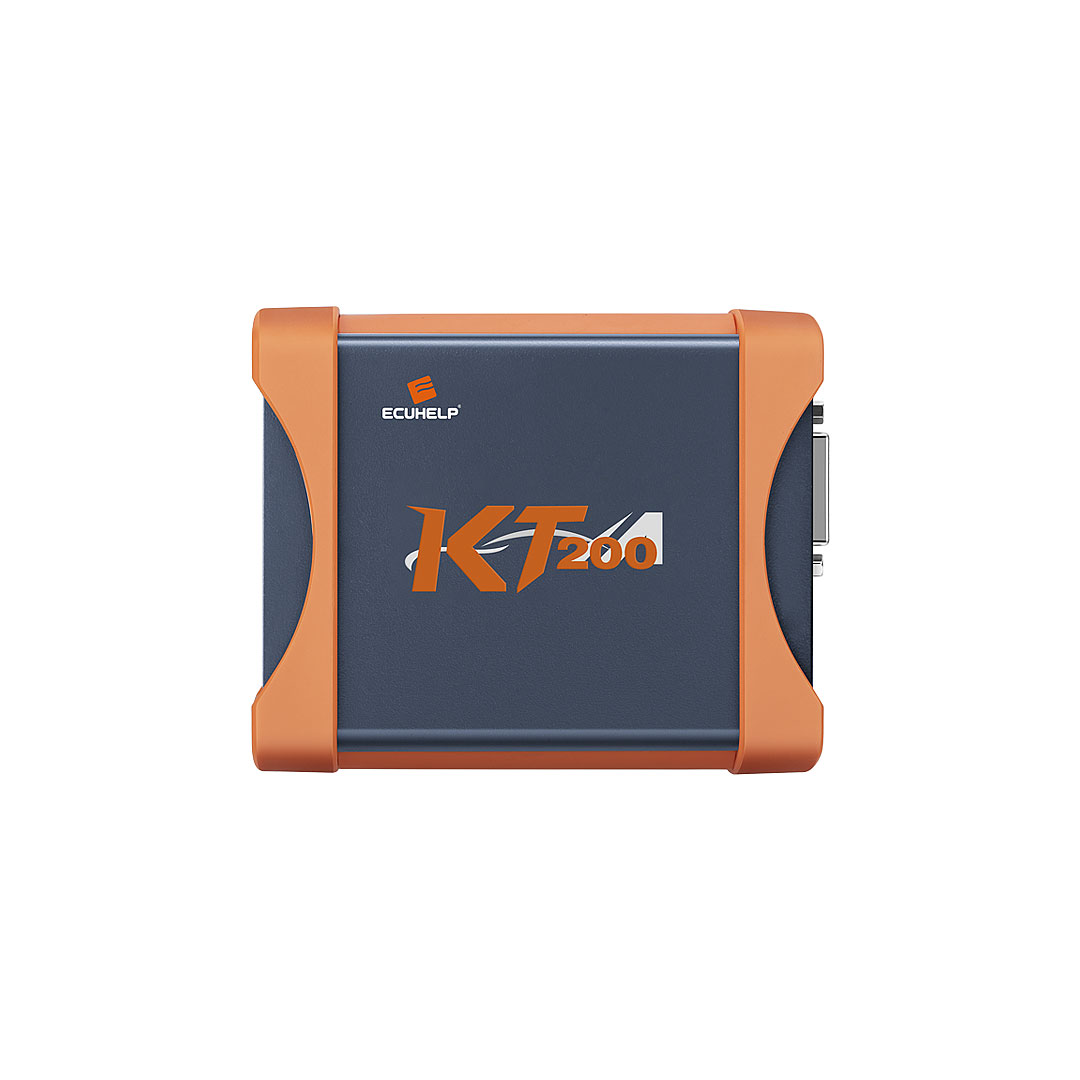

KT200 ECU Programmer is a complete tool for reading and programming ECU (engine control units) and TCU via OBD / Bench / Boot mode, the BDM / Jtag systems are also available.
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
Supports Checksum Calculation
Additional TCU package available for Automatic Transmissions for free
Full read and write TCU (Micro + EEPROM)
TCU Clone
TCU Coding
Covering up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e / SQ100, Jeep 9H28 TCUs)
Supports Simos PCR2.1 unlock by OBD CAN.
Can perform a full backup of edc15 (flash + eeprom) by pinout. No need to open and boot mode which is a rare feature.
Ecuhelp KT200 2023 software update(02 / 01 / 2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
The software does not need to register and activate.
Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements: CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
ECUHELP KT200 installation tips:
1. Make sure good internet (for online version)
2. Go to Service to change a server (any of China, Germany and Hongkong)
3. Set time and timezone auto
4. Turn off windows defence
5. Set timezone to the same as server
6. Use V-P-N and set V-P-N to where server is at
7. Restart PC
8. Make sure tool is plugged in
9. Good battery voltage.
How To Install KT200 New Software 2023.02?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the " Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the " Wiring diagram " to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the " Diagnosis" button in KT200 service software first for detection.
KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42
Product Function:
EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.
Full Read And Write Via Pin Out in Bench Mode: BOSCH EDC7 BOSCH EDC16 BOSCH ME9 / MED9 BOSCH MD1 BOSCH MG1 -FREESCALESPC5777 -AURIXTC29x -STSPC58 BOSCH EDC17 BOSCH MED17 / ME17 SIEMEN SPCR2.1 (Unlocking also possible via pinout) |
Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs: BOSCH CONTINENTAL DELCO DENSO MARELLI SIEMENS TEMIC TEMIC |
BDM JTAG Modes For: BDM MPC55x BDM MPC56x BDM MC32 / ZC32 BDM HC12 / S12x JTAG NEXUS MPC / SPC56xx JTAG NEXUS MPC55xx |
JTAG RENESAS: SH7055 SH7058 SH7059 SH7251 SH72543 SH72544 JTAG NEC76F00xx 76F0038AGD 76F0038GD 76F0039AGD 76F0039GD 76F0040GD 76F0070 76F0070 76F0085 |
BOOT MODEC16729Fxxx: BOOT MODE ST K-LINE / RX-TX / CAN ST10F168 ST10F269 ST10F273 ST10F275 ST10F276 ST10F276 ST10F280 ST10F296 |
BOOT Mode Tricore for micro: TC1724 TC1728 TC1738 TC1738 TC1762 TC1766 TC1767 TC1782 TC1791 TC1792 TC1793 TC1793 TC1796 TC1797 |
BOOT Mode Renesas: SH7052 SH7054 SH7055 SH7055 SH7058 SH7059 SH7251 SH72543 SH72544 |
BOOT Mode Mitsubishi: MH7202 MH7203 MH8102F MH8105F MH8106F MH8202 MH8206F MH8301F MH8301F MH8304F MH8405F |
BOOT BAM System MOTOROLA: SPC5674 SPC5777 -BOOT MODE Fujitsu -BOOT MODE Hitachi |
