Read and write EEPROM and flash of GM Opel ECU ie, E39A, E78 that has 5-bit seed and need to calculate key before reading.
Read and write eeprom and flash of GM Opel BCM
Read and write EEPROM and flash of GM Opel TCM
Read and write EEPROM and flash of GM Opel EPS
Product Description
IO-PROG for reading and writing OPEL / GM ECU BCM TCM EPS by OBD or on Bench,same as I/O Terminal Multi Tool and is a software and hardware solution designed for work with ECUs, transmissions, and BSI.
ECUHELP IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench [Full Version]
Note: Please kindly note that this kit now cannot calculate the seed key for BCM, if necessary calculate the seed key for BCM, see the latest IO prog.
I / O Prog ECU Programmer Advantages:
1. Read and flash the FLASH and EEPROM memory images using the diagnostic connector link.
2. A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device
3. Checksums testing and correction. Safe reading and flashing
4.Software cannot be upgraded online
5.This IO Prog is only available with GM / OPEL license now, not full cars Software Download Support ( Software for IO Prog hardware owners）
6. Software can read and write the memory of OPEL / GM ECUs via OBD or on Bench. Also, the software has bootpin recovery mode.
7. The ECU EEPROM EDITOR allows you to extract PINCODE and do other functions with EEPROM DUMP.
8. Software and wiring diagrams is available to be downloaded as well.

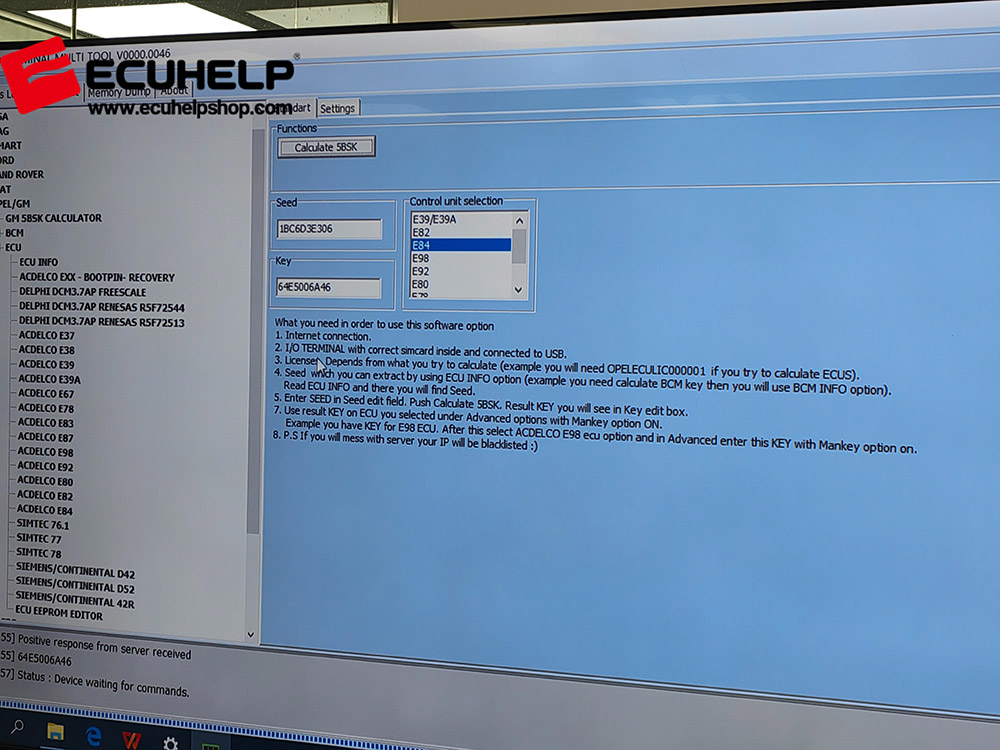

9. Read and write EEPROM and flash of GM Opel ECU ie, E39A, E78 that has 5-bit seed and needs to calculate key before reading that ECUHELP KT200 can't support (it will show Slilent key at the left corner of the software).

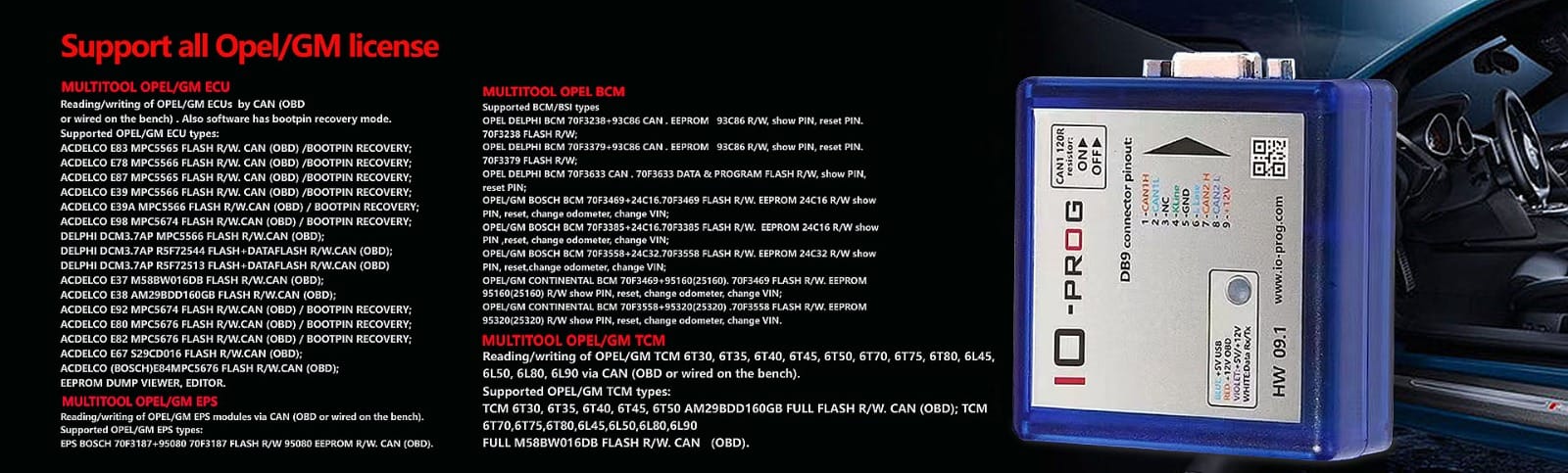

Read this image on io pro support list:
NOTE : MULTITOOL +OPEL / GM ECU LICENSE
IO Prog Opel / GM ECU List
Reading / writing of OPEL / GM ECUs by CAN (OBD or wired on the bench) . Also
software has bootpin recovery mode.

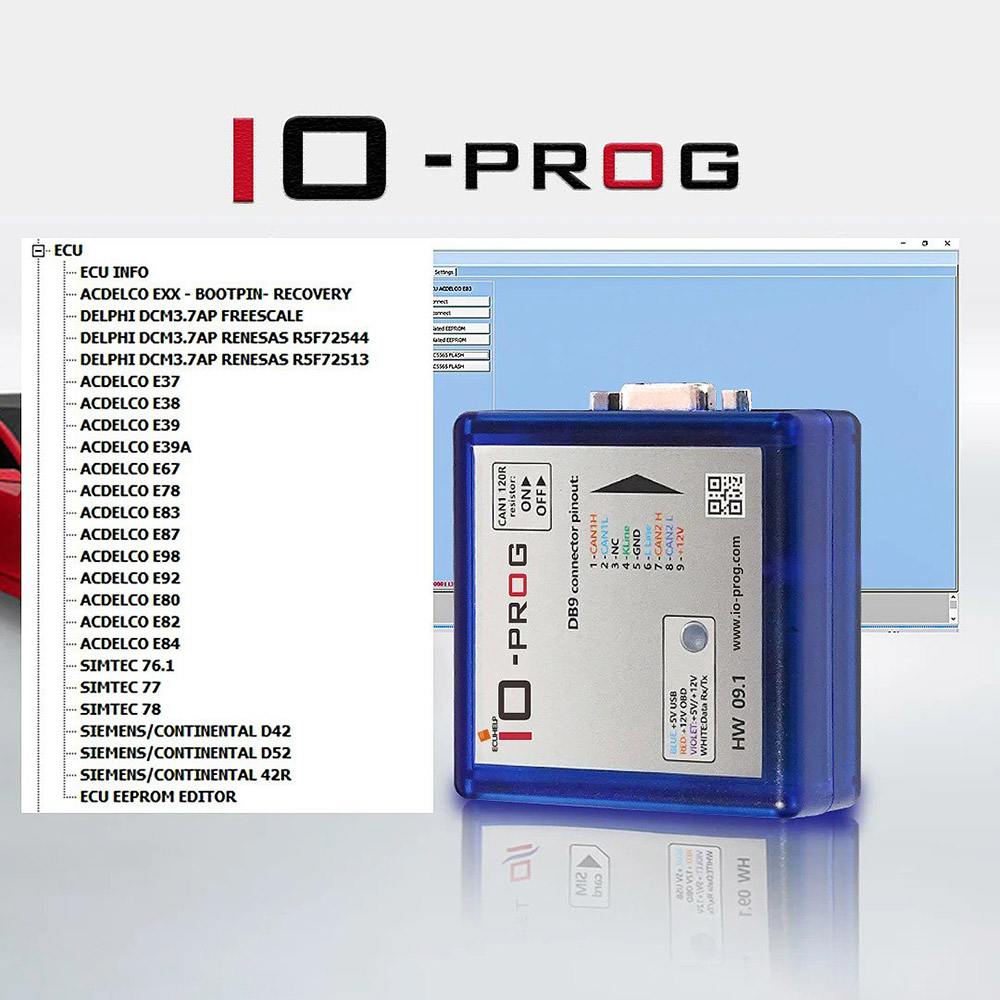

Supported OPEL / GM ECU types
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72544 FLASH + DATAFLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72513 FLASH + DATAFLASH R/W.CAN (OBD);
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);
EEPROM DUMP VIEWER, EDITOR. IO Prog Opel BCM List
Reading / writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL.
Also software extracts PIN CODE rom the EEPROM dump or data flash dump.
Supported BCM / BSI types
OPEL DELPHI BCM 70F3238 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3238 FLASH R/W;
OPEL DELPHI BCM 70F3379 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3379 FLASH R/W;
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show
PIN, reset PIN;
OPEL / GM BOSCH BCM 70F3469 + 24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W
show PIN, reset, change odometer, change VIN; OPEL / GM BOSCH BCM 70F3385 + 24C16.70F3385 FLASH R/W. EEPROM 24C16
R/W show PIN , reset, change odometer, change VIN;
OPEL / GM BOSCH BCM 70F3558 + 24C32.70F3558 FLASH R/W. EEPROM 24C32
R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3469 + 95160(25160). 70F3469 FLASH R/W.
EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3558 + 95320(25320) .70F3558 FLASH R/W.
EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.
IO Prog Opel / GM TCM List
Reading / writing of OPEL / GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported OPEL / GM TCM types:

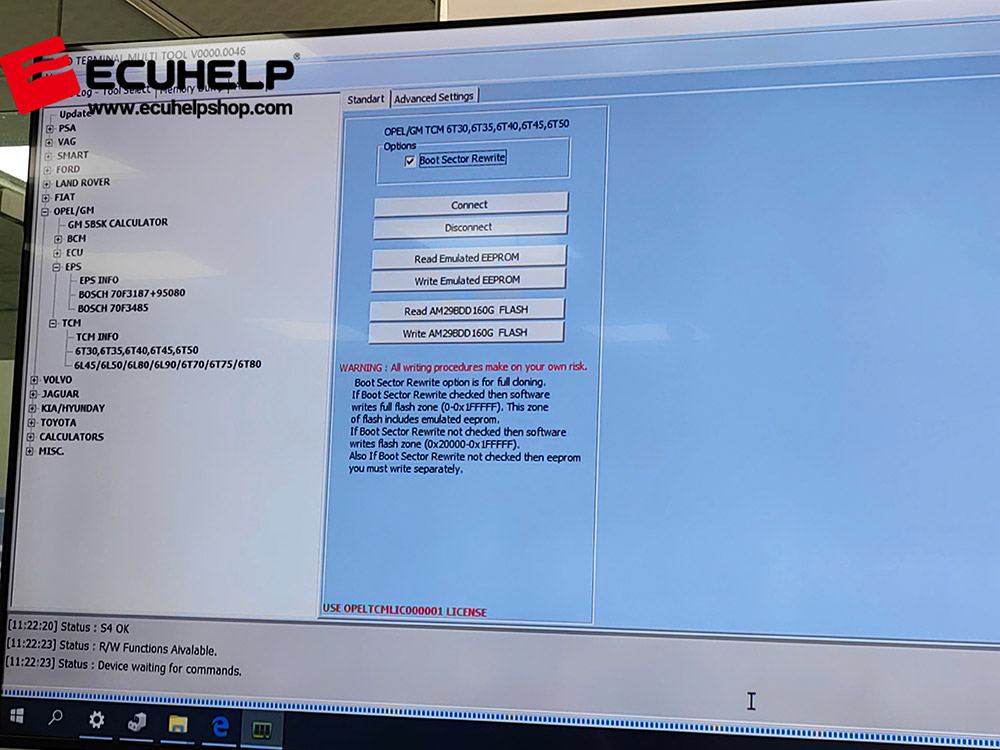

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
TCM 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).
IO Oprog Opel / GM EPS List
Reading / writing of OPEL / GM EPS modules via CAN (OBD or wired on the bench).
Supported OPEL / GM EPS types:
EPS BOSCH 70F3187 + 95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD). We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help! Email:Sales@ECUHELPshop.com Whatsapp:+86-18205996549 Skype:Sales@ECUHELPshop.com Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.
Tech Support
I/o prog activation full also works great. thanks for everything.
Read Chevrolet 70F3469 Flash ok
Pincode ok
Odometer ok
VIN ok
Watch video from one user's feedback:
Customer Questions & Answers
2 votes
Q:Question:bonjour comment obtenir les autres licences ? exemple: BSI psa ... Answer this question
A:Answer:
yes,it can be upgraded to io prog psa version,only need to buy a encrypted board.(and you need to know how to weld) you can contact me by whatsapp to buy the board:http://wa.me/8618205996549
Q:Question:After reading MJD 6o2 Opel Astra 1.3 cdti by obd, I downloaded two files flash and injectors. After uploading flash file with stage and engine fault light is ON. Need to upload Injector file? What Answer this question
A:Answer:
The injector file is a security for you once you have written your new file enter the injector codes with a diag, normally the injector file allows you to see the injector codes without you having to check in the engine.
Please have the adapter plugged into the computer before opening the software. also please run the software as an admin, or it won't open the software. Some users have tested IO on windows 10, 11, and 8 and works fine on all of them
Q:Question:hi i buy kt200, and it can;t do read ecu ME7.9.5 aygo by obd? in ecu list you write that it can r/w by obd so why it doesn;t working? Answer this question
A:Answer:
hello, glad to hear from you. What year? What car?
Q:Question:I have IO prog basic for GM and I purchased the upgrade card for GM transmission modules. can you send me a video on welding in the new card? I purchased it from you on AliExpress, do I have to de-sol Answer this question
A:Answer:
remove the old encrypted,and solder the new encrypted board
April 4, 2023 by gnarleyranger, from United States
Verified User
Tried to use kt200 to R /W E78 with failure, and was told E78 is new ECU and then I ordered IO Prog to calculate the SEED as Key, then R / W data without problem.
March 11, 2023 by Jose Aldeen, from Canada
Very good. In fact he is the authentic Io, however in place of the chip there is a memory. Works the same as the original for GM.
Verified User
March 10, 2023 by Grigoras Zandu, from United States
Verified User
Top seller. Great service, great communication. Very fast delivery I was waiting 6 days (ordered 24/2, arrived 2/3) Definitely recommend. Thanks
March 8, 2023 by Isaac k., from United States
"GM E98"
I use kt200 to read GM E98, but it doesn't seem to read the whole ecu. so I used my i/o prog and hooked up to it and read the ecu, now the i/o prog can read more of the ecu. With I/o prog I can read the emulated eeprom, the MPC5674 flash and the shadow password. With Kt200 I can read a 4meg flash file and a 64kb eeprom file and that's it. GM even has you do a ecu removal step before removing the ecu from the vehicle.
