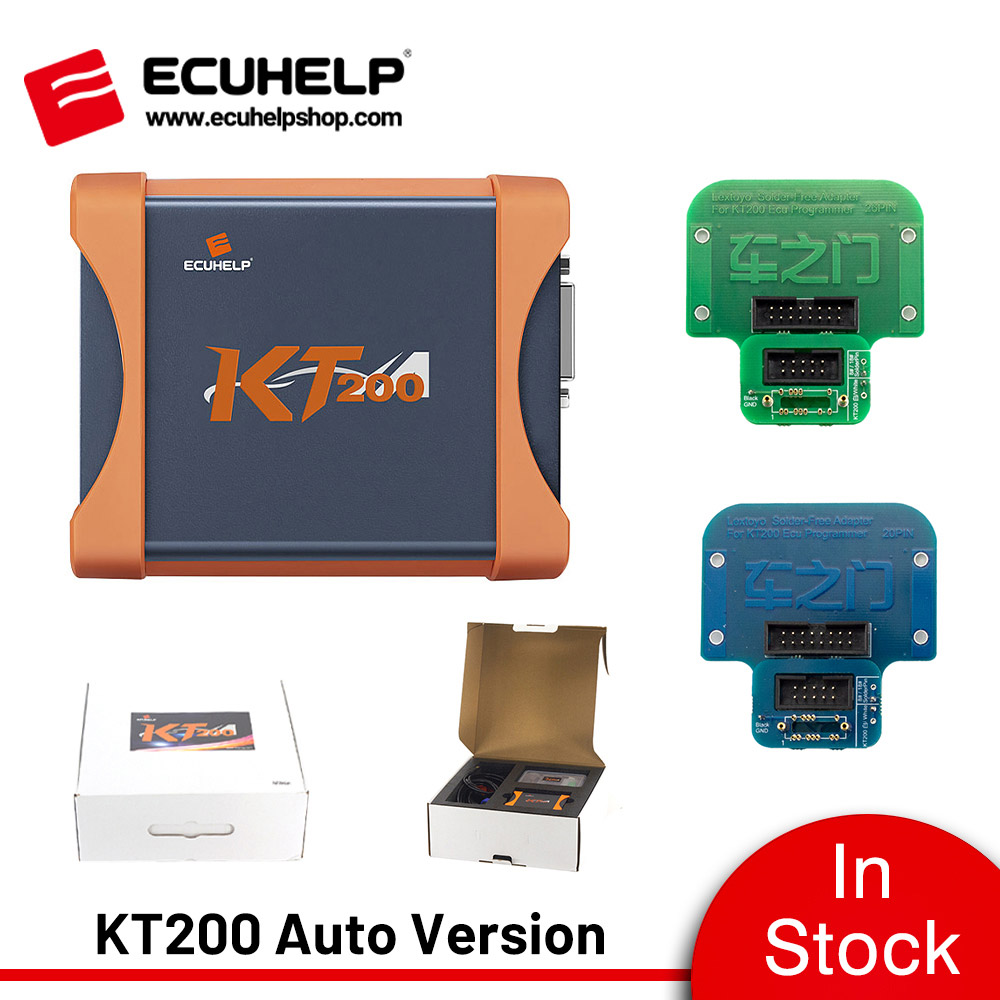

ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
KT200 auto with BDM adapter

ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter

515Was 57911% OFF
SKU: EP-KT200B-Z+EP-LEXAP20+EP-LEXAP26 Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-10 Working Days
Item Weight 3.5 kg
Returns Return for refund within 30 days, buyer pays return shipping.
3 Verison: Auto version ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag Solder-Free Adapter
Features
  • ECUHELP KT200 ECU Programmer Auto Version Supports Checksum Calculation.
  • With Toyota Lexus BDM / Jtag solder-free adapter
  • After upgrading to the full version and then adding an offline dongle, you can work offline.
  • Support Checksum Calculation.
  • Free Update Online,No Annual Subscription.

Product Description

ECUHELP KT200 ECU Programmer Car Truck Version with Toyota Lexus BDM / Jtag solder-free adapter. After upgrading to the full version and then adding an offline dongle, you can work offline.

ECUHELP KT200 ECU Programmer Car Truck Version. Upgrade to the full version and add an offline dongle then you can work offline.

Packed:
Part 1. Toyota Lexus BDM / JTAG Solder-free Adapter
Part 2. ECUHELP KT200 Auto Version for Cars and Trucks

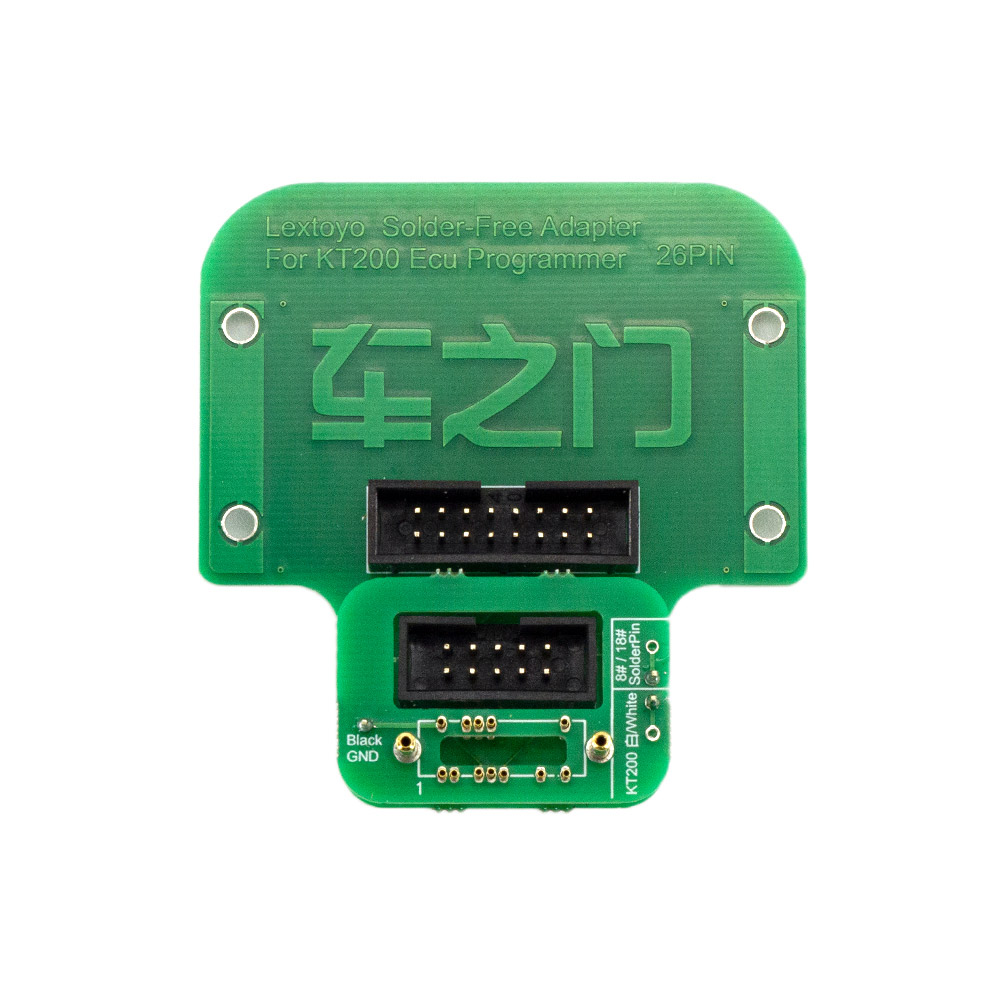

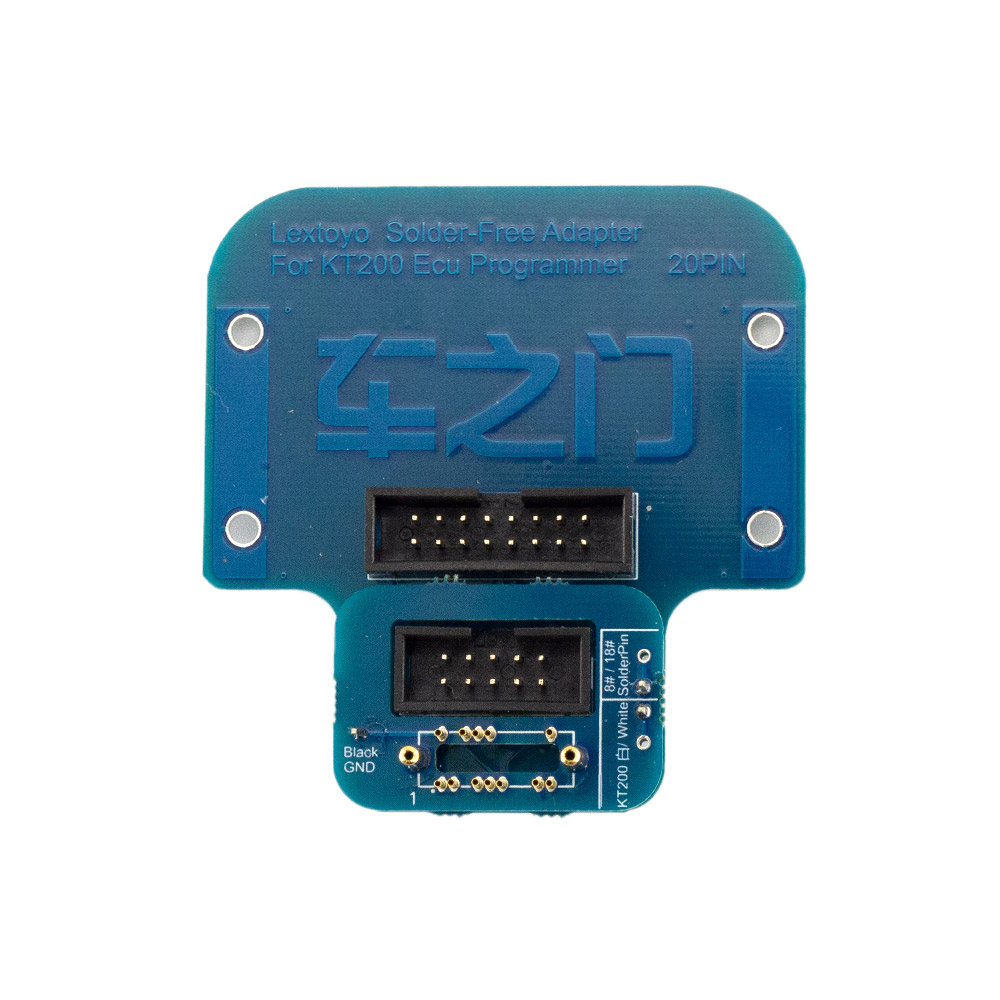

Part 1. Toyota Lexus BDM / JTAG Solder-free Adapter

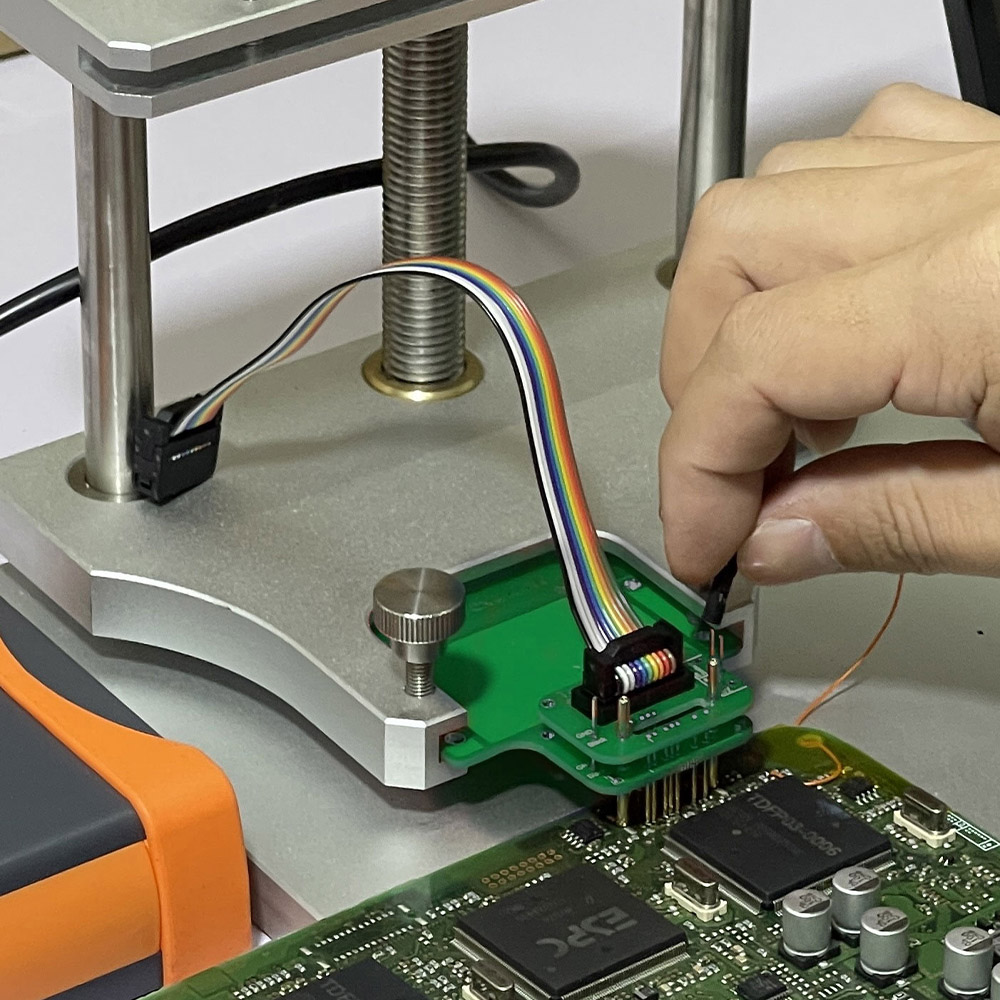

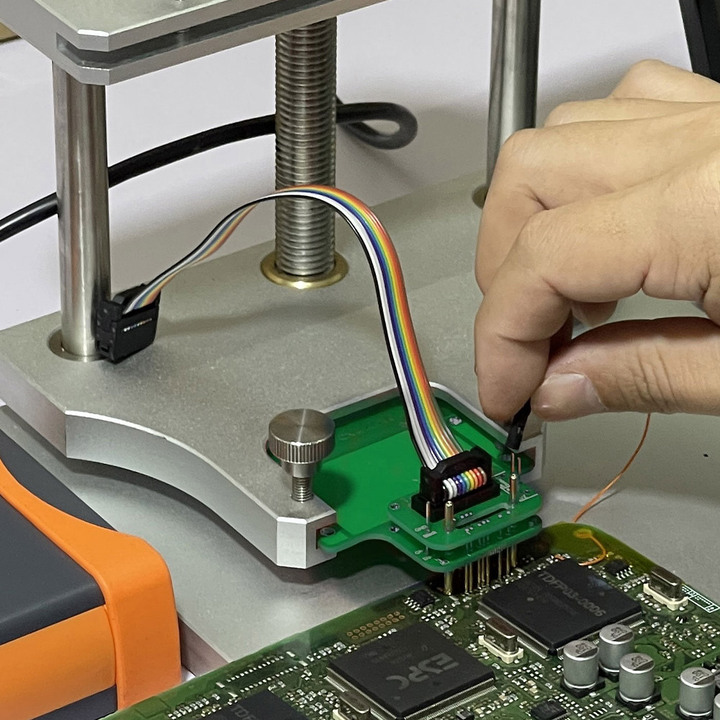

DIY board with positioning pins
No need for soldering when using ECUHELP KT200 to read and write Toyota / Lexus in BDM /JTAG mode.

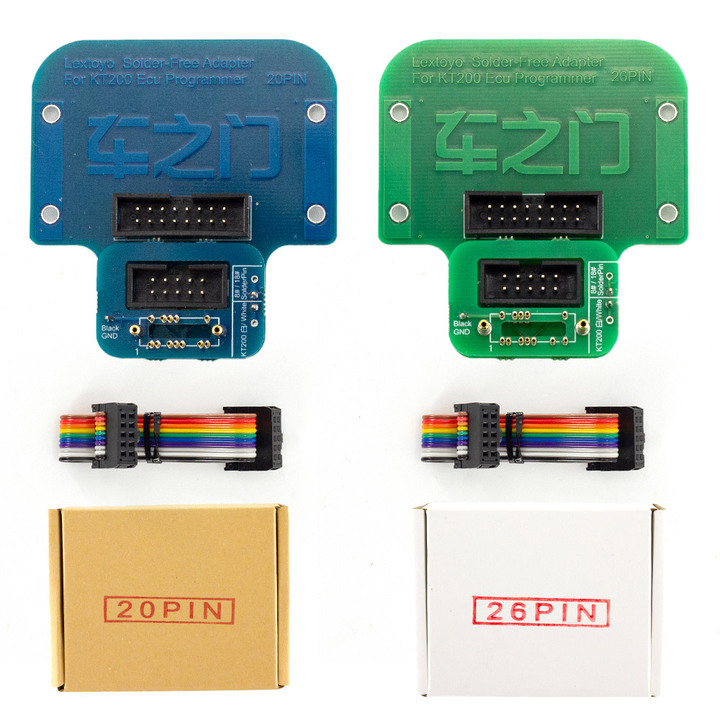

Available with a 26PIN and 20PIN adapter, that means the Toyota / Lexus with 26pin or 20pin socket will be supported.
Compatible with ECUHELP KT200 / KTAG / KESS V3 / DIMSPORT
toyota lexus bdm jtag solder-free adapter

Part 2.Look at ECUHELP KT200 Auto version license including

Cars and Trucks ECU / TCU reading and writing on Bench/ via OBD / in Boot / Jtag systems / Full system

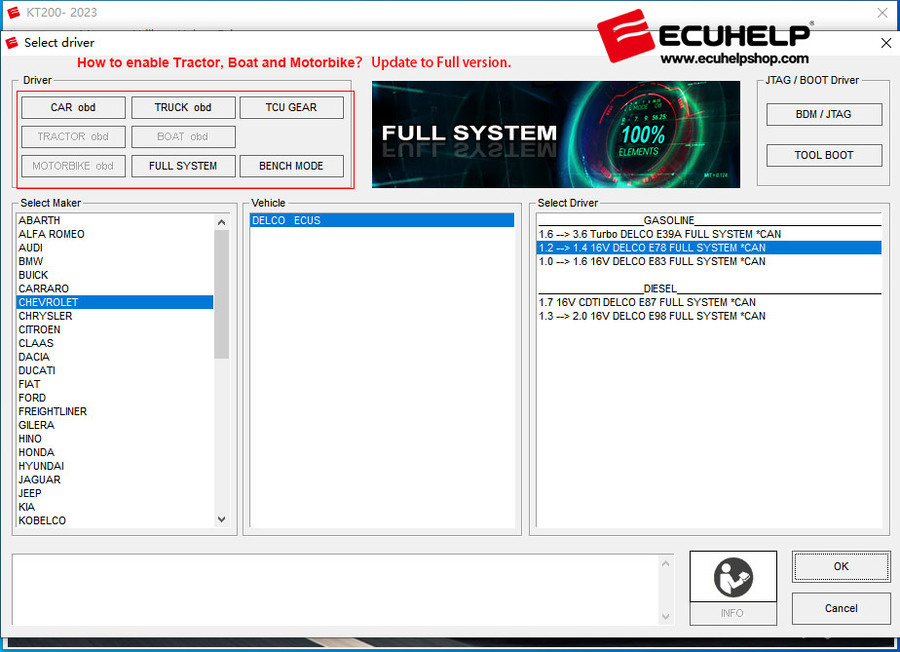

Basic version KT200 with 7 license: Car OBD, Truck OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gear
ecuhelp kt200 car truck version 7 license

How to enable Tractor obd, Boat OBD, Motorbike OBD?
ecuhelpshop.com offer the service of updating KT200 auto version to full version

ECUHELP KT200 full version license: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM / JTAG , TOOL BOOT, Bench Mode, TCU Gear


Is it possible to run Offline workstation with KT200 auto version?
Yes, it requires:
  1. Pay to update from auto version to full version.
  2. Pay one Offline Dongle.
1-year warranty period, after-sales service guarantee

Feature:

Software version 2023
Basic version KT200 with 7 license, Master version
Supports Car OBD, Truck OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gear modules
Supports Checksum Calculation
Can be updated to full version
Full read and write TCU (Micro+EEPROM)
TCU Clone
TCU Coding
Covering up to 5400 ECU, over 500 TCU.
Get free VR files and Damaos files from ECUHelp V3.0
Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
Supports large amount of TCUs, i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs
Free update no annual fee (If you want to add new modules in future, need pay for new modules)

Operating system:
Windows 7
Windows 8/8.1
Windows 10
Windows 11

Minimum Recommended Requirements:

CPU > 2.5 GHz (Intel i5, i7)
RAM > 8GB

NOTE:
1. Must connect software online to access our server, no lock issue.
2. DCM7.1 will be available in the next updates.
3. Supports Simos PCR2.1 unlock by OBD CAN.
4. It can do a full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.

How To Install KT200 New Software V12.10?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the  "Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download  software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the "Wiring diagram "to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the "Diagnosis" button in KT200 service software first for detection.

Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.

KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42

Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.


Function:

Covering a full range of German, ECU Programmer  Japanese, American and Chinese models
EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.
KT200 auto version ECU programmer

The following models can be read and programmed:
1.CAR
2.TRUCK MOTORBIKE
3.TRACTOR
4.BOAT
5.Additional TCU package available for Automatic Transmissions.

Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17 / ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)
Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC
BDM JTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx

JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085
BOOT MODEC16729Fxxx:
BOOT MODE ST K-LINE / RX-TX / CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296

BOOT Mode Tricore for micro:
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
BOOT Mode Renesas:
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
BOOT Mode Mitsubishi:
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
BOOT BAM System MOTOROLA:
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi


ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION
FULL READ AND WRITE TCU(MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

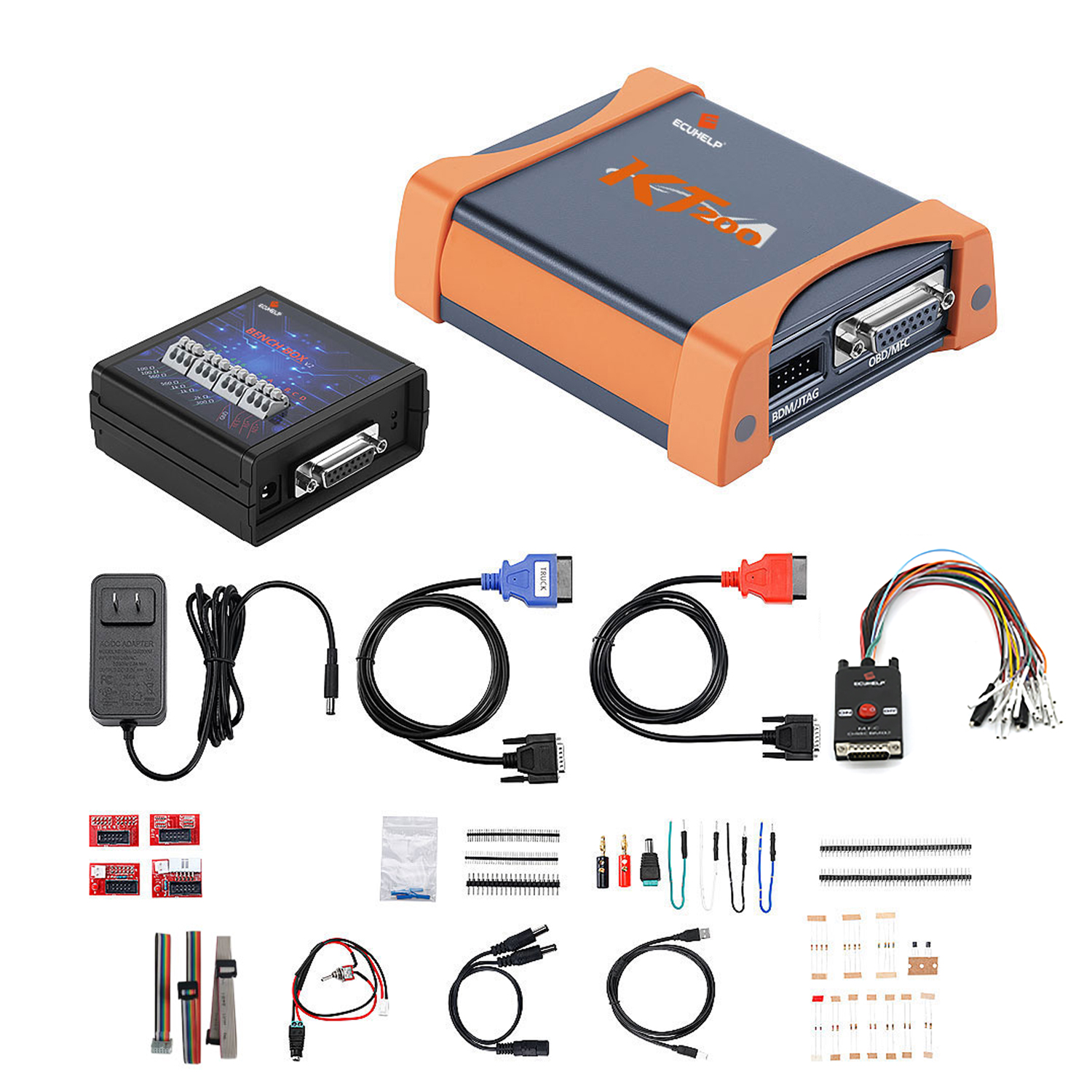

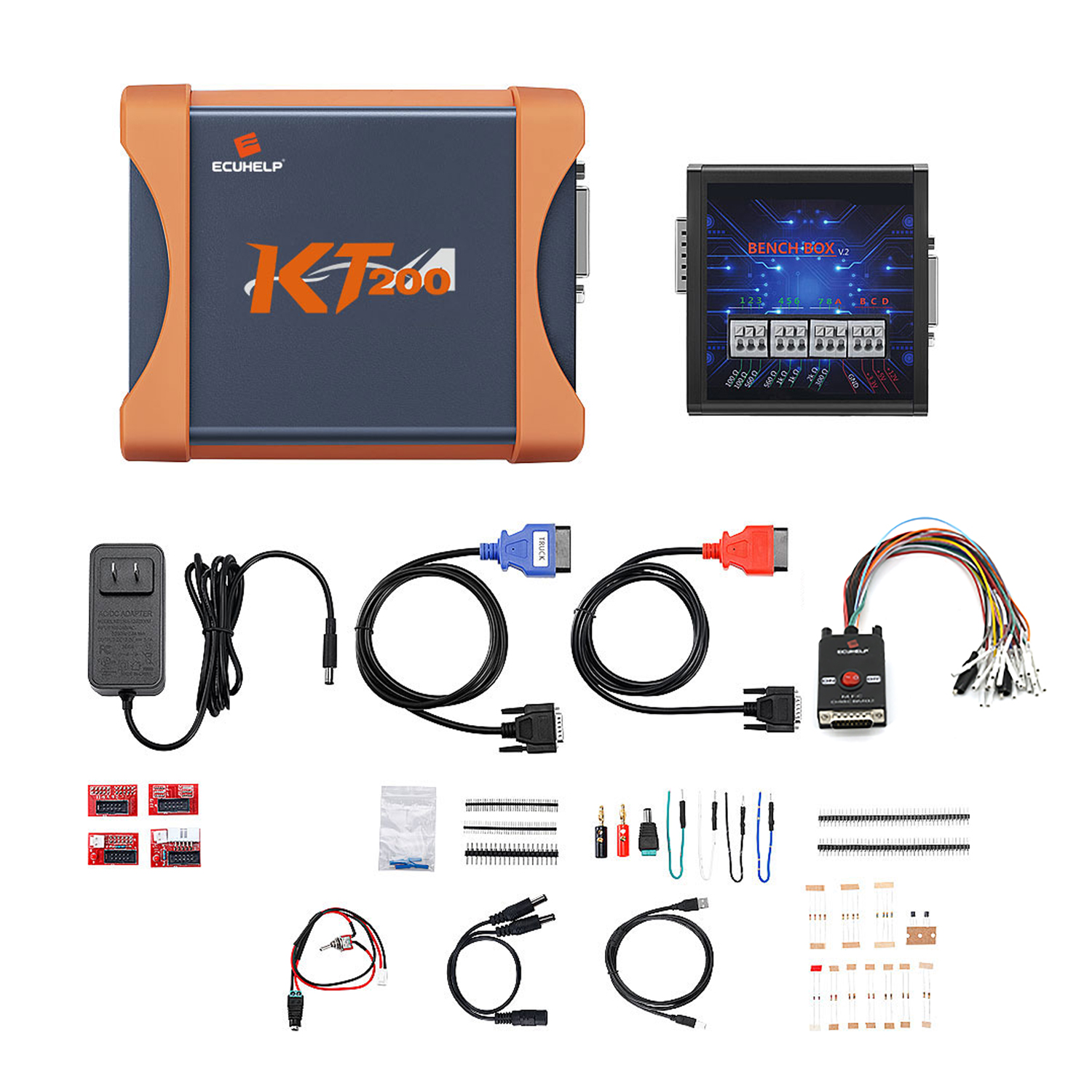

Package Includes:

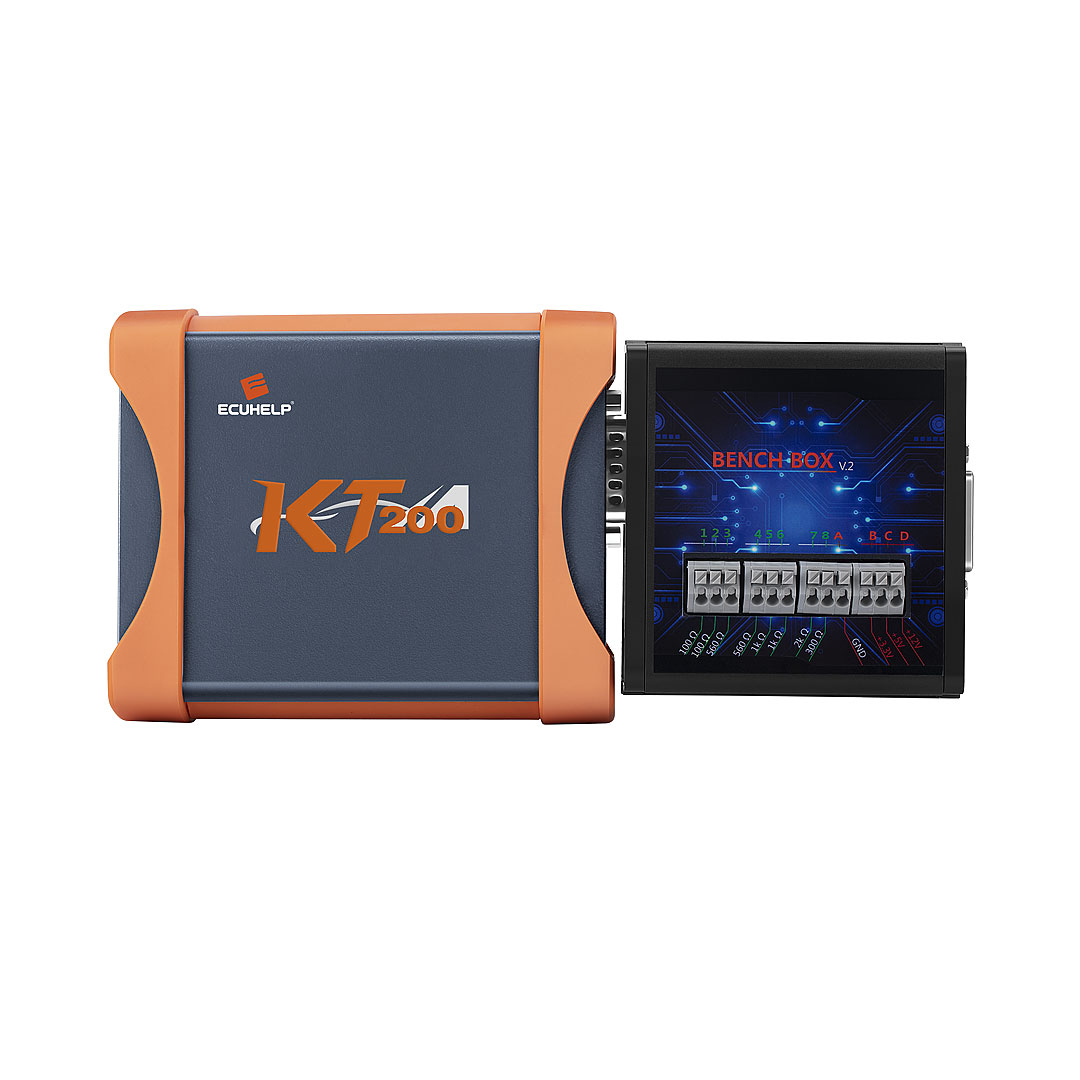

1pc x Master,
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BDM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
1pc x 20pin toyota lexus adapter
1pc x 26pin toyota lexus adapter




We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Customer Questions & Answers

There are no question yet.

Customer Reviews

5.0
5.0 out of 5, 1 Reviews.
5 stars: 1 rating, 100%
4 stars: 0 rating, 0%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

February 17, 2023 by Sfeta Miniach, from Tunisia
Peugeot TC1793
#EDC17C60
R/W via bench,
All ok ! Olivares Liu,the best
