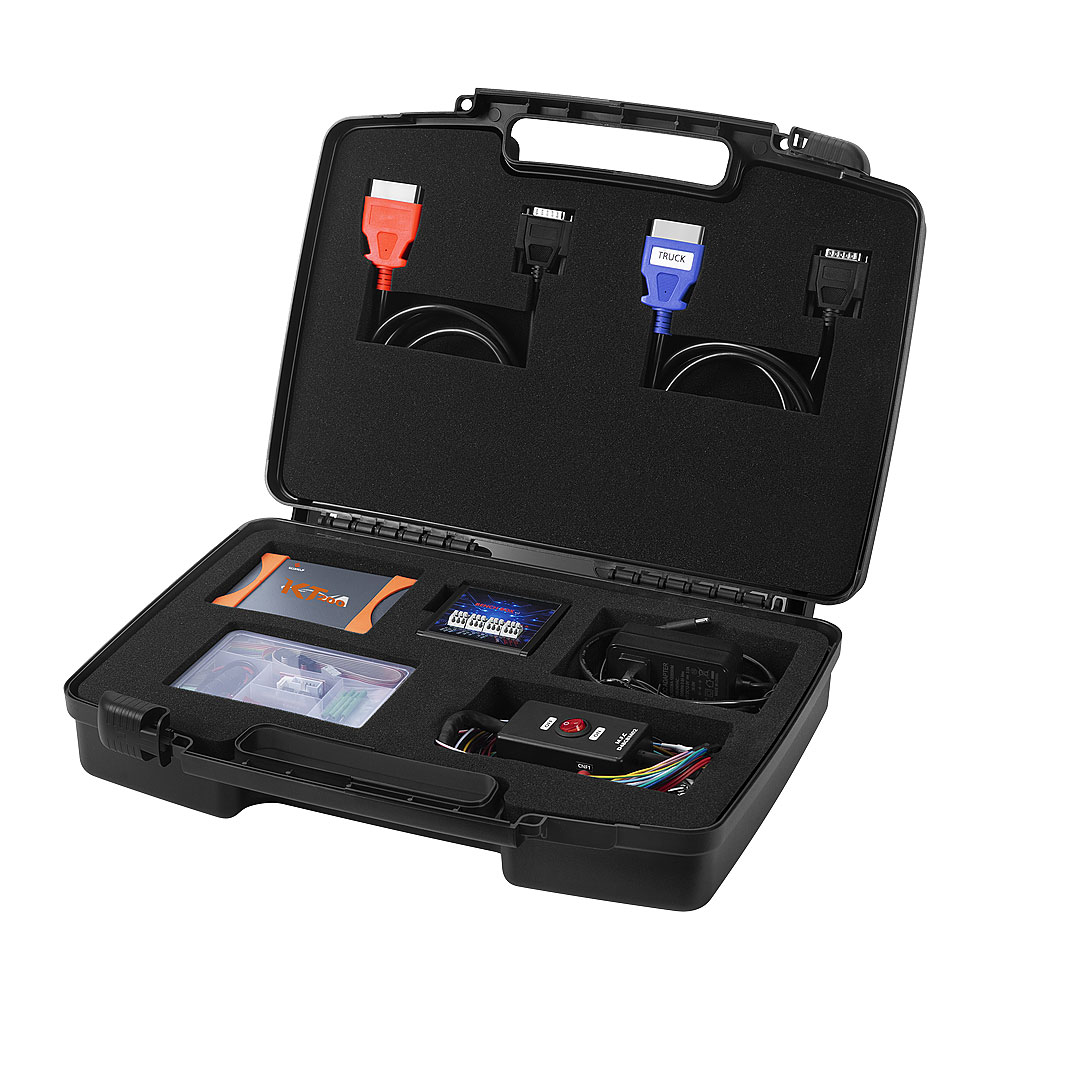

[Get a Free KTflash Dongle]ECUHELP KT200 ECU Programmer, Read Write Car Truck via OBD / on Bench / in Boot Jtag in Suitcase

[Suitcase Package+ EU Ship] ECUHELP KT200 ECU Programmer, Read Write Car Truck via OBD / on Bench / in Boot Jtag

Why more users prefer one KT200 from ecuhelpshop?

1. With 3 servers, it enables browsing the internet while in use;
2. Comes with an offline dongle;
3. Its cables are of superior quality and the shell of KT200 is heavy;
4. No need to provide an email and serial number for every login.
5. Comes with Tuner Account
6. Free VR files in ECUHelp3.0 program

KT200 Update on September 26, 2023:
ECUHELP released a free software called "KT300". This software fixes the automatic checksum bugs presented in KT200 and offers support for multiple ECU data checksum.
To use "KT300", simply connect the KT200 to your computer and place the software on the desktop; there's no installation required.
Download: KT200 Checksum Software

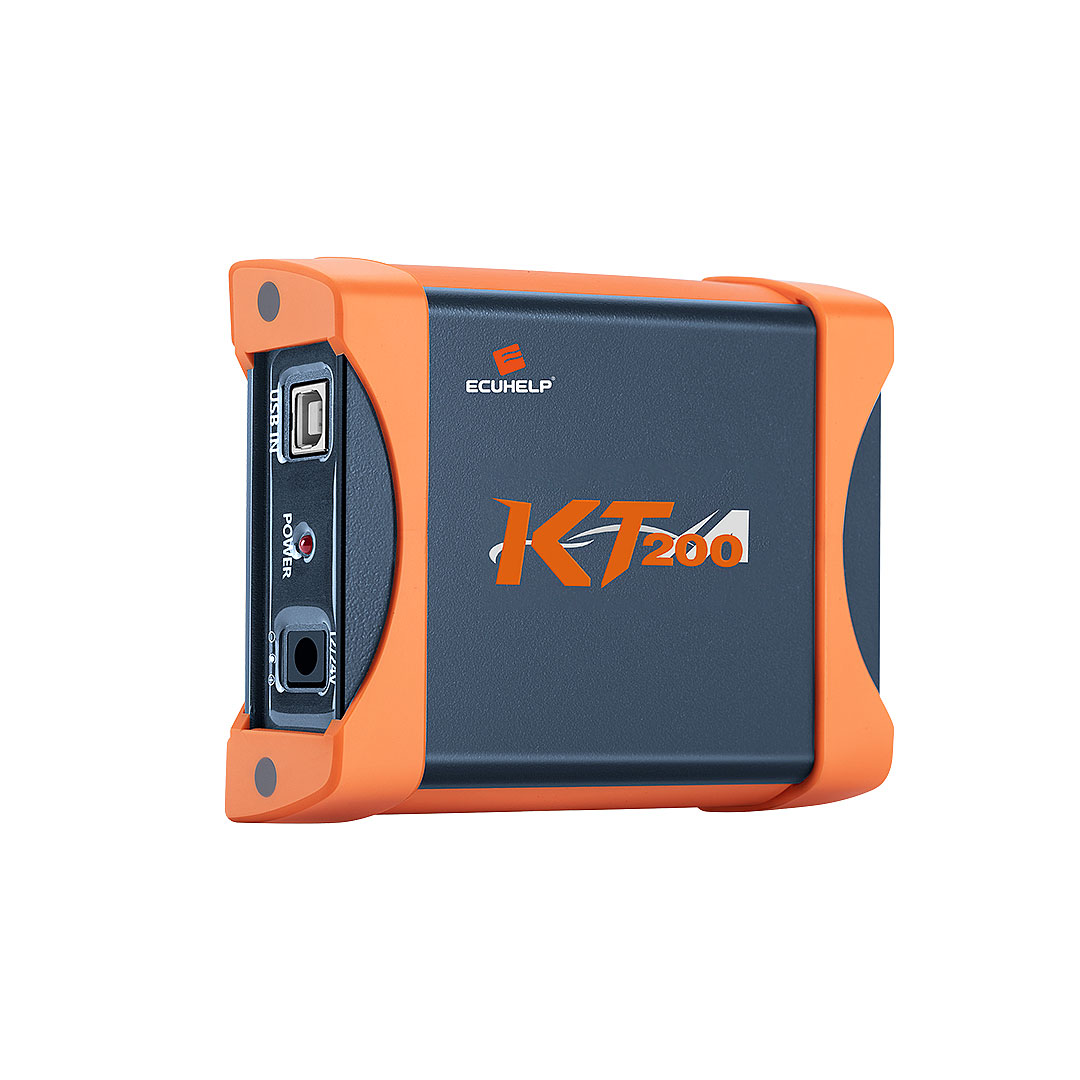

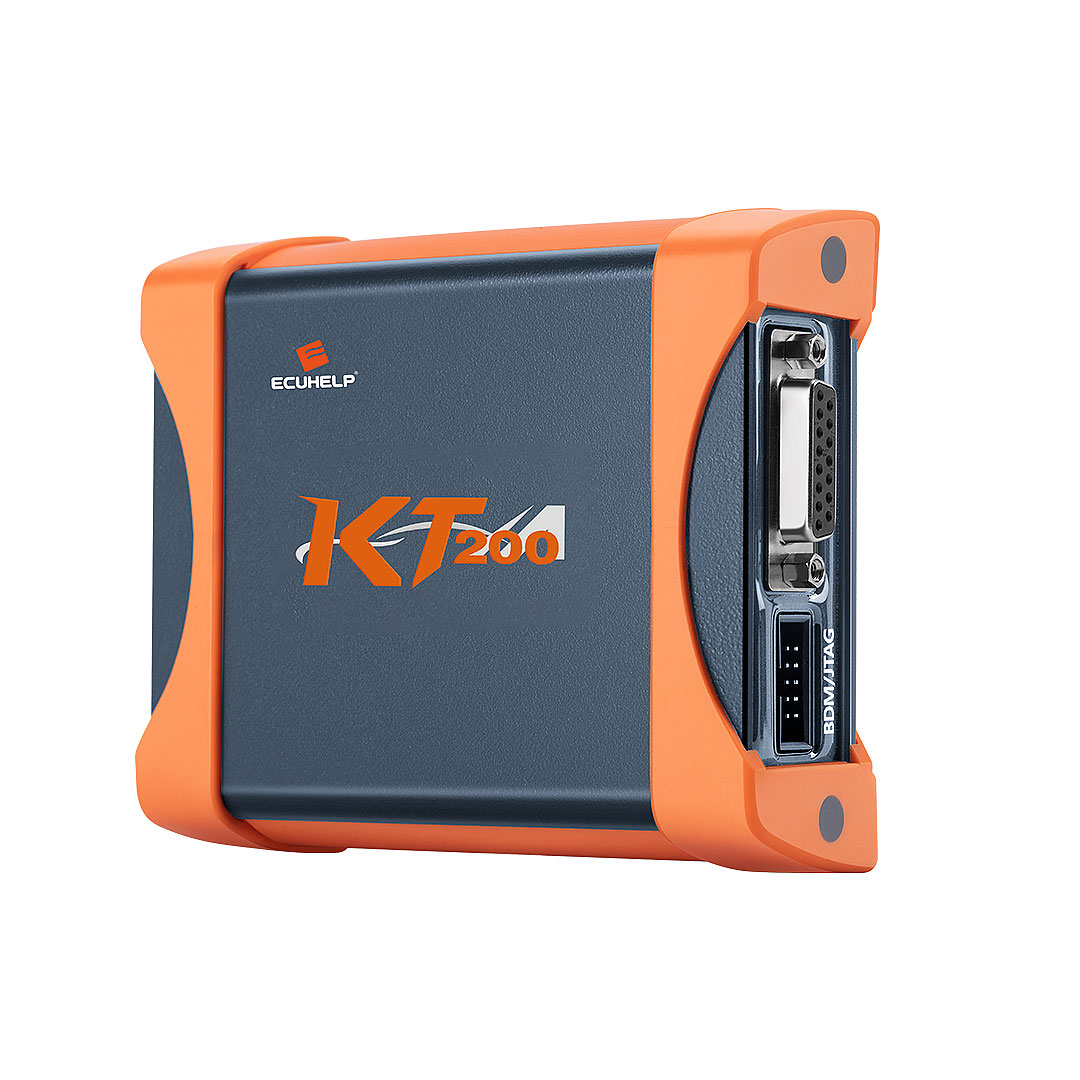

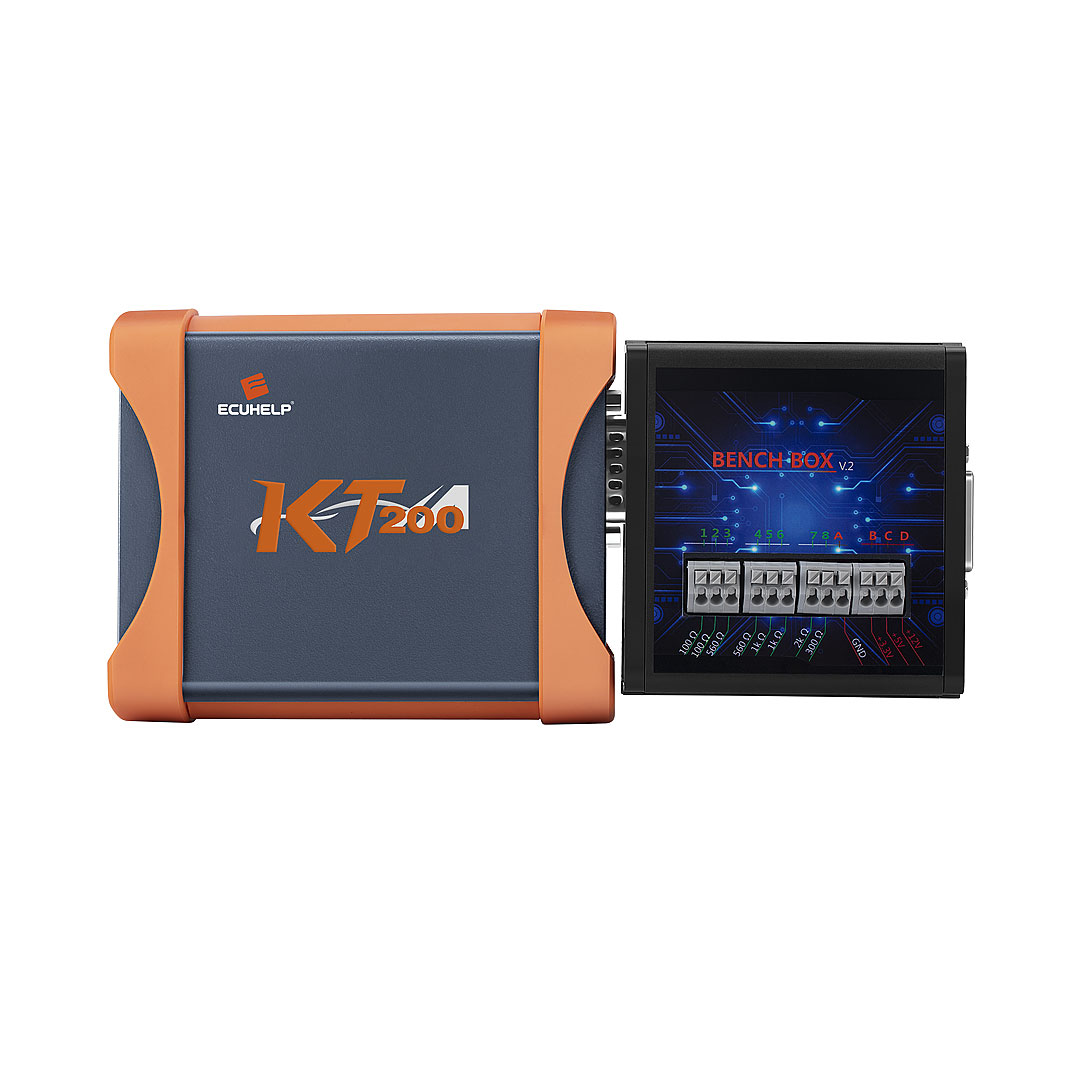

ECUHELP KT200 ECU Programmer Car Truck Version via OBD / on Bench / in Boot Jtag
Upgrade to the full version and adds an offline workstation then you can work offline.

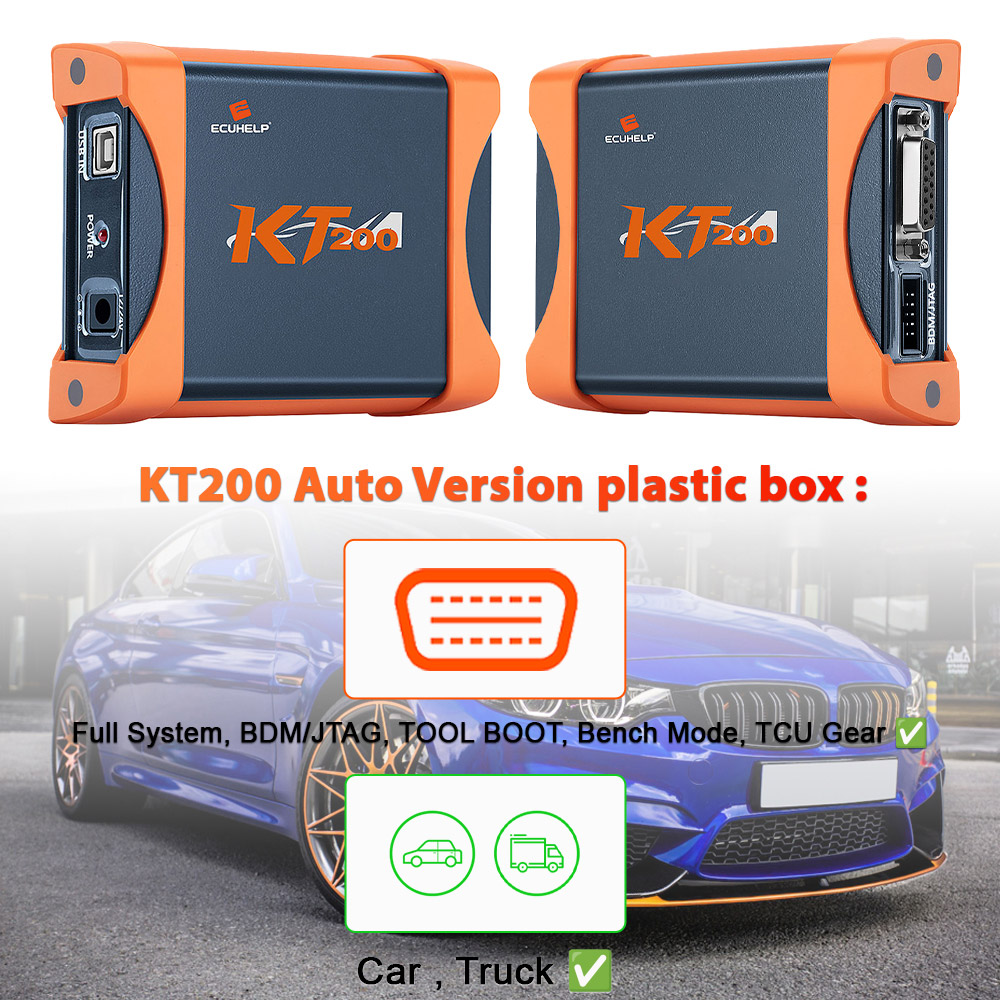

KT200 ECU Programmer Auto Version Feature:

Software version 2023
Free Download KT200 02/01/2023 Software Online
Free Download KT200 22.12.10 Software

KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List

KT200 wiring diagram

Operating system:
Windows 7
Windows 8/8.1
Windows 10
Windows 11
Minimum Recommended Requirements:
 CPU > 2.5 GHz (Intel i5, i7)
RAM > 8GB

NOTE:
1. Must connect software online to access our server, no lock issue.

2. Software /License: The software of KT200 Auto version includes 7 licenses:
Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear


ECUHELP KT200 Full version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear


To update Auto Version to the full version, provide S/N and order update service.

	Auto Version	Full Version
Car OBD	√	√
Truck OBD	√	√
Tractor OBD	×	√
Boat OBD	×	√
Motorbike OBD	×	√
Full System	√	√
BDM/JTAG	√	√
TOOL BOOT	√	√
Bench Mode	√	√
TCU Gear	√	√

3. Supports Checksum Calculation

4. Full read and write TCU (Micro+EEPROM)

TCU Clone

TCU Coding

Covering up to 5400 ECU, over 500 TCU.
Supports large amount of TCUs, i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs

5. Get free VR files and Damaos files from ECUHelp V3.0

6. Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish


7. Free update no annual fee (If you want to add new modules in the future, need to pay for new modules)

8. Supports Simos PCR2.1 unlock by OBD CAN.

9. It can do a full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.

10. 1-year warranty period, after-sales service guarantee (>>Online Technical Support)

Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronized.
2. Optimized server connection time, high speed, and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.

KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42

How To Install KT200 New Software V12.10?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the  "Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update to the newest version, and wait for the installation.
Step 4. Click the "Wiring diagram "to download (this has all the wiring pictures the device supports), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the "Diagnosis" button in KT200 service software first for detection.


KT200 Auto version Function:

1. Covering a full range of German, ECU Programmer  Japanese, American and Chinese models
2. EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
3. The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
4. Support Volkswagen Audi clone (local operation without sending data to manufacturers)
5. ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.

Full Read And Write Via Pin Out in Bench Mode: BOSCH EDC7 BOSCH EDC16 BOSCH ME9 / MED9 BOSCH MD1 BOSCH MG1 -FREESCALESPC5777 -AURIXTC29x -STSPC58 BOSCH EDC17 BOSCH MED17 / ME17 SIEMEN SPCR2.1 (Unlocking also possible via pinout)	Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs: BOSCH CONTINENTAL DELCO DENSO MARELLI SIEMENS TEMIC TEMIC	BDM EJTAG Modes For: BDM MPC55x BDM MPC56x BDM MC32 / ZC32 BDM HC12 / S12x JTAG NEXUS MPC / SPC56xx JTAG NEXUS MPC55xx
JTAG RENESAS: SH7055 SH7058 SH7059 SH7251 SH72543 SH72544 JTAG NEC76F00xx 76F0038AGD 76F0038GD 76F0039AGD 76F0039GD 76F0040GD 76F0070 76F0070 76F0085	BOOT MODEC16729Fxxx: BOOT MODE ST K-LINE / RX-TX / CAN ST10F168 ST10F269 ST10F273 ST10F275 ST10F276 ST10F276 ST10F280 ST10F296	BOOT Mode Tricore for micro: TC1724 TC1728 TC1738 TC1738 TC1762 TC1766 TC1767 TC1782 TC1791 TC1792 TC1793 TC1793 TC1796 TC1797
BOOT Mode Renesas: SH7052 SH7054 SH7055 SH7055 SH7058 SH7059 SH7251 SH72543 SH72544	BOOT Mode Mitsubishi: MH7202 MH7203 MH8102F MH8105F MH8106F MH8202 MH8206F MH8301F MH8301F MH8304F MH8405F	BOOT BAM System MOTOROLA: SPC5674 SPC5777 -BOOT MODE Fujitsu -BOOT MODE Hitachi

ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION
FULL READ AND WRITE TCU(MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

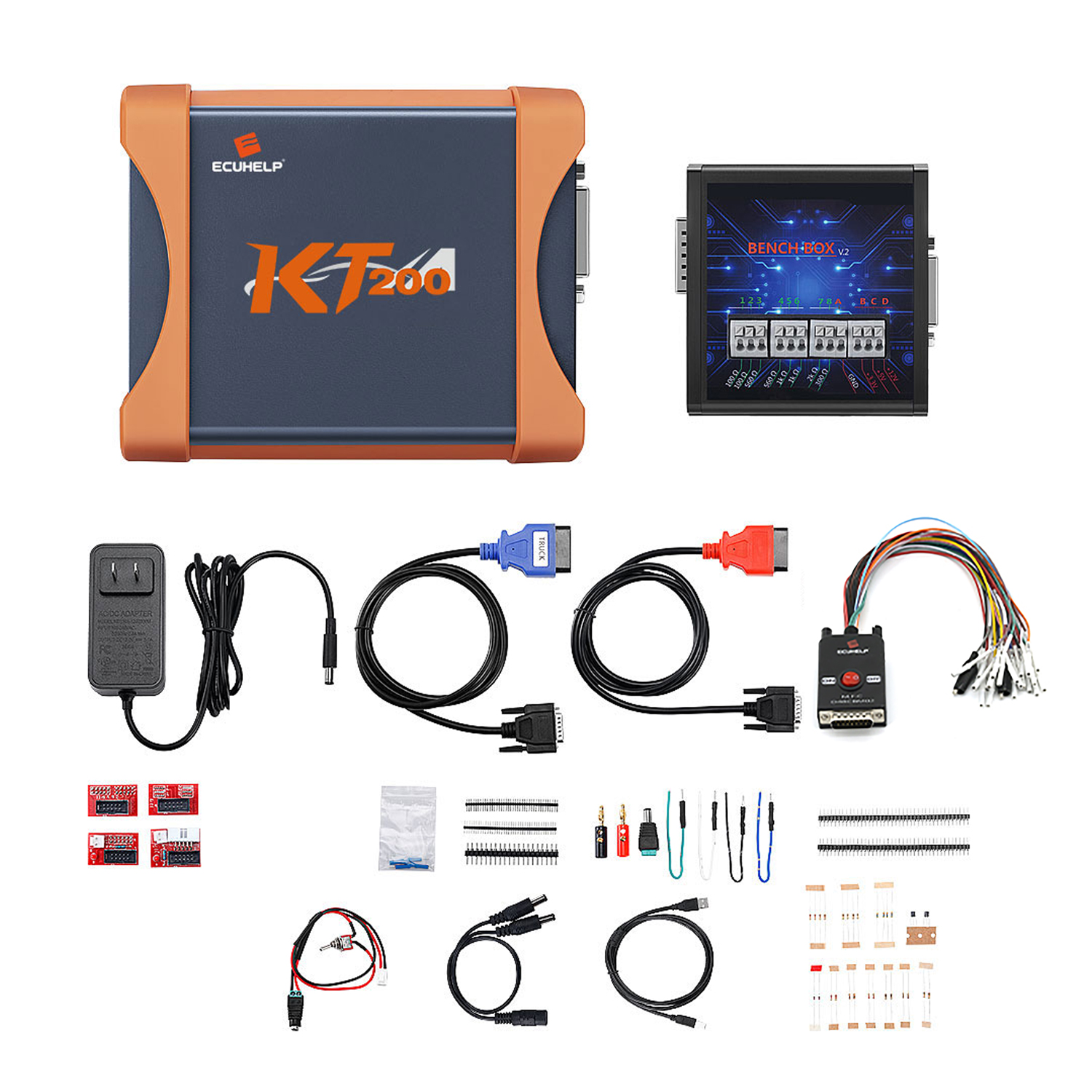

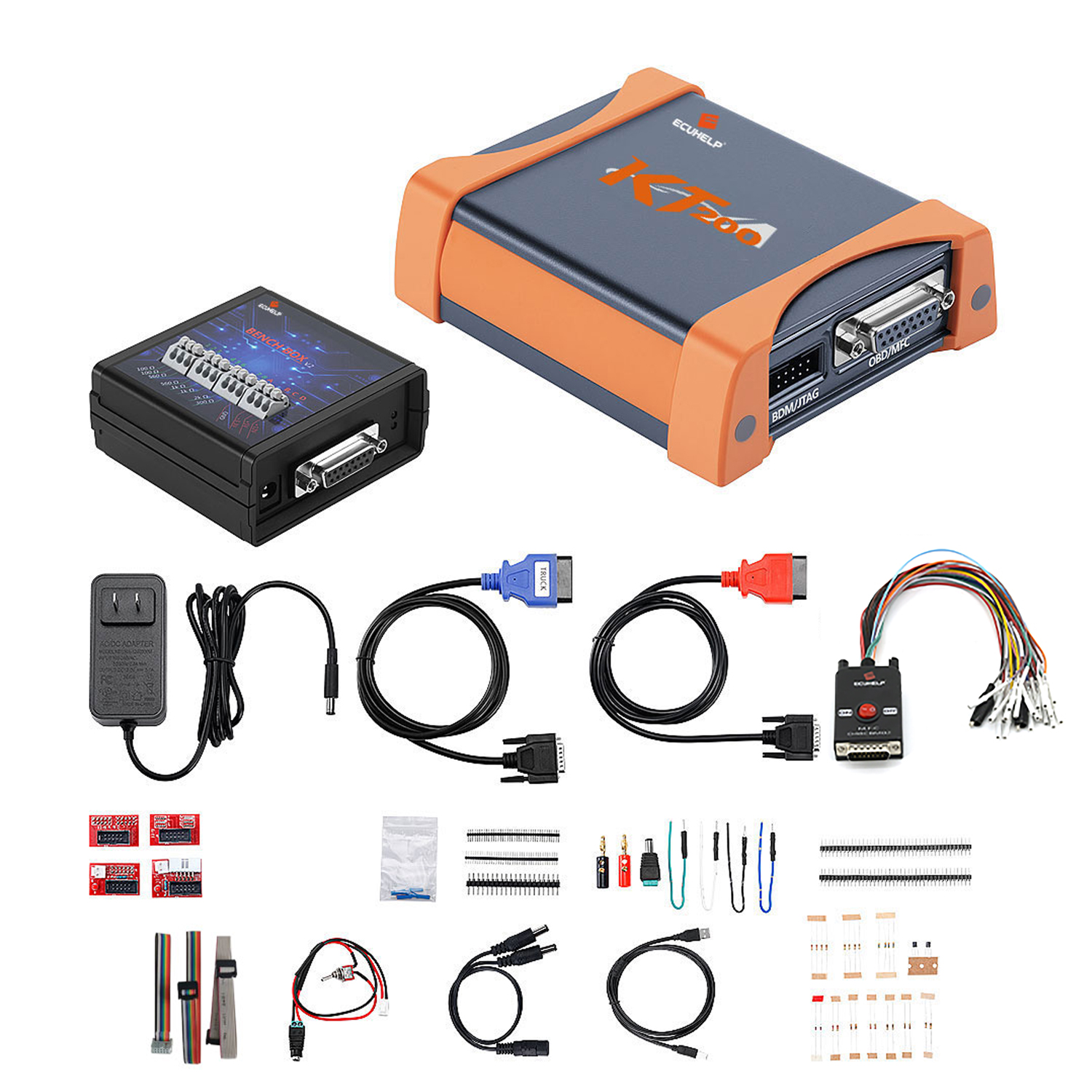

Package Includes:

1pc x Master,

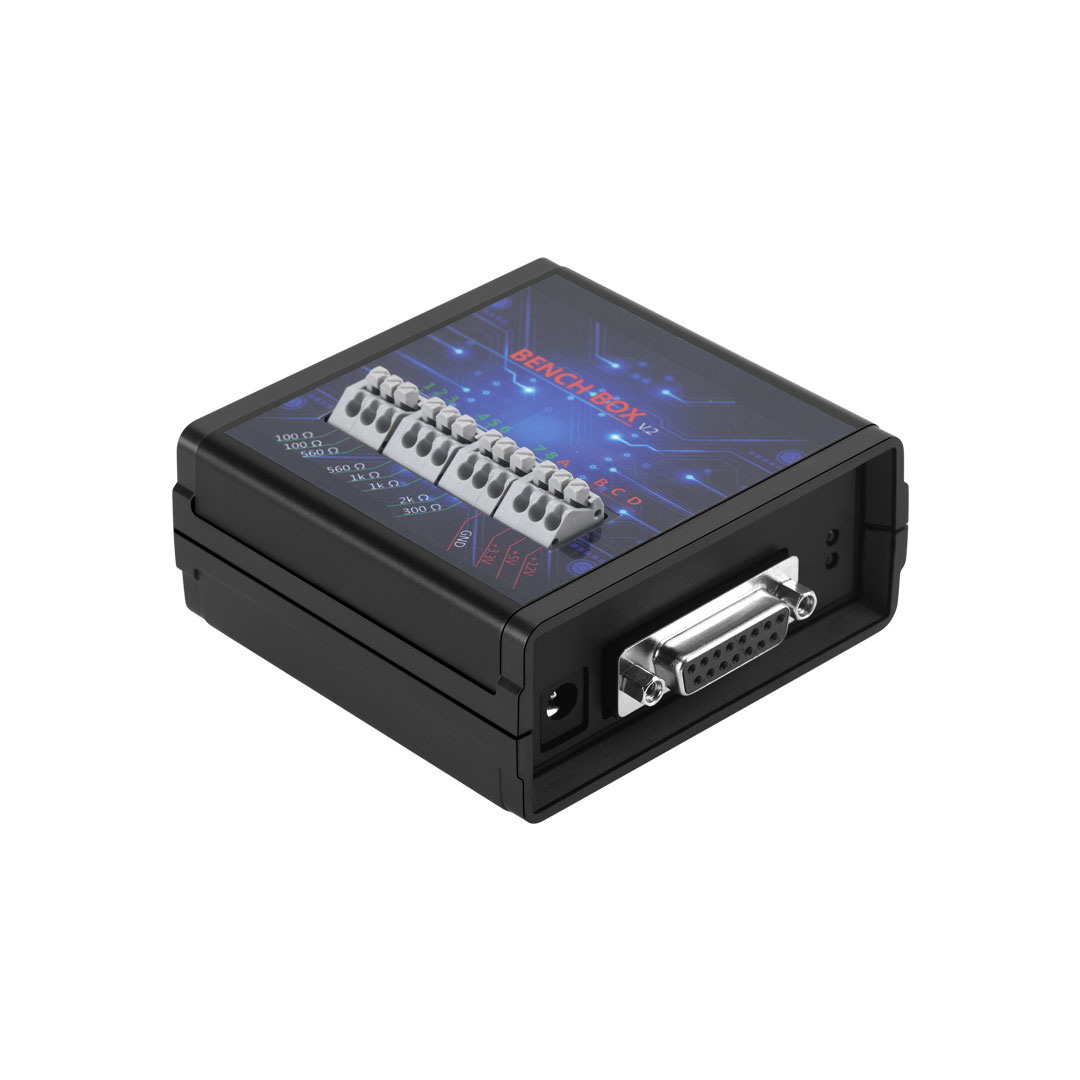

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters

---

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




User Feedback: when using ECUHELP KT200 car truck version to write VW Simos PCR2.1, it does not response with error message “ECU LOCKED by EEPROM /FLASH” (shown as below), how to solve this problem?


Image 1: ECU LOCKED by EEPROM

Image 2: ECU LOCKED by FLASH

Solution:
Please firstly unlock PCR2.1 with ECUHELP KT200 via OBD or on Bench.

Prepare:
1. Encrypt before unlocking pcr2.1 on Bench.
2.Give 13V power supply instead of 12V, 12.4V etc.
3. Please ensure correct checksum.

Method 1: ECUHELP KT200 unlock PCR2.1 on Bench or via OBD.

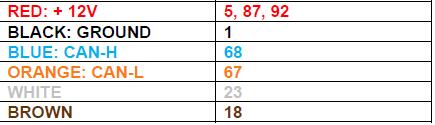

Connect the bench box v.2 to the tool and connect the
multifunction cable as follows:


To read and write use the following driver:
→ BENCH MODE
→ VW / AUDI / SEAT / SKODA
→ TC1796 - VAG
→ SIMOS PCR2.1

ATTENTION:
In addition to reading/writing the full backup, you can also use this driver to unlock the serial write for the OBD driver "R/W MAPS":
By loading the EEPROM file, if the software sees that the Eeprom is locked, the following message will be displayed:
Set unlock EEPROM for serial maps programming?
Choosing OK will apply the unlock on the EEPROM and you can also write the ECU in OBD using the serial driver R/W MAPS.

We also remind you that you can also read and write PCR2.1 via OBD using the driver:
SIMOS PCR 2.1 ONLOCK BY OBD *CAN
This driver reads the file with virtual read and unlocks the control unit directly while writing by applying a patch on the micro file during writing.


Method 2.ECUHELP KT200 unlock PCR2.1 in boot

SIEMENS SIMOS PCR2.1 [ TC1796 INT.F.] - VW, Audi, Seat, Skoda

ATTENTION:
From now on it’s possible to read/write full backup of  the control unit and unlock the serial write for the "R/W MAPS" driver without opening the ECU  directly from pinout using the driver in the BENCH MODE section of the software.
We also remind you that you can also read and write
PCR2.1 via OBD using the driver:
SIMOS PCR 2.1 ONLOCK BY OBD *CAN
This driver reads the file with virtual read and unlocks the control unit directly while writing by applying a patch on the micro file during writing

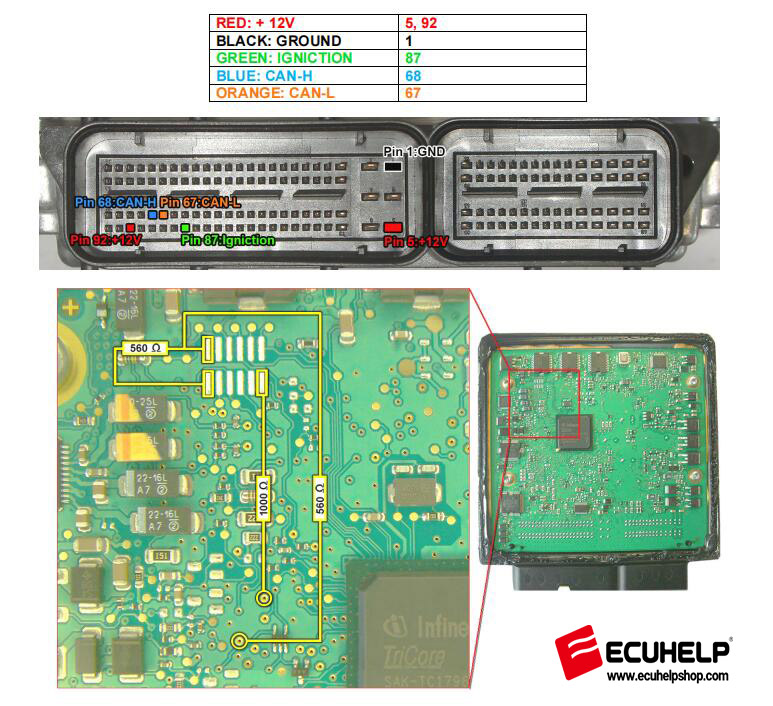

Below we show how to connection via Boot:
Kit to use:
- Multifunction cable
- 2 resistances of 560 Ω
- 1 resistance of 1000 Ω

PASSWORD SEARCH:
Connect the pinout below with multifunction cable.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Tool Password
→ PASSWORD SIMOS PCR2.1
→ Click on “Find Password” and follow the
 software messages.


Now that the password has been found it’s possible to read and write the control unit. See next step.

READ AND WRITE ECU:
Connect with the multifunction cable the following pinout and the boot shown below.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1796


That's all, Thanks.
