ECUHELP KT200II Full

[EU Ship] ECUHELP KT200 II ECU Programmer Full Version for Car Truck Motorbike Tractor Boat, R/W ECU Bench / OBD / BOOT / BDM / JTAG mode

755Was 7996% OFF
SKU: EP-KT200IIF Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-10 Working Days
Package Dimensions 48 x 35.5 x 15 cm; 3.5 Kilograms
Item Weight 3.5 kg
Returns Return for refund within 30 days, buyer pays return shipping.
5 KT200II ECU Tool: Full Version without offline dongle [EU Ship] ECUHELP KT200 II ECU Programmer Full Version for Car Truck Motorbike Tractor Boat, R/W ECU Bench / OBD / BOOT / BDM / JTAG mode
Features
  • KT200II upgrades new protocols and commits to regularly updating more.
  • Resolves automatic checksum issues found in the KT200, enhancing read/write efficiency.
  • A significant increase in virtual files available on the server.
  • Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.
  • Faster and more efficient server connectivity.

Related Download Files

Product Description

ECUHELP KT200II Full Version for Car Truck Motorbike Tractor Boat, Upgrade More ECU Protocols and Fix Checksum Bugs Over KT200

Part 1. KT200II Update Log
Part 2. KT200II Support List
Part 3. KT200II Download and Installation
Part 4. KT200 II Update November, 2023
Part 5. What is KT200II?
Part 6. KT200 II Full Version Package List

Part 1. KT200II Update Log
KT200II Update May 2024
1. Read Delphi DCM6.2V via Pinout without opening the control unit, while it could VR read and write before.
2. R/W Isuzu and Saic Bosch MD1CS089 on Bench.
3. R/W DeuTz, Isuzu and Manitou Bosch MD1CC878 Bench mode.
4. R/W Kubota Tractor AD-Blue Denso 2760xx Bench mode.
5. BOSCH ME17/EDC17 > 2021 (TPROT V14) Control units with new TPROT V14 protections
for vehicle models from 2021 onwards for ECUs with TC1724 and TC1793 processors.
ME17.3.0 and EDC17C69 mounted on the FCA group
6. R/W Suzuki Marelli 8DS on Bench
===>Details of KT200II Update May 2024

ECUHELP KT200II Update January 8th, 2024.
Software download: "Downloads”section.
Very Important: Before installing, you need to disable your antivirus and turn off Windows Defender.

Update info:
Suzuki Denso 3390-76xx Bench mode.
DCU17 DV51 JCB OBD Mode.
TCU FCA 62TE Boot mode.
TCU 9G Tronic VGS-NAG3 Bench mode.
TCU 7G Tronic VGS-NAG2 Bench mode.
ME17 ECUs of DR, Baic, Chery from 2020.
PSA Delphi DCM7.1A via OBD.
Nissan Renault EDC17C45 via OBD.
PSA SID807/ SID807EVO.
Siemens/CONT. TCU 7G Tronic VGS-NAG2 Bench mode.
Bosch TCU 9G Tronic VGS-NAG3 Bench mode.
Continental TCU FCA 62TE Boot mode.
Bosch DCU17 DV51 JCB OBD Mode.
Suzuki Denso 33920-76xx Bench mode.
===>Details of KT200II Update January 8th, 2024

KT200II Update November, 2023
1. New protocols have been added, and more and more will be added frequently in the future.
2. Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.
3. Many new virtual files have been added to the server.
4. Strengthened the protection of ECU, and will prompt you immediately if an operation error is made.
5. Optimized server access efficiency.
6. OBD reading and writing are stable.
7. Support DELPHI DCM7.24 ECU
8. Can work with htprog too
9. New automatic function:Tricore Clone
===>Details of KT200II Update November 2023

Why KT200II / KT200 is Preferred? Let's read some Customer Feedback:
1. KT200 doesn't need bs activating and has 3 servers (China, Germany, Hongkong).
2. KT200 works perfectly with less dropout and more of a chance of not losing the server.
kt200 has one offline dongle that will still work if servers ever get shut down which without a monthly subscription it is very possible one day it will go offline.
3. That's why I choose kt200. The software is not only locked to 3 or 4 computers. I own the hardware and use it wherever I want.
4. The benefits of buying kt200, it does VR reads (Download ECUHELP 3.03 for VR files).
5. The software is running stable, and the cable is built of good quality.
6. kt200 works offline, which is tested by me, 90% of the work was done Offline. And it worked without any flaws. Great tool.

Part 2. KT200II Support List
ECUHELP KT200II Full Version Enabled Software:
Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.Full System,BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear
***Choose KT200II Auto version to have no the software: Tractor OBD, Boat OBD, Motorbike OBD

KT200II Support List:
KT200 ECU Support List
KT200 TCU Support List
Plus the KT200II Update November, 2023 +KT200II Update January 8th, 2024 + KT200II Update May 2024

Frequently Asked Questions:
Can the Loyal Users Exchange KT200II?
Yes. To upgrade:
1. While awaiting the shipment of your KT200II, you can continue using KT200. Upon receiving your KT200II, please provide us with the serial numbers of both the KT200 and KT200II. Following this, we will lock your KT200 and activate your new KT200II.
2.  If you have KT200 full version + offline dongle, you will recieve KT200II host and one offline dongle.

Are the Accessories and Bench Box of KT200 Compatible with KT200II?
Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?
No, they are not compatible.

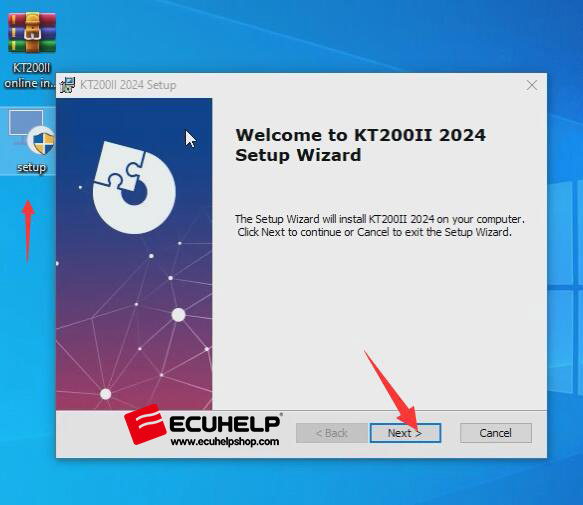

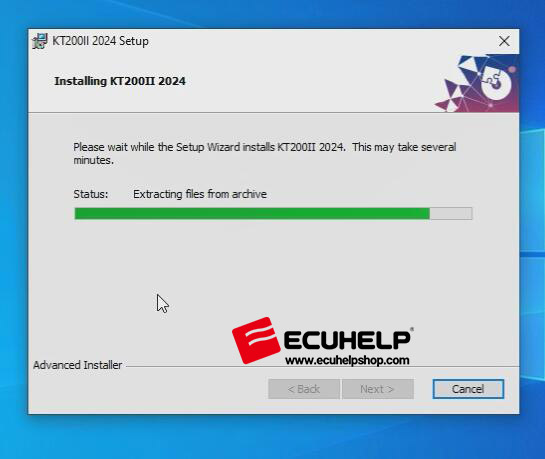

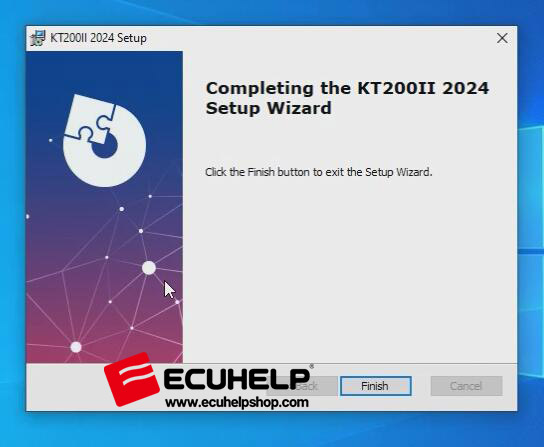

Part 3. KT200II Download and Installation
Free Download: KT200II Software (Online)
Note:
1. KT200II software is not compatible with KT200.
2. KT200II Full Version works online mode (with an internet connection)
3. Compatible operating systems: Windows 7. Windows 8/8.1.Windows 10, Windows 11
4. Minimum recommended requirements: CPU>2.5 GHz (intel i5,7) RAM 8GB
5. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

Question: I installed kt200ii software on Windows 10 but the app can not start.
Answer: Install the USB driver from your installation. Restart the computer, and temporarily disable win defender and firewall. Plug the device into USB and power it. Open the app and WAIT.... It can take up to 1 minute to connect to the server.

Part 4. KT200 II Update November, 2023

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums
KT200II Update for DELCO OPEL / CHEVROLET / GM ECUs
KT200II Update for Opel GM

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52
KT200II Update for TRICORE CLONE
NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
KT200II Update Bosch 6L80

KT200II Update Bosch 6L90
KT200II Update Bosch 6L80
NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
KT200II Update NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
KT200II BOOT MODE FOR SIEMENS SIM2K-305 ECUs

NEW BENCH MODE FOR MG1CA007 ECU
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcyle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums
KT200II update NEW BENCH MODE FOR MG1CA007 ECU

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums
KT200II update for NEW OBD DRIVER FOR DELPHI DCM7.24 ECU
NEW OBD DRIVER FOR PHOENIX L40 ECU!
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing is carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding
KT200II OBD DRIVER FOR PHOENIX L40 ECU
NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

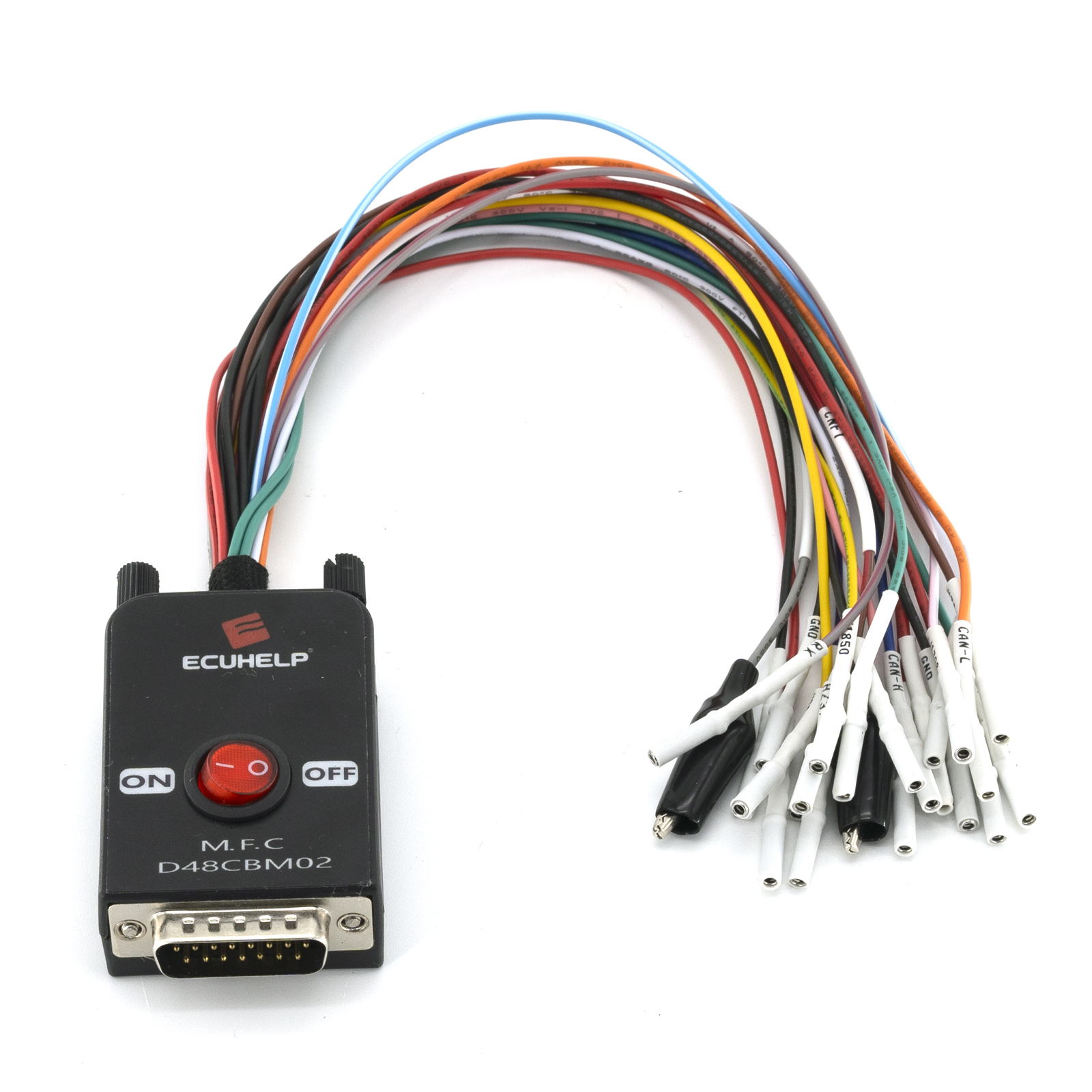

It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4 cable.
KT200II NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.
KT200II OBD DRIVER FOR BOSCH EDC17 C11

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.
KT200II NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE

Part 5. What is KT200II?
What is KT200II?

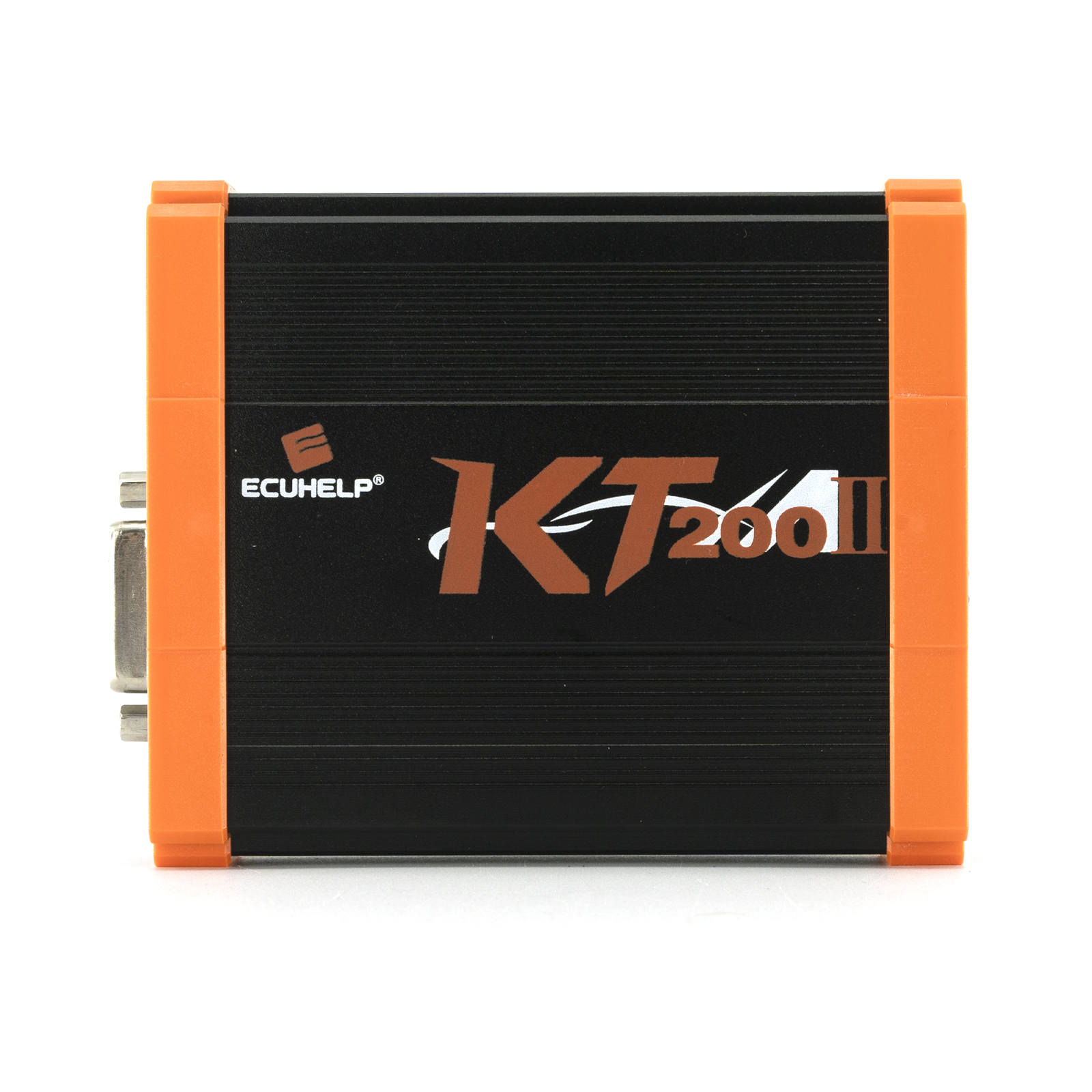

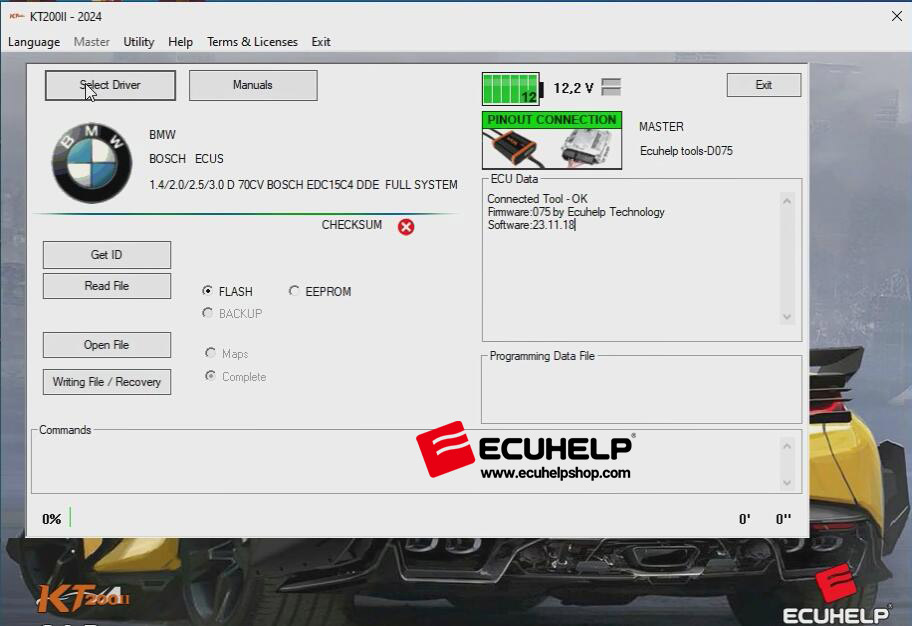

Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data,  read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device.
After reading the ecu data with kt200II, you can use third-party software to edit the ecu data

ECUHELP Service:
You can get the functions of ECU model query, wiring diagram search, virtual data download, DEMO download and free database from the ECUHELP 3.0.6 installer.

Part 6. KT200 II Full Version Package List

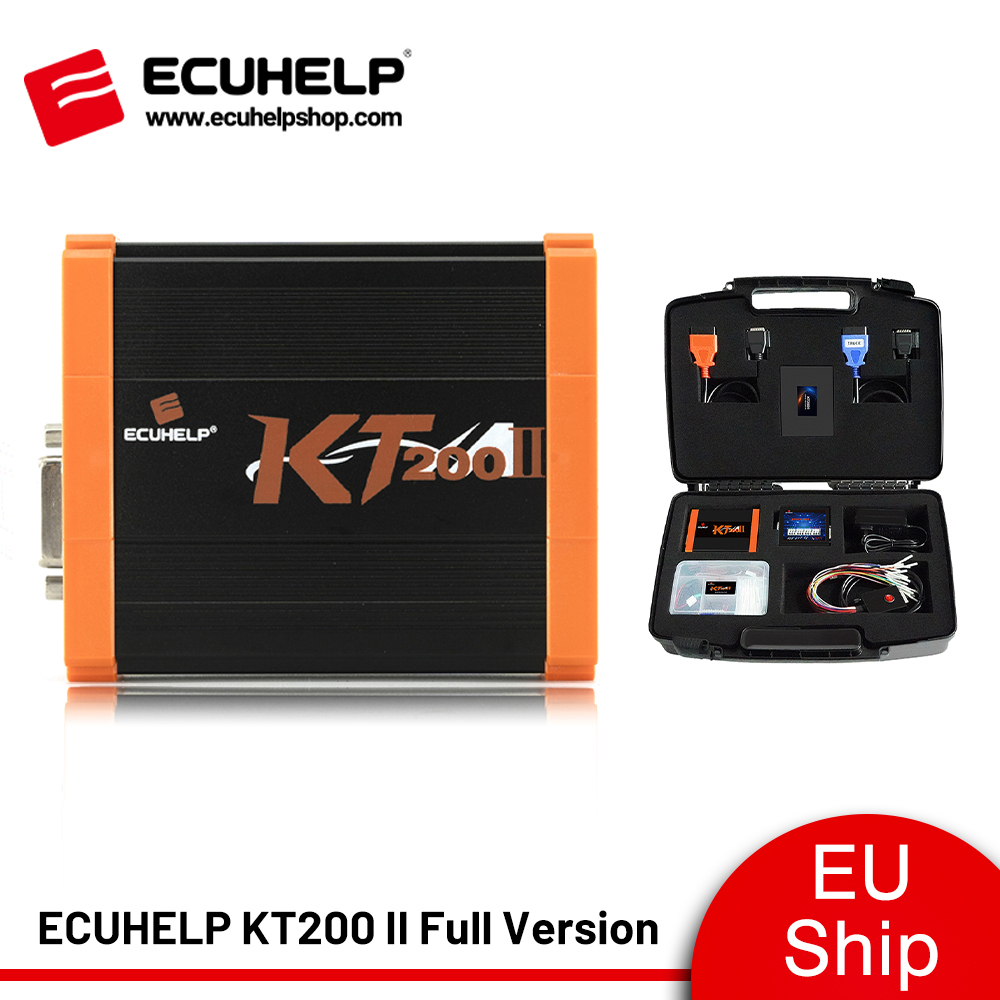

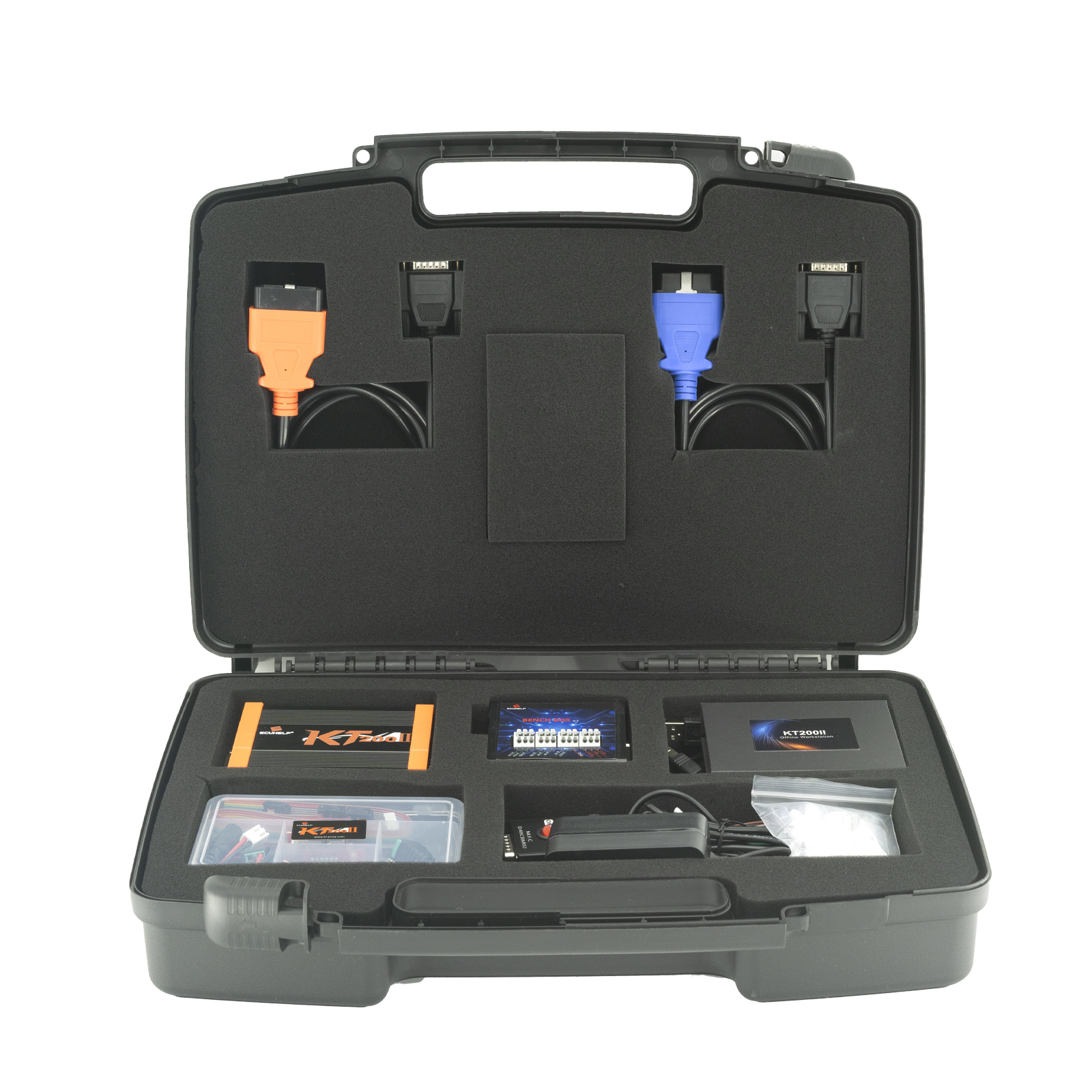

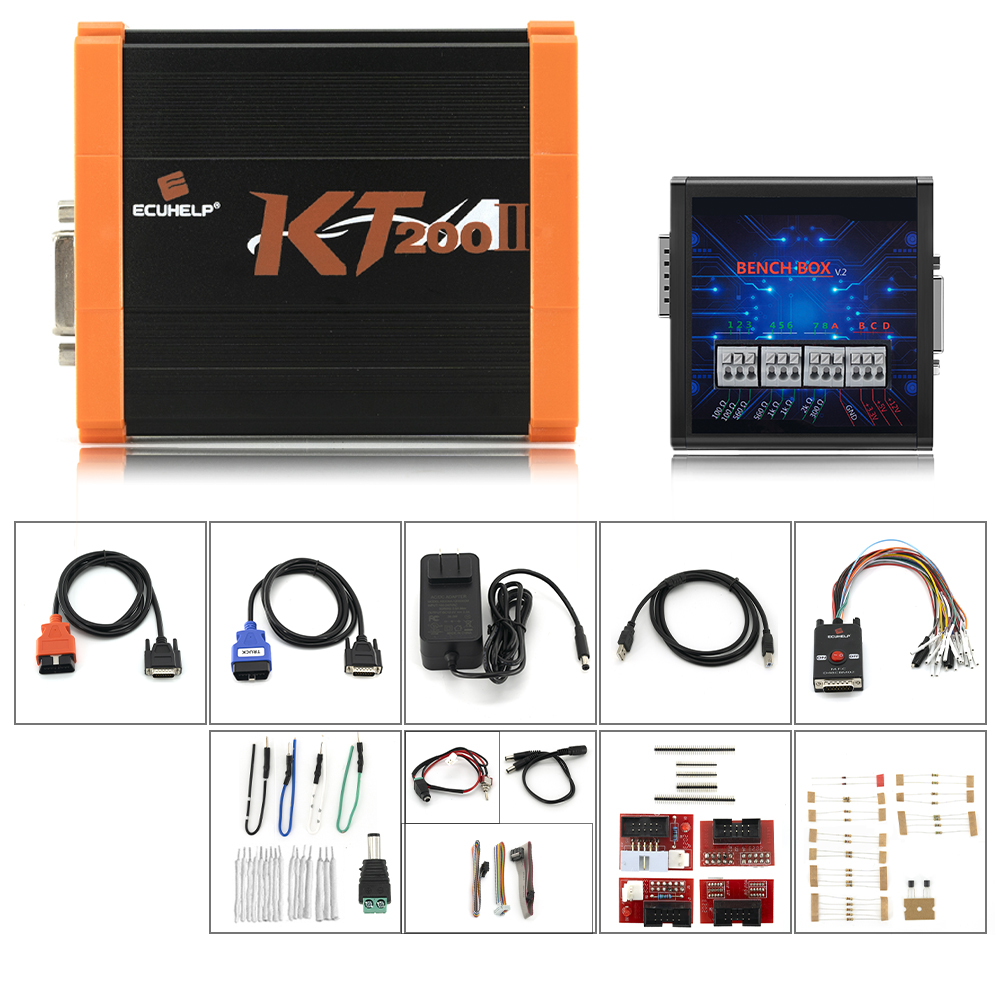

ECUHELP KT200II Full Version Package Includes:
1pc x Master
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
Package: 55*35*25cm,2.5kg



We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Videos

ECUHELP KT200 II May Update Step by Step (No support Offline Workstation)

KT200II MITSUBISHI E6T0X BOOT MODE Read Write OK

KT200II SID807EVO New protocol test video

KT200II Read Write Peugeot DCM 6.2 C BOOT MODE

KT200II Dcm6.2 C Read Write Checks via OBD

KT200II MD1CS004 Golf 8 read write ok, checksum by tool

ECUHELP KT200II Full Version Unboxing and Review

KT200II E39A read write ok

KT200II FIAT MD1CS069 bench working well

KT200 II reading VG golf DQ380 TCU

Tech Support

This article is about ECUHELP KT200II 2024 Online Software Download link and installation guide.

Part 1. ECUHELP KT200II 2024 Software Download
Please go to the “Downloads” column to click on any of ECUHELP KT200II Software(Offline) or ECUHELP KT200II Software(Online).

Important Reminder:
Before downloading, it's crucial to disable your anti-virus and firewall. These security systems may mistakenly identify the software files as unsafe, leading to automatic deletion. Rest assured, the files are secure; this issue typically arises due to language discrepancies causing false alarms. To ensure a smooth download, temporarily turn off your anti-virus and firewall.

5 Tips to follow:
1. KT200II software is not compatible with KT200.
2. KT200II Offline Workstation works offline mode (without the internet connection)
3. Compatible operating systems: Windows 7. Widows 8/8.1.Windows 10, Windows 11
4. Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM 8GB
5. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

Part 2. ECUHELP KT200II 2024 Online Software Installation Guide
Compatibility:  KT200II Auto version or KT200II Full Version

Steps:
Unzip the “KT200II online installation package”.
Open “Setup”;
Click on “Next” after “KT200II 2024 Setup” pops up.
ECUHELP KT200II 2024 Software Installation Guide
Click on “Next” to wait for the KT200II 2024 installation to finish.
ECUHELP KT200II 2024 Software Installation Guide
ECUHELP KT200II 2024 Software Installation Guide


Okay, there are KT200II and KT300 on the desk.
ECUHELP KT200II 2024 Software Installation Guide

Click on “KT200II” to launch KT200II 2024 software.
ECUHELP KT200II 2024 Software Installation Instruction

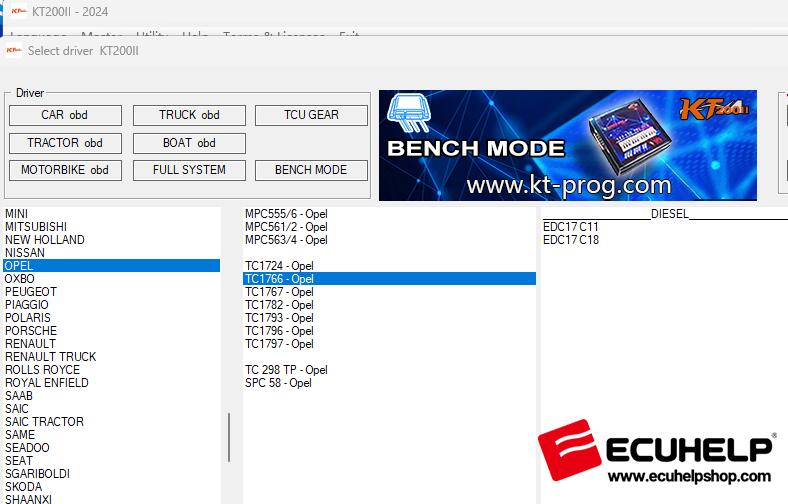

Click on “Select Driver” to read and write ECU.
ECUHELP KT200II 2024 Software Installation Instruction




Customer Questions & Answers

0
votes
Q:Question: Has anyone managed to read ems2.2/3/4? Answer this question
A:Answer:
Use bench cable and 13+v 5 amps adapter.
By Alan Carter on June 11, 2024
0
votes
Q:Question: Can we program Audi Q7 diesel EDC16CP34 calculator? Answer this question
A:Answer:
Yes no problem, Bench mode.
By Smith Sunny SELLER on May 23, 2024
0
votes
Q:Question: Is it safe to write Visteon DCU102 via OBD? Answer this question
A:Answer:
Depends, If peugeot, will not read obd, but can write
By Damianski on May 18, 2024
Ford can r/w obd. Read boot / write obd ok.
By Paweła on May 18, 2024
I always take out and read in Boot as save .
10 mim work to take out , open , 2 boot wires with resitor and have full backup.
By Martin P. on May 17, 2024
See More Answers (2) Collapse Additional Answers (2)
0
votes
Q:Question: ecu me7.6.2 was brick, it can make id read write ecu ok, but after write car start for few seconds and then stall, no possible to start it again, just try to write it back and start once. Answer this question
A:Answer:
Its a checksum problem, try writing with kess checksum disabled it was floating arount the forum here....i recently restored one with kt200 and fully cloned.
By Francisco on April 23, 2024
0
votes
Q:Question: Can KT200 read DCM3.7 AP China Greatwall Wingle? Answer this question
A:Answer:
No, please use KTflash, here you go for the details: https://www.ecuhelpshop.com/products/dcm7xx-series-license-of-ktflash.html.
By Smith Sunny SELLER on April 9, 2024
0
votes
Q:Question: After finding the OBD password for a SID208 PSA, can I write the computer in boot mode several times without going through the password procedure again? Answer this question
A:Answer:
Arrange saves the password in the system folder and then when reading boot the password will go there.
By Smith Sunny SELLER on March 27, 2024
0
votes
Q:Question: Can we use a BDM Ktag head on KT200 II? I have a SID201 PSA to read, but Ktag says "incompatible material." Answer this question
A:Answer:
Yes, or 5 minutes of soldering with the supplied adapter.
By Smith Sunny SELLER on March 19, 2024
0
votes
Q:Question: KT200 VS KT200 II Answer this question
A:Answer:
new hardware and more ecu's supposed, kt200II is better device. I done lot of ecus with both devices. it's not slow, you should use better hw for it.
By Paul on March 18, 2024
0
votes
Q:Question: Is it worth buying the KT200 or the KT200II now? Is there a big difference between them? Answer this question
A:Answer:
Please refer to this article for a comparison between KT200 and KT200II: https://www.ecuhelpshop.com/product-technical/ecuhelp-kt200ii-vs-kt200-ecu-tcu-tool.html.
By Smith Sunny SELLER on March 13, 2024
0
votes
Q:Question: Kt200II read and write Delphi DCM7.1A ok? Answer this question
A:Answer:
Read and write via obd okay.
By Nanette on March 11, 2024

Customer Reviews

5.0
5.0 out of 5, 120 Reviews.
5 stars: 115 ratings, 96%
4 stars: 5 ratings, 4%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

Verified User
September 23, 2024 by Irene ceneri, from Italy
Verified User
KT200II read/write Mercedes Benz CRD2.10  boot mode perfectly.
Verified User
September 9, 2024 by SPAETER Christophe, from Poland
Verified User
Kt200 Ford Mondeo 1.6TDCi obd read ok write Boot mode.
Verified User
September 9, 2024 by mario caputo, from Netherlands
Verified User
KT200 II read and write sid807evo via OBD OK.
Verified User
September 9, 2024 by Gustavo Garrido, from Netherlands
Verified User
KT200 II Read and Write Fiat Scudo 2.0 HDI Delphi DCM 3.5 via OBD.
Verified User
September 8, 2024 by Amélie Pascault, from France
Verified User
Dcm6.2 yes via obd
Edc17cp20 bench mode
Tags: KT200IIECUHELP KT200IIKT200 IIKT200 2EU Ship
