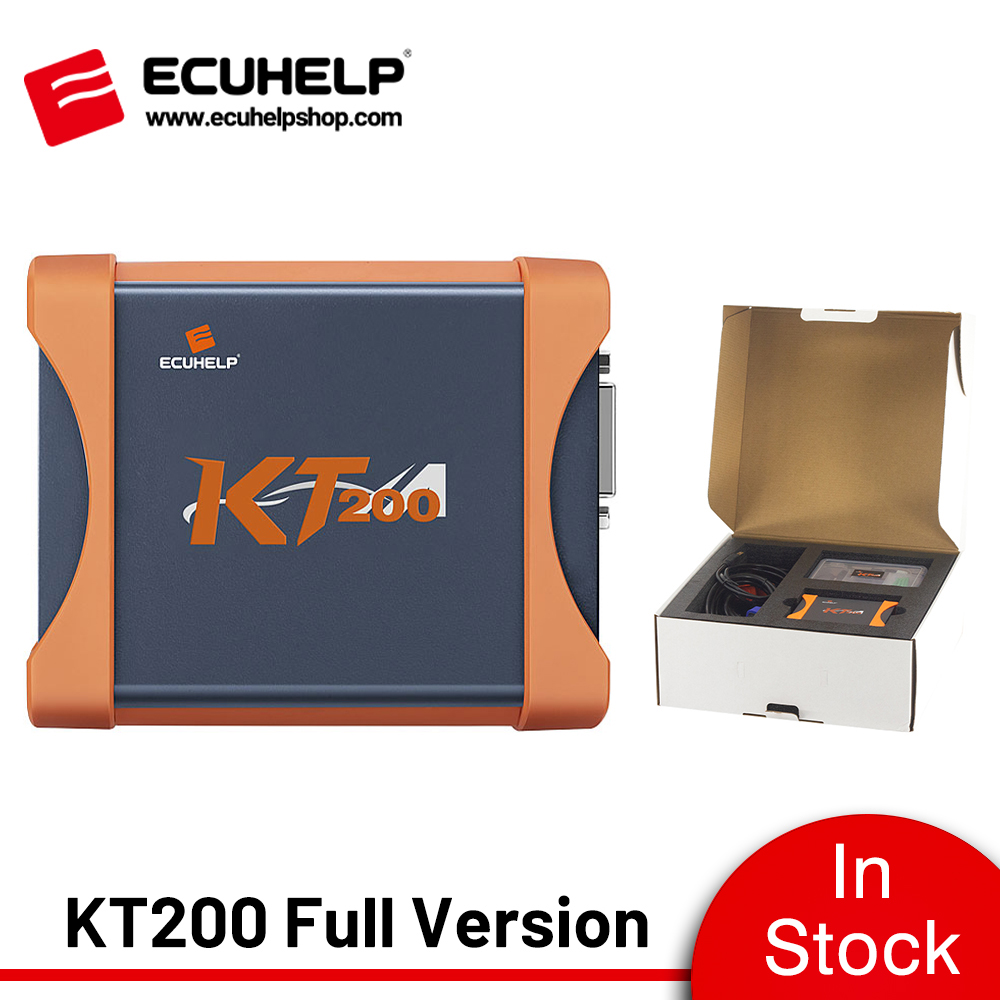

[Carton Box) ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat, Support OBD / Bench / BOOT / JTAG / BDM

What is ECUHELP KT200 Full Version?

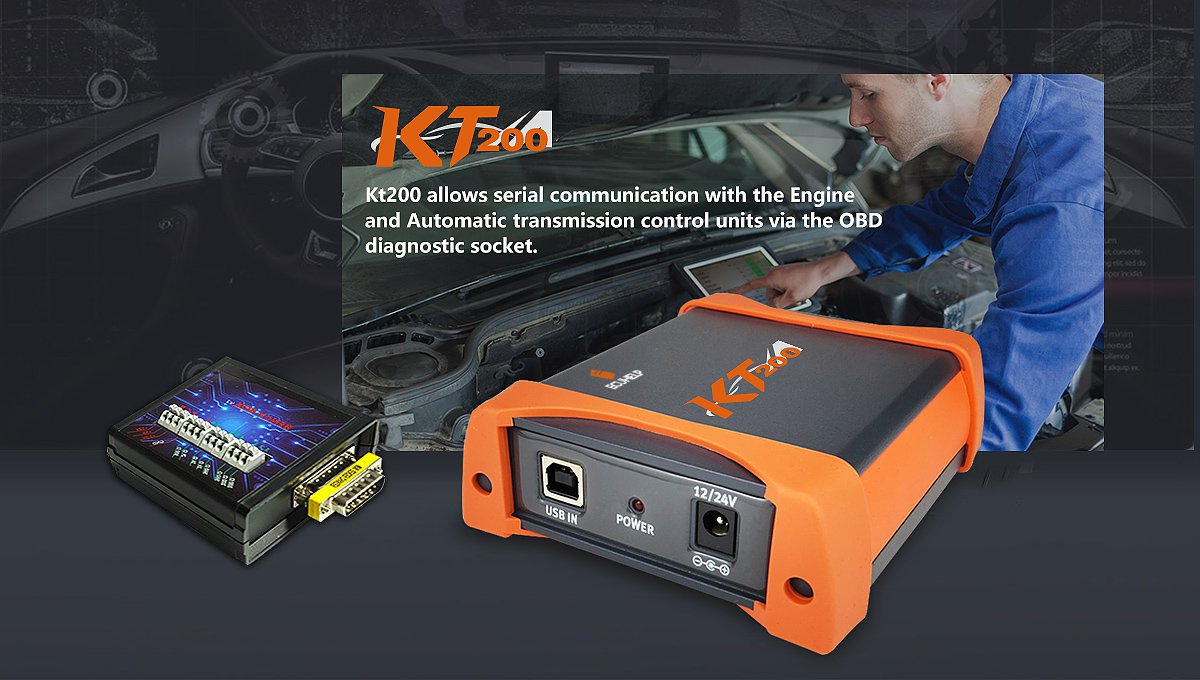

ECUHELP KT200 Full Version is a powerful ECU Programmer that enables the reading and programming of engine control units (ECUs) and transmission control units (TCUs) for various car brands worldwide from Europe, USA, India, China, etc.  It supports different modes of communication such as OBD, on Bench, Boot mode, BDM, and Jtag systems.  It can read and write the EEPROM and flash memory of ECUs types of ECUs i.e Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental, Motorola, Valeo, Siemens Continental, etc.  It's versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.

What is the benefit of ECUHELP KT200 Full Version?
→Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
→KT200 ECU programmer software allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
→ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
→Support Volkswagen Audi clone (local operation without sending data to manufacturers)
→KT200 Full Read and Write TCU(MICRO + EEPROM): TCU CLONING and TCU CODING FUNCTIONS
→KT200 ECU Programmer covers up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs).
→Support Audi/VW ECU Clone via Bench Mode pinout.
→Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.
→Supports Simos PCR2.1 unlock by OBD CAN.
→Can perform a full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.
→KT200 supports a part of Auto Checksum Calculation, it is recommended that you do manual checksum using Winols / Davinci, Lsuite, and similar tools.
→Get free VR files and Damaos files from ECUHelp V3.0

We provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.

What ECU brands can ECUHELP KT200 Full Version work with?
KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, TCU Gearbox, BDM/JTAG, TOOL BOOT, Bench Mode.
KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List


Image means: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, and TCU Gearbox are all enabled.

ECU Brand Coverage:
For Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Adem, Delco, Continental,Motorola, Valeo, Sagem,Johnson Valeo,Visteon,Visteon Fomoco,Phoenix,Temic，Temic，Deutz, SISU, Mitsubishi, Siemens Continental, Visteon Fomoco,TRW,Temic,Hitachi, Trionic, Visteon,TRW,Mems, Lucas.

Car:
Abarth, Alfa Romeo, Aston Martin, Audi, Baic, Belarus, Bentley, BMW, Chery, Chevrolet, Chrysler, Citroen, Corvette, Cummins, Cupra, Dacia, Daewoo, Deutz, Dodge, Doosan, DR, Effedi, Faw Jiefang, Fendt， Ferrari, Ferrari - MaseratiFiat Alfa Lancia FCA, Fiat, Ford, Ford - Jaguar, Ford – Mazda, Ford – PSA, Ford - PSA - Volvo, Ford – Volvo, Geely, GM, GM-Opel, GMC, Great Wall, GWM, Hino, Honda, Hummer, Hyundai, Kia, Infini, Isuzu, Iran Khodro IKCO, Iveco, Jac, Jaguar, Jeep, Jeep - Chrysler, Kia, Kia - Ssangyong, Ktm, Lada, Lamborghini, Lancia, Land rover,  Land rover Freelander， LDV, Lexus, Mahindra, Man, Maserati, Mazda, MC Laren, Mercedes Benz, MG, Mini, Mitsubishi, Nissan, Opel, Opel GM, Peugeot, Porsche, PSA,  Renault,  Rolls Royce, Rotax, Rover, Rover MG, Saab, Same, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Toyota, UAZ, VAG, Volkswagen, Volvo, XCMG.
***Covering a full range of cars from Europe, Germany, France, Italy, Japanese, American, and Chinese models.

Truck:
Astra, Bugatti, Caterpillar, Claas, DAF, Deutz, Faw, Fendt, Fergusson, Ford Transit, Hino, International, Isuzu, Iveco,Iveco Daily, Iveco Stralis, New Holland truck, Iveco Tector - New Hollan truck, Iveco Tector - New Hollan truck, Jac, Kamaz, Kia, King Long,  King Long Bus,Landini, Mack, MAN, Massey Ferguson, MC Cormic, New Holland, Nissan, Renault,  Renault – Volvo，Renault Mascott, Scania, Seat,  Shaanxi,Shacman, Sinotruck, Sisu,Steyr, Still, Thaco, Valtra,Volvo Truck.

Tractor:
AFT, Agco, Agrale, Agrifac, Artec, Axial-Flow, BCS, Bobcat, Bravo, Carraro, Caterpillar, Challenger, Claas, Deutz, Deutz Fahr, Dieci, Fendt, Gehl, Grim, Guaresi, JCB, Jhon deere, Kioti, Komatsu, Kramer, Kubota, Lamborghini, Landini, Lindner, Massey Ferguson, McCormick, Merlo, New Holland, Oxbo, Same, Sgariboldi, Supertino, Tecnoma, Valtra, Valtra Tractor, XCMG, Yanmar.

Excavator:
Case, Bobcat, Doosan, Hitachi, Steyr,

Motorbike:
Aprilia, Benelli, BMW Moto, CF Moto, Derbi, Ducati, Gilera, Harley Davidson, Indian Motorcycle, Kawasaki, KTM, Moto Guzzi, MV Agusta, Piaggio, Royal Enfield, Suzuki, Yamaha

Marine:
Iveco,Sea Doo, SISU Engine, Volvo Penta, Yanmar

2023.02.01 ECUHELP KT200 Full Version Highlights:

1. Hardware: same as the KT200 auto version
Built-in with green chipboard which is encrypted and safe performance.

2. Software: 23.02.01
download KT200 online version software
downloadKT200 offline version software

The software does not need to register and activate.
Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements:  CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
***Refer to ECUHELP KT200 Quick Guide on how to install KT200.

3. Work in online mode: yes (connect software online to access our server, no lock issue).

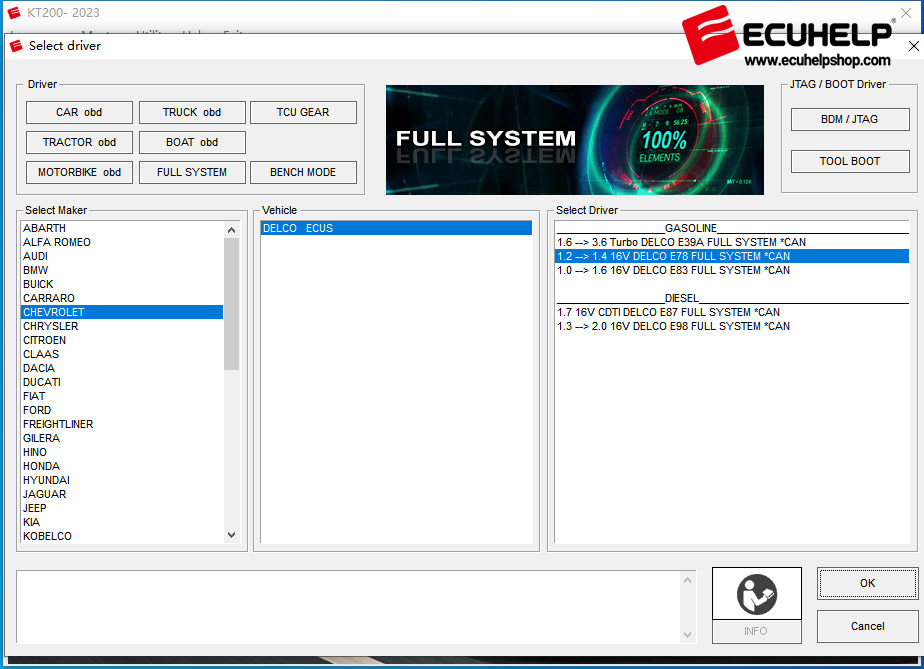

(Image 1: ECUHELP KT200 23.02.01 software)

Work in offline mode: Yes with one extra USB Dongle.

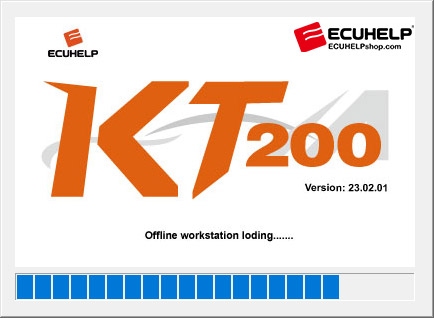

(Image 2. ECUHELP KT200 Offline workstation is loading)

4. Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

(Image 3:ECUHELP KT200 Language is switchable at the left corner of the software)

5. Free update and no annual fee.

6. 1-year warranty period, after-sales service guarantee

ECUHELP KT200 Update(April 2023 ):
Add HTprog Clone Adapter
Cover more ECU Clone List: Confirmed
On Bench Chip Tuning / ECU Cloning: Confirmed
BDM read/write: Confirmed
Built-in Editors: Confirmed
Other functions: Confirmed
Key Features: Confirmed
IMMO BDM read/write: Confirmed
ECU Clone List
on Bench programming support list

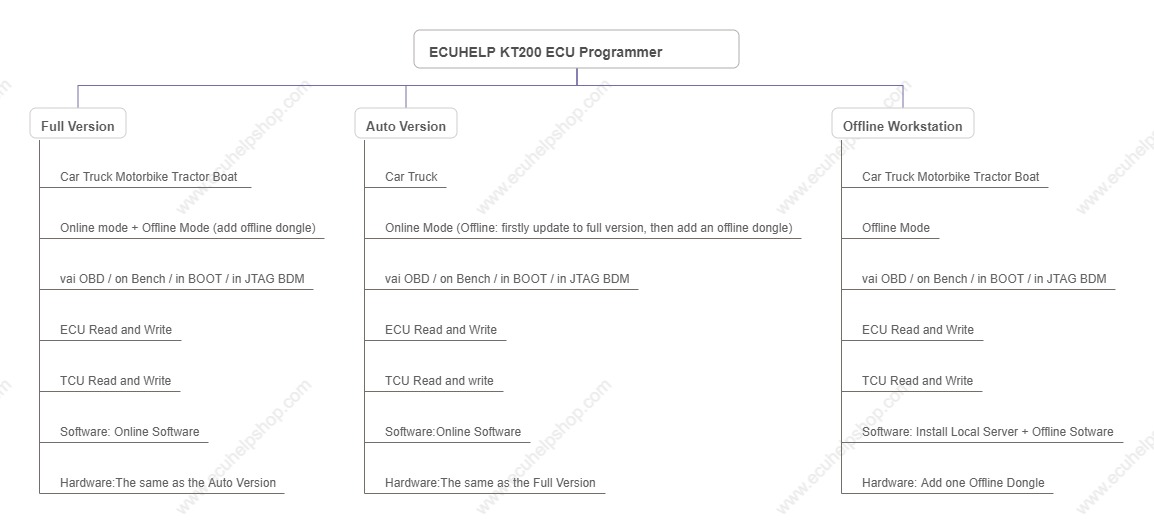

ECUHELP KT200 Full Version VS Auto Version VS Offline Workstation:


  What is the ECU service?
ECU service includes 2 major items:

1. Chip tuning.
Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data, Stage 2 data, and Stage 3 data.

2. ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal

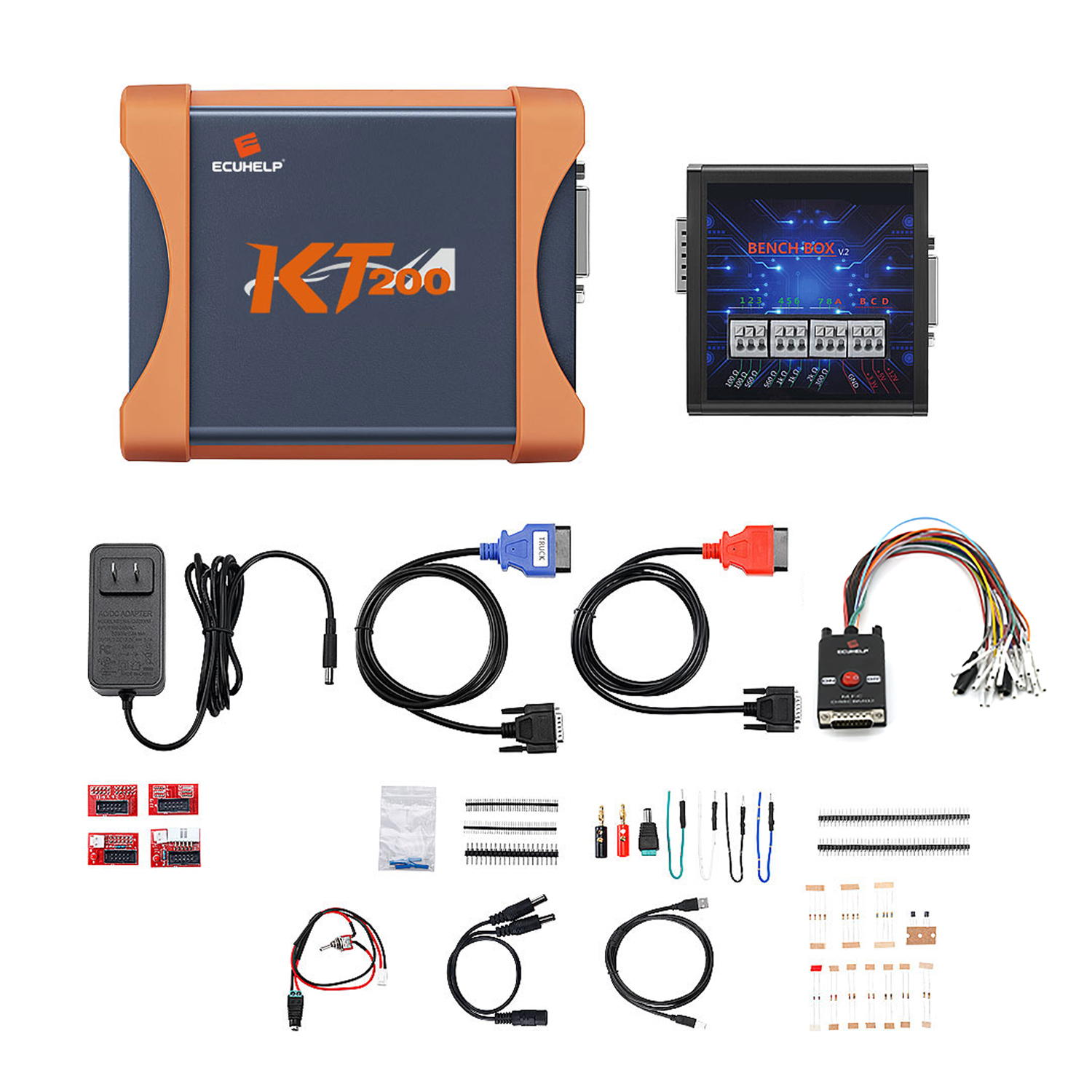

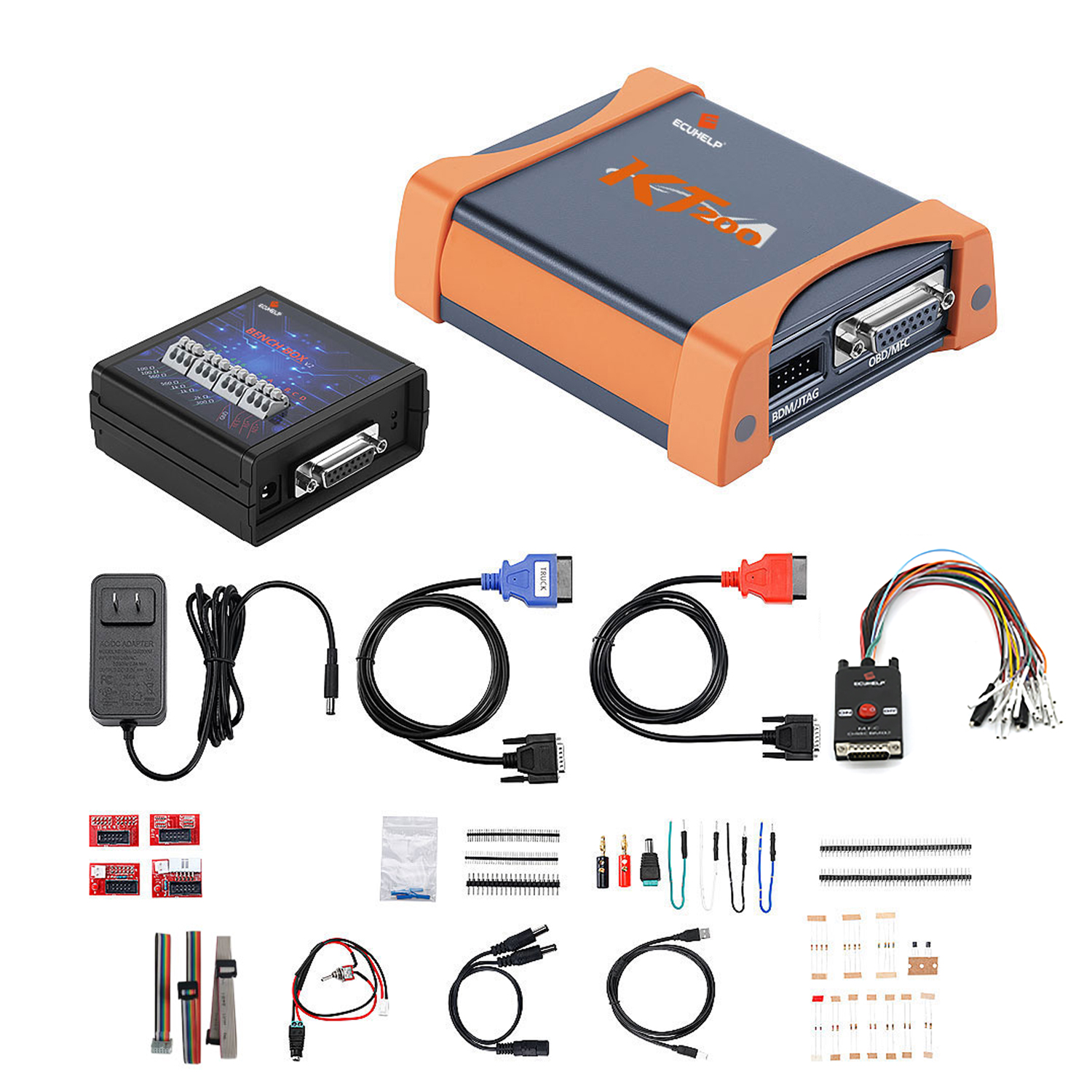

ECUHELP KT200 Full Version Package Includes:
1pc x Master

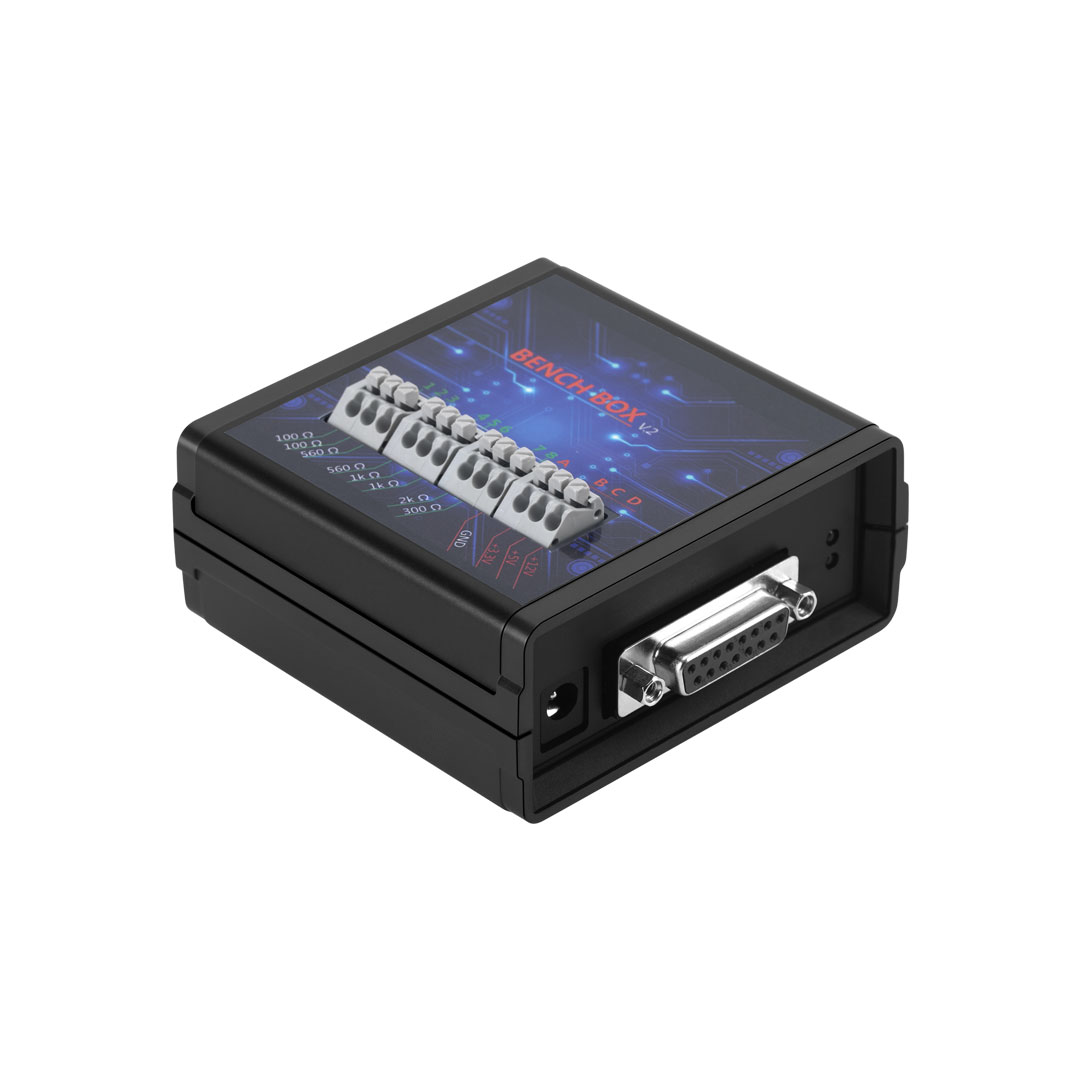

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs

---

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Download ECUHELP KT200 software.
Install ECUHELP KT200 software
ECUHELP KT200 open device error solution
Disable Driver Signature Enforcement
How to Reinstall ECUHELP KT200 software?
How to solve ECUHELP KT200 software auto close?
KT200 software "correct your time" solution
KT200 Offline License expired Solution
Can KT200 online software and offline software be installed in one computer?
Solution of Error:126 /"api-ms-win-crt-runtime-i1-1-0.dll” is missing/Visual C++ setup failed
How to solve "Wait for 10 sec before continuing"?
Does ECUHELP KT200 support VR / W via OBD?
How to get the password when R / W in Boot mode?
KT200 "Selection driver not active” Solution

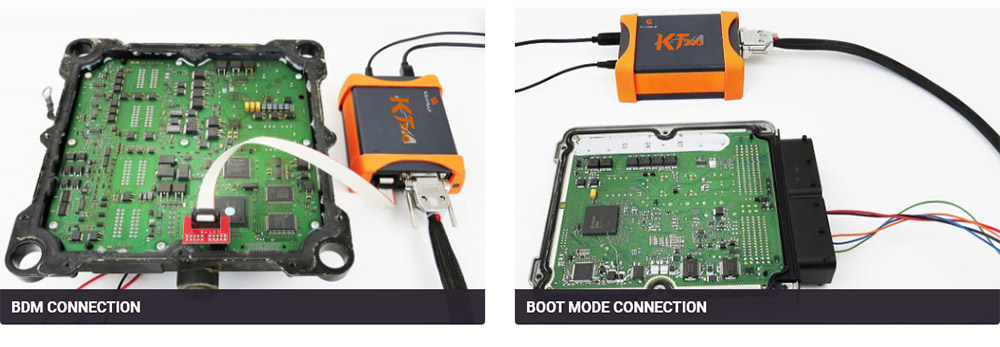

ECUHELP KT200 is tested able to read and write Flash & EEPROM on Bench / via OBD / in BDM & JTAG for more than 5400 ECU and over 500 TCU. Then how to use ECUHELP KT200 ECU Programmer?

Download ECUHELP KT200 software.
As known, there is ECUHELP KT200 auto version, full version and offline version.
1. ECUHELP KT200 auto version software (online version and 7 license available).

2. Download ECUHELP KT200 full version software (Also online software)

3. ECUHELP KT200 offline workstation software download source
Firstly, install ECUHELP KT200 offline dongle (also named as local server), then the offline software.

Install ECUHELP KT200 software.
Please refer to KT200 ECU Programmer Newest 12 .10 version installation:

KT200 ECU Programmer Offline Workstation installation

Operation tips:
1. win defender + Antivirus disabled As ADMIN
2. install both the x32/x64 patches
3. install drivers for device
4. install hardware+power
5. Please install software in Disk C://

Also:
KT200 software no need to register and activate.
Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements:  CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB

Alright, To open the ecuhelp kt200 software, please do the following things:

Make sure good internet (for online version)

Go to Service to change a server (any of China, Germany and Hongkong)

Set time and timezone auto

Turn off windows defence

Set timezone to same as server

Use VPN and set VPN to where server is at

Restart PC

Make sure tool is plugged in

ECUHELP KT200 Questions and Answers

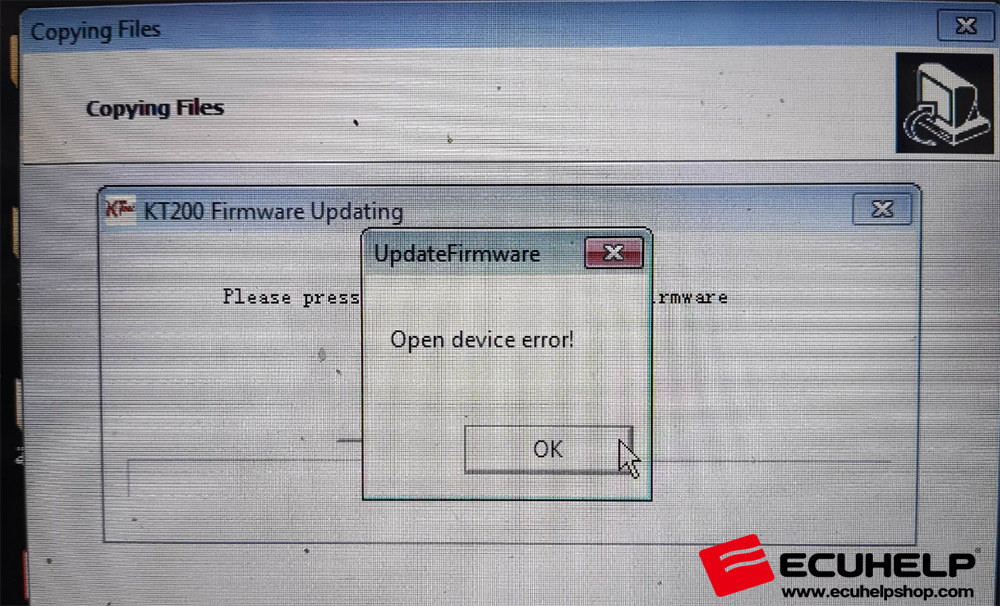

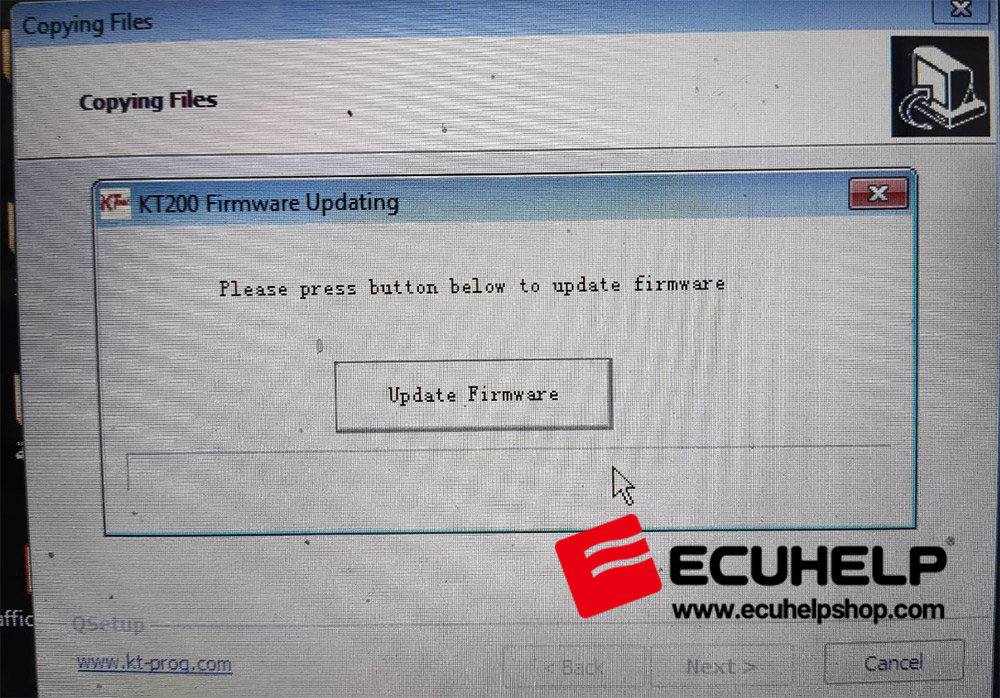

Question:ECUHELP KT200 open device error solution.
Answer: This is the first time when the software is installed and the driver cannot be detected. Turn off this error message and continue the installation, and then install the driver in the device manager (Path: Device manager -> Universal Serial Bus Controller -> DFB-Technology DFOX); In another method: C -> KT200-Master -> remote -> driver

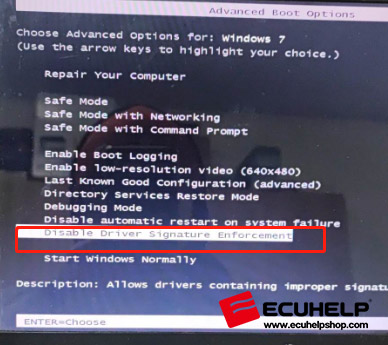

Question:Disable Driver Signature Enforcement.
Answer: Usually, it is needed for Win7 installation.
1) Reboot the computer, hold F8
2) Enter “safe mode”, and select “Disable Driver Signature Enforcement”.
3) Reboot the computer.
Done!

If WIN10 needs to Disable Driver Signature Enforcement, the operation path is contained in the install package, path: C ->KT200-master ->remote -> Run in win 10, then the computer will reboot.
Note: Win10 professional / Business install no problem, and Win10 Home is not compatible.

Read Article: How to Disable Automatic Driver Signing in Windows 10 and Windows 7?

How to Reinstall ECUHELP KT200 software?
Please go to C disk and manually delete the folder “KT200-master”, ensure delete all empty before reinstall the software.

How to solve ECUHELP KT200 software auto close?
If the software auto close or the drivers button is gray, please check if you turn off Defender in Windows Security and the antivirus protection.
Operation:
1)Select Start and type "Windows Security" to search for that app.
2)Select the Windows Security app from the search results, go to Virus & threat protection, and under Virus & threat protection settings select Manage settings.
3)Switch Real-time protection to Off.

Another possible reason and solution:

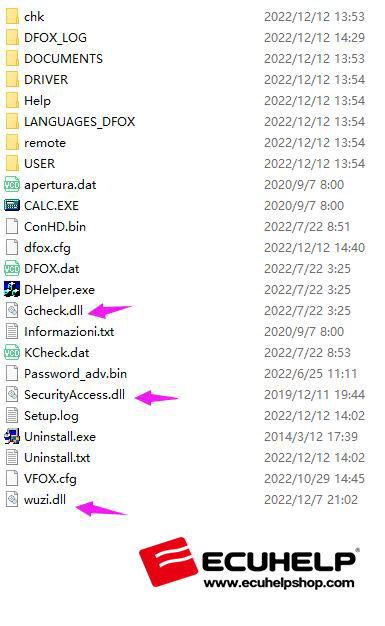

There are 3 .dll files in the folder “KT200-Master” including Gcheck.dll, securityAcess. Dll, wuzi.dll, if there is 4 .dll files, it may be implanted with a virus. It will cause KT200 software auto close or not open directly.
One point to pay attention: when the software is started, dfb2xx.dll will pop up, and then disappear automatically, it is normal.



KT200 software "correct your time" solution
In Win 10: Right click the time at the right corner of the computer, select “Adjust date / time”, turn on “Set time automatically”, then click on “Sync now” below Synchronize your clock.

In Win7: Right click the time at the right corner of the computer, select “Adjust date / time”, then select “ Internet time”, and tick off “Automatically synchronize with an Internet time server.

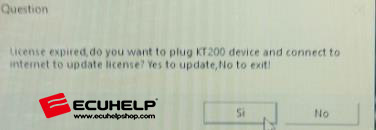

<KT200 Offline License expired Solution

Please send Oliver (Whatsapp: http://wa.me/8618205996549)  the file “sysinfo.txt” and wait to be given a “License.lic”kt200, then put it on the desktop to click on update license.

Can KT200 online software and offline software be installed in one computer?
Yes, please firstly install online software and then the offline software.

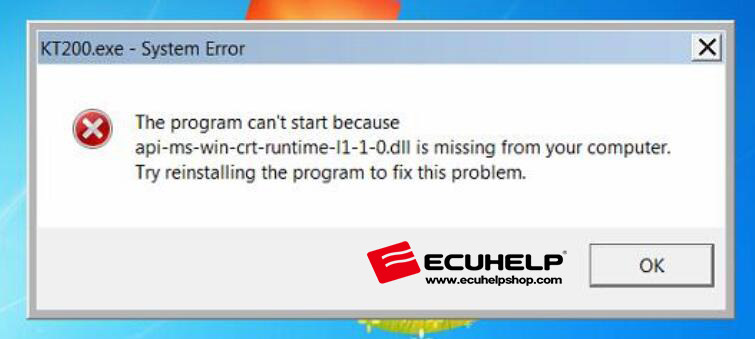

Solution of Error:126 /"api-ms-win-crt-runtime-i1-1-0.dll” is missing/Visual C++ setup failed

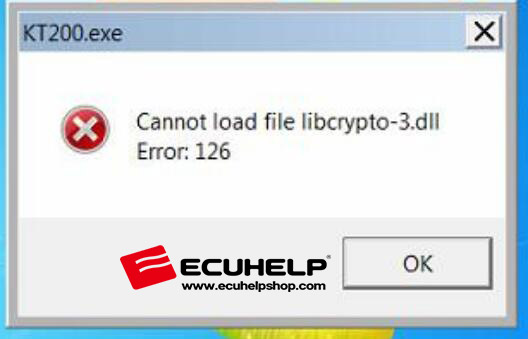

Error 1: Cannot load file libcrypto-3.dll Error:126
Error 2: "api-ms-win-crt-runtime-i1-1-0.dll” is missing”

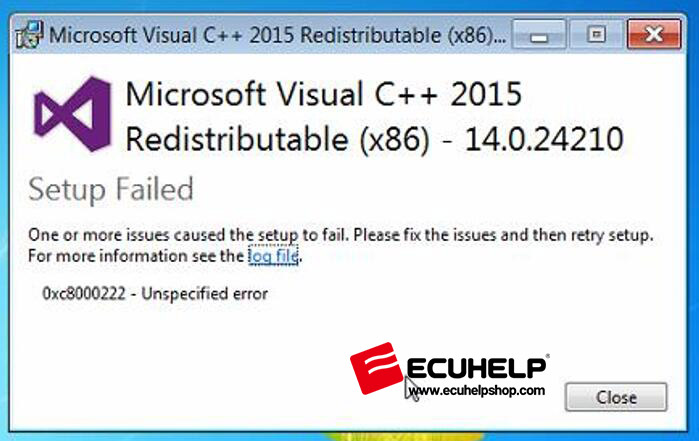

Error 3:  Visual C++ setup failed
Solution: Install the patch package corresponding to the system, and it can run normally.
Free download Vc_redist.x86 ( 32-bit system)
Free download Vc_redist.x64  (64-bit system)

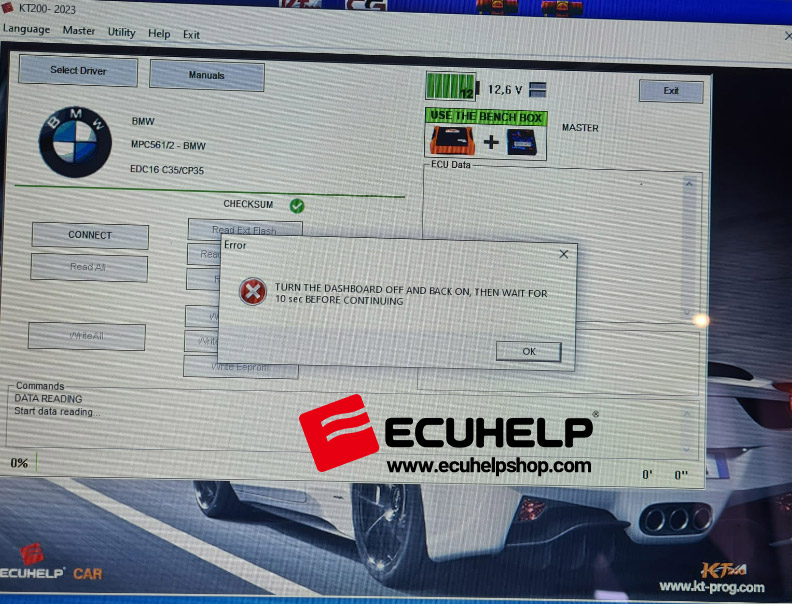

How to solve "Wait for 10 sec before continuing"?


Possible reason:
EDC16 c35 has 2 chips including 561/2 and 563/4, and their wiring method is not the same, also please ensure if the ECU is able to normally
communicating.

  Does ECUHELP KT200 support VR / W via OBD?
Answer: yes, but not complete, please download and install ecuhelp 3.0 to check.

How to get the password when R / W in Boot mode?
Method 1. Insert ECUHELP KT200 into the car to find the password, and then come back to read and write in Boot mode. For example, SID208, please refer to the manual.

Method 2. Extract password.
After reading out, it will be saved to KT200 and named as password_adv.bin.

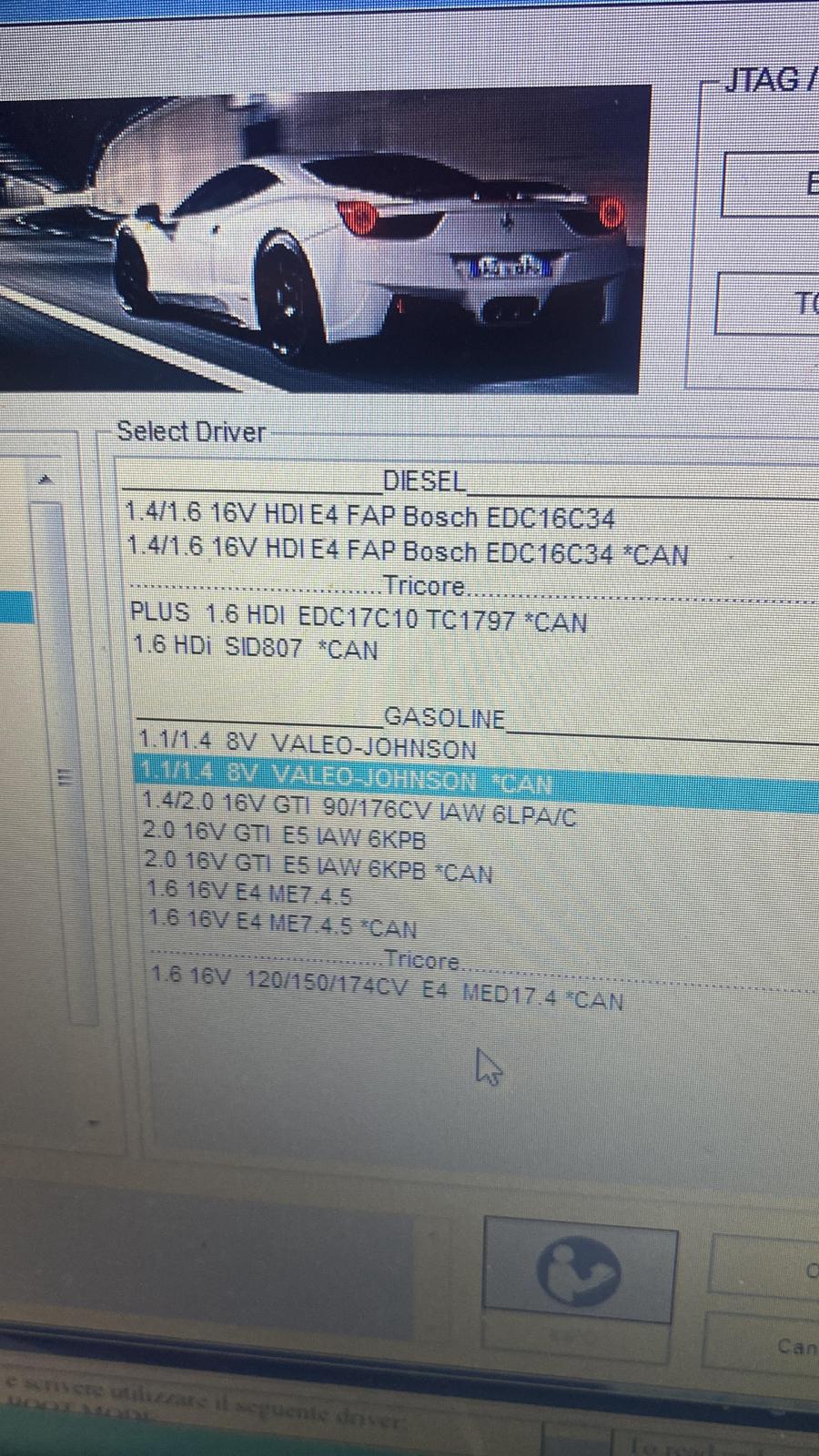

How to solve no ECU info displayed at the left corner of kt200 software?
Free download this auto.txt and put it into folder "KT200-Master".


KT200 "Selection driver not active” Solution
I have problems with the KT200 programmer "Selection driver not active", can you provide information on how to figure out this issue?

Possible solutions to the problem are:
1.Maybe tool is not recognized. To fix this issue, try resetting your PC ,unplug and plug the usb again and will be fine.

2.or driver issue, check device manager first, and then watch the video on how to update the driver:

3.It is also possible that your firewall is turned on and your antivirus is not uninstalled. If this is the case, uninstall the KT200 software, turn off all firewalls, uninstall the antivirus, and then reinstall the KT200 software.
