KT200II Kit

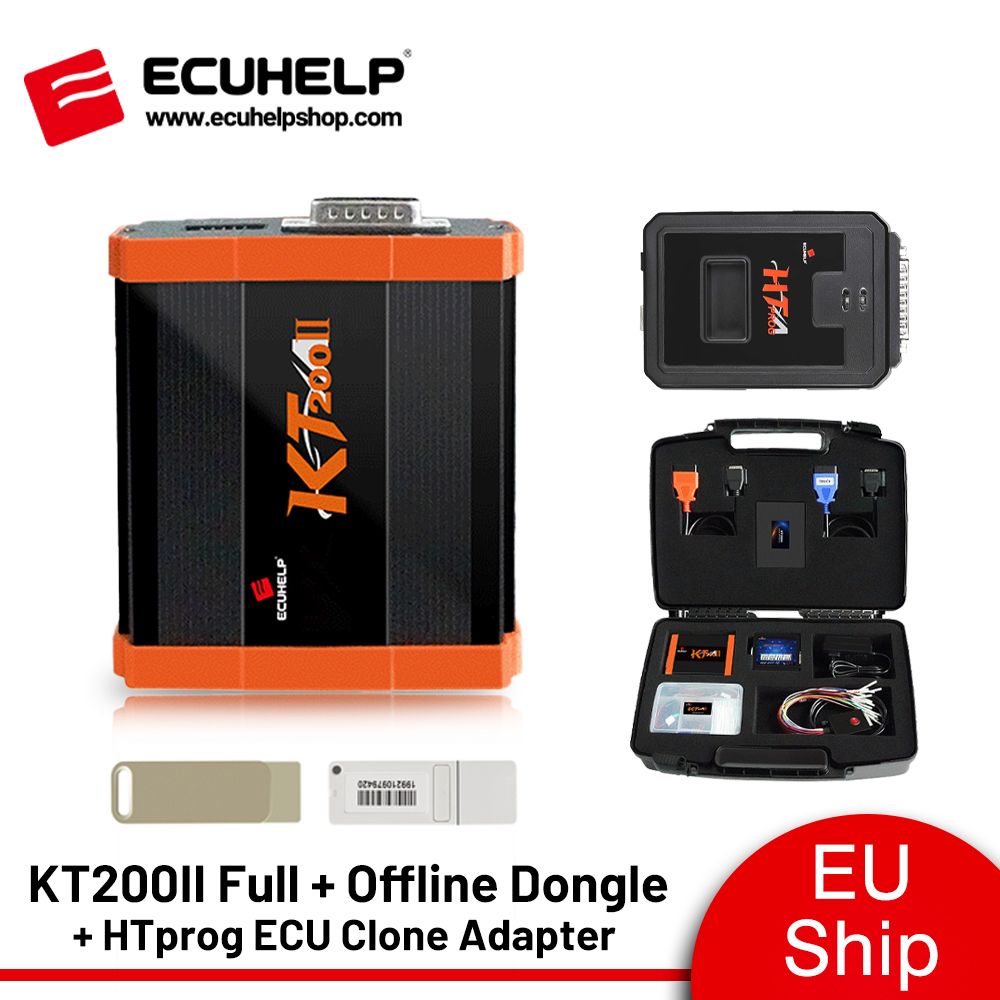

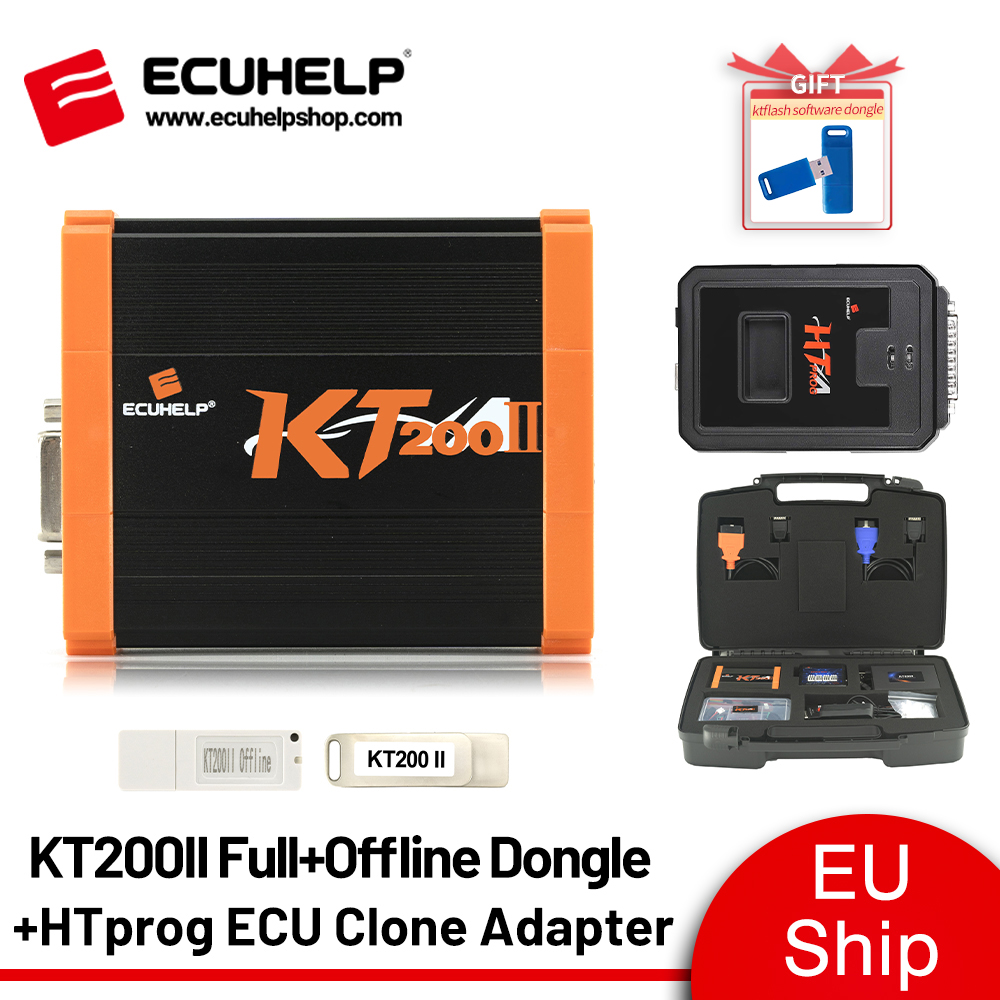

[EU Ship] ECUHELP KT200 II ECU Programmer Offline Workstation + HTprog ECU Clone Adapter with Power Box [Get one Free KTflash Dongle]

909Was 9999% OFF
SKU: EP-KTM200II+EP-HTpower Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-10 Working Days
Package Dimensions 48 x 35.5 x 15 cm; 3.5 Kilograms
Item Weight 3.5 kg
Returns Return for refund within 30 days, buyer pays return shipping.
5 KT200II ECU Tool: KT200II Kit [EU Ship] ECUHELP KT200 II ECU Programmer Offline Workstation + HTprog ECU Clone Adapter with Power Box [Get one Free KTflash Dongle]

Product Description

(EU Ship) ECUHELP KT200II Offline Workstation + HTprog ECU Clone Adapter with Power Box

Part 1. KT200II Description
Part 2. HTprog ECU Clone Adapter with Power Box

In detail:

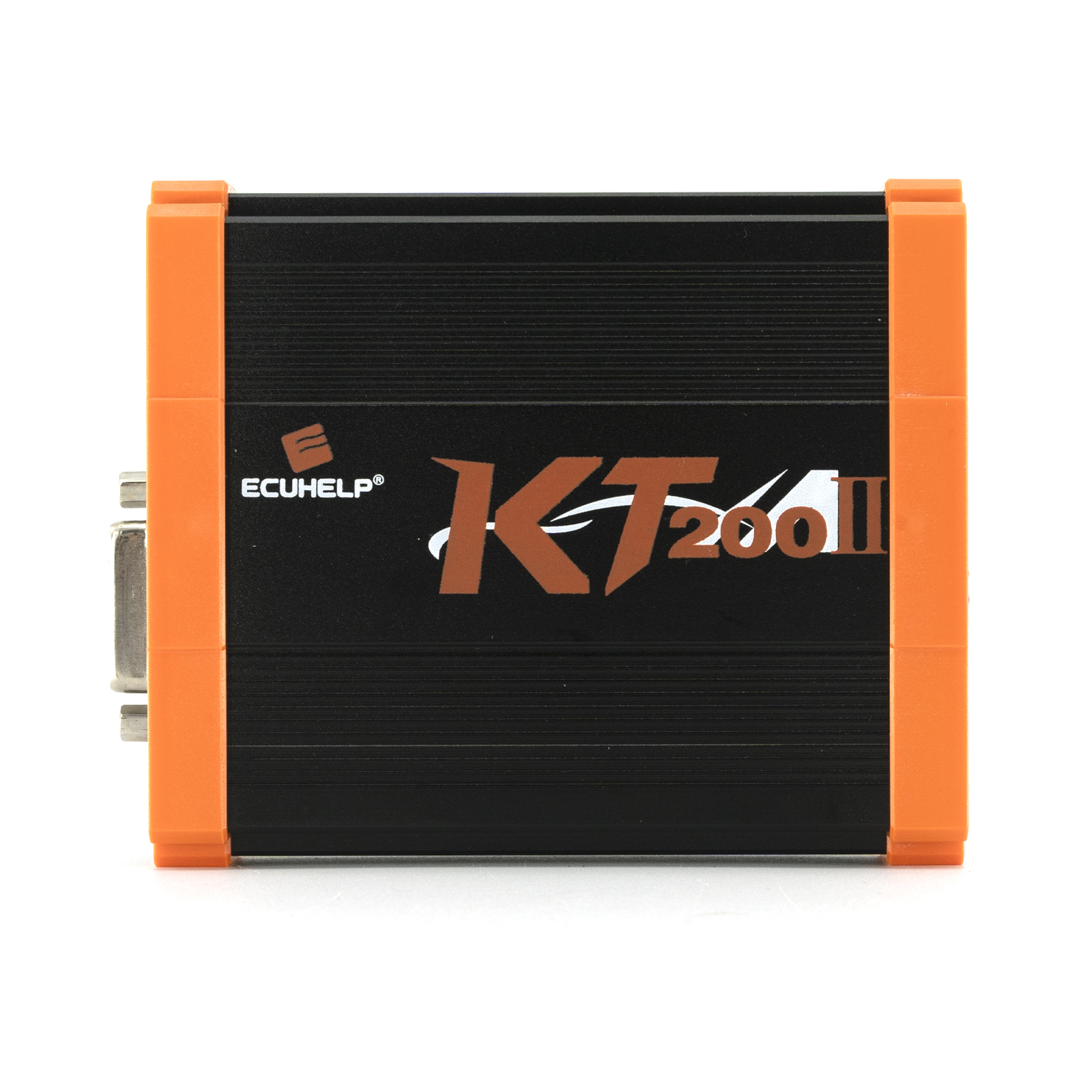

Part 1. KT200II Description

ECUHELP KT200II Offline Workstation Enabled Software:
Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.Full System,BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear

ECUHELP KT200II Offline Update Log:
KT200 II Update January 8, 2024
FOR PSA SID807 / SID807EVO DRIVER.
NEW OBD DRIVER NISSAN RENAULT EDC17C45
NEW OBD DRIVER FOR PSA DELPHI DCM7.1A
NEW FUNCTIONS UPGRADE/DOWNGRADE FRF/ODX/SGO FILES FOR VAG GROUP
BOOT MODE ME17 DR, BAIC, CHERY MY 2020
NEW BENCH MODE DRIVER FOR TCU 7G TRONIC VGS-NAG2
NEW BENCH MODE DRIVER FOR TCU 9G TRONIC VGS-NAG3
NEW BOOT MODE DRIVER FOR TCU FCA 62TE
NEW OBD DRIVER FOR DCU17 CV51 JCB
SUZUKI DENSO 33920-76XX
For the details, please refer to: KT200II Update on January 8, 2024

KT200 II Offline Update November 2023 year:
KT200II upgrades new protocols and commits to regularly updating more.
Resolves automatic checksum issues in the KT200, enhancing read/write efficiency.
There was a significant increase in virtual files available on the server.
Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.
Faster and more efficient server connectivity.
Reliable reading and writing via OBD.
Now supports DELPHI DCM7.24 ECU
Compatible with htprog Clone Adapter too.
Introduces the Tricore Clone feature.

Frequently Asked Questions about KT200 II:
What's New in KT200II?

Please refer to the updated protocol list.

Can the Ecuhelp KT200 Users Exchange KT200II?
Yes. To upgrade, please do as follows:
1. While awaiting the shipment of your KT200II, you can continue using KT200. Upon receiving your KT200II, please provide us with the serial numbers of both the KT200 and KT200II. Following this, we will lock your KT200 and activate your new KT200II.
2.  If you have KT200 full version + offline dongle, you will recieve KT200II main unit and one offline dongle.

Are the Accessories and Bench Box of KT200 Compatible with KT200II?
Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?
No, they are not compatible.

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs:
We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52

NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU:
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs:
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

NEW BENCH MODE FOR MG1CA007 ECU:
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcyle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU:
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums

NEW OBD DRIVER FOR PHOENIX L40 ECU:
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing is carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding

NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs:
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4 cable.

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT:
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE:
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.

Understanding KT200II ECU Programmer:
Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data,  read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device.
After reading the ecu data with kt200II, you can use third-party software to edit the ecu data

You can get the functions of ECU model query, wiring diagram search, virtual data download, DEMO download and free database from the ECUHELP 3.0.6 installer.

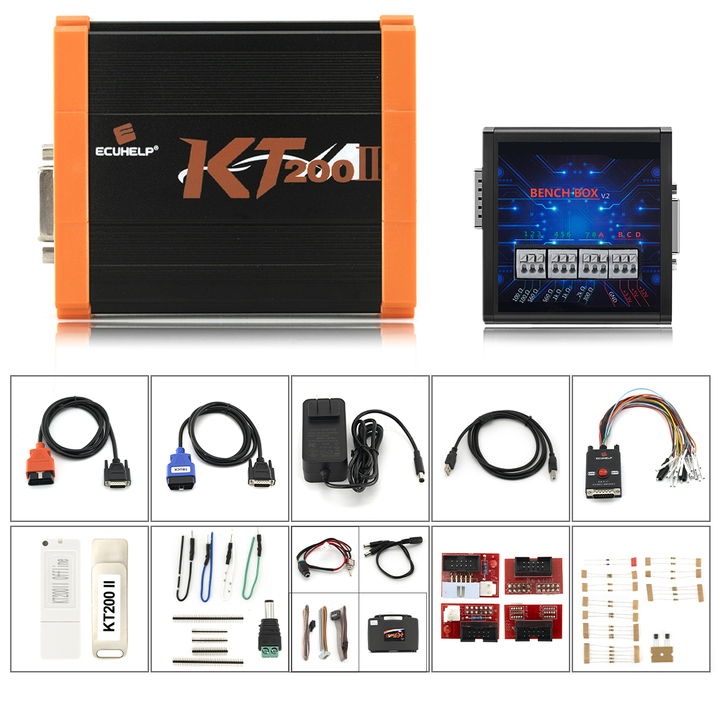

ECUHELP KT200II offline workstation Package List:
1pc x Master
1pc x BENCH box
1pc x Offline workstation
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters

Free Download: ECUHELP KT200II Software (Offline)
Note:
1. KT200II software is not compatible with KT200.
2. KT200II Offline Workstation works offline mode (without the internet connection)
3. Compatible operating systems: Windows 7. Widows 8/8.1.Windows 10, Windows 11
4. Minimum recommended requirements: CPU>2.5 GHz (intel i5,7) RAM 8GB
5. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
Very Important: Before installation you need to disable your antivirus and turn off Windows defender.

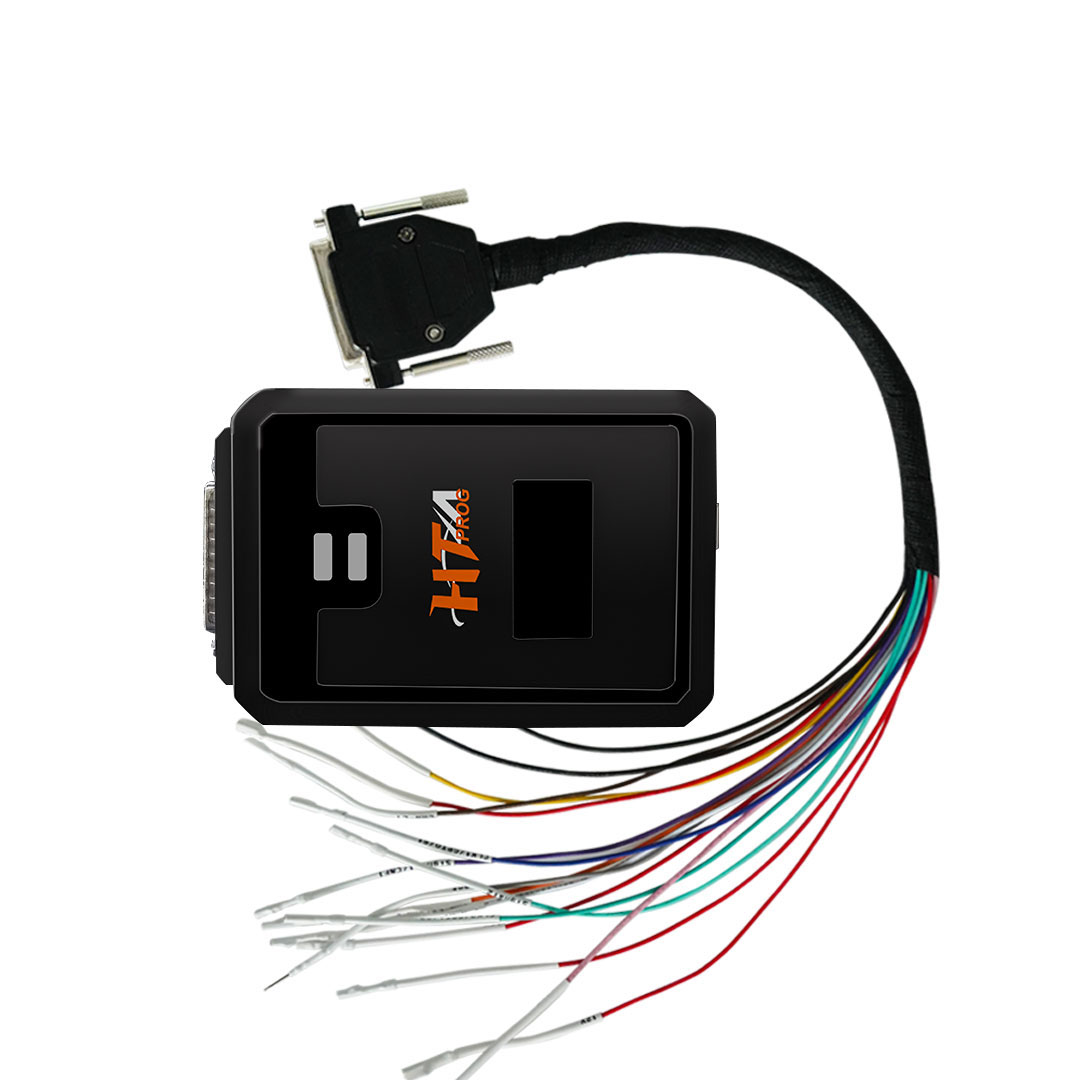

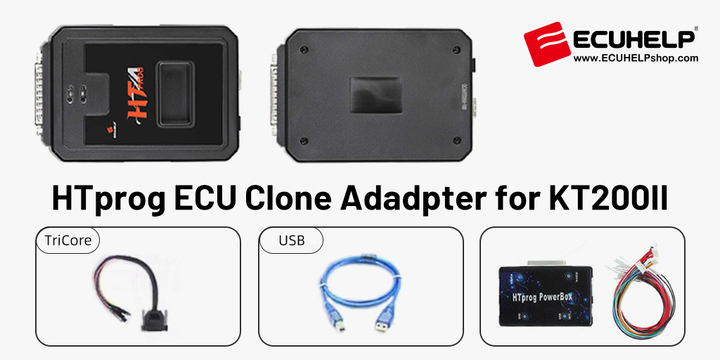

Part 2. HTprog ECU Clone Adapter Description:

1. As an ECU Chip Tuning Tool: HTprog adapter is paired with KT200II / KT200, which adds more ECUS and TCUS protocols, strengthens the cloning function, and supports more protocol cloning.
Use HT PROG adapter, support more protocols, make cloning easier to read and write, support bench/boot
Read: HTprog ECU clone support list

2. DTC removal, adblue removal EGR cancellation, DPF cancellation, hot start, speed limit release, IMMO off , etc.

3. Make ECU-related operations by reading and writing ECU.

4. Read and write car body modules, such as CAS, SZL, FRM, AIRBAG, EZS, BCM, etc. With this function, you can easily deal with matching keys, unlocking anti-theft, adjusting instruments and repairing airbag computers, etc.

5. For the repair, calibration, and replacement of automotive electronic modules, it can even refresh the key, so that the old key can be a new key and continue to match other vehicles.
Read HTprog on Bench programmer support list

6. HTprog Clone adapter is used with ECUHELP KT200II / KT200, If you want it to work alone, you need to buy a dongle and the cables.

HTprog Functions
Chip Tuning / ECU Cloning
With HTprog you can read and write P-Flash, D-Flash, External Flash, and external EEPROM with the option of automatic checksum correction, you will have many methods in most of ECUS :
1. Factory mode (On Bench for most of ECU / TCU): with this option, you don't have to open the ECU cover. Just plug some wires for power and signals and you are ready to go.
2. Tricore Boot Mode for all Tricore ECU: Opening the ECU is mandatory to connect the boot wire on the ECU board. This method is useful when the ECU is not responding
3. BDM (Background debug mode)
4. JTAG for Renesas and Freescale

BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW. EIZ / EIS in Mercedes Benz. BCM in Volkswagen and Porsche.etc.

Built-in Editors
With HTprog you can edit many Flash data like:
Edit CAS3+ VIN, ISN and keys
Edit CAS4, CAS4+ VIN, and ISN
Edit mileage for BMW instrument clusters

Other functions
You can do key reset for many brands like Audi, BMW, MIN, Porsche, Toyota, Fiat, Renault...etc.
Read / Write a wide range of SOP8 EEPROMS.
Works side by side with Autohex to make keys.

Key Features
Master version. One License for all protocols on bench.
Supports one of the largest ECU / TCU list in Cars and Trucks for ECU cloning and Chip Tuning. Supports both old and latest ECU / TCUs from Bosch, Continental, Delphi, Marelli, Denso, Tenic, TRW and Valeo.etc.
Reads all BMW long ISN from BMW DME and DDE including MD1 and MG in the F/G series

IMMO BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW, EIZ / EIS in Mercedes Benz.BCM in Volkswagen and Porsche...etc.

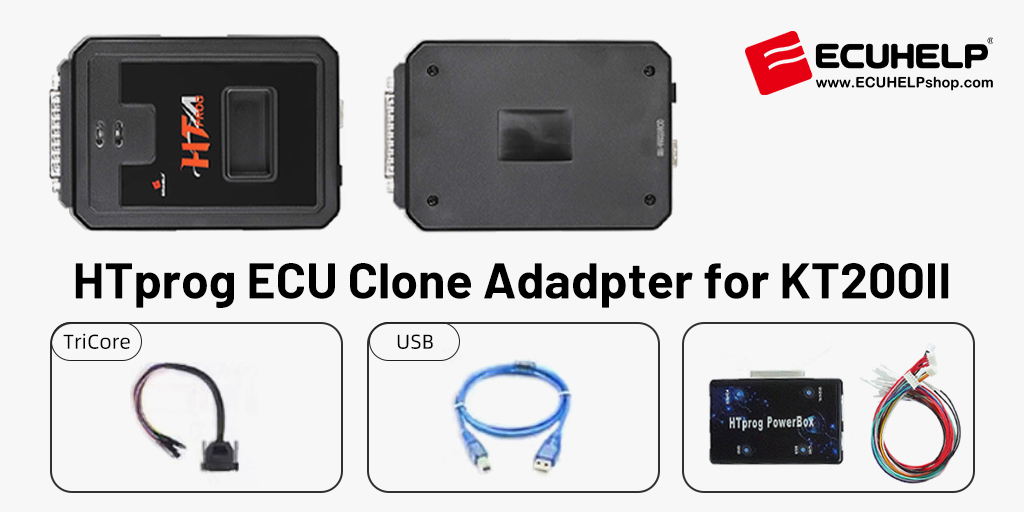

ECUhelp HTprog Clone Adapter Package List:
1pc x Tricore adapter
1pc x USB
1pc x Power Box

KT200II Kit /KT200 Kit Test Reports:
KT200II / KT200 with HTprog Clone Adapter Read CAS3+ 0L15Y-15 100% OK.

Test no issue for EDC17CP49 BMW X4 , 2016 Backup,  read P-Flash, D-Flash and read Long ISN.

Read/write EDC17CP45 OK.

Read/write EDC17C55 OK.

edc17c45 ok
edc17c50 ok
edc17c49 ok
ALL BMW is tested ok
read and write the tunning file except for the second edc17c45, The first was ok, but the second has written the file, no changes to the car, I tried 2 times with 2 different files,  but the same results. i think is something with the checksum correction made by HT, I will try also with manual checksum.

Clone EDC17C50 OK.

HTprog Feedback:

I tried some med17 ecus and all reading.

BMW MSS60L is tested with no issues.

Htprog Read/write sid803a in boot mode Ok

Med17.5.25 and med17.5.5 reading is good.

READ EDC 17C55 OK

Read simos 18.10 OK

edc16 vag c2-mb r/w ok
edc17cp20, cp46 r/w ok
frm2 r/w ok
cas2,3 r/w ok

FRM3 repair OK

read/write edc17c60 OK.
I do not make Tprot off on c60 using this. I simply connect and read/rewrite.

HTprog read edc17c60 ok.

HTprog R/W edc17c10 edc16c34 edc16c3 ok.

The engineers at ECUHELPshop.com would like to remind users of a few important points:
1. It is advised to uninstall any antivirus software and disable the firewall before using the ECUHELP HTprog.

2. It is important not to upgrade the software to avoid any potential damage to the hardware.

3. Activation of the HTprog is necessary and should be done using the user's registered email address.

4. Install software version: 1.0.45, free download HTProg software


We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Videos

KT200II Read Mercedes Temic ecu E3 E4 E5

KT200II unlock denso vea 2015

KT200II Ford Transit sid211 obd mode Read write all ok

KT200II how to resolve issues of patch and the driver of the tool

ECUHELP KT200II Offline Workstation Installation Guide

ECUHELP KT200II Offline Workstation Unboxing and Review

Tech Support

One user feedback: I have problem with installation on the new Win7_64 not started KT200II, and he screenshot the following 2 error message:

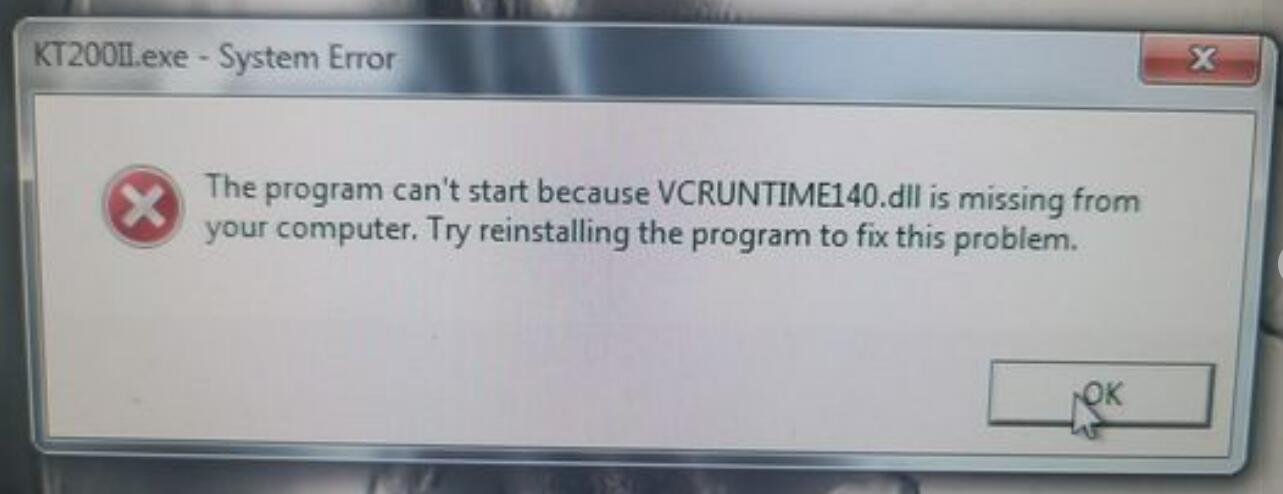

Error 1: VCRUNTIME40.dll is missing.
VCRUNTIME40.dll is missing

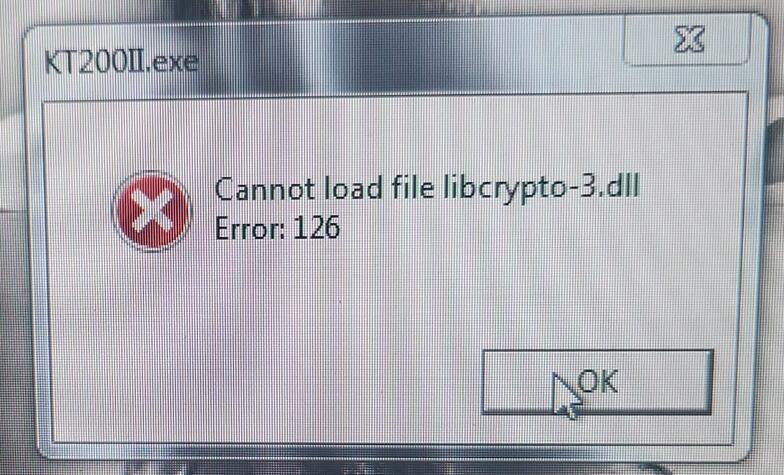

Error 2: Cannot load file libcrypto-3.dll Error:126.
Cannot load file libcrypto-3.dll Error:126

Solution:
Download the appropriate patch package corresponding to your system architecture.
For 32-bit systems (X86), download "Vc_redist.x86."
For 64-bit systems (X64), download "Vc_redist.x64."
 Or, you can install both one.
After installation, restart your computer.

Q: I downloaded but still get the same error
A: install both x86 and 64 and make sure firewall disabled and antivirus.


Customer Questions & Answers

1
votes
Q:Question: will this tool read/write to the China Bosch MED17.8.10 TC1728 used in the CFMoto ? Answer this question
A:Answer:
yes,bench mode
By Iris SELLER on April 16, 2024
0
votes
Q:Question: KT200II read Mjd 6f3 on bench? Answer this question
A:Answer:
Pinout mode ok.
By Smith Sunny SELLER on June 19, 2024
0
votes
Q:Question: I tried to read the MJD 6F3 ECU with unsuccess. It couldn't detect the ECU in OBD mode and gave me an error. I then tried using the full system, but it asked me to turn on the ignition. Answer this question
A:Answer:
The MJD 6F3 ECU can be read successfully using the full system driver on bench. Ensure you are using a 14V power supply. The message about turning on the ignition means you need to cycle the power by using the multi-function cable (MFC) switch to turn the power on and off.
By Smith Sunny SELLER on June 19, 2024
0
votes
Q:Question: Can the KT200 read/write EDC17CP02? Answer this question
A:Answer:
Yes, bench mode or Boot mode
By VERONICA T. on June 12, 2024
0
votes
Q:Question: Peugeot Bosch MD1CS003 2023, is it possible with KT200 II? Answer this question
A:Answer:
Locked after 06/2020. No tool can do it for now.
By Smith Sunny SELLER on June 5, 2024
0
votes
Q:Question: Any one have read this ECU Hyundai Kefico Sim2k510? Answer this question
A:Answer:
Impossible, no tool can do this.
By Terry on June 3, 2024
0
votes
Q:Question: EDC17C56 has anyone tested it? Answer this question
A:Answer:
Bench okay. Cheksum by tool.
By Smith Sunny SELLER on May 31, 2024
0
votes
Q:Question: Has anyone had experience with Kia Rio - ECU dcm3.7 ap? Work via obd? Answer this question
A:Answer:
With kt200 perfect in obd. I do this on captiva 2.2 delphi.
By Bárbara on May 29, 2024
0
votes
Q:Question: Can KT200 or KT200II UPDATE ECU ONLINE? Answer this question
A:Answer:
KT200 II frf online from server FOR downgrade (diesel gate...)or upgrade firmware VAG. Working good. Tested many times
By Paweła on May 18, 2024
0
votes
Q:Question: Edc17c42 how read eeprom? Answer this question
A:Answer:
Edc17 bench mode.
By Smith Sunny SELLER on May 15, 2024

Customer Reviews

4.9
4.9 out of 5, 121 Reviews.
5 stars: 114 ratings, 94%
4 stars: 7 ratings, 6%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

Verified User
September 6, 2024 by Ralph Friederici, from Belgium
Verified User
VW Amarok 2.0 BiTDI
EDC17CP14/20
KT200II R/W via OBD without problems.
Verified User
September 6, 2024 by Holger Teichert, from Belgium
Verified User
KT200II read write Sid309 via OBD perfectly.
Verified User
September 5, 2024 by Don Connery, from France
Verified User
Med17.5.5 polo gti 1.4 tsi 180
Reading writing bench ok

Verified User
September 3, 2024 by cristian panzacchi, from Italy
Verified User
KT200 read and write NlSSAN DIESEL UD GK4 jtag mode.
Verified User
August 29, 2024 by Eduardo Dehesa, from Turkey
Verified User
KT200ll read and write EDC17C53 on Bench.
Tags: KT200IIECUHELP KT200IIKT200 IIKT200 2April SaleMay SaleEU ShipPrime Day SaleAnniversary Mega Sale
