2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
HOT SALE
2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]

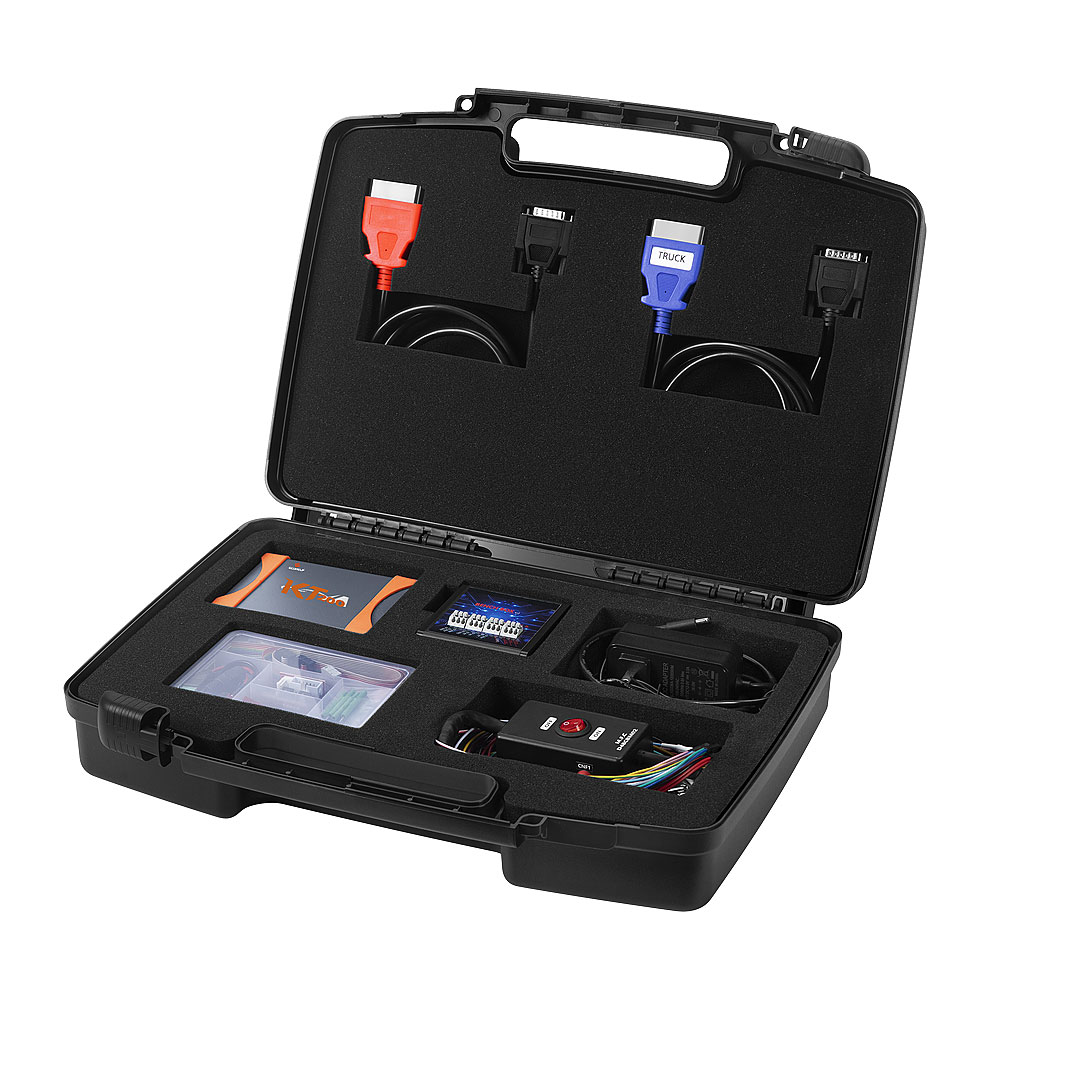

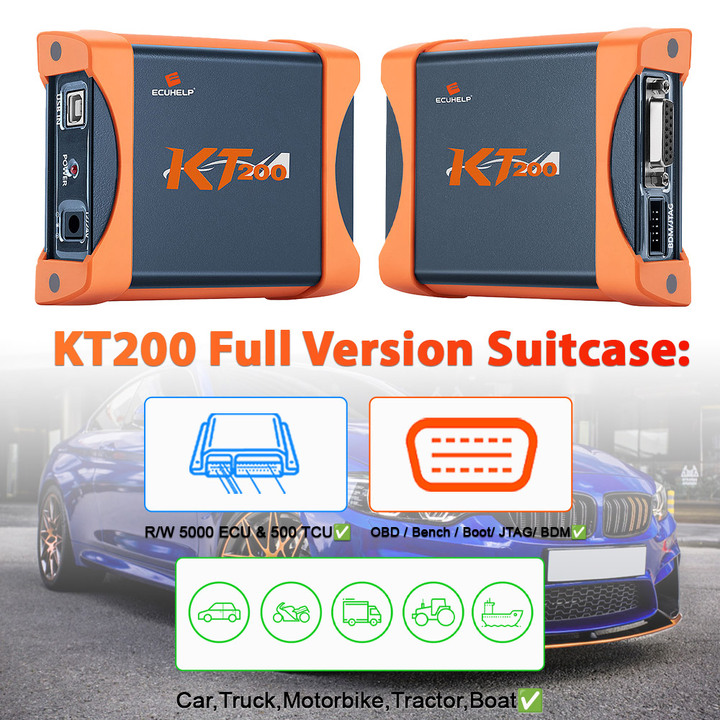

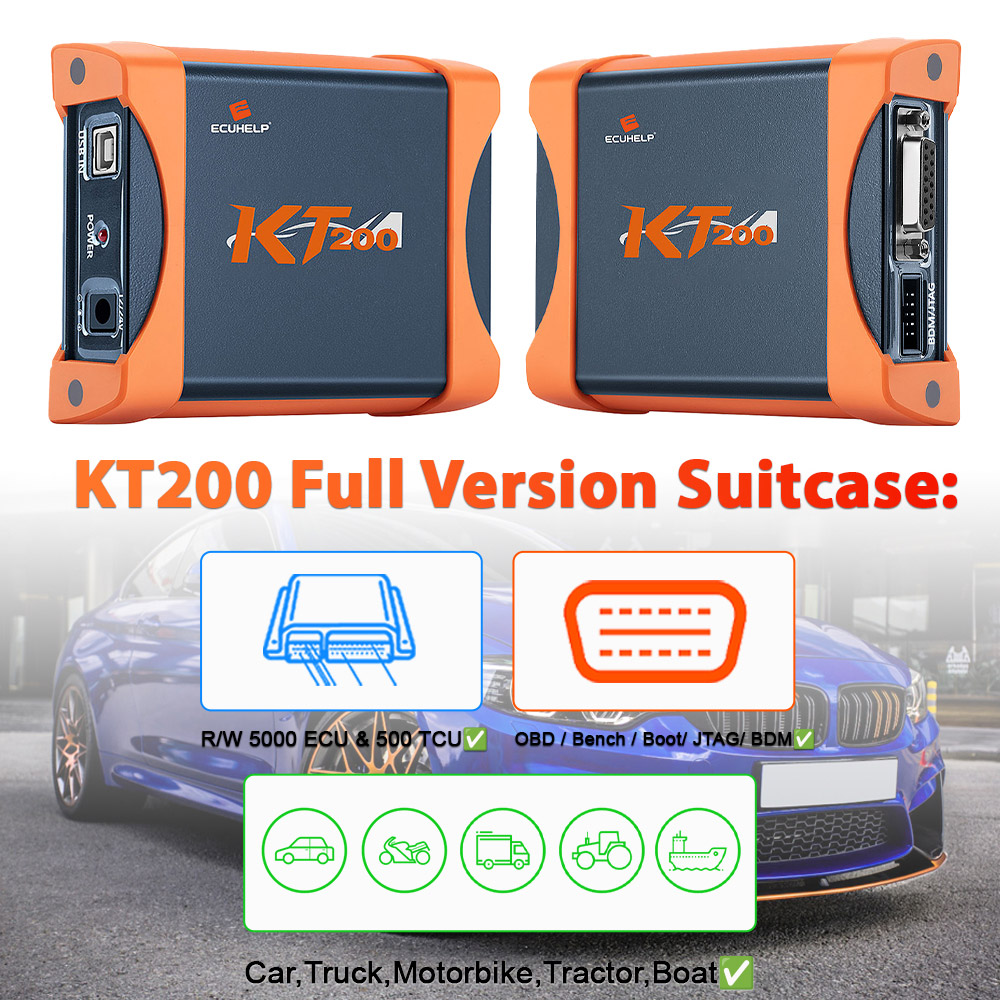

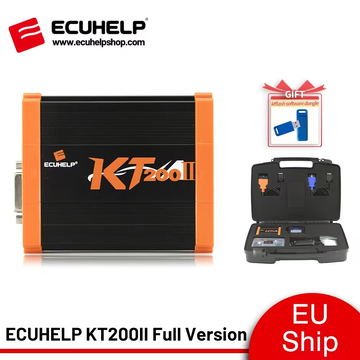

KT200 Full Version Suitcase

2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]

619Was 69911% OFF
SKU: EP-KT200F-J Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-10 Working Days
Item Weight 5.5 kg
Returns Return for refund within 30 days, buyer pays return shipping.
4 KT200 Master Tool: Full version with Plastic box 2023 ECUHELP KT200 ECU Programmer Full Version for Car Truck Motorbike Tractor Boat [with Suitcase]
Features
  • Ship from European Warehouse, No Shipping Cost, No Tax. in suitcase.
  • Free Update Online, No Annual Subscription.
  • Support Checksum Calculation. Get free VR files and Damaos files.
  • After purchasing KT200, you can obtain a free Winols 4.7 or Davinci 1.0.28 2022 by contacting Oliver via WhatsApp at: + 8618205996549.
  • Read/Write 5000+ECU and 500+TCU Gearbox in Car Truck Tractor Boat Motorbike in the mode of Bench, via OBD, Full System, BDM/JTAG, TOOL BOOT.

Related Download Files

Product Description

ECUHELP KT200 ecu programmer full version in a suitcase and ship from European Warehouse.
Top reasons to own one KT200 from ecuhelpshop:
  1. With 3 servers, it enables browsing the internet while in use;
  2. Comes with an offline dongle;
  3. Its cables are of superior quality and the shell of KT200 is heavy;
  4. No need to provide an email and serial number for every login.
  5. Comes with Tuner Account
  6. Free VR files in ECUHelp3.0 program

KT200 Update on September 26, 2023:
ECUHELP released a free software called "KT300". This software fixes the automatic checksum bugs presented in KT200 and offers support for multiple ECU data checksum.
To use "KT300", simply connect the KT200 to your computer and place the software on the desktop; there's no installation required.

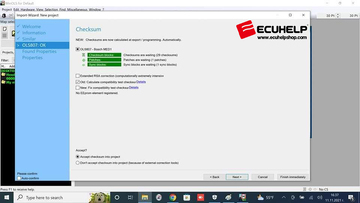

Download: KT200 Checksum Software
kt200 automatical checksum software


[EU ship] 2023.02.01 ECUHELP KT200 ECU Programmer Full Version with Suitcase for Car Truck Motorbike Tractor Boat

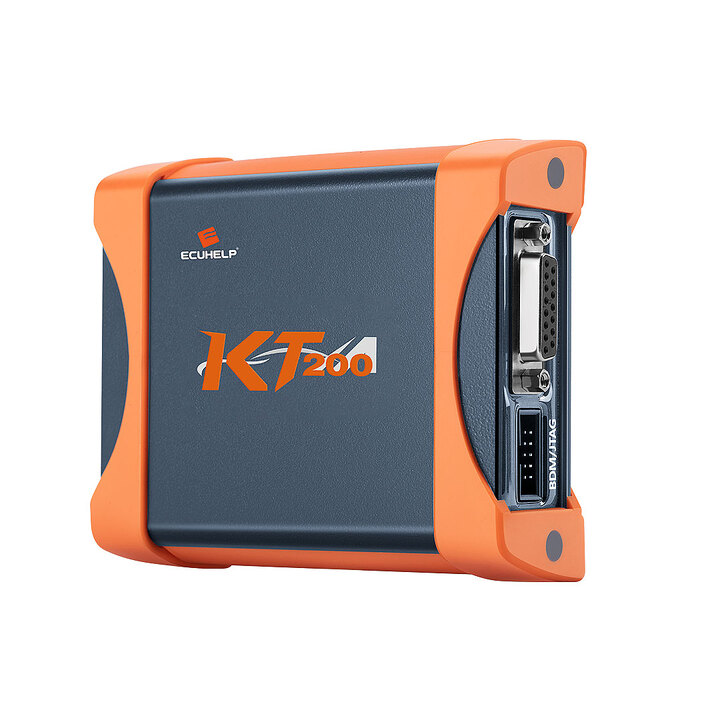

ECUHELP KT200 Full Version is a powerful ECU Programmer that enables the reading and programming of engine control units (ECUs) and transmission control units (TCUs) for various car brands wordwide from Europea, USA, India, China etc.  It supports different modes of communication such as OBD, on Bench, Boot mode, BDM, and Jtag systems.  It can read and write the EEPROM and flash memory of ECUs types of ECUs i.e Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental,Motorola, Valeo, Siemens Continental etc.  Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.

KT200 Master Function:
  • Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
  • KT200 ECU programmer software allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
  • ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
  • Support Volkswagen Audi clone (local operation without sending data to manufacturers)
  • KT200 Full Read and Write TCU(MICRO + EEPROM): TCU CLONING and TCU CODING FUNCTIONS
  • KT200 ECU Programmer covers up to 5400 ECU, and over 500 TCU.
  • Support Audi/VW ECU Clone via Bench Mode pinout.
  • Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.
Also ECUHELPshop provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.

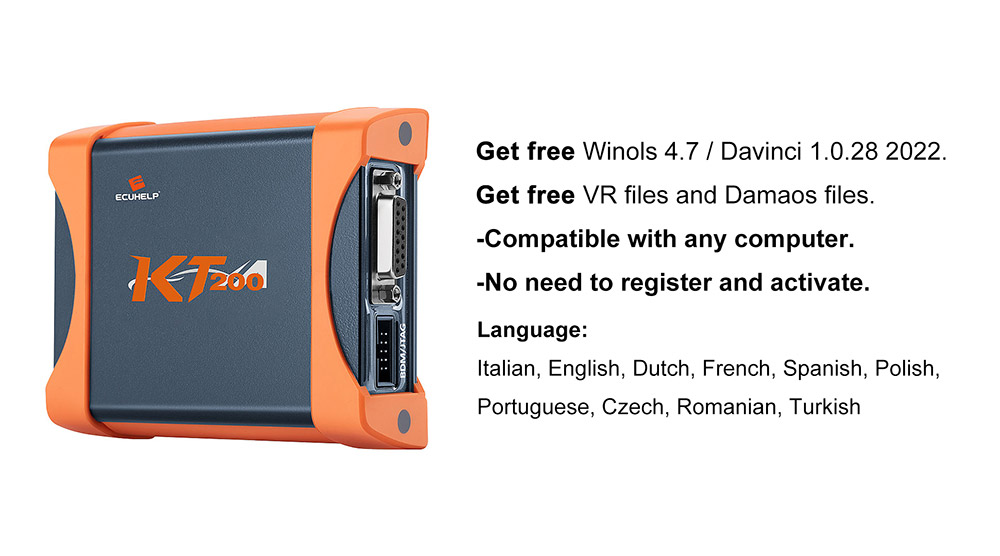

ECUHELP KT200 Full Version Highlights:
1. Ship from EU warehouse, No tax, no shipping cost

2.  Packed with a solid suitcase

3. Work in online mode, please ensure a stable internet connection.
kt200 2023

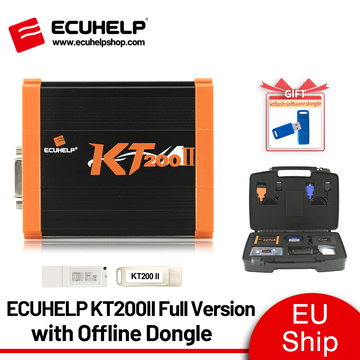

4. KT200 Full version is optional to add one extra Offline Dongle so that it will work in offline mode.

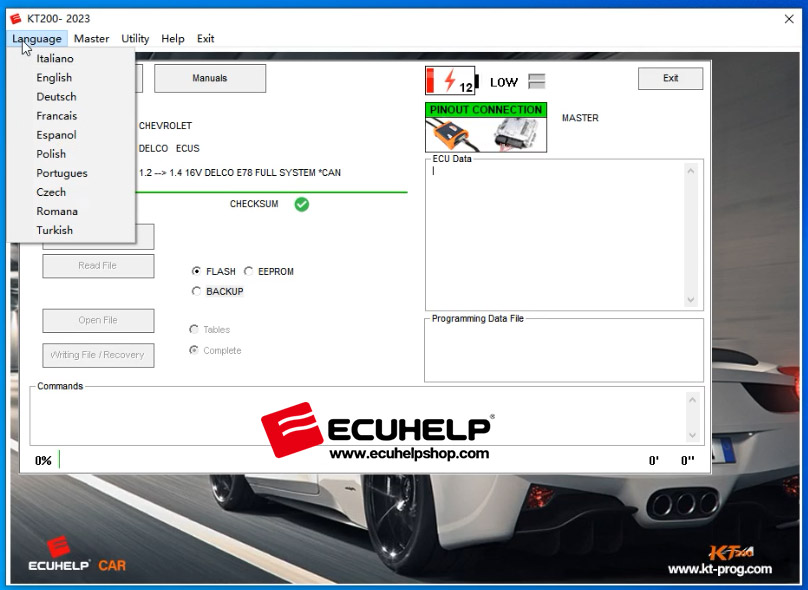

5. KT200 Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
ecuhelp kt200 language

6. KT200 PCB board: Built-in with green chipboard which is encrypted and safe performance.
kt200 pcb board

7. Register and activate: No need

8. Computer Limitation: No limited, compatible with any pc(no limit volume of PC)

9. Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements:  CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB

10.  KT200 supports Auto Checksum Calculation for certain parts of ECU. However, for optimal results, it is recommended that you perform manual checksum using tools like Winols, Davinci, Lsuite, or similar ones, after purchasing KT200, you can obtain a free Winols 4.7 or Davinci 1.0.28 2022 by contacting Oliver via WhatsApp at: + 8618205996549

11. Software Update: Free Update Online. No Annual Subscription

12. Get free VR files and Damaos files (Get free VR file and DEMO in this software ECUHelp V3.0)
KT200 Full features ecuhelpshop

KT200 Full Version Coverage:
KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gearbox.
KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List

ECU Brand Coverage:
For Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Adem, Delco, Continental,Motorola, Valeo, Sagem,Johnson Valeo,Visteon,Visteon Fomoco,Phoenix,Temic,Temic,Deutz, SISU, Mitsubishi, Siemens Continental, Visteon Fomoco,TRW,Temic,Hitachi, Trionic, Visteon,TRW,Mems, Lucas.

Car:
Abarth, Alfa Romeo, Aston Martin, Audi, Baic, Belarus, Bentley, BMW,Chery, Chevrolet, Chrysler, Citroen, Corvette, Cummins, Cupra, Dacia, Daewoo, Deutz,Dodge,Doosan, DR,Effedi,Faw Jiefang,Fendt, Ferrari, Ferrari - Maserati,Fiat Alfa Lancia FCA, Fiat, Ford, Ford - Jaguar, Ford – Mazda, Ford – PSA, Ford - PSA - Volvo, Ford – Volvo, Geely, GM, GM-Opel, GMC, Great Wall, GWM, Hino, Honda, Hummer, Hyundai, Kia, Infini, Isuzu,Iran Khodro IKCO,Iveco, Jac, Jaguar, Jeep, Jeep - Chrysler, Kia, Kia - Ssangyong, Ktm, Lada,Lamborghini, Lancia, Land rover,  Land rover Freelander,LDV, Lexus, Mahindra, Man, Maserati, Mazda, MC Laren, Mercedes Benz, MG, Mini, Mitsubishi, Nissan, Opel, Opel GM, Peugeot, Porsche, PSA,  Renault,  Rolls Royce, Rotax, Rover, Rover MG, Saab, Same, Skoda, Smart, Ssang Yong, Subaru,Suzuki, Tata, Toyota, UAZ, VAG, Volkswagen, Volvo, XCMG.
***Covering a full range of cars from Europe, Germany, France, Italia, Japanese, American, and Chinese models.

Truck:
Astra, Bugatti, Caterpillar, Claas, DAF, Deutz, Faw, Fendt, Fergusson, Ford Transit, Hino, International, Isuzu, Iveco,Iveco Daily, Iveco Stralis, New Holland truck, Iveco Tector - New Hollan truck, Iveco Tector - New Hollan truck, Jac, Kamaz, Kia, King Long,  King Long Bus,Landini, Mack, MAN, Massey Ferguson, MC Cormic, New Holland, Nissan, Renault,  Renault – Volvo,Renault Mascott, Scania, Seat,  Shaanxi,Shacman, Sinotruck, Sisu,Steyr, Still, Thaco, Valtra,Volvo Truck.

Tractor:
AFT, Agco, Agrale, Agrifac, Artec, Axial-Flow, BCS, Bobcat, Bravo, Carraro, Caterpillar, Challenger, Claas, Deutz, Deutz Fahr, Dieci, Fendt, Gehl, Grim, Guaresi, JCB, Jhon deere, Kioti, Komatsu, Kramer, Kubota ,Lamborghini, Landini, Lindner, Massey Ferguson, MCCormik, Merlo, New Holland, Oxbo, Same, Sgariboldi, Supertino, Tecnoma,Valtra, Valtra Tractor, XCMG, Yanmar.

Excavator:
Case, Bobcat, Doosan, Hitachi, Steyr,

Motorbike:
Aprilia, Benelli, BMW Moto, CF Moto, Derbi, Ducati, Gilera, Harley Davidson, Indian Motorcycle, Kawasaki, KTM, Moto Guzzi, MV Agusta, Piaggio, Royal Enfield, Suzuki,Yamaha

Marine:
Iveco,Sea Doo, SISU Engine, Volvo Penta, Yanmar

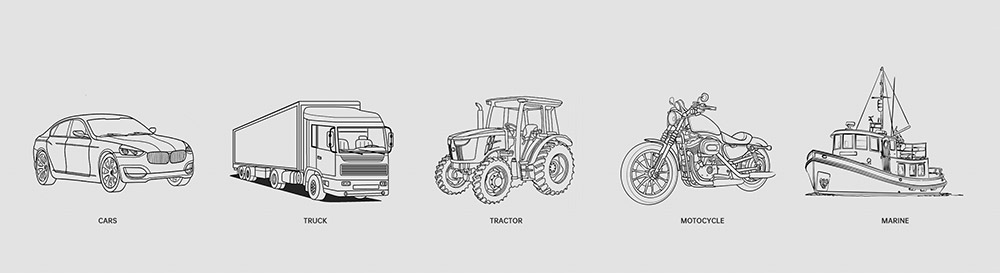

KT200 full version coverage


Here take some ECU types that KT200 support for examples:
Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17 / ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)
Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC
BDM EJTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx

JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085
BOOT MODEC16729Fxxx:
BOOT MODE ST K-LINE / RX-TX / CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296

BOOT Mode Tricore for micro:
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
BOOT Mode Renesas:
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
BOOT Mode Mitsubishi:
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
BOOT BAM System MOTOROLA:
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi

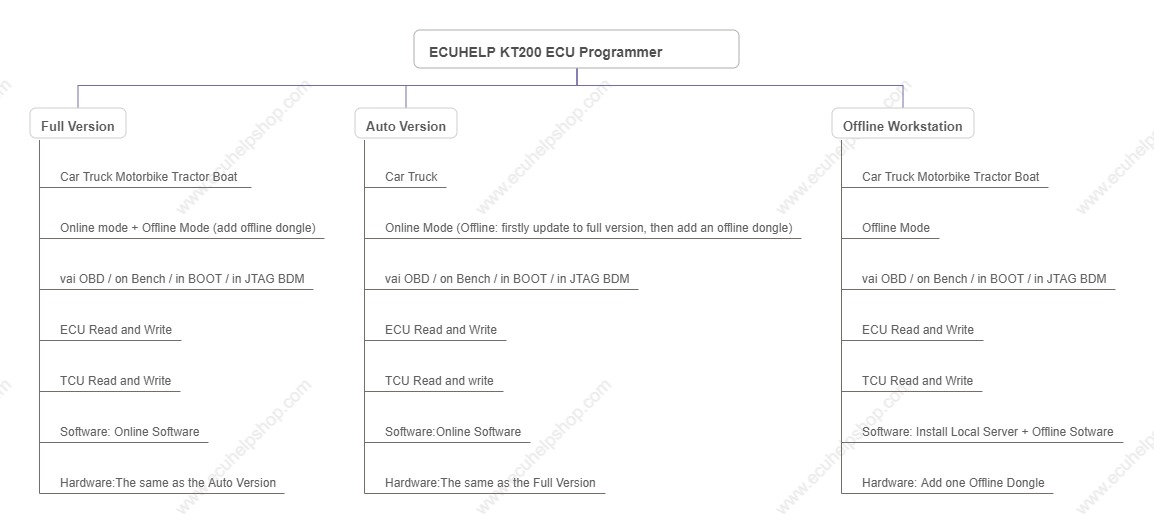

ECUHELP KT200 Full Version VS Auto Version VS Offline Workstation:
ECUHELP KT200 Full Version VS Auto Version VS Offline Workstation
how to choose KT200

Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench model.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.

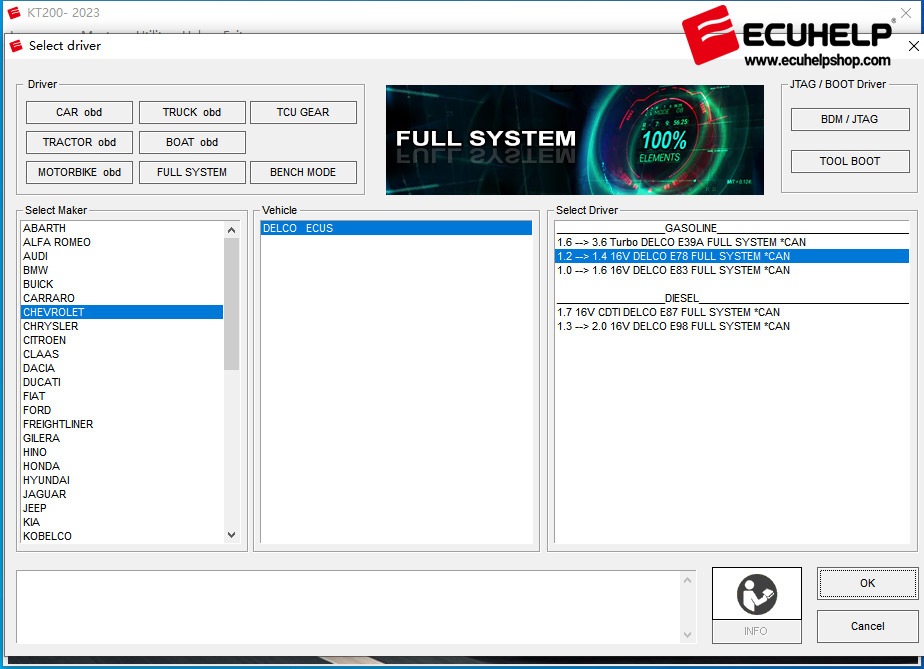

How To Install KT200 New Software V12.10?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the  "Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the "Wiring diagram "to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.

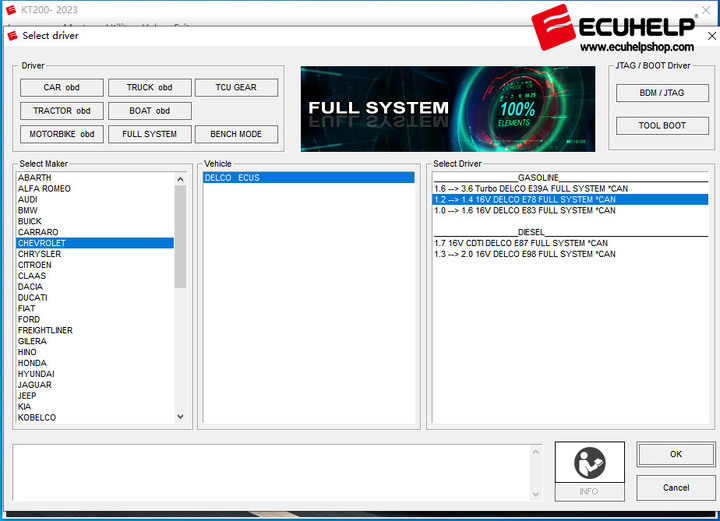

Step 5. After completing the software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the "Diagnosis" button in KT200 service software first for detection.

Operating system:
Windows 7
Windows 8/8.1
Windows 10
Windows 11

Notice:
1. Please close the anti-virus program before you run the KT200 software, it may incorrectly identify the software as harmful and break it.
2. For KT200 onlin version, please connect to the Internet to work with KT200 software.

KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42


Here are some images showing how to connect ECUHLP KT200 to the ECU model:

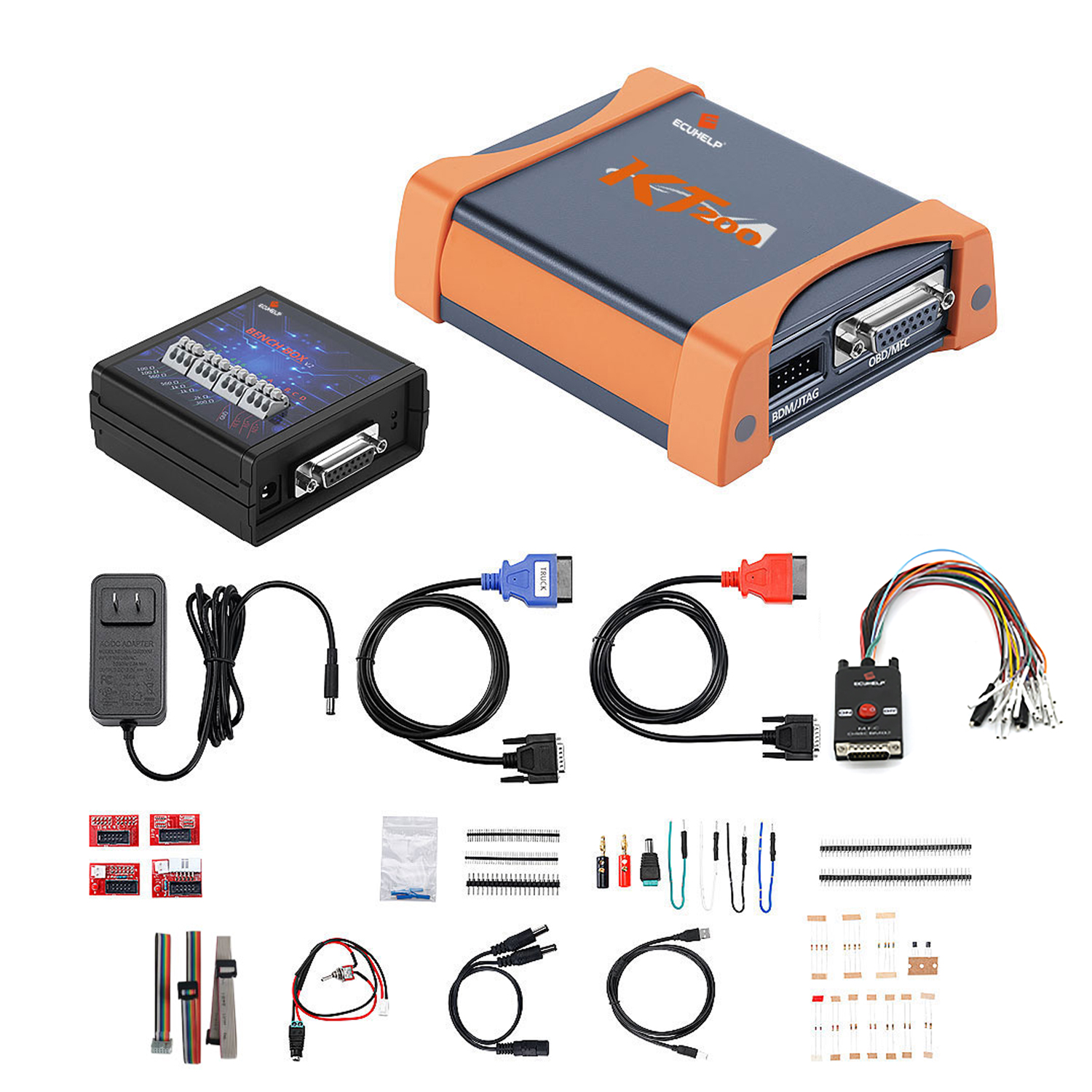

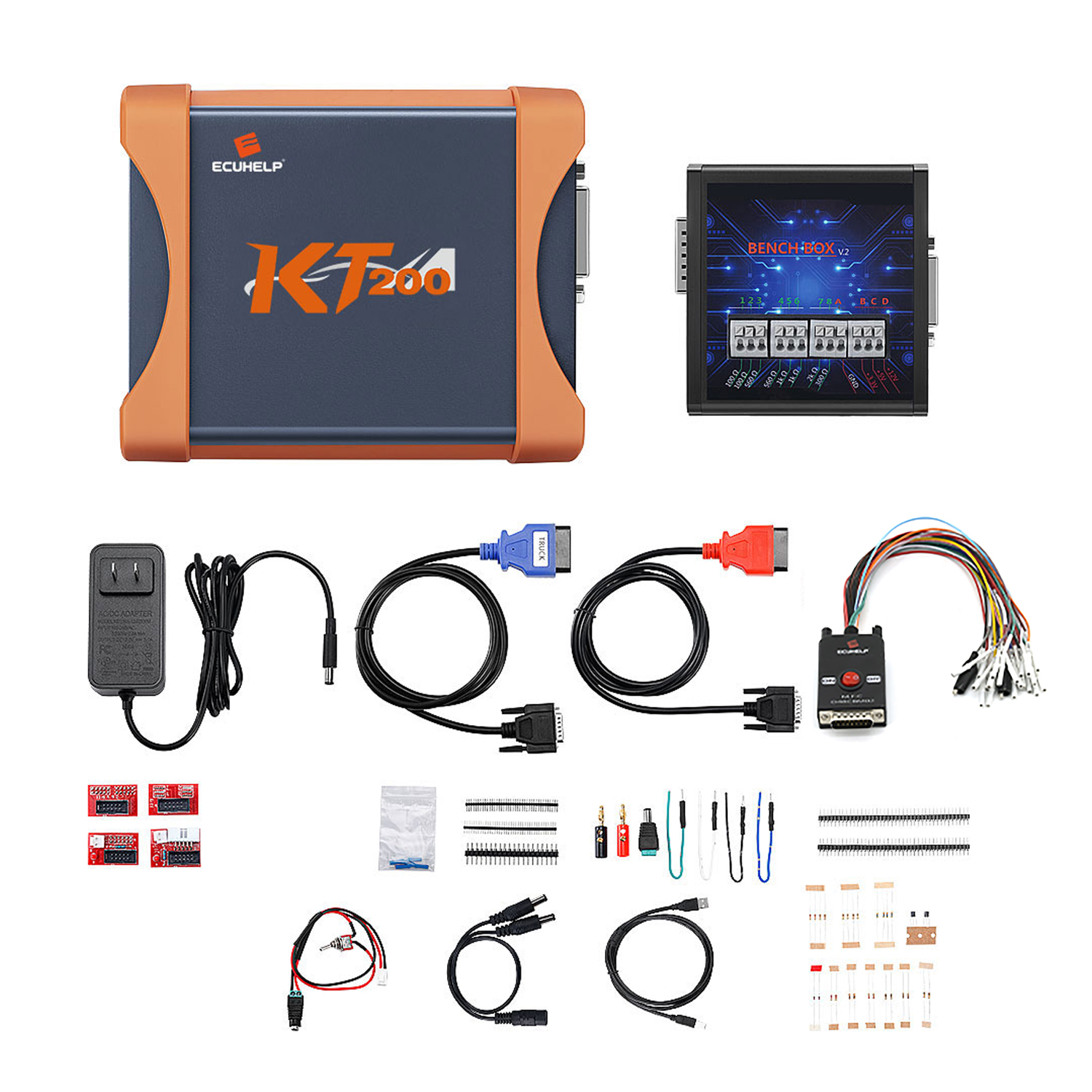

ECUHELP KT200 Full Version Package Includes:
1pc x Master

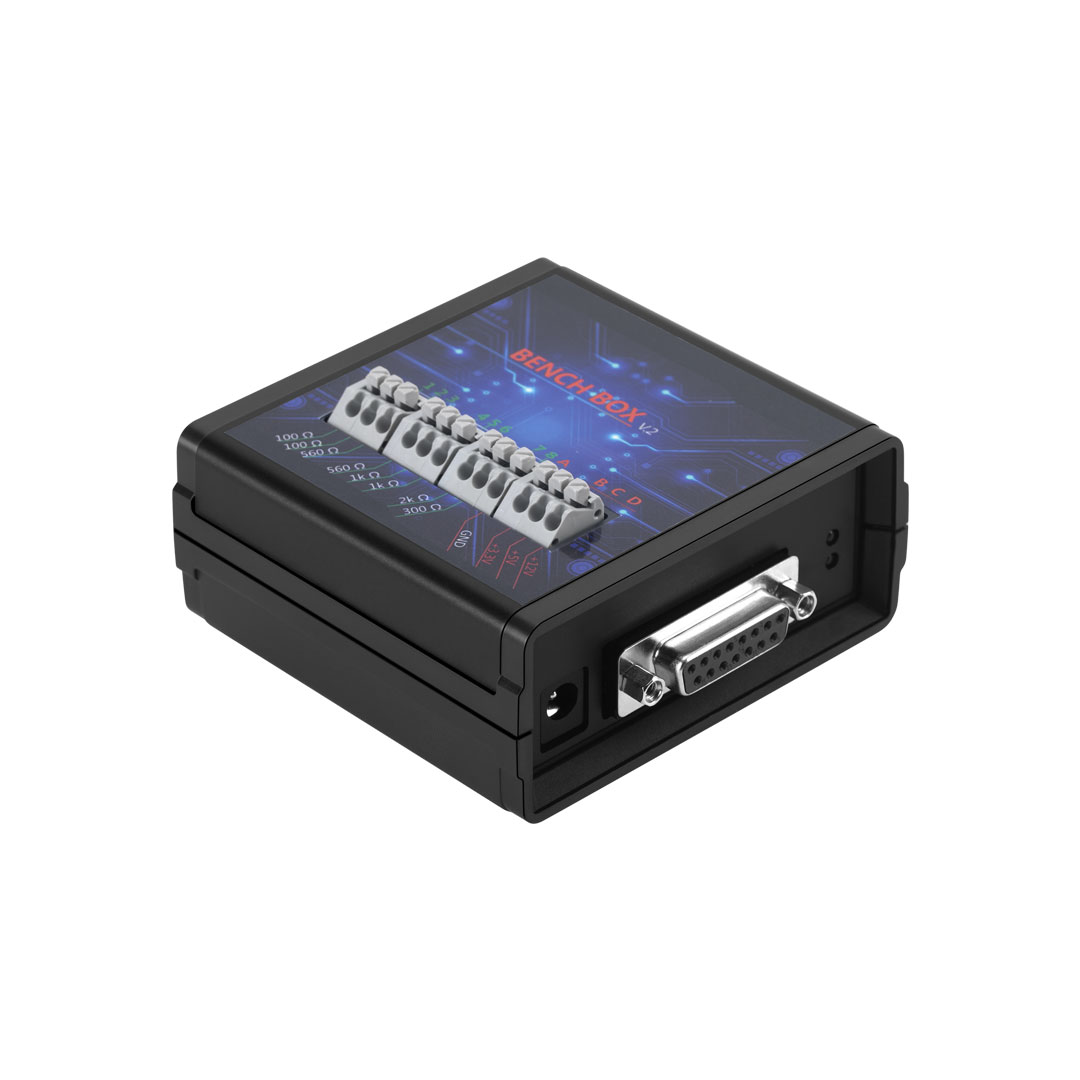

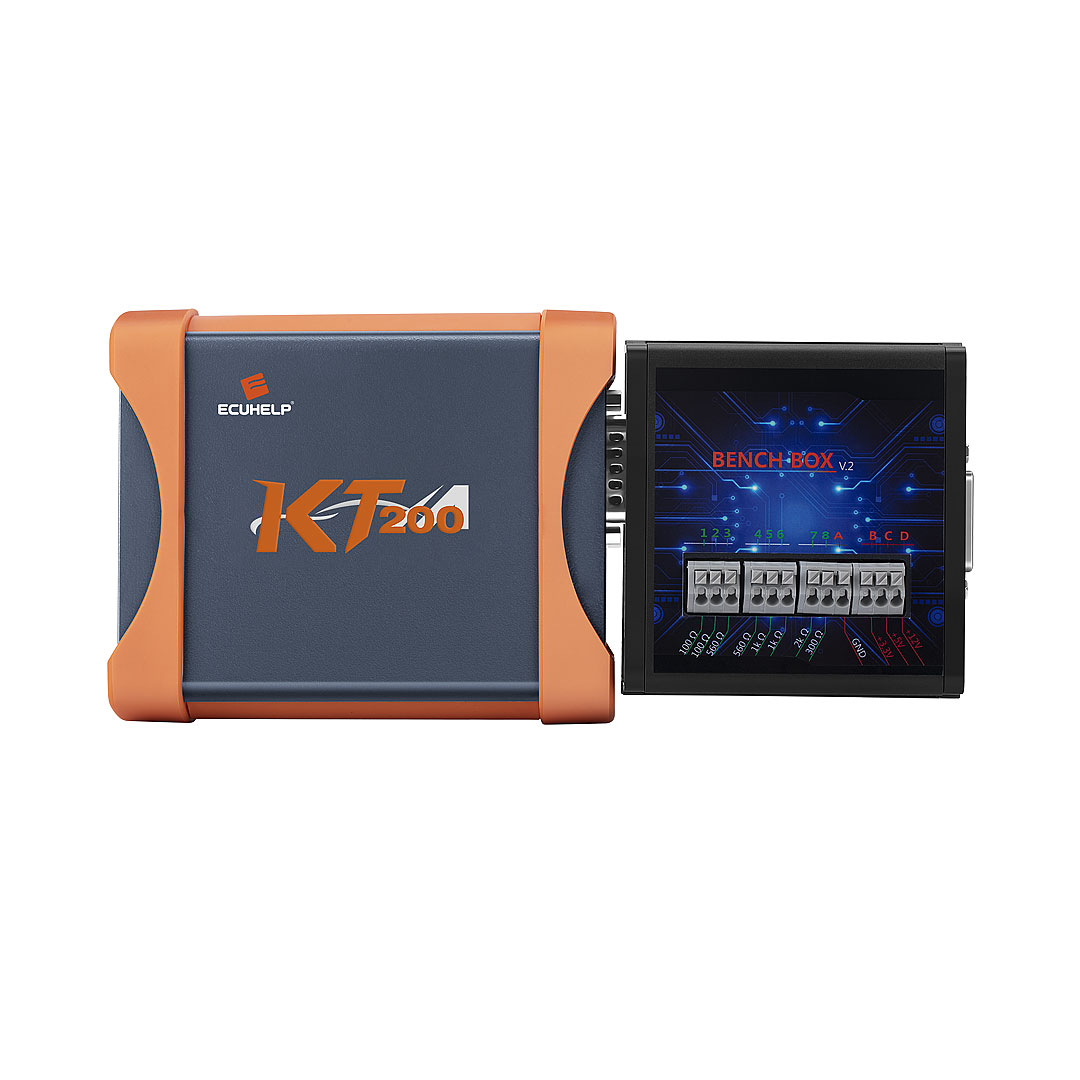

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters


We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Videos

MD1CS003 Read Write OK by ECUHELP KT200 ECU Programmer

Read MD1CS089 Flash with ECUHELP KT200 and HTPROG adapter

ecuhelp kt200 R /W MCM2 successfully

ECUHELP KT200 read pcr 2.1

ECUHELP KT200 write pcr 2 .1

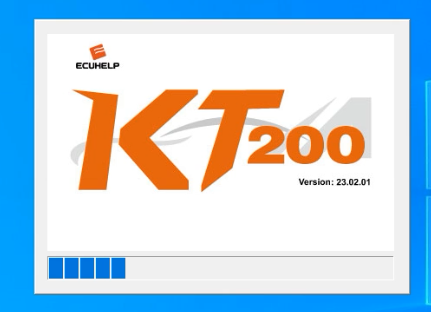

ECUHELP KT200 ECU programmer 2023 Software Installation

Tech Support

ECUHELP KT200 Full Version VS Auto Version VS Offline Workstation.

Please firstly look at this image:
ECUHELP KT200 Comparision


Related ECUHELP KT200 2023 Software Download and Support List:

KT200 2023 Offline Software
ECUHELP KT200 2023 Software Online

ECUHELP KT200 ECU List
ECUHELP KT200 TCU List

Customer Questions & Answers

1
votes
Q:Question: edc16c34 not read by kt200,Any read via obd? Answer this question
A:Answer:
I read one but in bench because i did immo off.
Yes on Bench sure … but read via OBD is not okay.
edc16c34 never obd. edc16c34 ford, psa best BDM.
By SELLER on May 13, 2023
1
1
votes
Q:Question: Anyone read 1.4 tsi vag eku med17.5.2 using ECUHELP KT200 ECU Chip Tuning tool? Answer this question
A:Answer:
Boot yes.
By SELLER on May 14, 2023
1
1
votes
Q:Question: Dcm 3.5 ford? Anyone tested using kt200? Answer this question
A:Answer:
yes, in bdm/ jtag mode.
By SELLER on May 16, 2023
1
1
votes
Q:Question: Possible ECUHELP KT200 read write Ssangyong Mpc555? Answer this question
A:Answer:
ECUHELP KT200 read write Ssangyong DELPHI DCM6.2 - SSangyong [ SPC5674 ] ,DELPHI DCM6.2,Delphi DCM3.7, SIEMENS EGS52.
By SELLER on May 15, 2023
1
1
votes
Q:Question: ECUHELP KT200 no problem on Peugeot md1cs003 read and write checksum tprot? Answer this question
A:Answer:
for my part, until 2020 Peugeot 3008 I have had no problem.
By SELLER on May 16, 2023
1
1
votes
Q:Question: Is it possible to do a Peugeot 208 1.6 HDI SID807 with the KT200 via OBD? Answer this question
A:Answer:
In Boot mode works.
There is "manual" in the software to follow the wiring diagram and reading writing procedure.
By SELLER on May 6, 2023
1
1
votes
Q:Question: Has anyone experience with BMW EDC17CP02 via OBD? 2010, newer sw 509478. Answer this question
A:Answer:
I do on Bench. And Kess china do no chance.
By James Braun on May 2, 2023
1
1
votes
Q:Question: Has anyone tested the Fiat 500 1.3 6F3 through OBD? Answer this question
A:Answer:
Yes, there is a video available here: https://youtu.be/OPyLP1e58vI.
By SELLER on May 1, 2023
1
1
votes
Q:Question: Has anyone ever use KT200 read and wrote to the md1cs006 Dacha? Answer this question
A:Answer:
Yes, I have and it works perfectly on Bench mode.
By SELLER on May 5, 2023
1
1
votes
Q:Question: I am considering buying from ECUHELP shop. Do they have good reviews? Answer this question
A:Answer:
I purchased from them and received my order in 3 days. It works perfectly.
By Michael on May 6, 2023
1

Customer Reviews

4.9
4.9 out of 5, 149 Reviews.
5 stars: 136 ratings, 91%
4 stars: 13 ratings, 9%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

Verified User
February 16, 2024 by Desert Gal53, from Portugal
Verified User
KT200II read and write EMS 3132 RENAULT on BENCH ok.
KT200II read and write EMS 3132 RENAULT on BENCH ok
Verified User
November 8, 2023 by Victoria, from Spain
Verified User
Renault truck premium, Bosch ms6.3
Obd module but in bench mode ok,
Read ok, need to test it after battery booster pole reversal
Immo was busted
Now unsolder the 24c16 for immo off.
Verified User
November 8, 2023 by Kohonah, from Germany
Verified User
Audi TT 2016 simos18.1 r\w chk ok with KT200. Need to remove and give power to ecu manually but it is safe 100%.

Verified User
November 7, 2023 by WENDY JEFFRIES, from Sweden
Verified User
Audi edc17cp14 r\w chk bench ok with KT200.
Verified User
November 7, 2023 by Lord Byron, from United Kingdom
Verified User
VW edc16u1 bench r\w chk ok with KT200.
Tags: EU ShipKT200 full versionECUHELP KT200KT200 ecu programmerchip tuningecu tunerFree ShippingPrime Day SaleAnniversary Mega SaleECUHELP Autumn SaleBuy More Save More2023 Black FridayBlack Friday
