HTprog adapter for ECUHELP

[Add Power Box] ECUHELP HTprog Clone Adapter for ECUHELP KT200 Support Bench / BOOT / BDM Mode

179
SKU: EP-HTS Available: In Stock
Free Shipping Standard Post Shipping Service, Estimated delivery time: 7-18 working days
Item Weight 0.8 kg
Returns Return for refund within 30 days, buyer pays return shipping.
4 KT200 Master Tool: HTprog adapter for KT200 [Add Power Box] ECUHELP HTprog Clone Adapter for ECUHELP KT200 Support Bench / BOOT / BDM Mode
Features
  • ECUHELP HTprog Clone Adapter for ECUHELP KT200
  • Read and Write ECU Support Bench / BOOT / BDM Mode
  • Read and write car body modules
  • For the repair, calibration and replacement of automotive electronic modules, it can even refresh the key
  • Upgraded Version, fix the bugs, add Power Box.

Related Download Files

Product Description

ECUHELP HTprog Clone Adapter, by working together with ECUHELP KT200, can perform Chip tuning / ECU Cloning, on bench programmer, EEPROM programmer, key function etc.

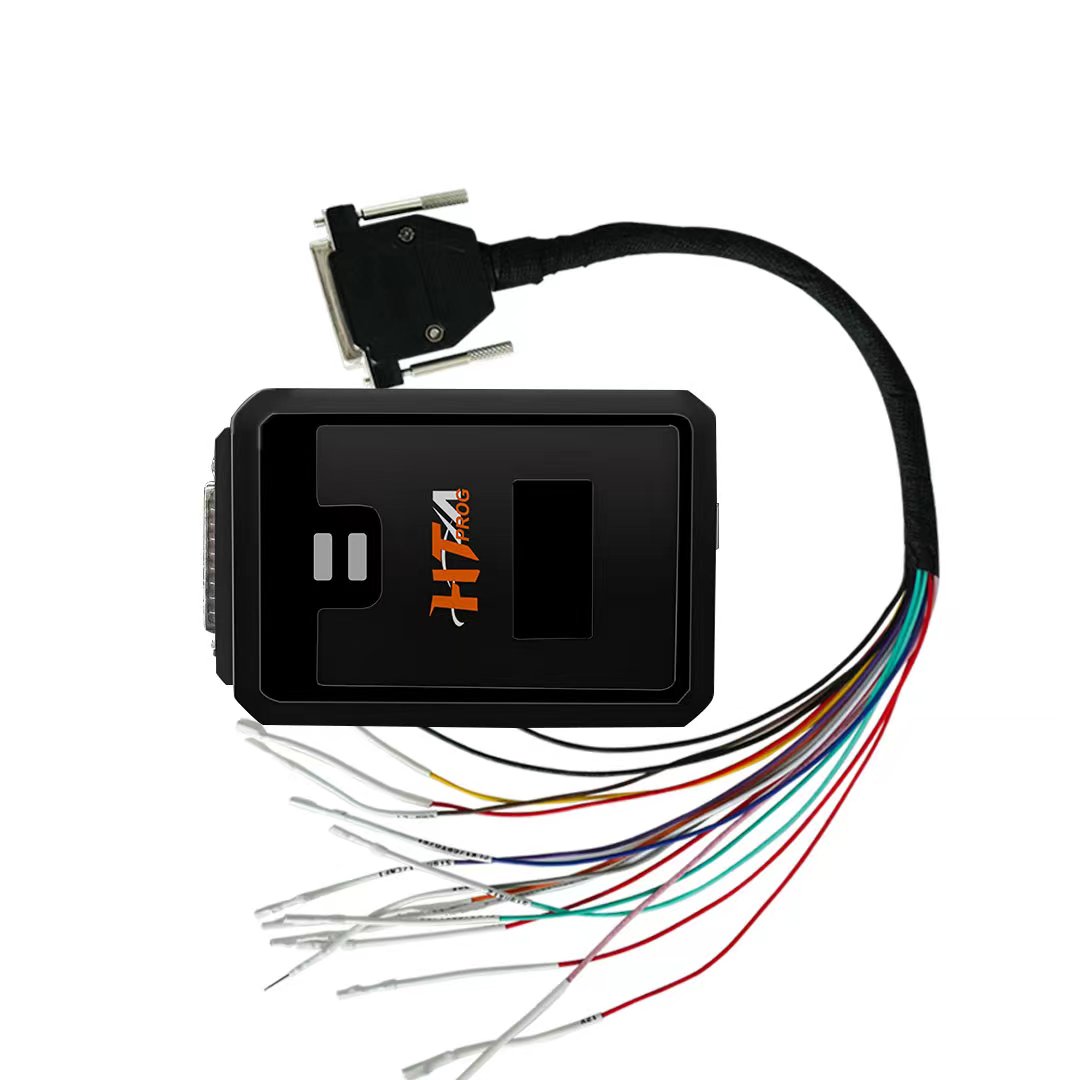

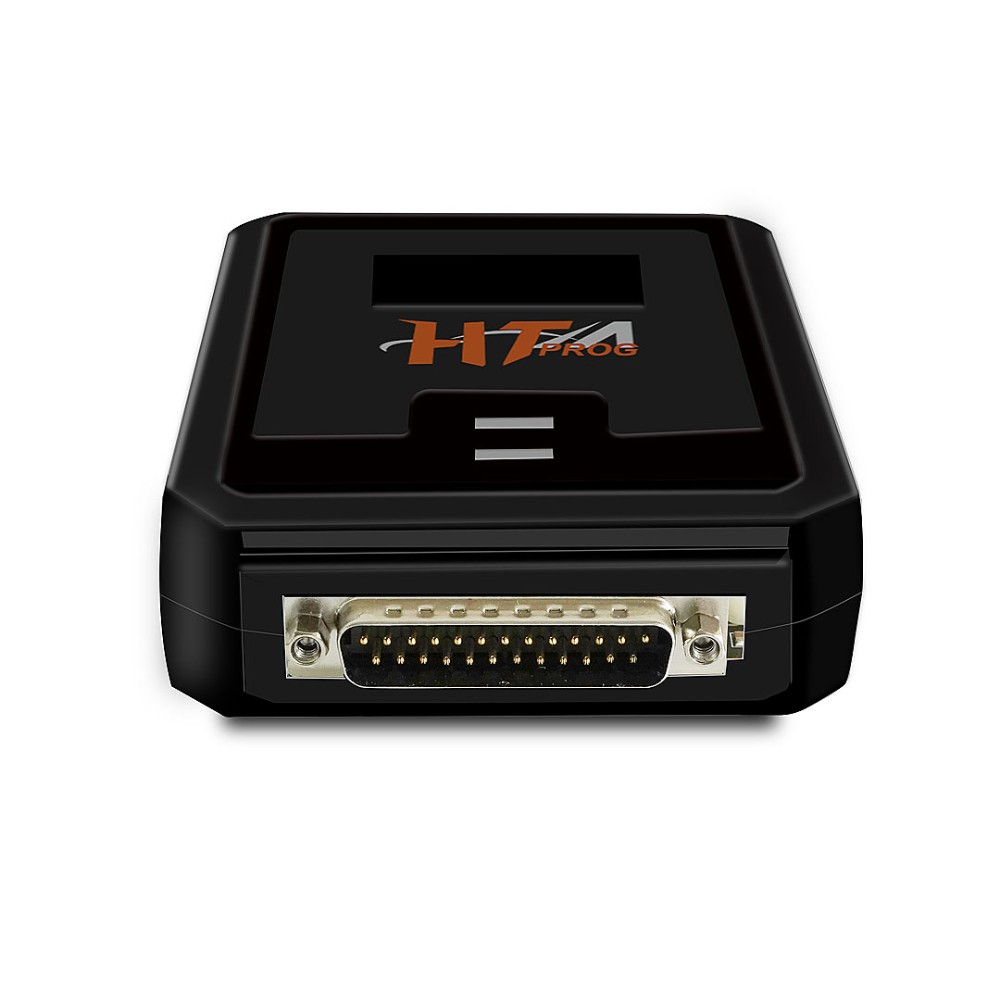

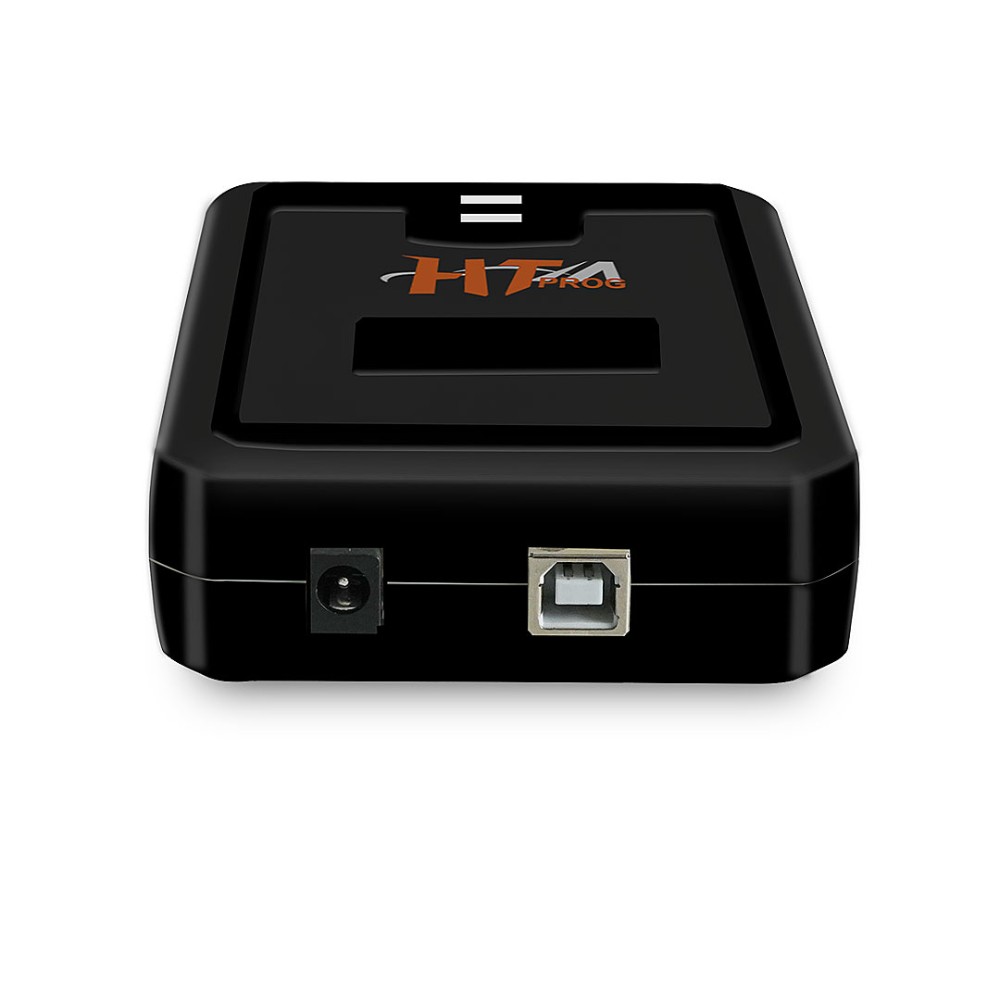

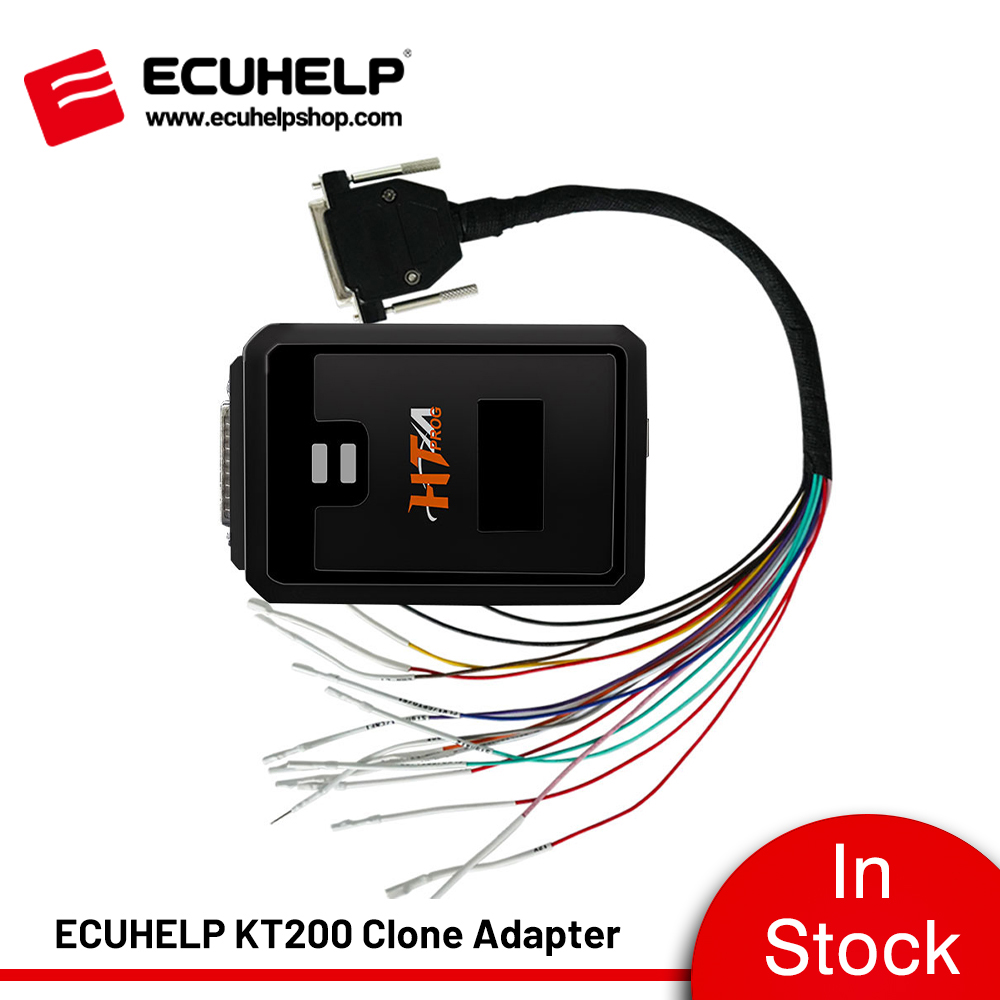

[Upgraded Version] ECUHELP HTprog Clone Adapter for ECUHELP KT200
Software version: 1.0.45

HTprog Update on August 1, 2023: Add one Power Box

If you want one HTprog PowerBox, please message Oliver WhatsApp: http://wa.me/8618205996549

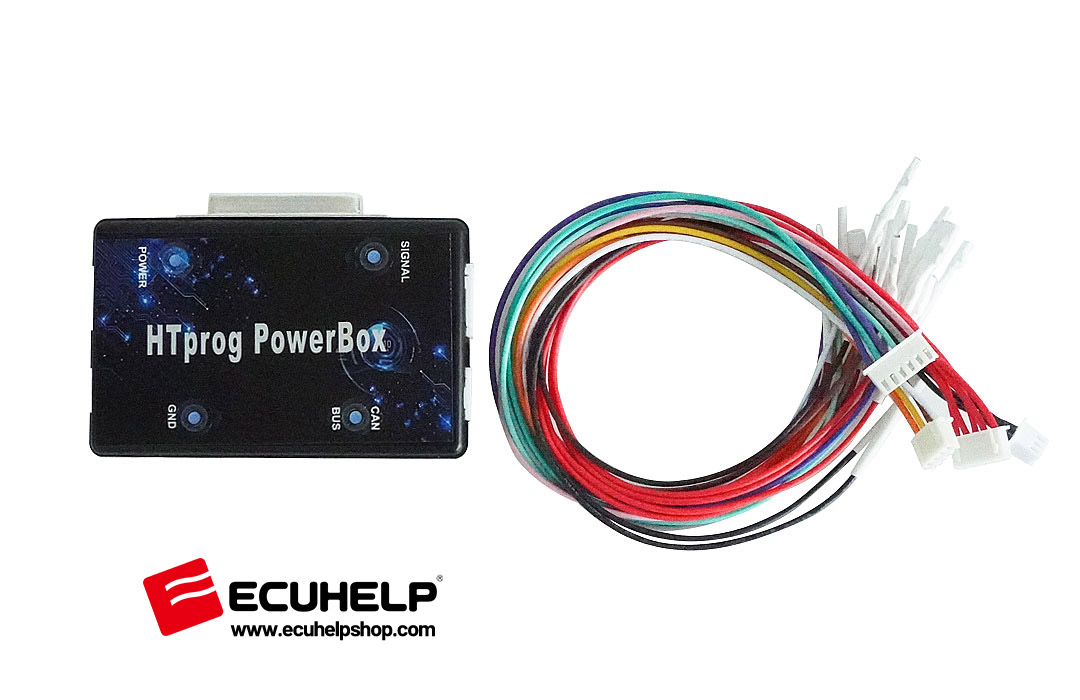

HTprog power box


HTprog Update on June 25, 2023:
  1. Rework the hardware
  2. Fix some bugs
  3. HTprog Clone Adapter, when used with KT200, does not require email activation and can be used directly.
BMW CAS3 0L15Y0M23S p-flash Read: OK
BMW CAS3+ Vin Edit, eeprom &flash read/write: OK
BMW 080D0WQ eeprom read/write, mileage edit: OK
Jtag function is working fine
M35080 is working

KT200 Kit Test Reports:
KT200 with HTprog Clone Adapter Read CAS3+ 0L15Y-15 100% OK.

HTprog and ECUHELP KT200 test no issue for EDC17CP49 BMW X4 , 2016 Backup,  read P-Flash, D-Flash and read Long ISN.

HTprog and ECUHELP KT200 read/write EDC17CP45 OK.

HTprog and ECUHELP KT200 read/write EDC17C55 OK.

I have HTprog to work together with KT200:
edc17c45 ok
edc17c50 ok
edc17c49 ok
ALL BMW is tested ok
read and write tunning file except for the second edc17c45, first was ok, but the second has written the file, no changes to the car, I tried 2 times with 2 different files,  but the same results. i think is something with the checksum correction made by HT, i will try also with manual checksum.

Have HTprog work with KT200 to clone EDC17C50 OK.

HTprog Feedback:

I try some med17 ecus and all reading.

BMW MSS60L is tested with no issues.

Htprog Read/write sid803a in boot mode Ok

Med17.5.25 and med17.5.5 reading is good.

READ EDC 17C55 OK

Read simos 18.10 OK

edc16 vag c2-mb r/w ok
edc17cp20, cp46 r/w ok
frm2 r/w ok
cas2,3 r/w ok

FRM3 repair OK

read/write edc17c60 OK.
I do not make Tprot off on c60 using this. I simply connect and read/rewrite.

HTprog read edc17c60 ok.

HTprog R/W edc17c10 edc16c34 edc16c3 ok.

The engineers at ECUHELPshop.com would like to remind users of a few important points:
1. It is advised to uninstall any antivirus software and disable the firewall before using the ECUHELP HTprog.

2. It is important not to upgrade the software to avoid any potential damage to the hardware.

3. Activation of the HTprog is necessary and should be done using the user's registered email address.

4. Install software version: 1.0.45, free download HTProg software

HTprog activation: software needs to be activated with the email address, please follow the instruction to operate:


HTprog Highlights:

1. As an ECU Chip Tuning Tool: HTprog adapter is paired with KT200, which adds more ECUS and TCUS protocols, strengthens the cloning function, and supports more protocol cloning.
Use HT PROG adapter, support more protocols, make cloning easier to read and write, support bench/boot
Read: HTprog ECU clone support list

2. DTC removal, adblue removal EGR cancellation, DPF cancellation, hot start, speed limit release, IMMO off , etc.

3. Make ECU-related operations by reading and writing ECU.

4. Read and write car body modules, such as CAS, SZL, FRM, AIRBAG, EZS, BCM, etc. With this function, you can easily deal with matching keys, unlocking anti-theft, adjusting instruments and repairing airbag computers, etc.

5. For the repair, calibration, and replacement of automotive electronic modules, it can even refresh the key, so that the old key can be a new key and continue to match other vehicles.
Read HTprog on Bench programmer support list

6. HTprog Clone adapter is used with ECUHELP KT200, If you want it to work alone, you need to buy a dongle and the cables.

HTprog Functions
Chip Tuning / ECU Cloning
With HTprog you can read and write P-Flash, D-Flash, External Flash, and external EEPROM with the option of automatic checksum correction, you will have many methods in most of ECUS :
1. Factory mode (On Bench for most of ECU / TCU): with this option, you don't have to open the ECU cover. Just plug some wires for power and signals and you are ready to go.
2. Tricore Boot Mode for all Tricore ECU: Opening the ECU is mandatory to connect the boot wire on the ECU board. This method is useful when the ECU is not responding
3. BDM (Background debug mode)
4. JTAG for Renesas and Freescale

BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW. EIZ / EIS in Mercedes Benz. BCM in Volkswagen and Porsche.etc.

Built in Editors
With HTprog you can edit many Flash data like:
Edit CAS3+ VIN, ISN and keys
Edit CAS4, CAS4+ VIN, and ISN
Edit mileage for BMW instrument clusters

Other functions
You can do key reset for many brands like Audi, BMW, MIN, Porsche, Toyota, Fiat, Renault...etc.
Read / Write a wide range of SOP8 EEPROMS.
Works side by side with Autohex to make keys.

Key Features
Master version. One License for all protocols on bench.
Supports one of the largest ECU / TCU list in Cars and Trucks for ECU cloning and Chip Tuning. Supports both old and latest ECU / TCUs from Bosch, Continental, Delphi, Marelli, Denso, Tenic, TRW and Valeo.etc.
Reads all BMW long ISN from BMW DME and DDE including MD1 and MG in the F/G series

IMMO BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW, EIZ / EIS in Mercedes Benz.BCM in Volkswagen and Porsche...etc.

Here attach several images showing HTprog read/write P-flash for EDC17C53 completely.

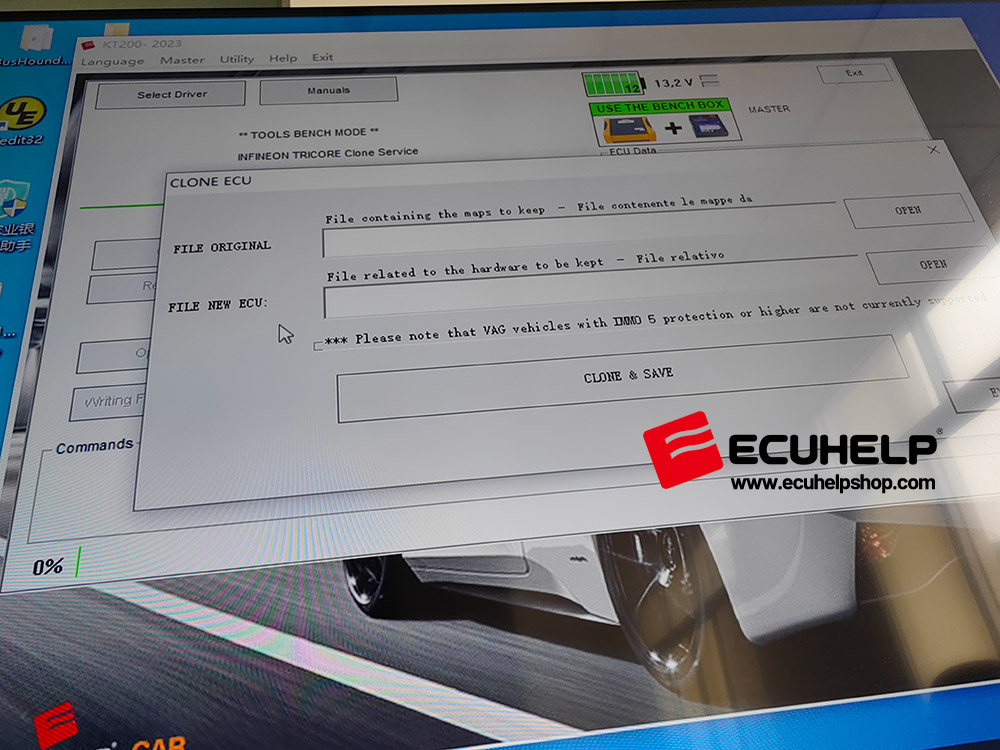

kt200 HTprog clone adapter software



kt200 HTprog clone software
kt200 HTprog cloning software

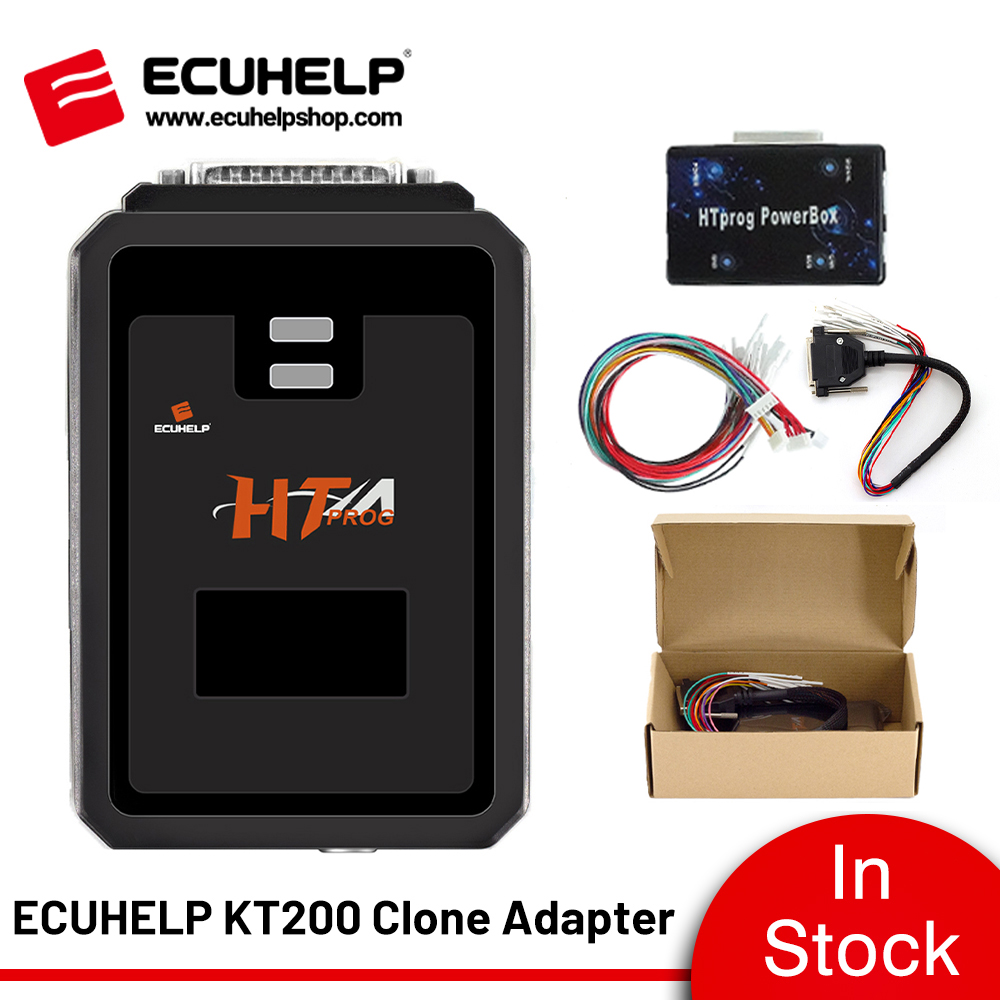

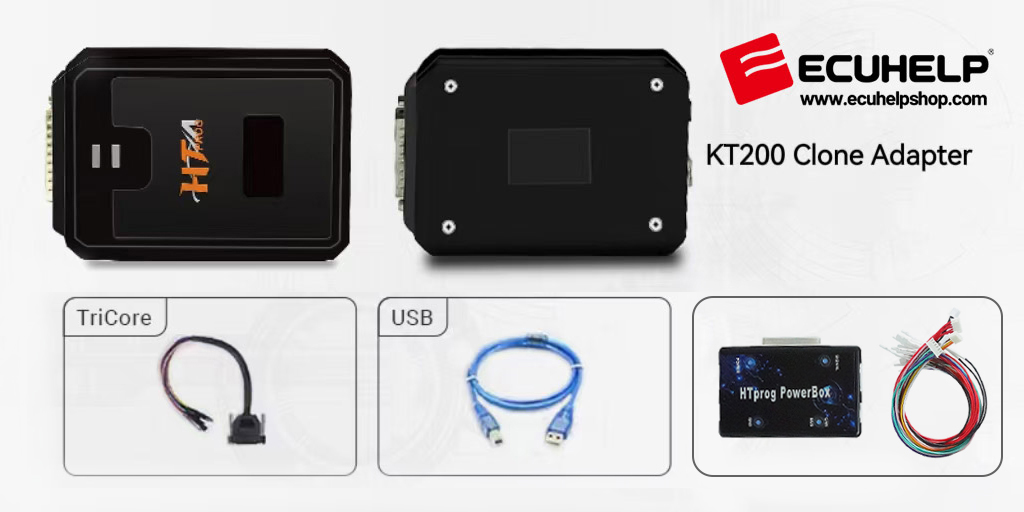

ECUhelp HTprog Clone Adapter Package List:

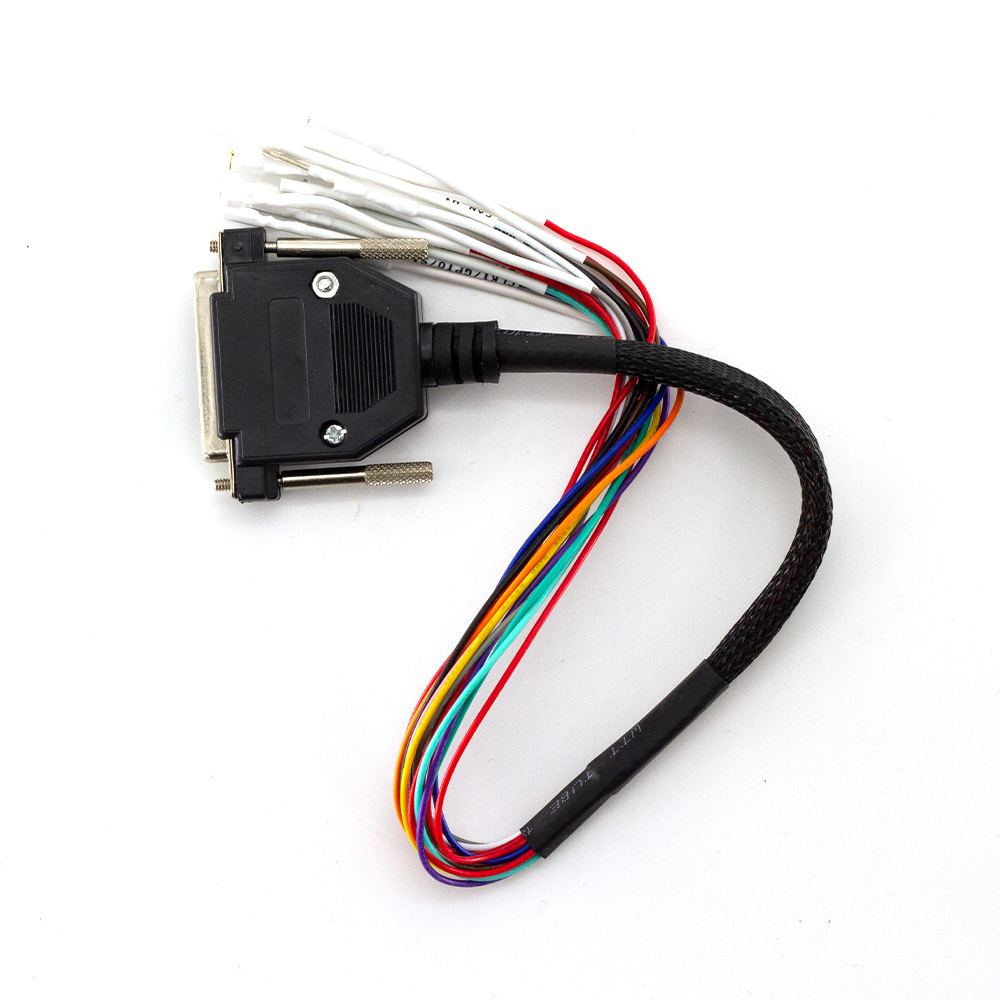

1pc x Tricore adapter
1pc x USB
1pc x Power Box

htprog full package

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Videos

ECUHELP HTprog Installation and Activation

ECUHELP HTprog overview on what htprog can work

EDC17CP45 read write via ECUHELP HTprog and KT200

Read MD1CS089 Flash with ECUHELP KT200 and HTPROG adapter

Read MG1CS001 Flash using ECUHELP KT200 plus HTProg

HTPROG adapter and ECUHELP KT200 Read Cas3+ 0L15Y 0M23S Flash Successfully

Tech Support

How to add More ECU Clone not Only VAG BMW Mini ECU Clone?

If you need to clone ECU not only VAG and a part BMW that KT200 can do, then add one HTprog clone adapter is a nice choice.

Refer to HTprog ECU Clone support list

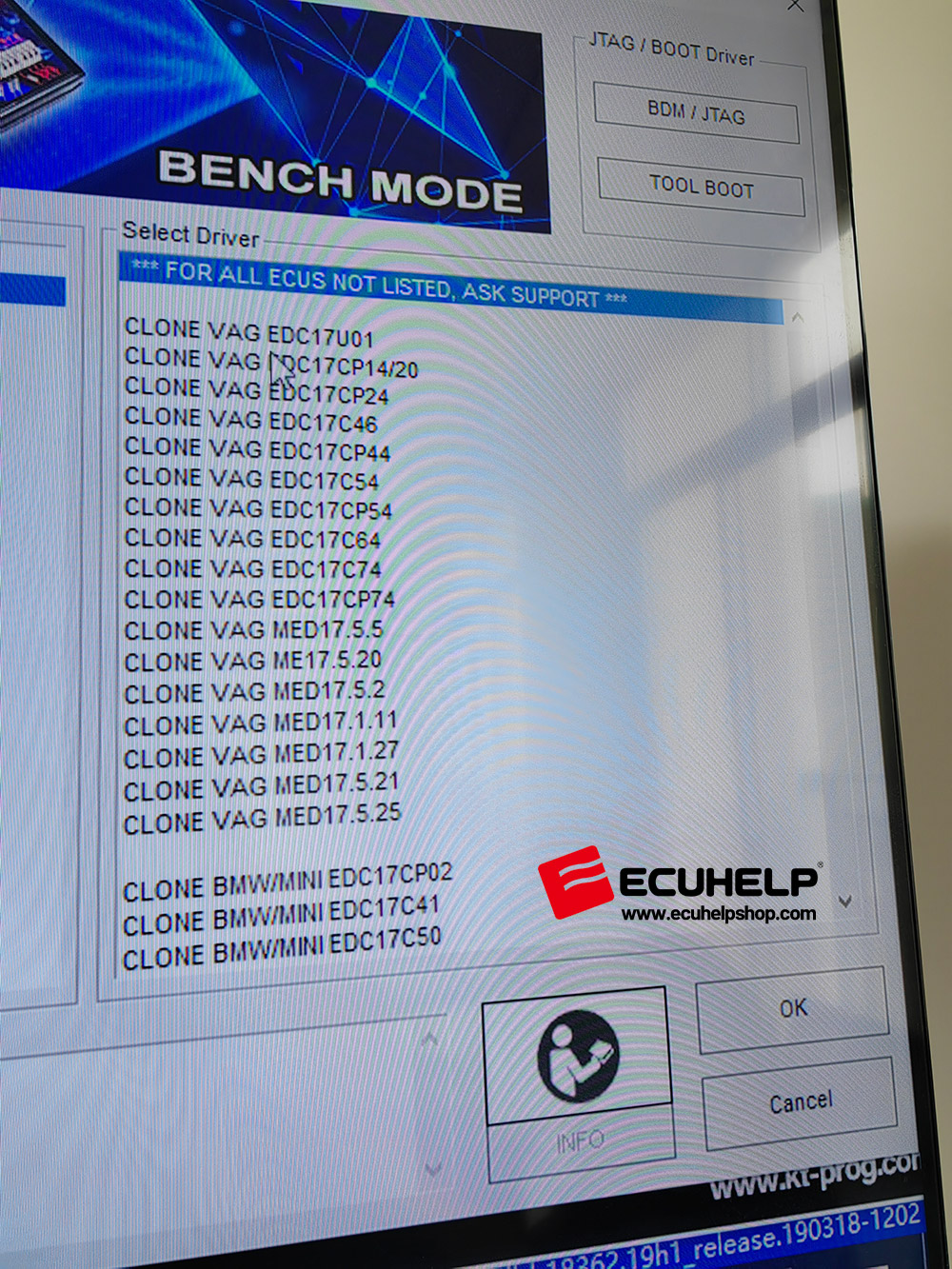

Look at ECUHELP KT200 VAG Clone list and BMW clone list:
ecuhelp kt200 ecu clone-02
kt200-ecu clone-01


Customer Questions & Answers

1
votes
Q:Question: HTPROG Simos PCR2.1 compatible? Answer this question
A:Answer:
no,not support
By Iris SELLER on June 7, 2023
1
1
votes
Q:Question: Simos PCR2.1 compatible? Answer this question
A:Answer:
ecuhelp kt200 support pcr2.1,and about clone:You can only adapt the immo data not clone and you need to do that yourself. If you can provide flash and eeprom of both original and donor ecus, many experts can adapt them.
By Iris SELLER on June 7, 2023
1
1
votes
Q:Question: when do you add possibility to read/write RH850 (R7F7....) Renesas mcu protocol? Answer this question
A:Answer:
will update in the near future.
By Iris SELLER on April 20, 2023
1
1
votes
Q:Question: What is the difference between cloning and just read dflush and pflush of the original ecm and write it to doner ecm ? Answer this question
A:Answer:
the main difference between cloning and reading the DFU and PFU of the original ECU is that cloning creates a complete copy of the original ECU, while reading the DFU and PFU only transfers the programming data to a new ECU. Cloning is typically preferred when a direct replacement is needed, while reading the DFU and PFU is more suitable when repairing or rebuilding an ECU.
By Iris SELLER on April 17, 2023
1
1
votes
Q:Question: what is ht prog for? to clone the ECU? kt200 does not clone them? Answer this question
A:Answer:
HTprog can work more.HTprog ecu clone support list: https://www.ecuhelpshop.com/uploads/item/168076855663057753.pdf. HTprog on bench programmer support list: https://www.ecuhelpshop.com/uploads/item/168076860814228600.pdf
By Iris SELLER on April 6, 2023
1
1
votes
Q:Question: What is Dflash and Pflash? Answer this question
A:Answer:
D flash is data flash area, P flash is program flash area. D-flash is normally OTP data, where P flash is Map/Cal area.
By Iris SELLER on April 6, 2023
1
0
votes
Q:Question: Is Posssible Simos PCR 2.1 to Clone? Answer this question
A:Answer:
can read and write the ecu data
By Iris SELLER on May 18, 2024
i just checked,unsupport
you can have a look on pcm tool
By Iris SELLER on May 18, 2024
kt200II
By Iris SELLER on May 17, 2024
See More Answers (2) Collapse Additional Answers (2)

Customer Reviews

5.0
5.0 out of 5, 1 Reviews.
5 stars: 1 rating, 100%
4 stars: 0 rating, 0%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

Verified User
June 11, 2023 by Petik, from Italy
Verified User
HTprog Hyundai smart key unlocking ok.
