No need soldering when reading/Writing Toyota / Lexus in BDM /JTAG mode.
Available with 26PIN and 20PIN adapter.
Compatible with ECUHELP KT200 / TagFlash/KTAG / KESS V3 / DIMSPORT and so on.
Product Description
2023 New Arrival ToyLexus Toyota Denso Lexus BDM Solder-free Adapter 20 pin + 26 Pin

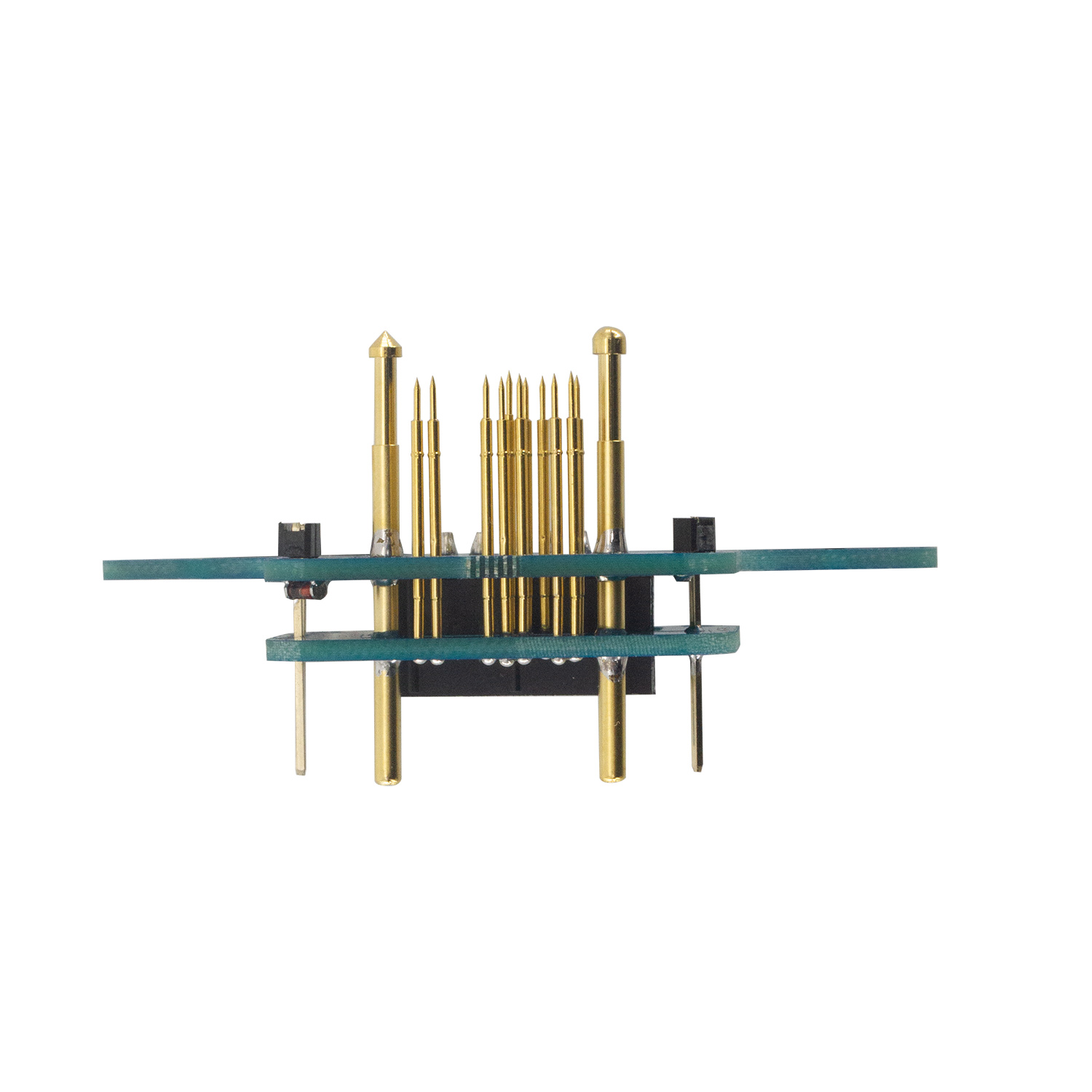

DIY board with positioning pins
No need soldering when using ECUHELP KT200 to read and write Toyota / Lexus in BDM / JTAG mode.

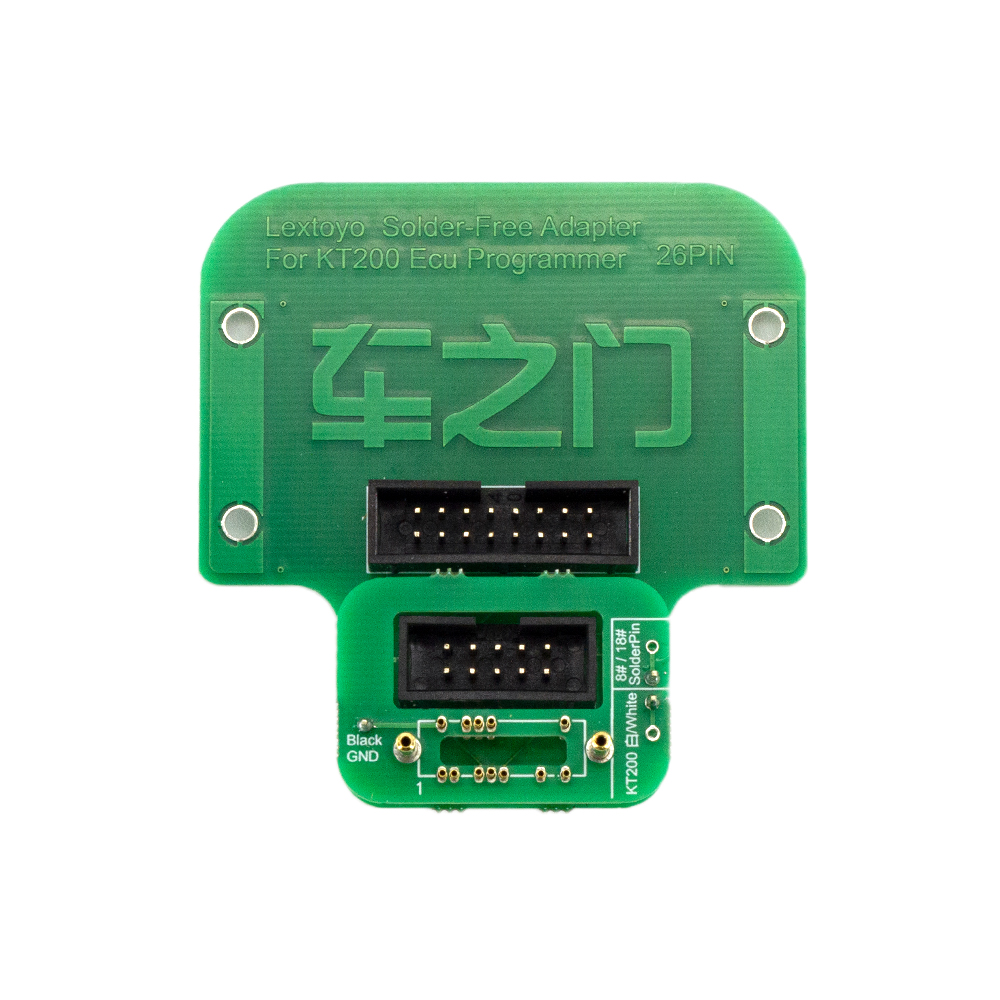

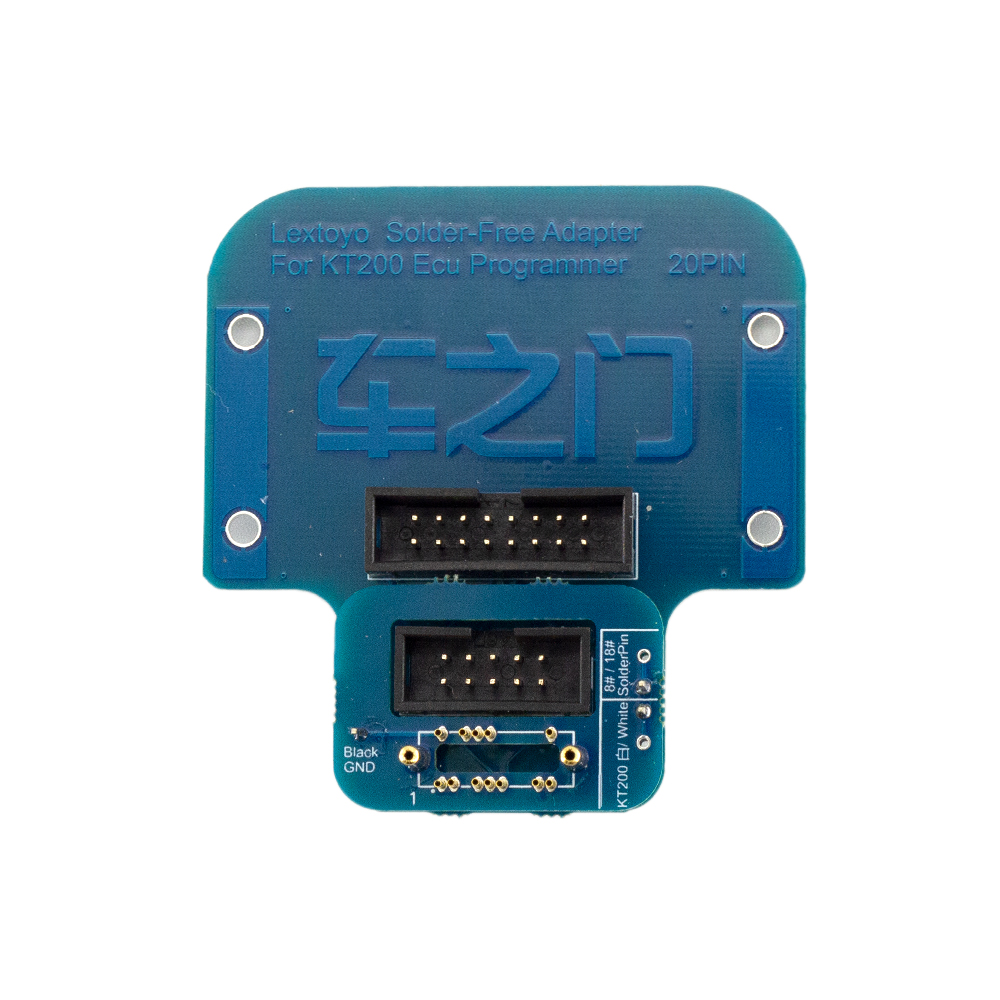

Available with 26PIN and 20PIN adapter, that means the Toyota / Lexus with 26pin or 20pin socket will be supported.
Compatible with ECUHELP KT200 / TagFlash / KTAG /DIMSPORT and so on.

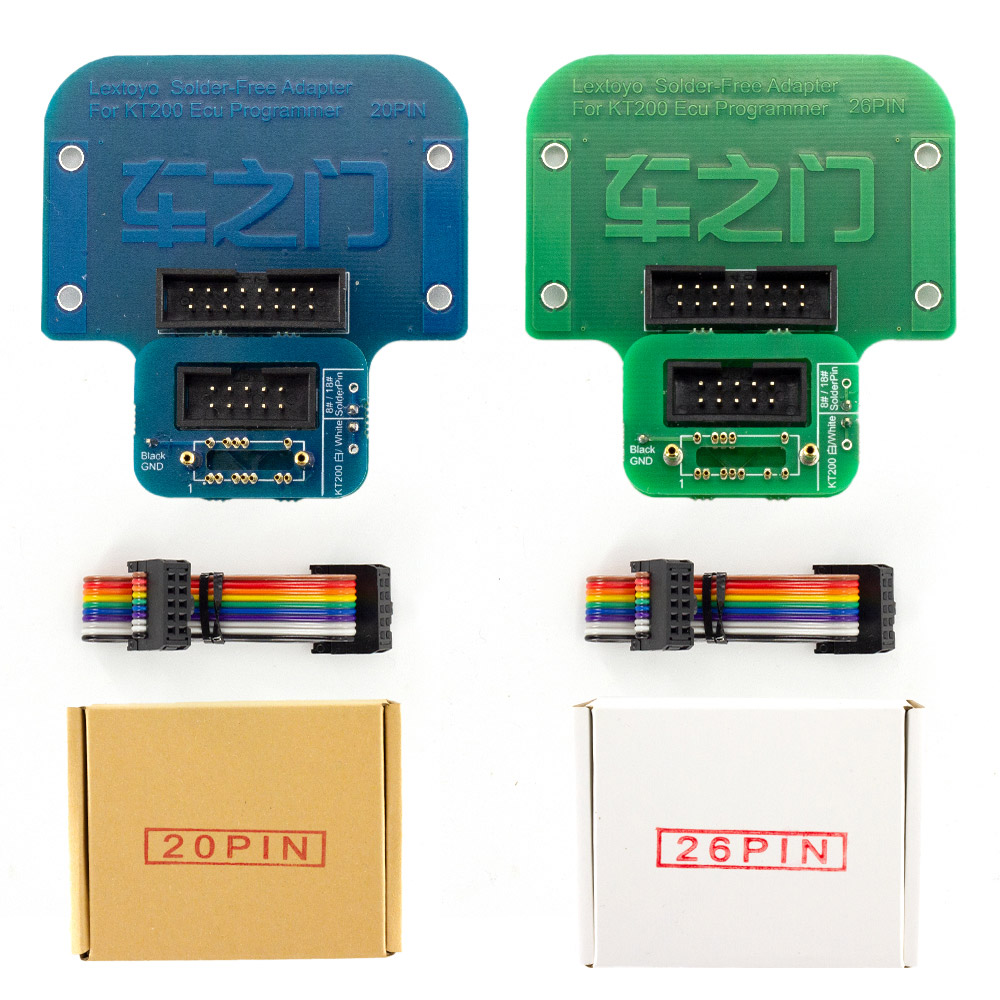

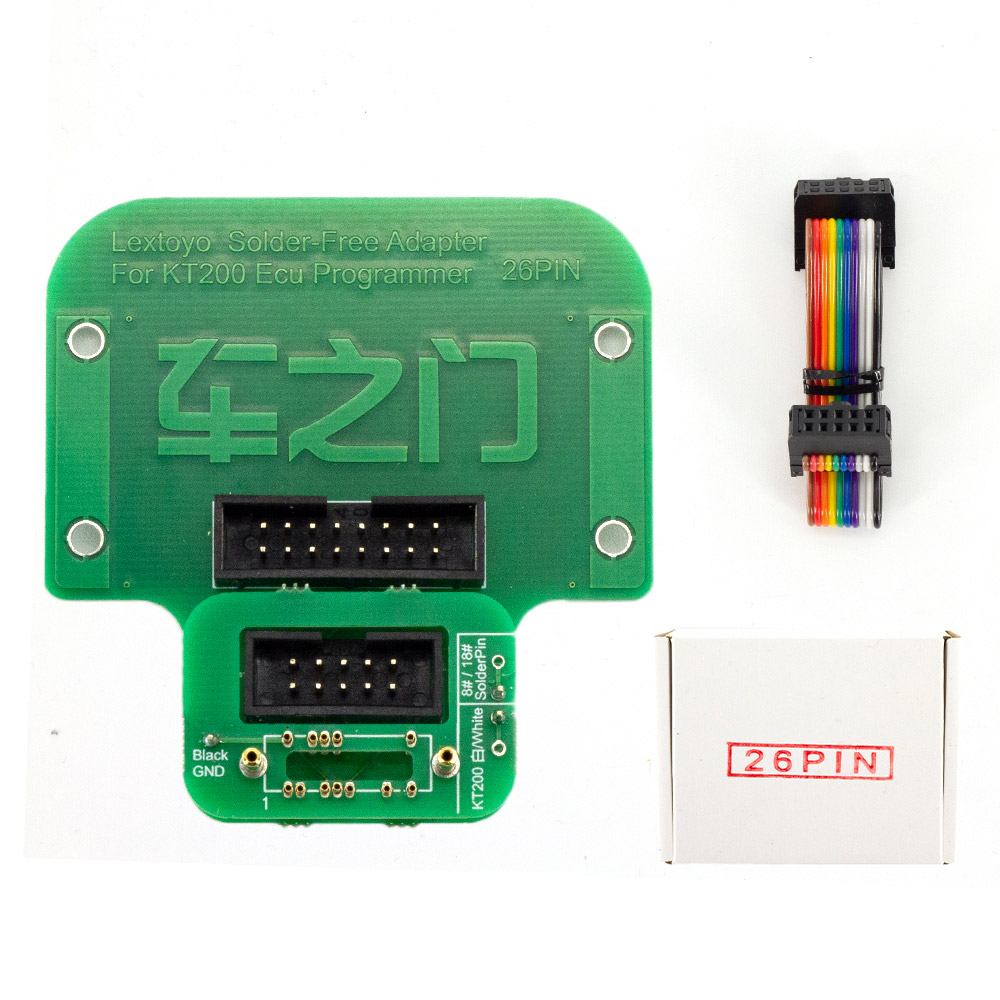

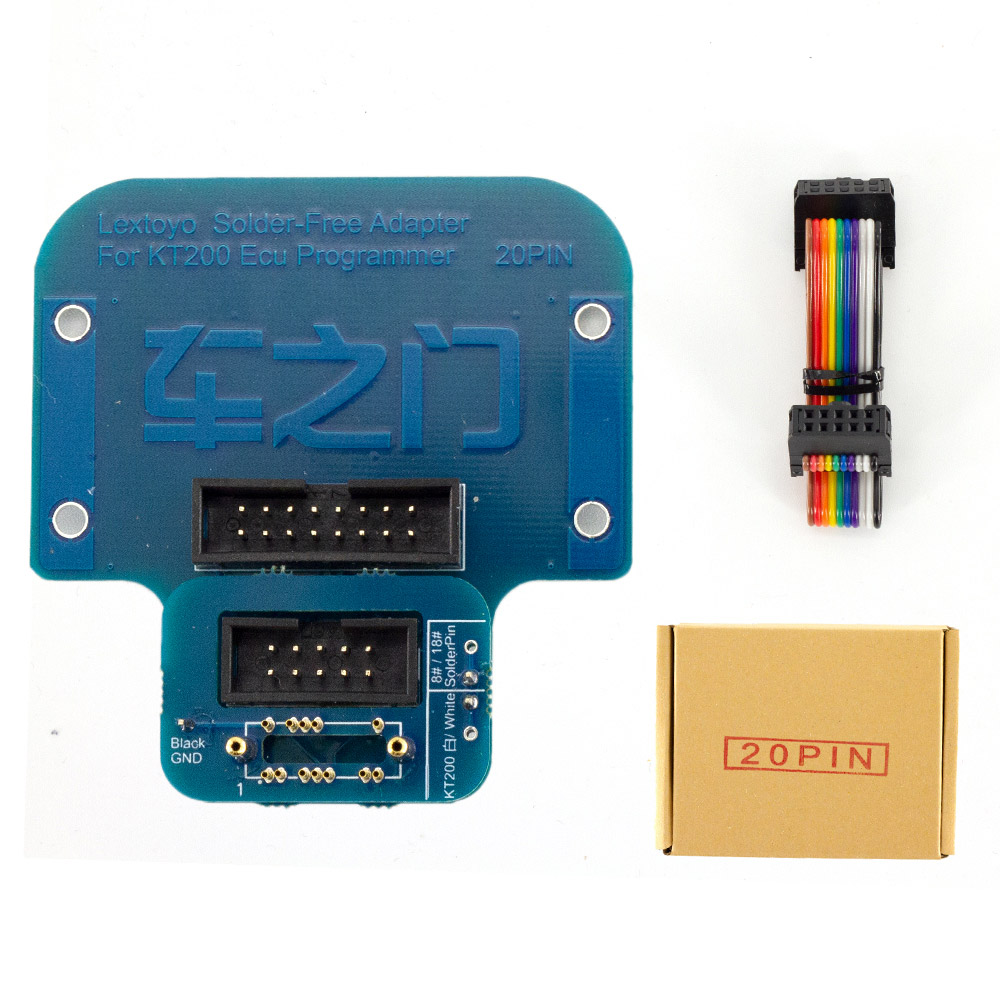

Package:
1x 20pin
1x 26pin

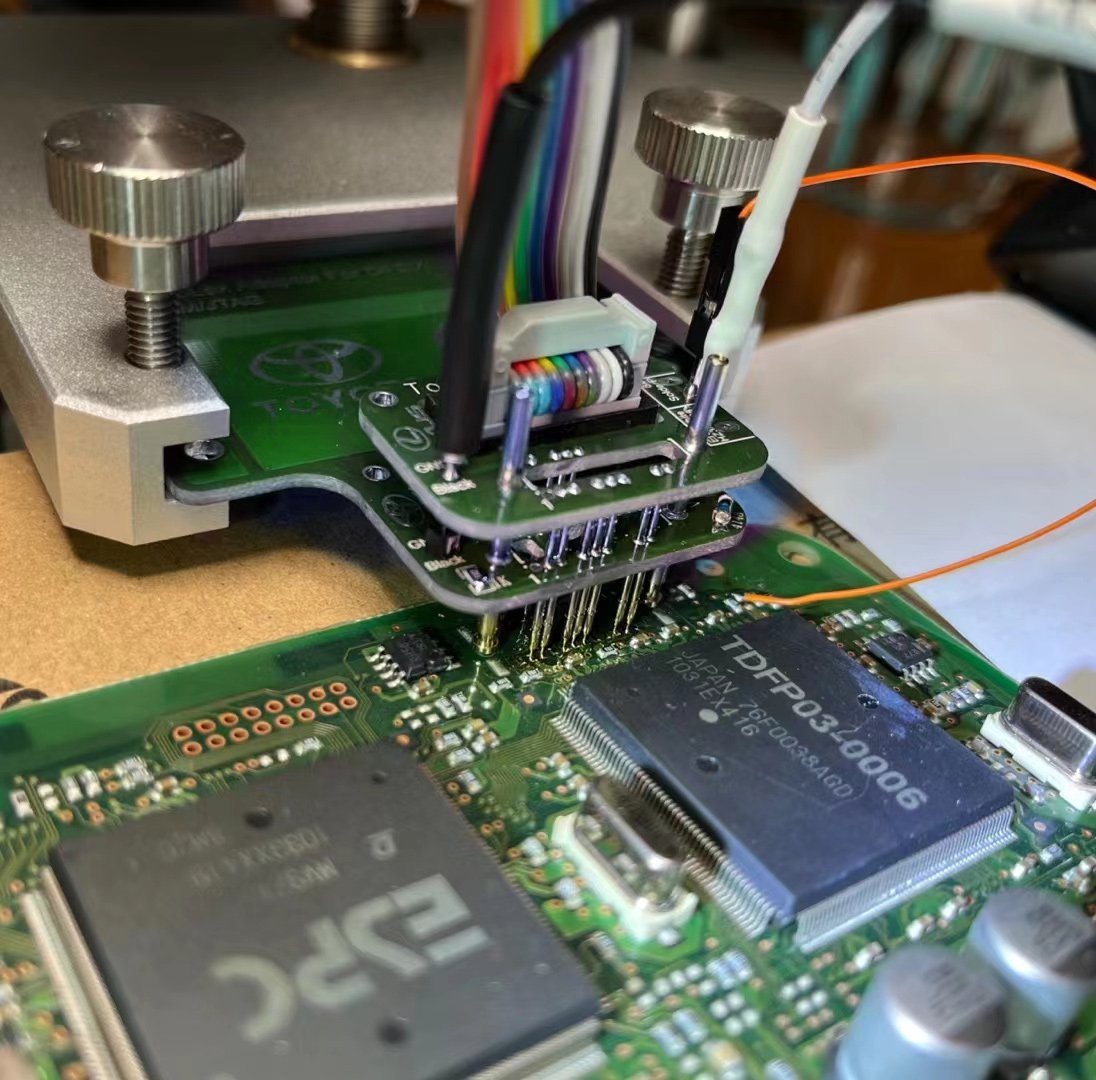

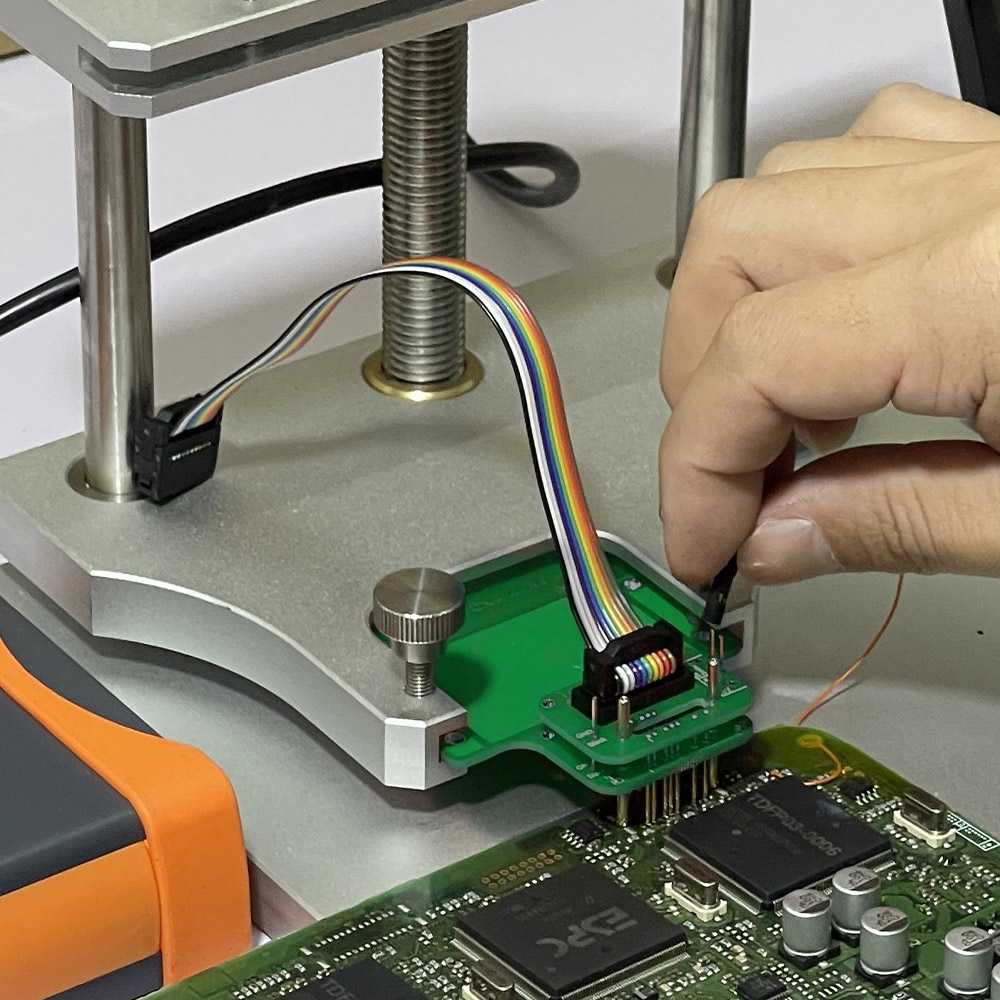

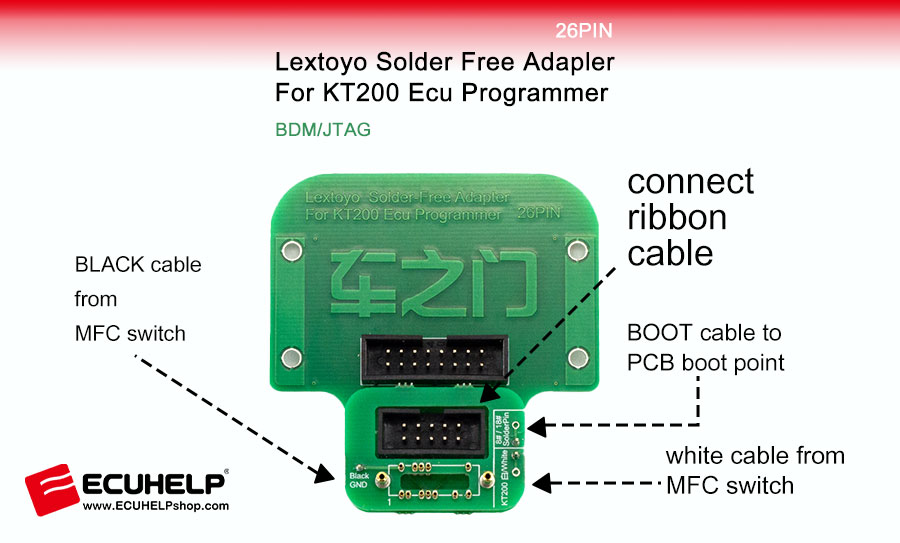

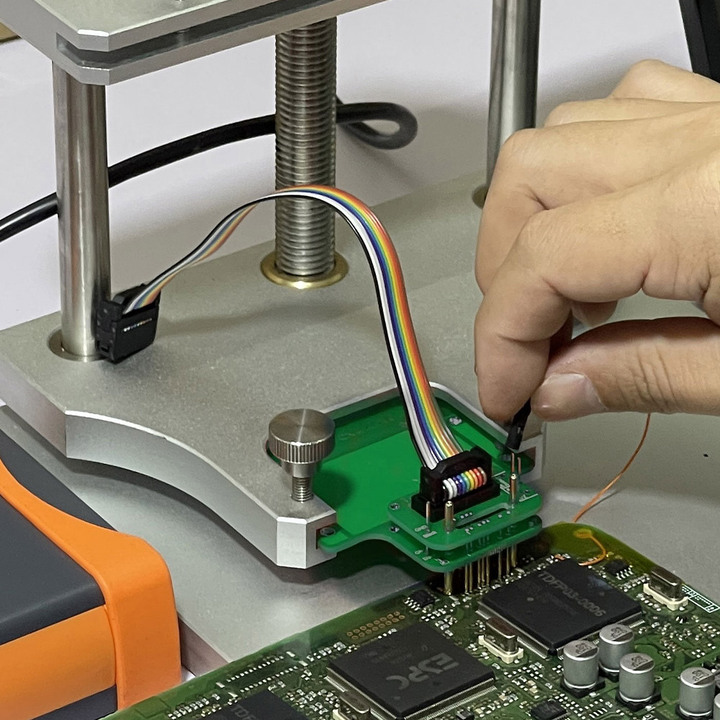

How to connect Toyota/Lexus BDM Adapter?
Question: Is it compatible with all Toyota Lexus car models?
Answer: This solder-free adpater is compatible with the Toyota Lexus cars with 20pin or 26pin diagnostic socket.
Question: Is it good quality?
Answer: Yes, there are an increasing number of users feedback it is super quality.
Question: I want it for Toyota Flasher, is it ok?
Answer: when you use ECUHELP KT200 / TagFash or other ECU programmer to R / W Flash for Toyota / Lexus in Jtag / BDM mode, it requires to solder the chip, but with this solder-free adapter, it is easy to operate without solder.
We are dedicated to provide good support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help! Email:Sales@ECUHELPshop.com Whatsapp:+86-18205996549 Skype:Sales@ECUHELPshop.com Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.
Customer Questions & Answers
0 votes
Q:Question:can it also be used with toyota lexus flasher hardware? Answer this question
A:Answer:
yes
By IrisSELLER
on November 14, 2025
0 votes
Q:Question:Estos adaptadores se pueden utilizar para BDM de las EDC16, por ejemplo EDC16U34, EDC16U1-U31 etc Answer this question
A:Answer:
this is a adapter for toyota and lexus
By IrisSELLER
on July 14, 2025
0 votes
Q:Question:Witam Czy programator obsługuje sterowniki Toyota Hilux DENSO GEN3 R7F701216 R7F701202 plus obliczanie sumy kontrolnej Answer this question
