769
SKU: EP-KT200IIF+EP-KT200IIDG Available: In Stock
Express Shipping Service, Estimated delivery time: 5-7 Working Days
Package Dimensions 46 x 35 x 15.5 cm; 3.5 Kilograms
Item Weight 3.5 kg
Returns Return for refund within 30 days, buyer pays return shipping.
4 KT200II ECU Tool: Offline Workstation ECUHELP KT200II Offline Workstation for Car Truck Motorbike Tractor Boat, Upgrade ECU Protocols Over KT200
Features
  • New protocols have been added, and they can continue to be added stably in the future. OBD reading and writing is stable. Supports dcm7.24
  • Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.
  • Many new virtual files have been added to the server.
  • Strengthened the protection of ECU, and will prompt you immediately if an operation error is made.
  • Optimized server access efficiency.

Product Description

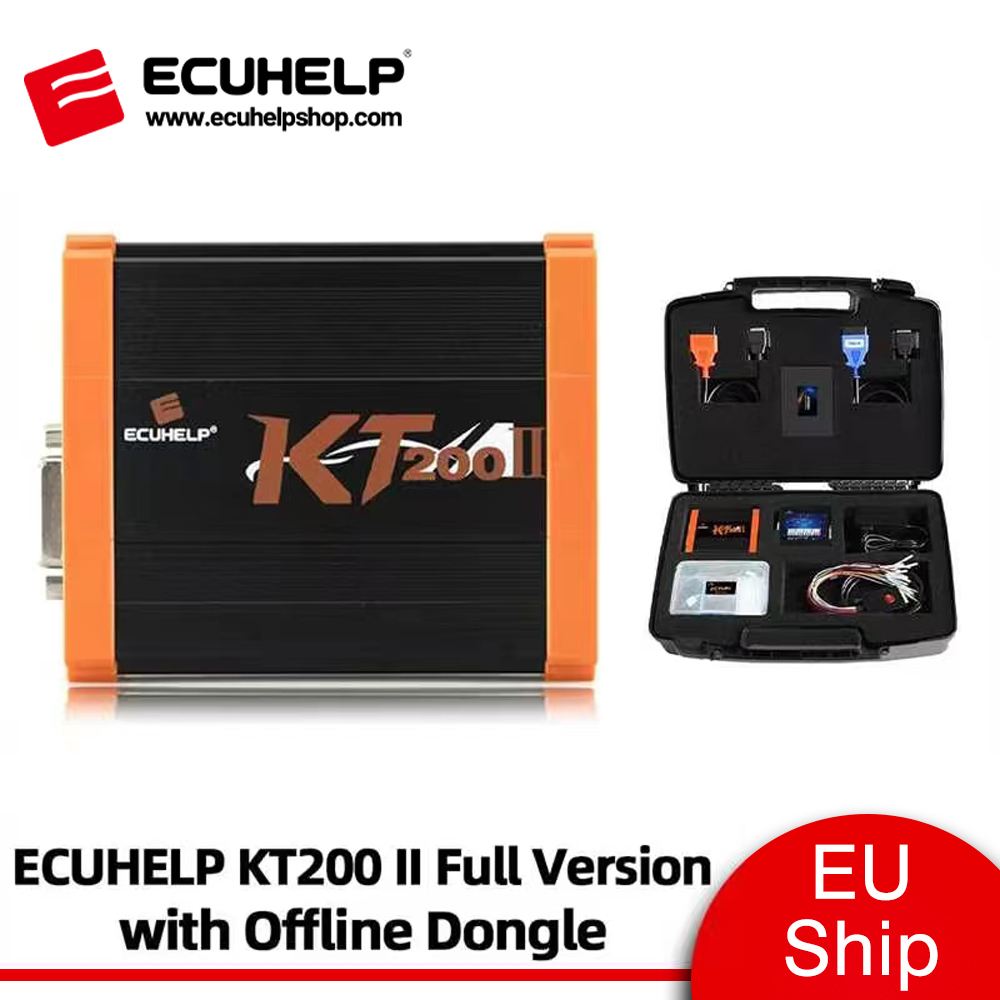

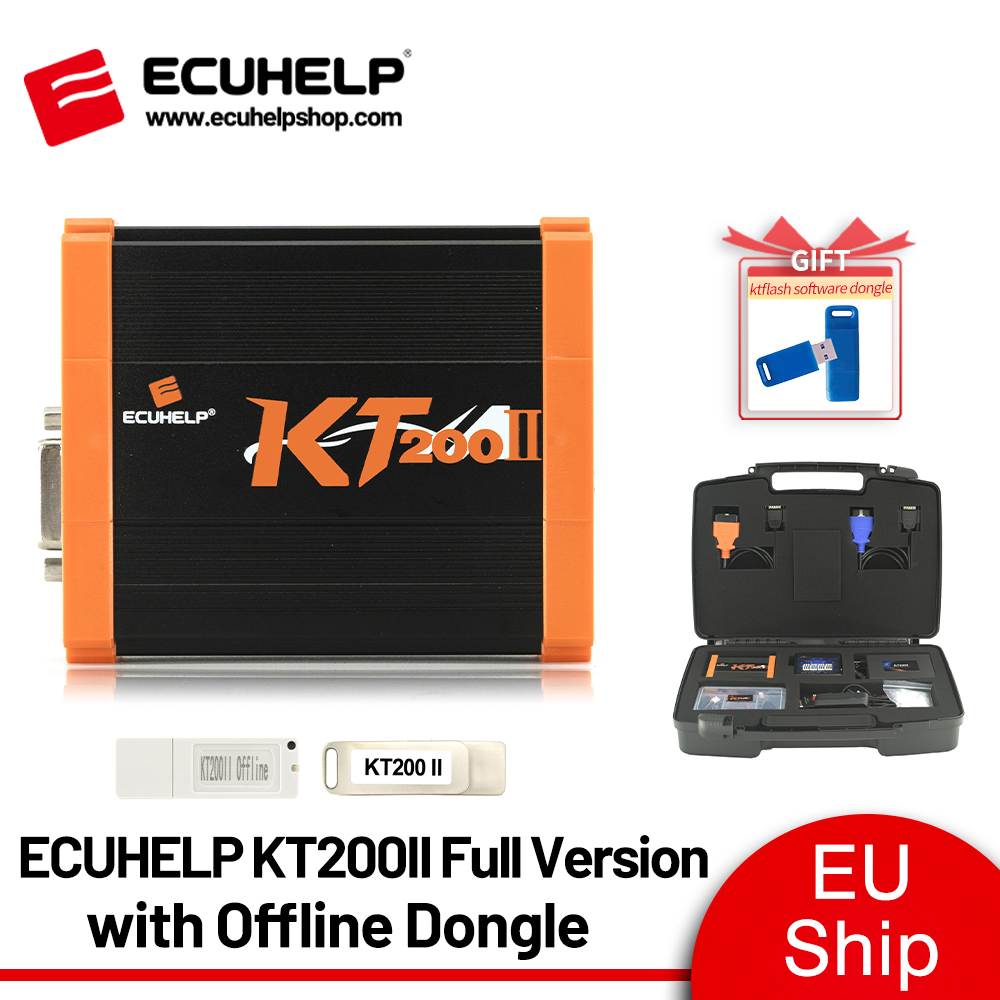

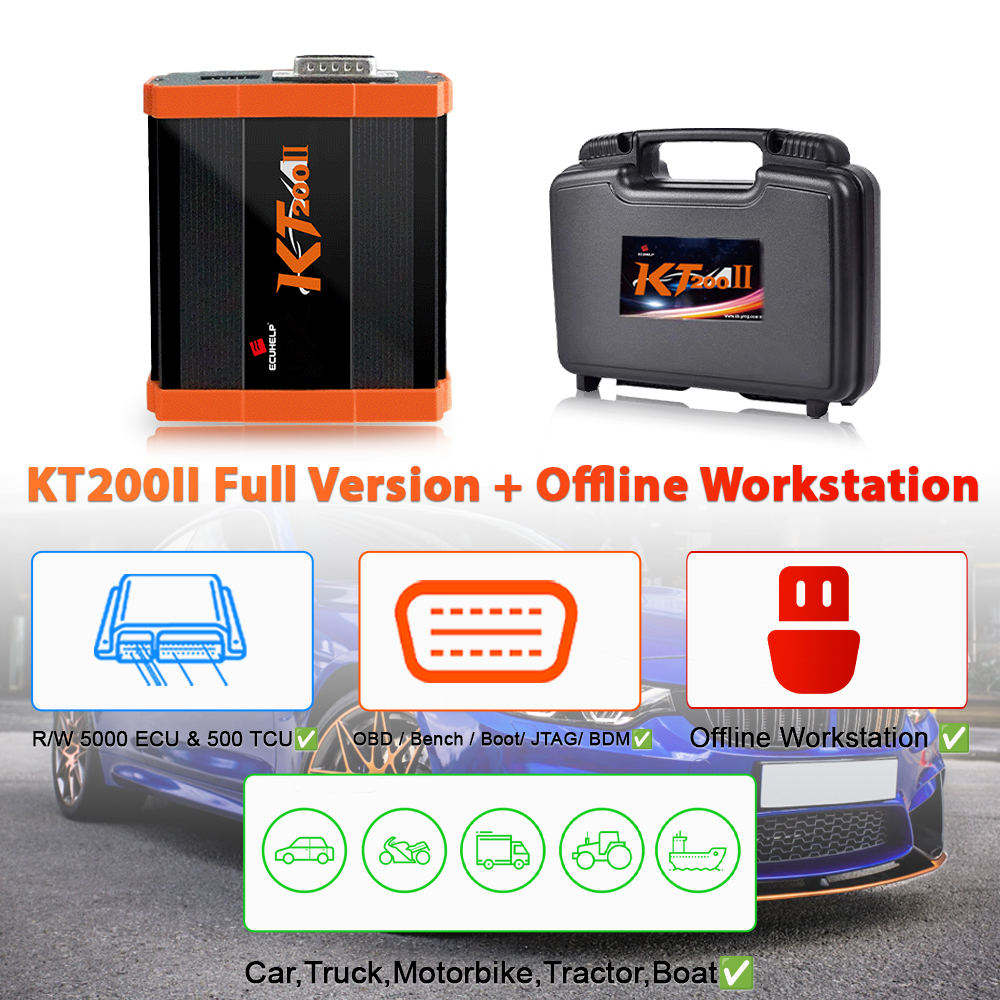

ECUHELP KT200II Full Version Plus Offline Dongle for Car Truck Motorbike Tractor Boat, Upgrade More ECU Protocols and Fix Checksum Bugs Over KT200

Free Download:

ECUHELP KT200II Software (Offline)
ECUHELP KT200II Software (Online)
Note:
1. KT200II software is not compatible with KT200.
2. KT200II Offline Workstation works offline mode (without the internet connection)
3. Compatible operating systems: Windows 7. Widows 8/8.1.Windows 10, Windows 11
4. Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM 8GB
5. KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

ECUHELP KT200II Offline Workstation Enabled Software:
Car OBD, Truck OBD, Tractor OBD , Boat OBD, Motorbike OBD.Full System ,BDM/JTAG, TOOL BOOT, Bench Mode,TCU Gear
***Choose KT200II Auto Version to have no the software: Tractor OBD, Boat OBD, Motorbike OBD

ECUHELP KT200II Key Features and Enhancements:
KT200II upgrades new protocols and commits to regularly updating more.
Resolves automatic checksum issues found in the KT200, enhancing read/write efficiency.
A significant increase in virtual files available on the server.
Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.
Faster and more efficient server connectivity.
Reliable reading and writing via OBD.
Now supports DELPHI DCM7.24 ECU
Compatible with htprog Clone Adapter too.
Introduces the Tricore Clone feature.
KT200II upgrade

Frequently Asked Questions:
What's New in KT200II?

For a detailed list of the new protocols added in KT200II, please refer to the updated protocol list.

Can the Loyal Users Exchange KT200II?
Yes. To upgrade:
1. While awaiting the shipment of your KT200II, you can continue using KT200. Upon receiving your KT200II, please provide us with the serial numbers of both the KT200 and KT200II. Following this, we will lock your KT200 and activate your new KT200II.
2.  If you have KT200 full version + offline dongle, you will recieve KT200II host and one offline dongle.

Are the Accessories and Bench Box of KT200 Compatible with KT200II?
Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?
No, they are not compatible.

Where Can I Find Test Results for KT200II?
For test results and demonstrations, subscribe to the ECUHELPshop YouTube channel for a series of informative videos.

ECUHELP KT200II not only supports the following ECU List / TCU List, but also includes an expanded range of added protocols (Listed below):

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums

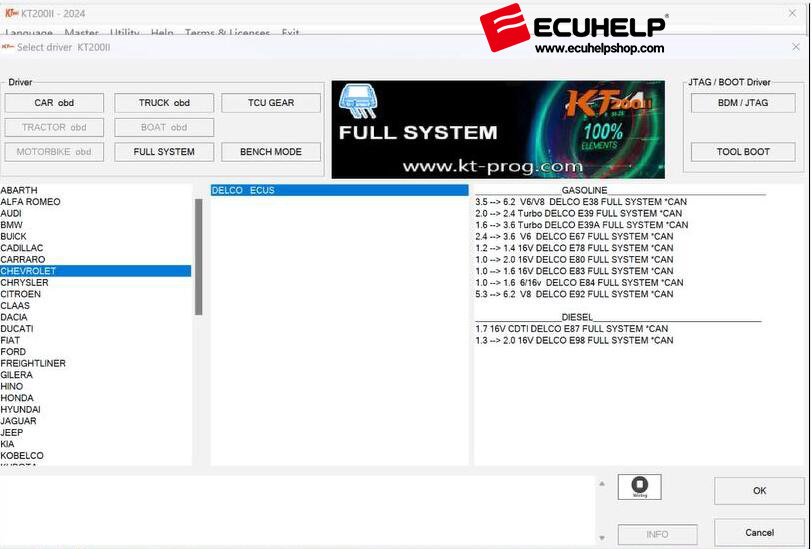

KT200II Update DELCO OPEL / CHEVROLET / GM ECUs

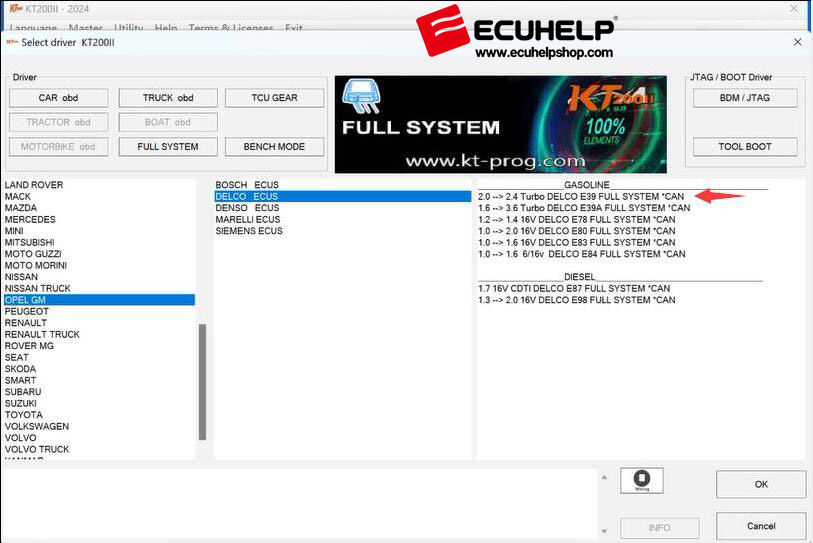

KT200II Update DELCO OPEL / CHEVROLET / GM ECUs-02

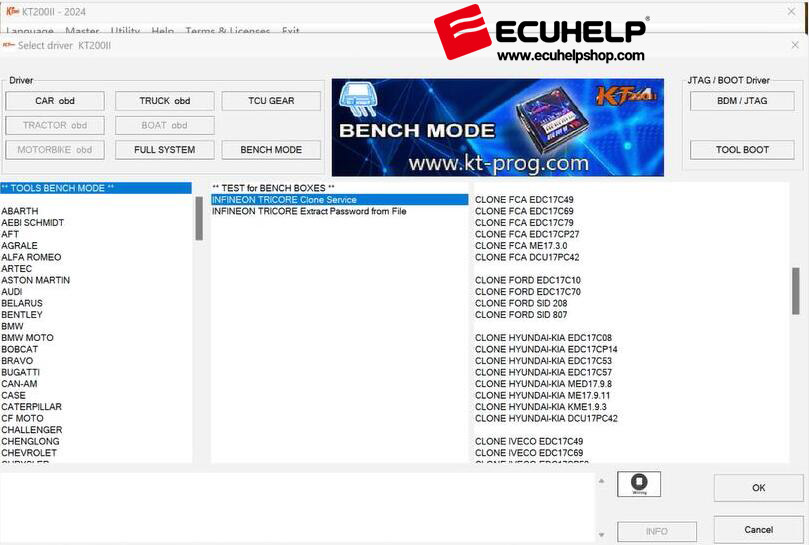

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52
KT200II Update TRICORE CLONE

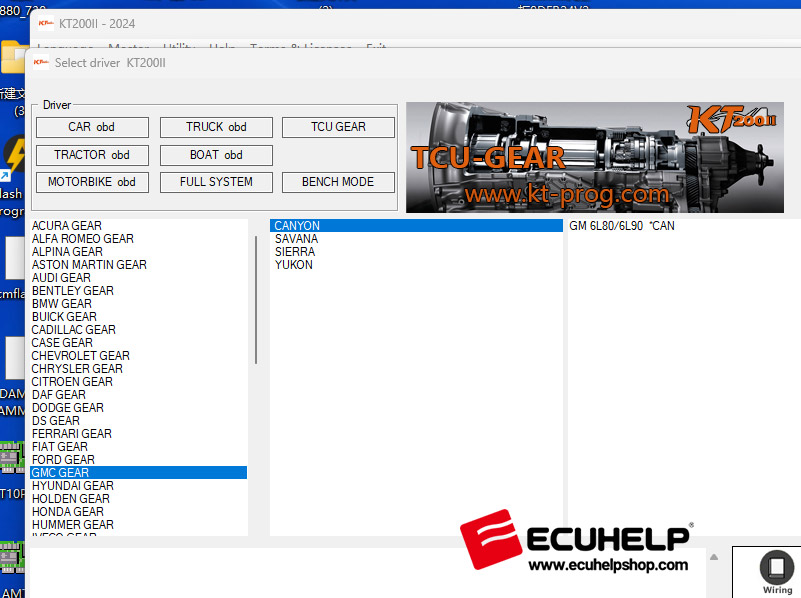

NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
KT200II FULL SYSTEM DRIVERS FOR BOSCH 6L80 6L90

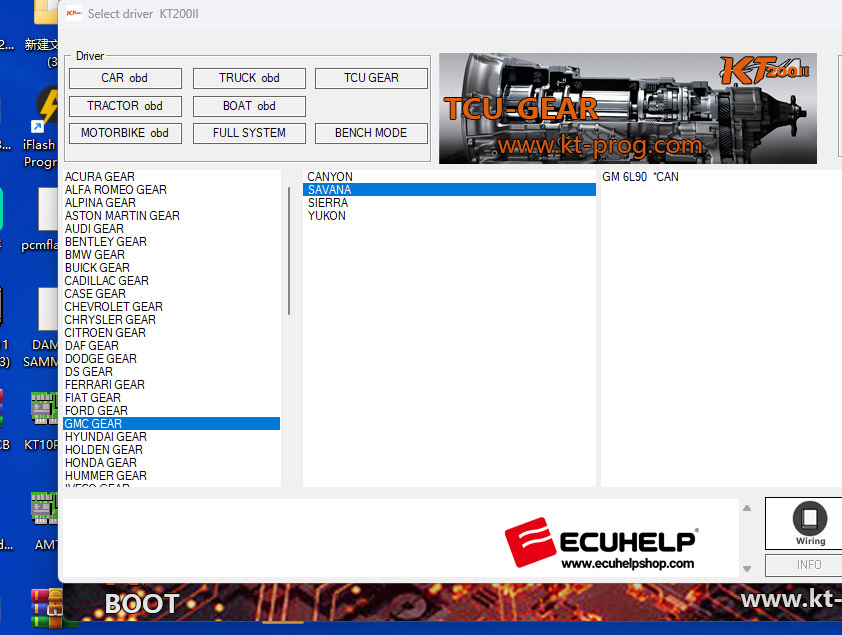

KT200II FULL SYSTEM DRIVERS FOR BOSCH 6L90

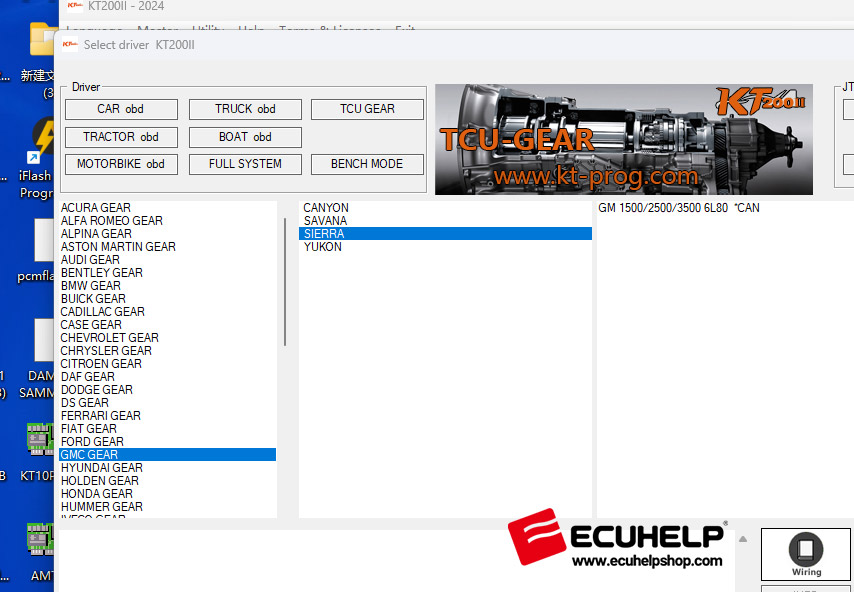

KT200II FULL SYSTEM DRIVERS FOR BOSCH 6L80

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

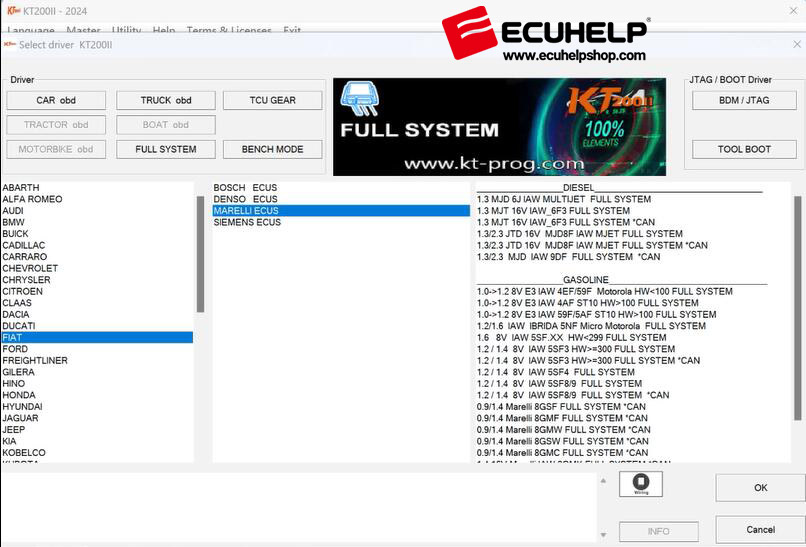

KT200II Update FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU

NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
KT200II BOOT MODE FOR SIEMENS SIM2K-305 ECUs

NEW BENCH MODE FOR MG1CA007 ECU
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcyle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums
KT200II Update BENCH MODE FOR MG1CA007 ECU

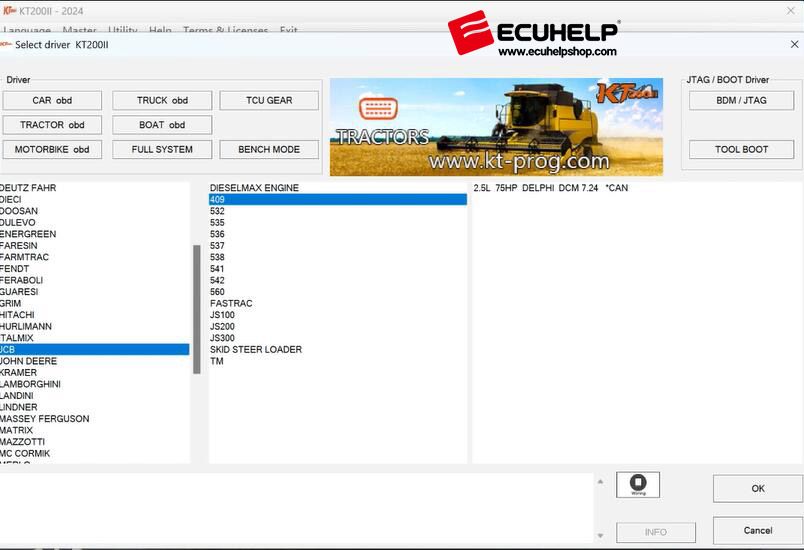

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums
KT200II Update OBD DRIVER FOR DELPHI DCM7.24 ECU
NEW OBD DRIVER FOR PHOENIX L40 ECU!
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing is carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding

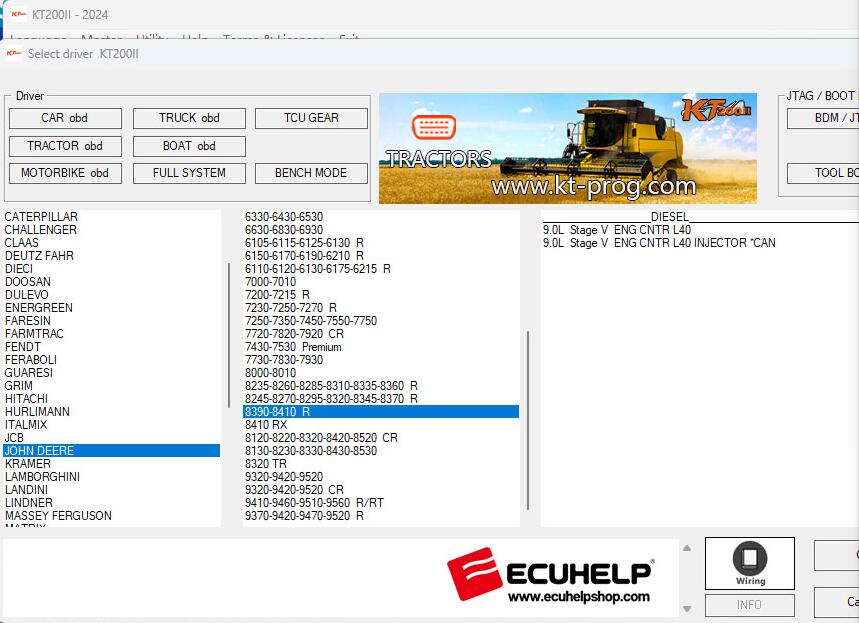

KT200II OBD DRIVER FOR PHOENIX L40 ECU

NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4 cable.

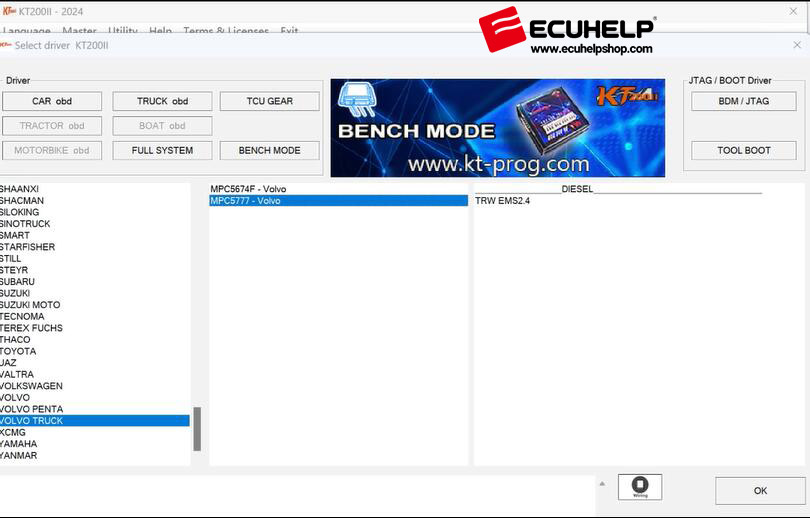

KT200II Update BENCH MODE FOR TRW EMS2.4 ECUs

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

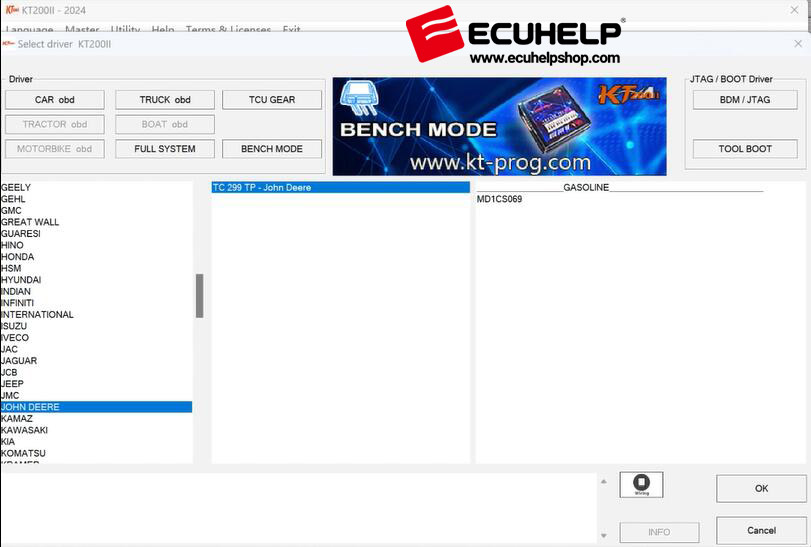

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.
KT200II Update BOSCH MD1CS069 JOHN DEERE

What is KT200II?
Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data,  read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Remova, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Ho start or Cold Start Vmax , and so on.

You can obtain ECUHELP service software ECUHELP for free. All functions of the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.
ECUHELP ECU service

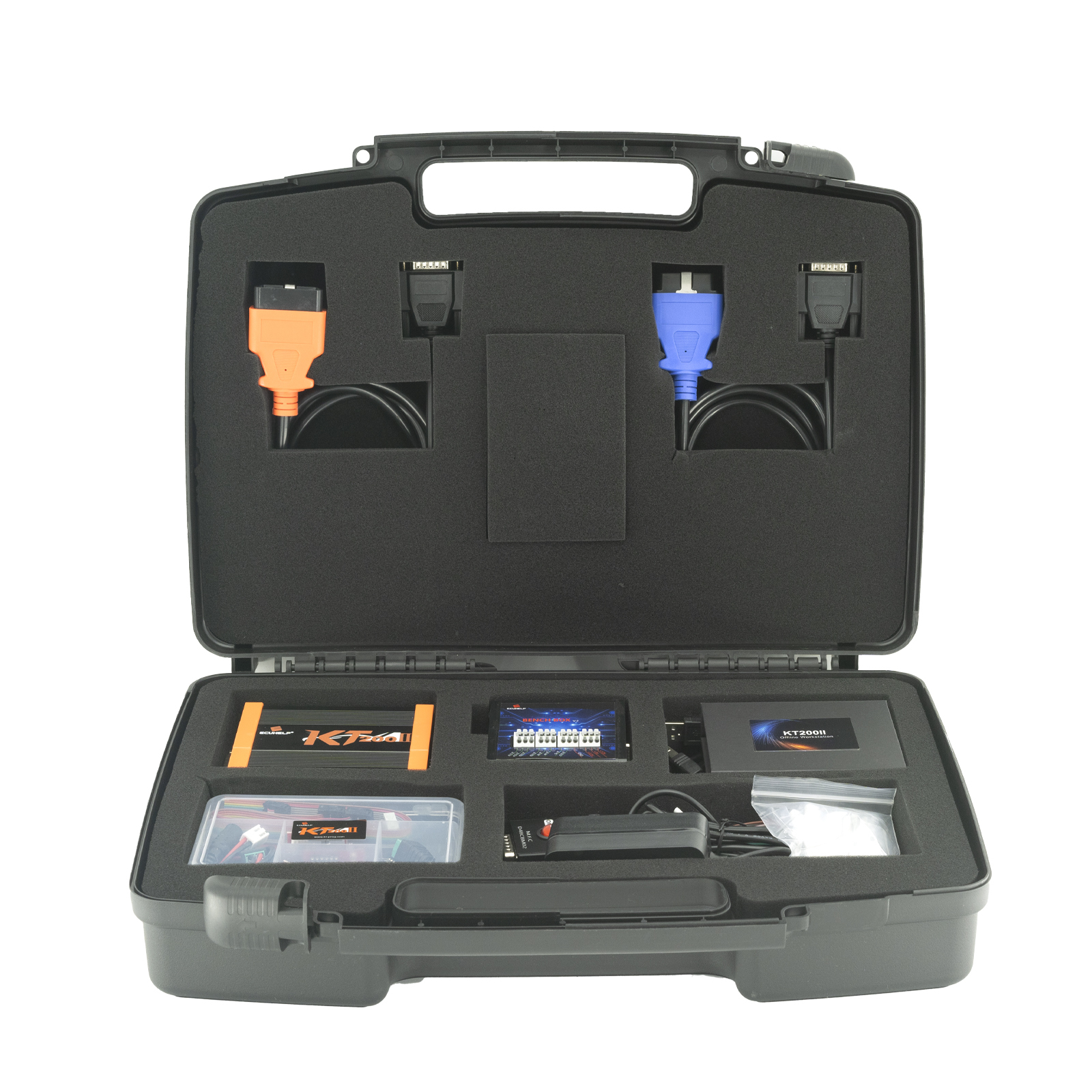

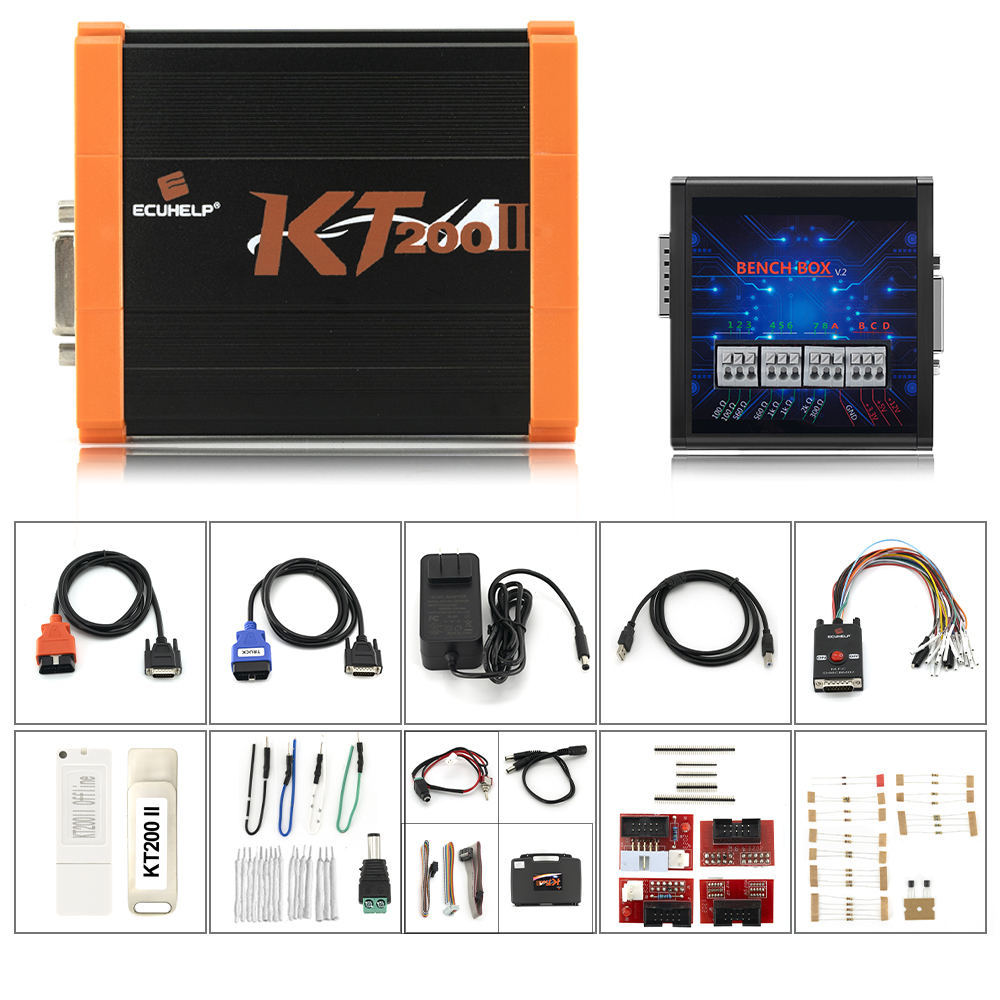

ECUHELP KT200II Offline Workstation Package Includes:
1pc x Master
1pc x BENCH box
1pc x Offline workstation
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters



We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Videos

ECUHELP KT200II DQ380 TCU Read 100% OK

ECUHELP KT200II MD1CE100 WRITE 100% OK

ECUHELP KT200II MD1CE100 READ 100% OK

ECUHELP KT200II Opel E80 stag1 read write

ECUHELP KT200II EDC17C53 WRITE

ECUHELP KT200II E84 READ 100% OK

Tech Support

ECUHELP KT200II stands out as a significant advancement over the KT200 in ECU and TCU tool technology. It retains all the capabilities of the KT200, including compatibility with existing accessories and offering the same four versions.
However, the KT200II excels with its added ECU protocols, improved automatic functions like Tricore Clone, enhanced full system drivers, and new modes for various ECUs.
Additionally, it resolves the automatic checksum issue found in KT200, offers an array of new virtual files, and enhances ECU protection and server access efficiency.
Its stable OBD reading and writing, along with the ability to handle ECUs like the DELPHI DCM7.24 which KT200 couldn't, further underscore its superior performance.

The Same:
1. KT200II can read and write the ECUs that KT200 can.
KT200 ECU List
KT200 TCU List

2. KT200II host is compatible with the accessories of KT200.
Therefore, for those interested, ECUHELPshop.com provides options to either exchange your current KT200 or purchase the complete KT200II set.
Please note, the opportunity to exchange the host device will expire after December 31.

3. Both KT200II and KT200 are available in four distinct versions:
1).Auto version: Car OBD,Truck OBD, Full System, BDM/JTAG, TOOL BOOT Bench Mode, TCU Gear
2).Full Version: Car OBD, Truck OBD, Tractor OBD , Boat OBD, Motorbike OBD.Full System ,BDM/JTAG, TOOL BOOT, Bench Mode,TCU Gear
3).Full Version + one offline dongle: works offline mode.
4).Full + one offline dongle + HTprog ECU Clone Adapter.

The Different:
1.KT200II adds some more ECU protocols over KT200:
Generally speaking, it includes the following updates:
NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password
NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs
NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
NEW BENCH MODE FOR MG1CA007 ECU
NEW OBD DRIVER FOR DELPHI DCM7.24 ECU
NEW OBD DRIVER FOR PHOENIX L40 ECU
NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE

2.Checksum:
KT200 can do checksum calculation automatically, but the user is advised to do manual checksum with Winols/ Davinci/ Lsuite.
KT200II Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.

3.Virtual files:
ECUHELP add many new virtual files to the server for KT200II.

4.Safety:
ECUHELP strengthened the protection of ECU, and KT200II will prompt you immediately if an operation error is made.

5.Server access efficiency:
ECUHELP optimize server access efficiency for KT200II.

6.OBD read/write
KT200II OBD reading and writing is stable.

7.KT200II read and write DELPHI DCM7.24 ECU that KT200 can’t.

8.KT200II Upgrade New automatic function:Tricore Clone.

Customer Questions & Answers

0
votes
Q:Question: My KT200 read/write EDC17CP14 without problem on bench but I want to try to write it via OBD. Do I have to do something special for the OTP or just write it and the tool know what to do. Answer this question
A:Answer:
2008-2009 you can read 2010+ you will click read and it will download the virtual read
By Sunny Smith SELLER on November 30, 2023
0
votes
Q:Question: Is it better online or offline? Answer this question
A:Answer:
I have both. It depends on your situation.
By Sam SELLER on November 26, 2023
0
votes
Q:Question: Is the FTP of kt200 the same for KT200II? Answer this question
A:Answer:
no,not same
http://file.ktmtools.cn:8889/KT200II%20offine%20installation%20package.zip
By Iris SELLER on November 25, 2023
0
votes
Q:Question: en cuanta pc puedo utilizar kt200ll Answer this question
A:Answer:
no limited of pc
By Iris SELLER on November 22, 2023
0
votes
Q:Question: me interesa saber en cuanta pc puedo utilizar kt200ll Answer this question
A:Answer:
no limited of pc
By Iris SELLER on November 22, 2023
0
votes
Q:Question: If I don't update my KTM 200 will it block? Answer this question
A:Answer:
old version and hardware still can work.
By Sunny Smith SELLER on November 18, 2023
0
votes
Q:Question: If no update stop working? Answer this question
A:Answer:
old version and hardware still can work.
By Sunny Smith SELLER on November 18, 2023
0
votes
Q:Question: Is it really worth buying? Answer this question
A:Answer:
yes , realy worth.
By Sunny Smith SELLER on November 18, 2023
0
votes
Q:Question: It deactivates the function of your kt200 the day you pay for the upgrade? Answer this question
A:Answer:
No, you receive the kt200 2 and then you contact them so they can activate the new one and block the old.
By James on November 17, 2023
0
votes
Q:Question: Hi. The pre-order prices for kt200ll full with offline dongle are valid until today only? Asking for full kit for new customer Answer this question
A:Answer:
no,This price is the normal selling price
By Iris SELLER on November 17, 2023

Customer Reviews

4.9
4.9 out of 5, 12 Reviews.
5 stars: 11 ratings, 92%
4 stars: 1 rating, 8%
3 stars: 0 rating, 0%
2 stars: 0 rating, 0%
1 star: 0 rating, 0%

Top customer reviews

Verified User
November 30, 2023 by Charlie, from Finland
Verified User
Audi pcr2.1 bench read write OK.
Verified User
November 30, 2023 by Karen J., from Italy
Verified User
Fiat Ducato 2021 2.3 mjd9df hw002 read in bench 95 minutes ok. Write in obd 15 minutes. Chk ok.
Verified User
November 30, 2023 by Tanya M., from Italy
Verified User
KT200 Cloning MSD80, Boot mode (Success).
Verified User
November 29, 2023 by Nicole Henshaw, from Italy
Verified User
Iveco dailly 12r edc17c49 odczyt/zapis  bench ok. Immo off.
KT200II Iveco dailly 12r edc17c49 odczyt/zapis  bench ok
Verified User
November 28, 2023 by Shea Robertson, from France
Verified User
Polo 1.6 TDI PCR2.1 unlock EEprom in bench ok
Read/Write/Checksum ok
14v ok
KT200II Polo 1.6 TDI PCR2.1 unlock EEprom in bench
Tags: ECUHELP KT200II
