|Item Weight||3.5 kg|
|Returns||Return for refund within 30 days, buyer pays return shipping.|

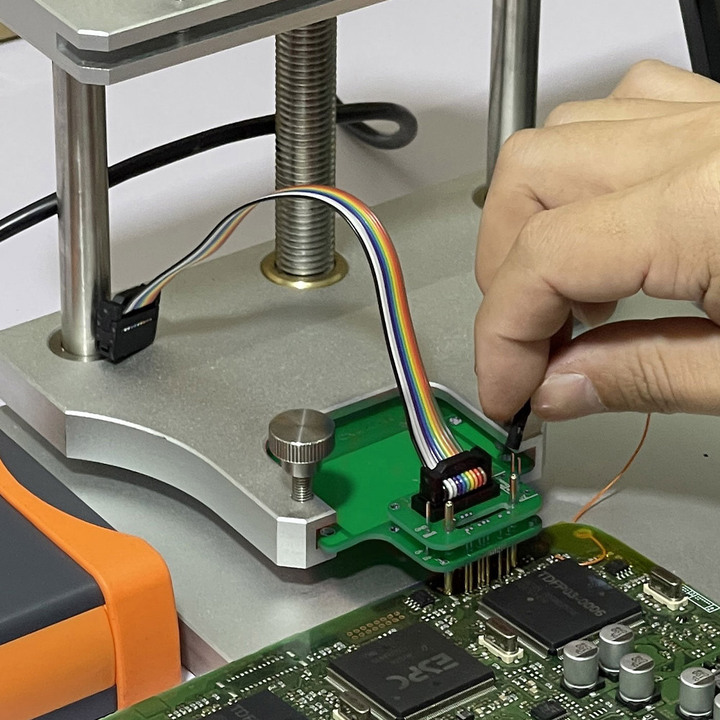

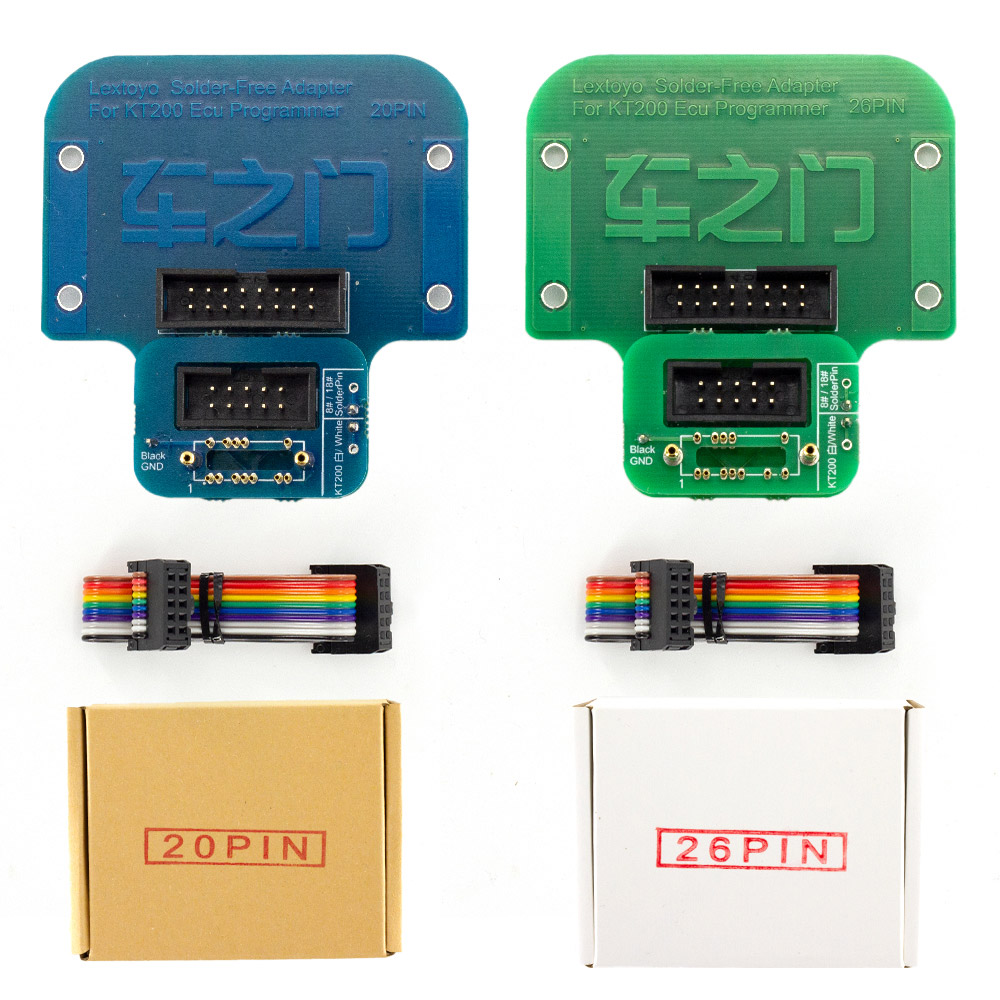

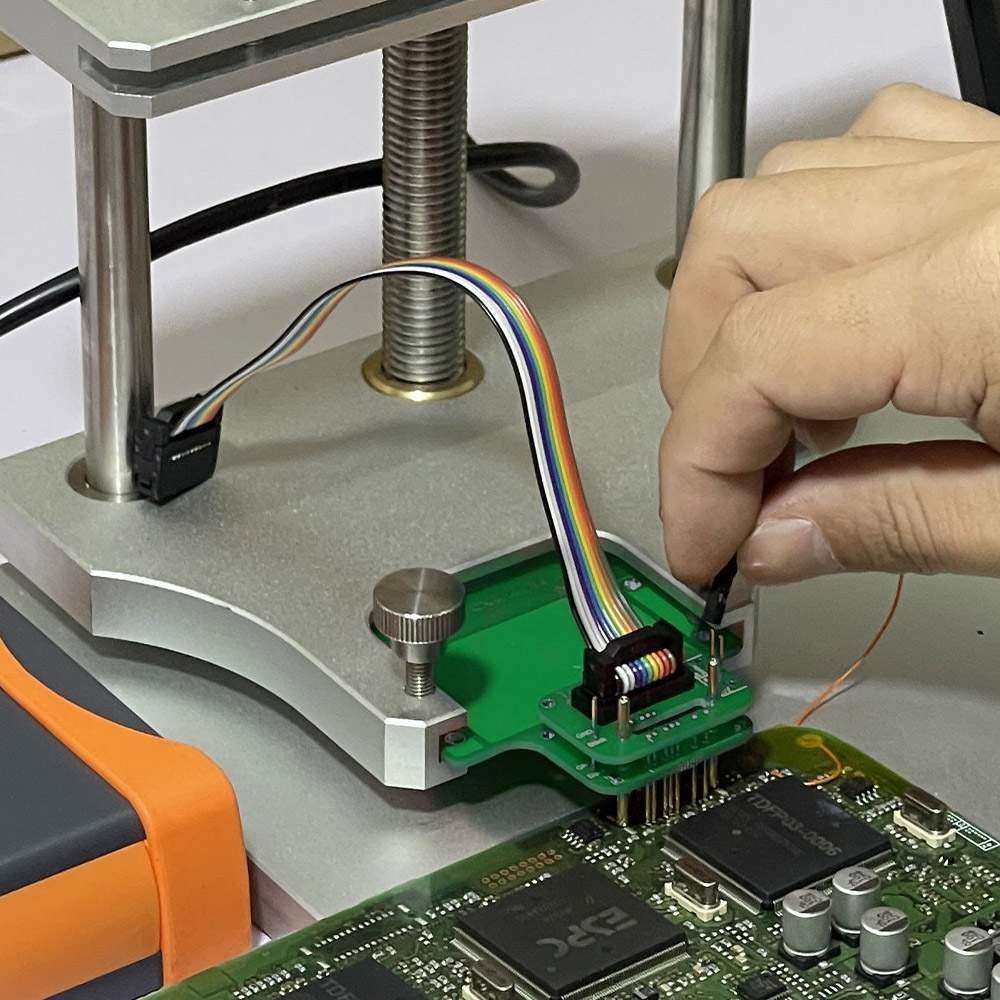

Part 1. Toyota Lexus BDM Solder-Free Adapter 20 pin + 26 Pin
DIY board with positioning pins
No need soldering when using ECUHELP KT200 to read and write Toyota / Lexus in BDM /JTAG mode.
Available with 26PIN and 20PIN adapter, that means the Toyota / Lexus with 26pin or 20pin socket will be supported.
Compatible with ECUHELP KT200
Compatible with KTAG / KESS V3 / DIMSPORT

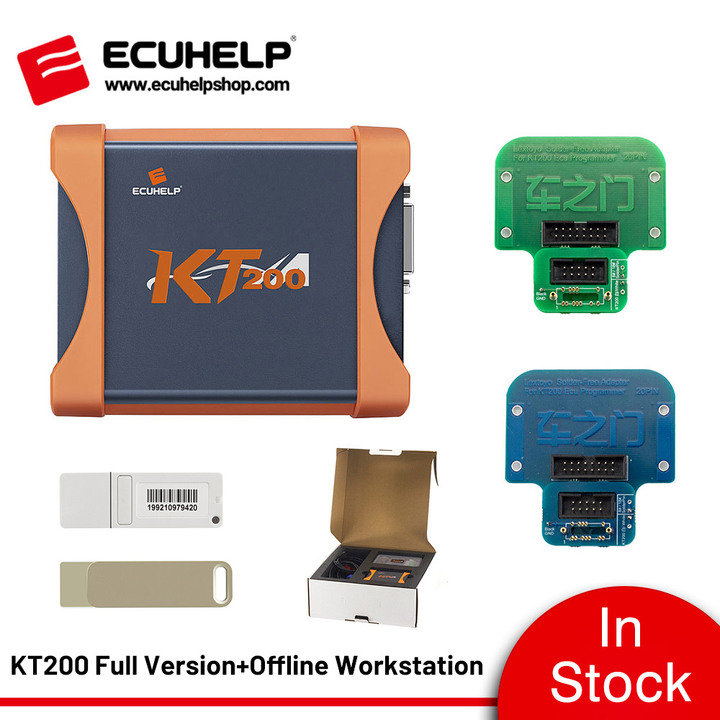

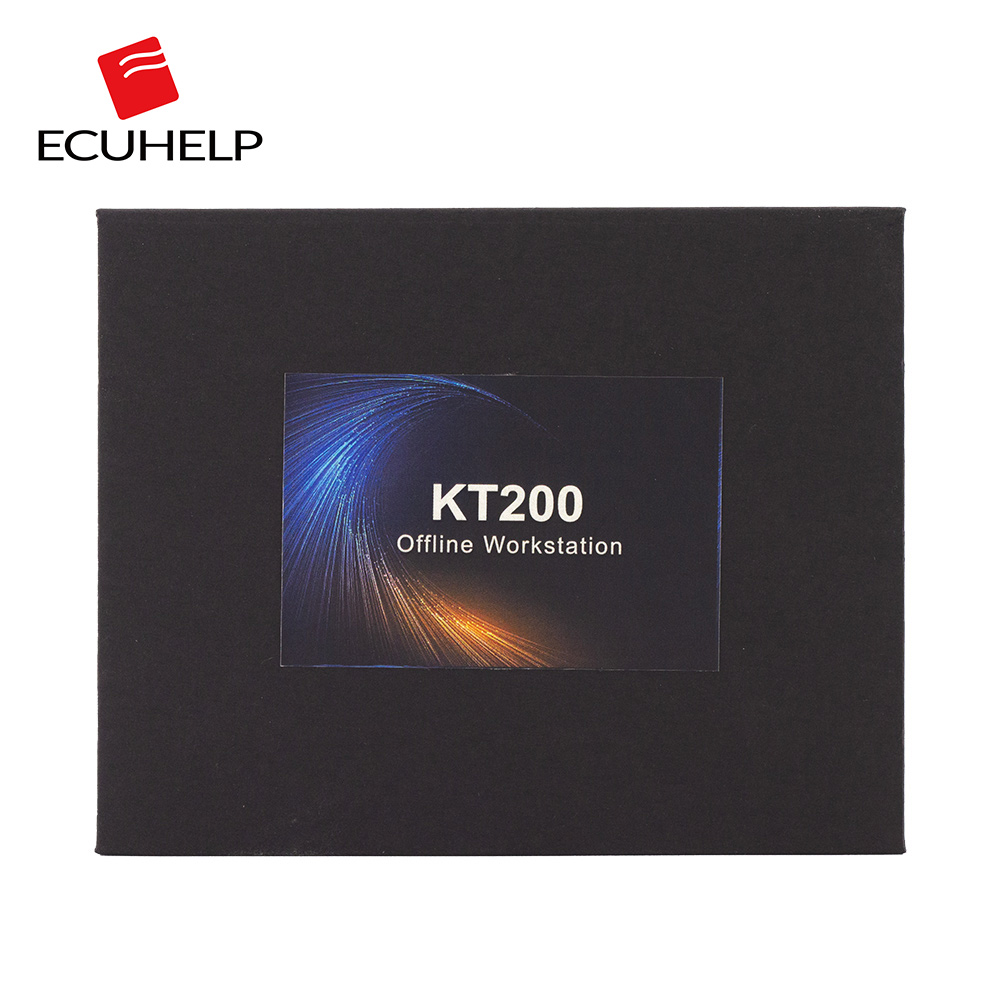

Part 2.ECUHELP KT200 Offline Dongle
With an offline dongle, you can easily carry out KT200 full version to work outdoors or in places with a poor network.
ECUHELP KT200 Offline Dongle is compatible with KT200 full version, not Auto version, please contact us to pay €190.99 to update to Full Version.
Notice: Please connect to the KT200 online server once every 15 days for newer update.

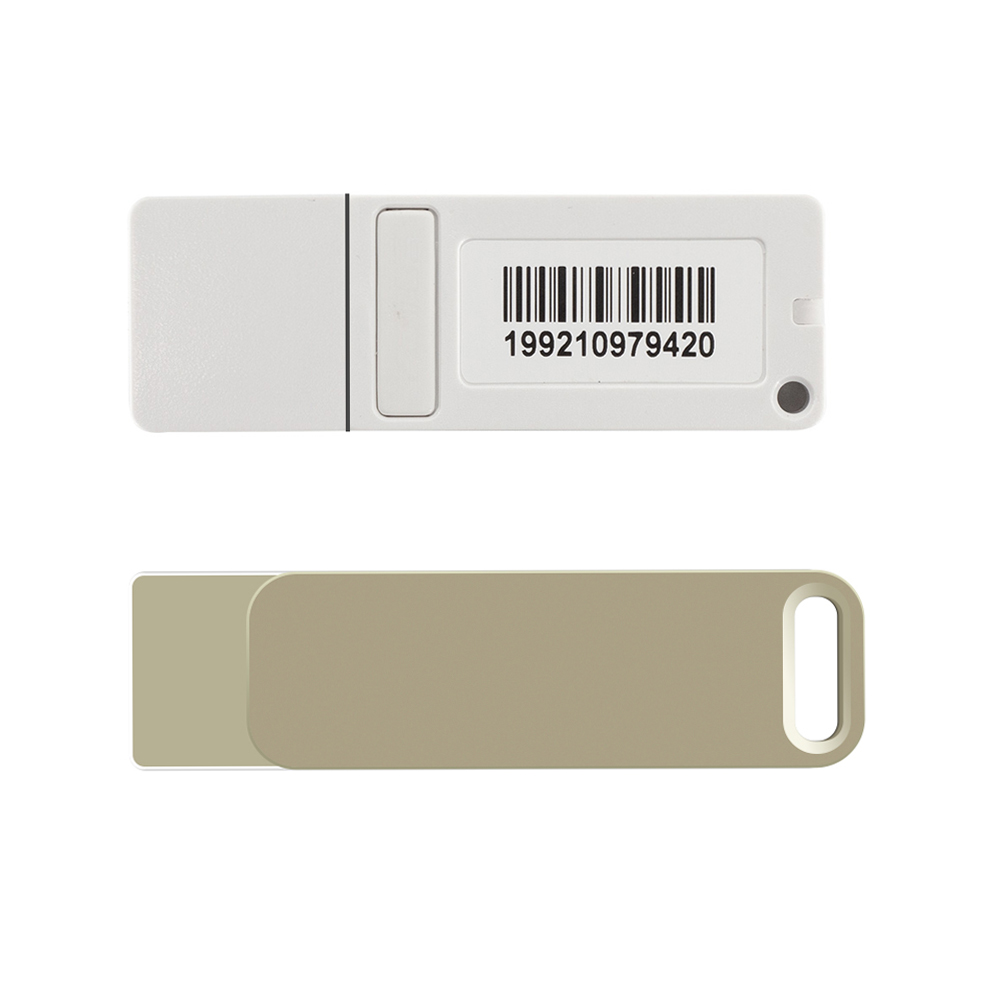

The black one: contains software and installation instructions
The white one: the dongle to install before kt200 full version works offline
It must be installed online before it can work offline.
Part 3.2023.02.01 ECUHELP KT200 Full Version Highlights
1. KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gearbox.
ECUHELP KT200 ECU Driver List
ECUHELP KT200 TCU Driver List
Note: the list of vehicles is constantly updated, which keeps you at the forefront of the industry.
|Full Read And Write Via Pin Out in Bench Mode:
BOSCH ME9 / MED9
BOSCH MED17 / ME17
(Unlocking also possible via pinout)
|Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
|BDM JTAG Modes For:
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx
BOOT MODE ST K-LINE / RX-TX / CAN
|BOOT Mode Tricore for micro:
|BOOT Mode Renesas:
|BOOT Mode Mitsubishi:
|BOOT BAM System MOTOROLA:
-BOOT MODE Fujitsu
-BOOT MODE Hitachi
2. Free VR files and Damaos files available from ECUHelp V3.0
3. Free update and no annual fee (If you want to add new modules in the future, need to pay for new modules, for example, HTprog clone adapter)
4. Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
5. 1-year warranty period, after-sales service guarantee

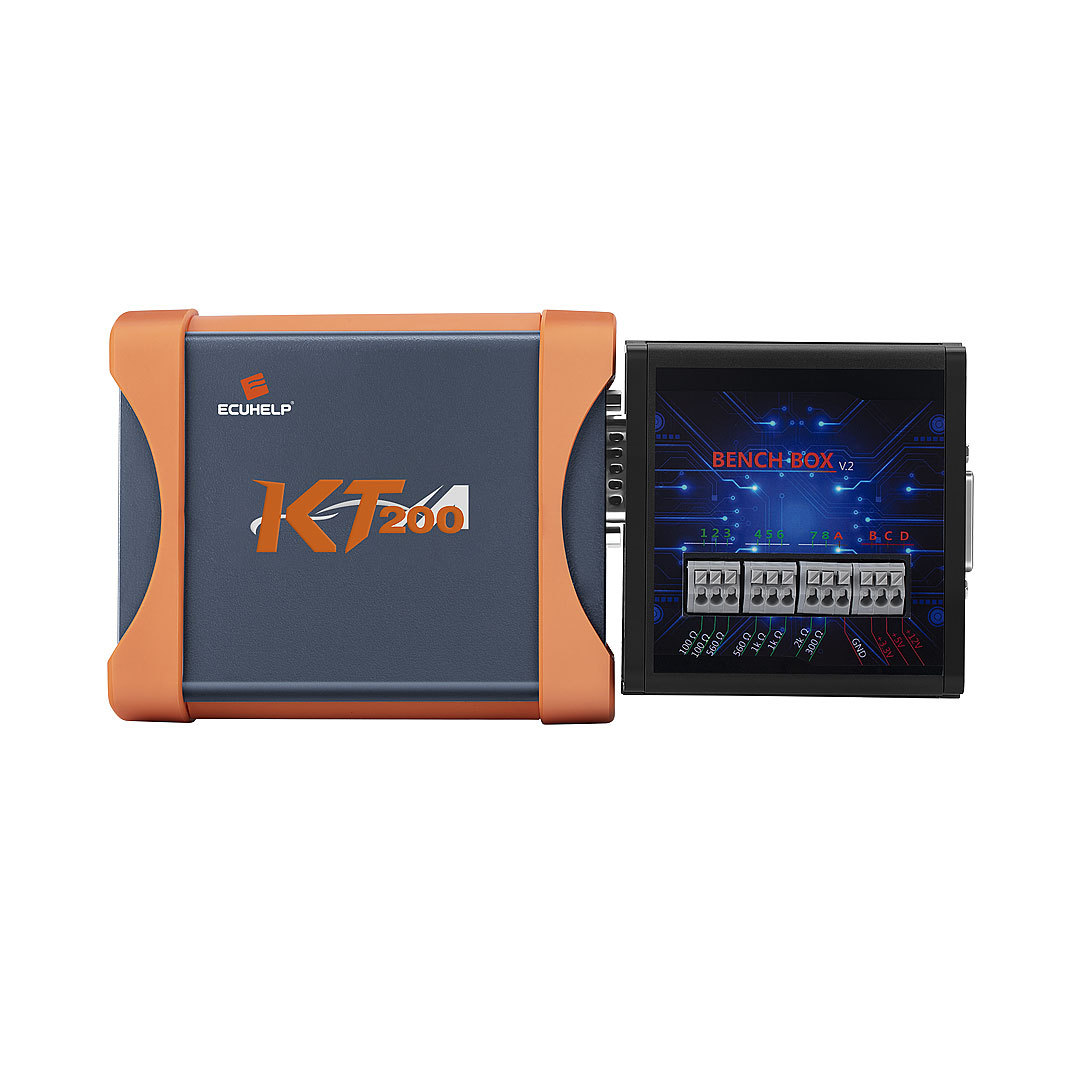

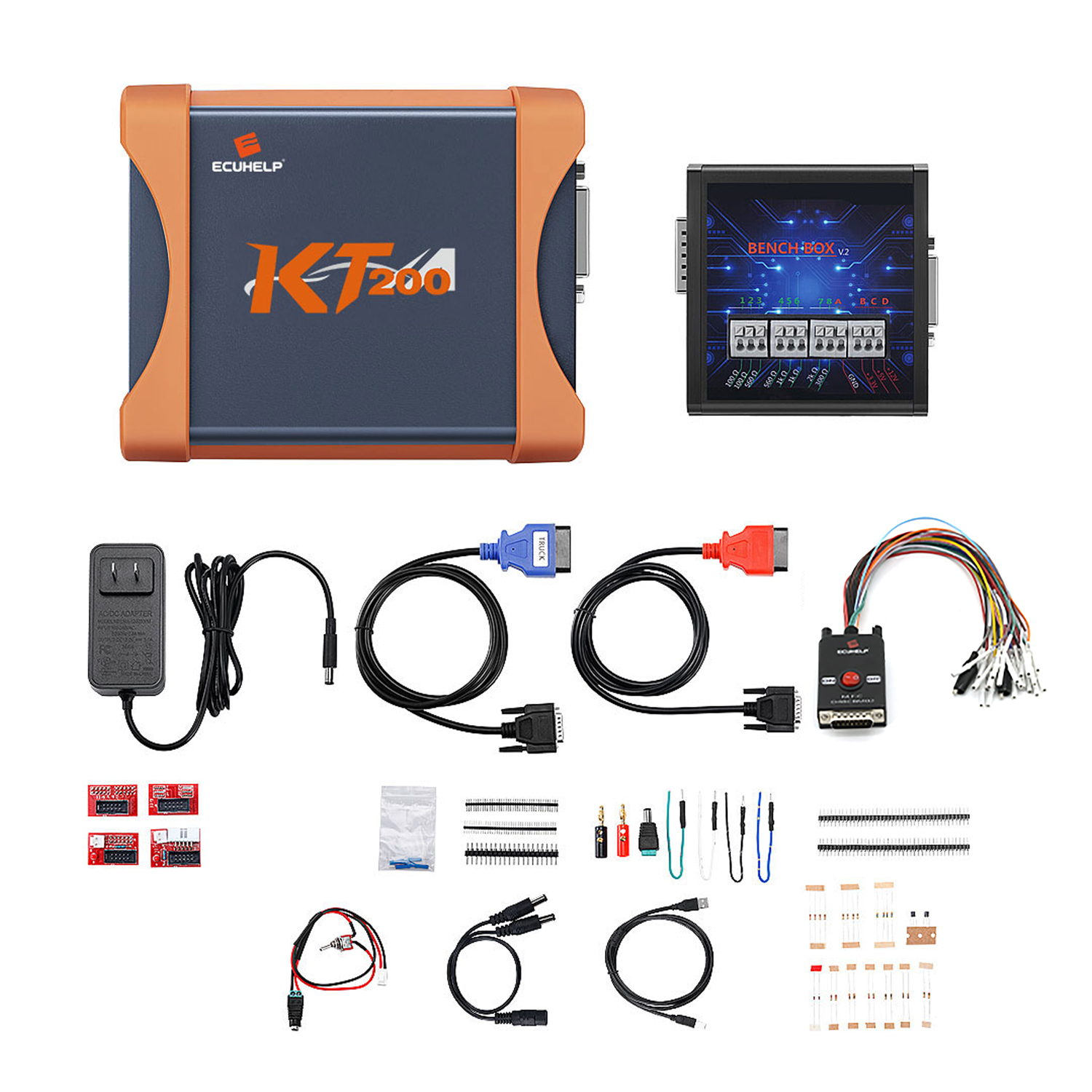

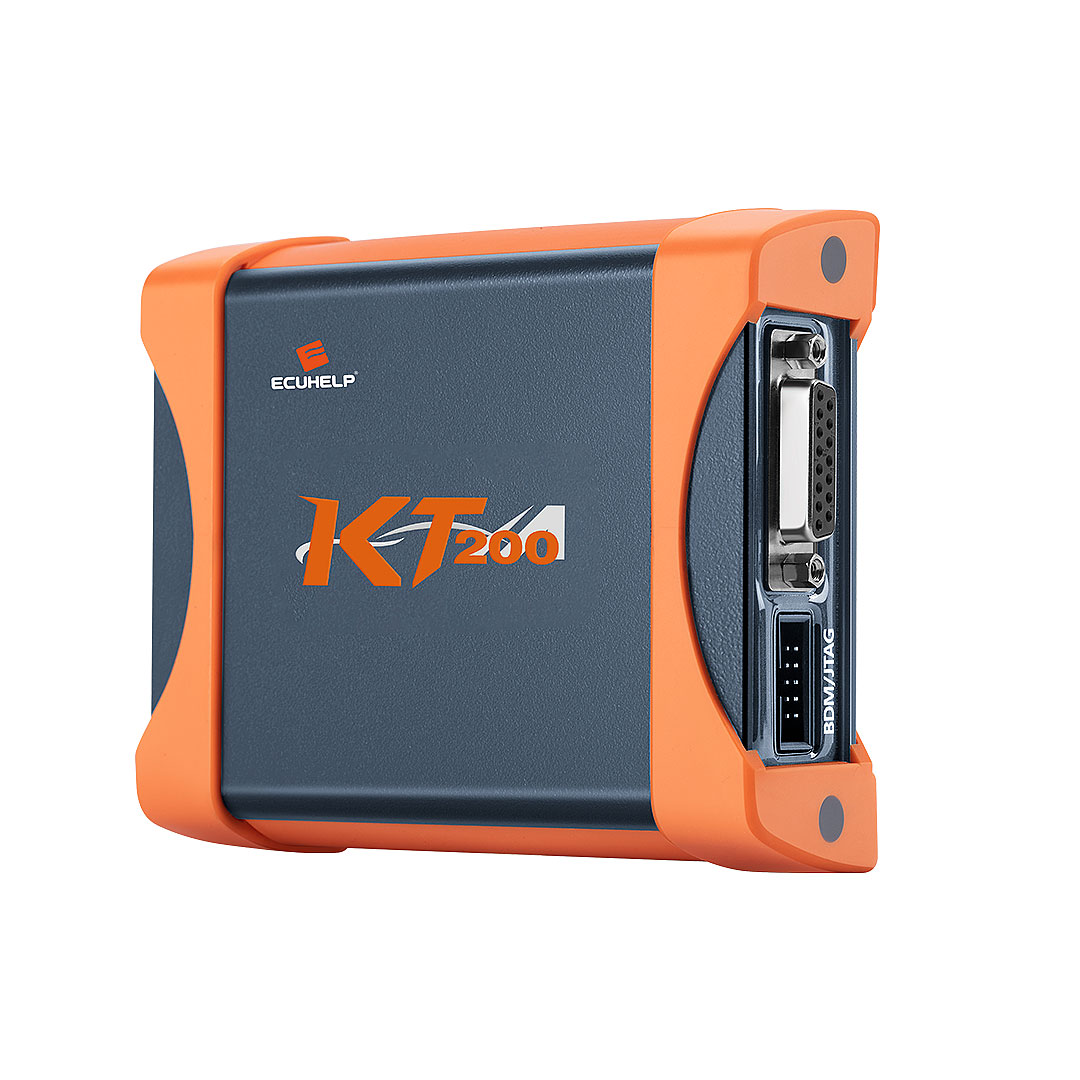

KT200 ECU Programmer is a complete tool for reading and programming ECU (engine control units) and TCU via OBD / Bench / Boot mode, the BDM / Jtag systems are also available.
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
Supports Checksum Calculation
Additional TCU package available for Automatic Transmissions for free
Full read and write TCU (Micro + EEPROM)
Covering up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e / SQ100, Jeep 9H28 TCUs)
Supports Simos PCR2.1 unlock by OBD CAN.
Can perform a full backup of edc15 (flash + eeprom) by pinout. No need to open and boot mode which is a rare feature.
EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
Ecuhelp KT200 2023 software update(02 / 01 / 2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
The software does not need to register and activate.
Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements: CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
ECUHELP KT200 installation tips:
1. Make sure good internet (for online version)
2. Go to Service to change a server (any of China, Germany and Hongkong)
3. Set time and timezone auto
4. Turn off windows defence
5. Set timezone to the same as server
6. Use V-P-N and set V-P-N to where server is at
7. Restart PC
8. Make sure tool is plugged in
9. Good battery voltage.
How To Install KT200 New Software 2023.02?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the " Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the " Wiring diagram " to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the " Diagnosis" button in KT200 service software first for detection.KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42
