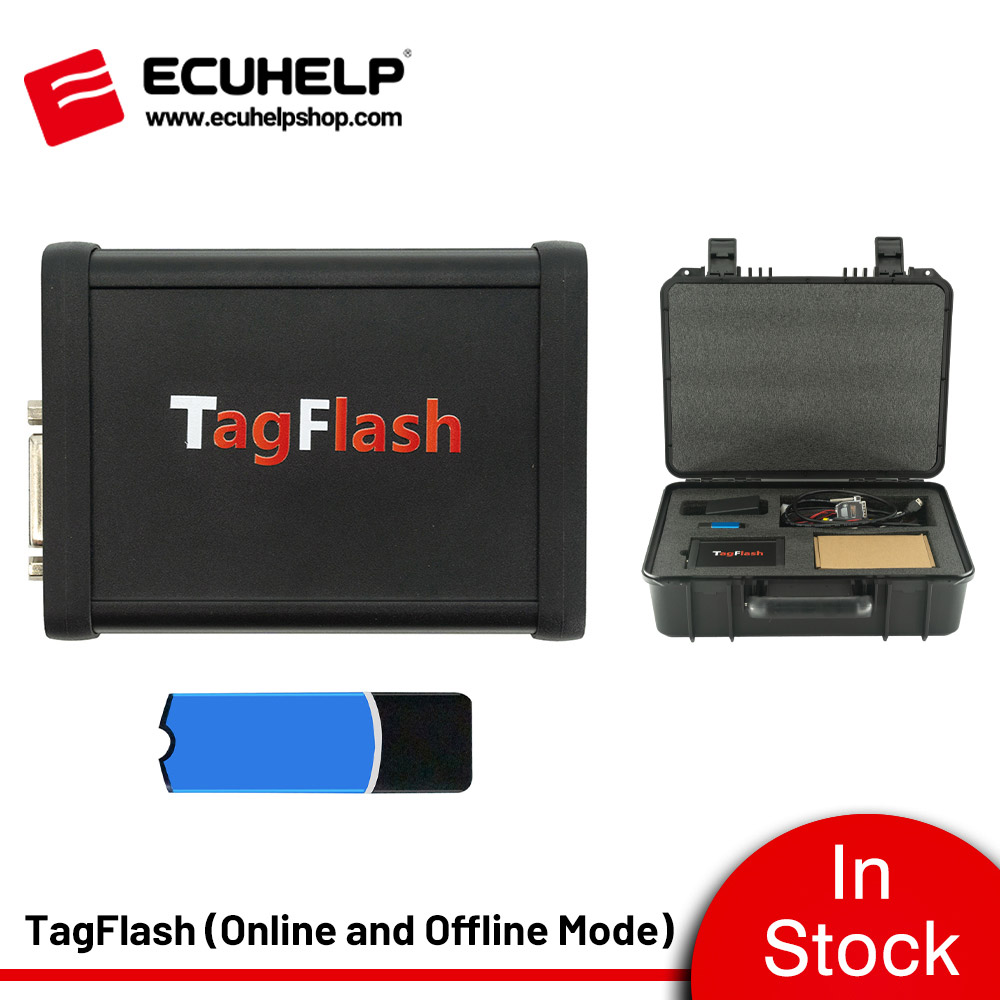

[Suitcase Package]TagFlash Tag Flash ECU Programmer BENCH / OBD / BOOT / BDM / JTAG mode Full reading (MICROEEROM)

(In a Suitcase) TagFlash ECU Programmer BENCH / OBD / BOOT / BDM / JTAG mode Full reading (MICROEEROM) for car, truck, motorcycle, Agricultural Machinery,Boat

TagFlash Car List OBD Mode.pdf (8.4M)

TagFlash Car List BDM Mode.pdf(89K)

TagFlash Car List Bench Mode.pdf(152K)

TagFlash Car List Full System Mode.pdf (968K)

TagFlash Car List RECONDITION(remove speed).pdf(142K)

TagFlash Car List Tool Boot Mode.pdf(399K)

TagFlash Truck List OBD Mode.pdf(661K)

TagFlash Motorbike List.pdf(535K)

TagFlash Agricultural Machinery,Boat OBD Support List.pdf(845K)

TagFlash Support List:
Car
Truck
Tractor/Marine
Motorbike
Read / Write ECU
How to use TagFlash to Read / Write ECU: BDM / JTAG / BOOT / OBD / BENCH mode

Read /Write TCU (NOTE: TagFlash supports only TCU DQ200. For a broader TCU list, purchase ECUHELP KT200, which supports over 500 TCUs. Questions? Contact via WhatsApp:http://wa.me/8618205996549.)

Communication:
Offline mode (using dongle)
Online mode (ensure stable network connection)
Free Download:
TagFlash Software (Offline)
*** Important Note ***
You MUST disable your anti-virus and firewall in order to download the software, driver and updates. Any active anti-virus will try to delete the files as it does not recognize the file as safe. They are safe but because of language issue it is often seen as a virus and it will delete your files. YOU MUST DISABLE YOUR ANTI-VIRUS AND FIREWALL or you will not be able to download the software properly.
TagFlash Software (Online)

TagFlash Compatible Operation System:
Windows XP 32 64 bit
Windows Vista 32 64 bit
Windows 7 32 64 bit
Windows 8
Windows10

TagFlash Language:
Ltaliano, English, Deutsch, Francais, Espanol, Polish, Portugues, Czech, Romana, Turkish, Hungarian, Russian, Bulgarian, Chinese, Japanese, Korean and Serbian

Yearly Subscription: Not required

TagFlash Briefe Intruction:
TagFlash ECU Programmer empowers users to read and program engine control units (ECUs) across a diverse spectrum of cars, trucks, motorcycles, Agricultural Machinery,Boat worldwide. Its global reach extends from Europe and the USA to India, Asia, China, and beyond. TagFlash flawlessly read/write EEPROM and flash memory within a wide array of ECUs, including those designed by Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental, Motorola, Valeo, and Siemens Continental, among others.

TagFlash's proficiency shines through in its capability to engage with ECUs through multiple modes: OBD, on Bench, Boot mode, BDM, and Jtag systems. This versatility ensures that it can adapt to various scenarios and contexts, catering to the needs of automotive technicians and enthusiasts alike. Its extensive compatibility across diverse ECU brands and communication modes renders TagFlash an invaluable asset in the realm of automotive ECU programming.

Also, ECUHELPshop.com provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.

·5/30V Car, Industrial vehicles, WP
·Boot Mode C167,ST10
·RS232 RS485
·CAN BUS V2.0 50 Kb>10 Nkb
·J1850 VPW PWM GM-FORD
·BDM MPC5XX
·BOOT MODE TRICORE
·Auto setup Pull up K-ine 250,500,1000 ohm
·Auto setup termination Can bus 0,60,120ohm
·Master
·Recovery mode
·Checksum automatic

TagFlash Features:

• Developed with high-speed USB2, this is currently the fastest and safest production system in the market.
• Easily installable and usable by anyone.
• The clickable Driver will always remain active; the options will never turn gray.
• No need for time synchronization, allowing for a margin of error.
• On bench mode, identify the chip type directly before reading/writing.
• Read/write  eeprom & flash via OBD stablly.
• Reliable and Faster checksum calculation.
• Enable speed limit off.
• The protocol is relatively up to date, synchronized with the original tools, agreements synchronized until April 1st, 2023.
• Not easily susceptible to ecu damage. It can work directly if writable; if not, it won't be possible from the start.
• No software restart required upon error report; a direct reset function is available in the options.
• Supports offline mode operation.
• Stability/Comprehensive: Affirmative.
• Own Servers in Multiple countries

Confirmed! TagFlash read/write on various ECU types such as:
DCM2.7AP OK
DCM2.7 OK
Hyundai DCM3.7AP Read ok via OBD, via Can bus.
Read/write MD1CS018 by choosing the chip type spc58
Read write sid208-sid209 on bench ok.
Can read DCM7.1b via obd ok
Read DCM6.2v via obd no problem
Read VOLVO EMS 2.2 with Tag Flash Waiting mod file to write in ....
MD1cs089 R/W ok
Denso NEC76F0085 R/W ok
Written and read EDC16u1 ok check correction obd.
MB SID310 written and read well.
READ DELPHI MPC555 no problem, for FORD / Ssangyong
Mitsubishi 4D56 RA6 ECU Read ok -- data checked, same with other tools read out.
Read / write MITSUBISHI 4D56, Denso RHF4A ecu good, Perform EGR off.
Bench, boot, OBD read/write SID807, SID208, SID209.
MCM2.1 R/W ok
Cloning vag dcm6.2v in boot mod, possible too Dcm6.2a.
Read Phoenix L12 Can Bus ok.
Isuzu Dmax 2007 with Delphi ECU can read write by Can bus.
Read/write Toyota 89661-58130 for Vellfire Denso 175035-4520 with 76F0038AGD ok, perform fast & Stable decat function.
DELPHI DMCI 3 socket type DAF HYUNDAI UD TRUCK READ OK-WRITE OK
BENCH MODE READ OK Mercedes Benz MED17.7.3 BENCH TRICOR3 SAK1797 awaiting stage 1 tune
PCR2.1 unlock via obd only by vr file
EDC16 UC40 fitted in Deutz, Kobelco etc. Read/write ok with TagFlash. Clone ECU as old one internal damaged, transfer data from old to new ECU.

TagFlash read/write not ok list:
NO Sim2k260
No DCM7.1AP

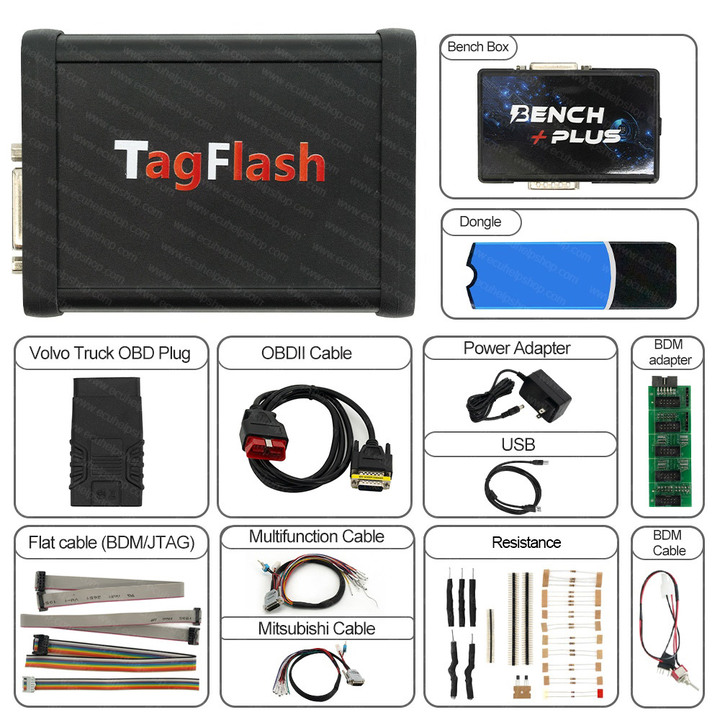

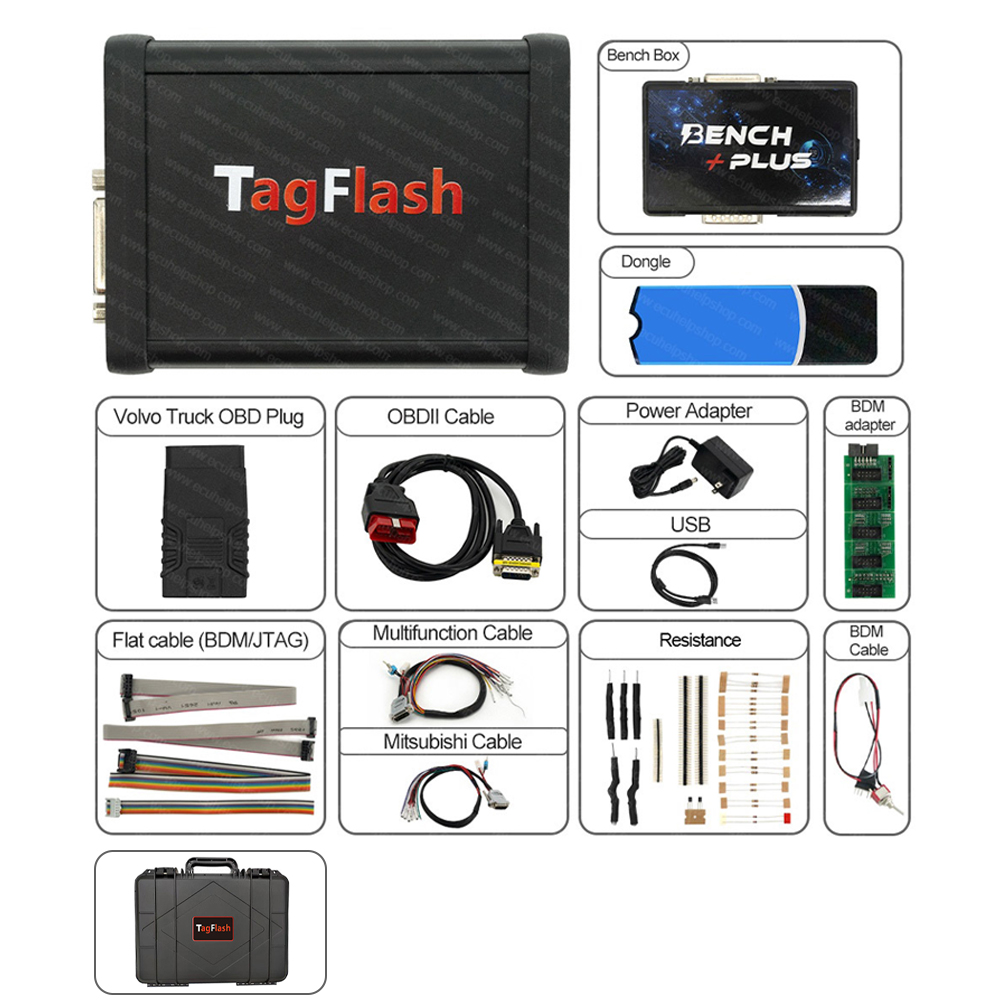

TagFlash Package List:

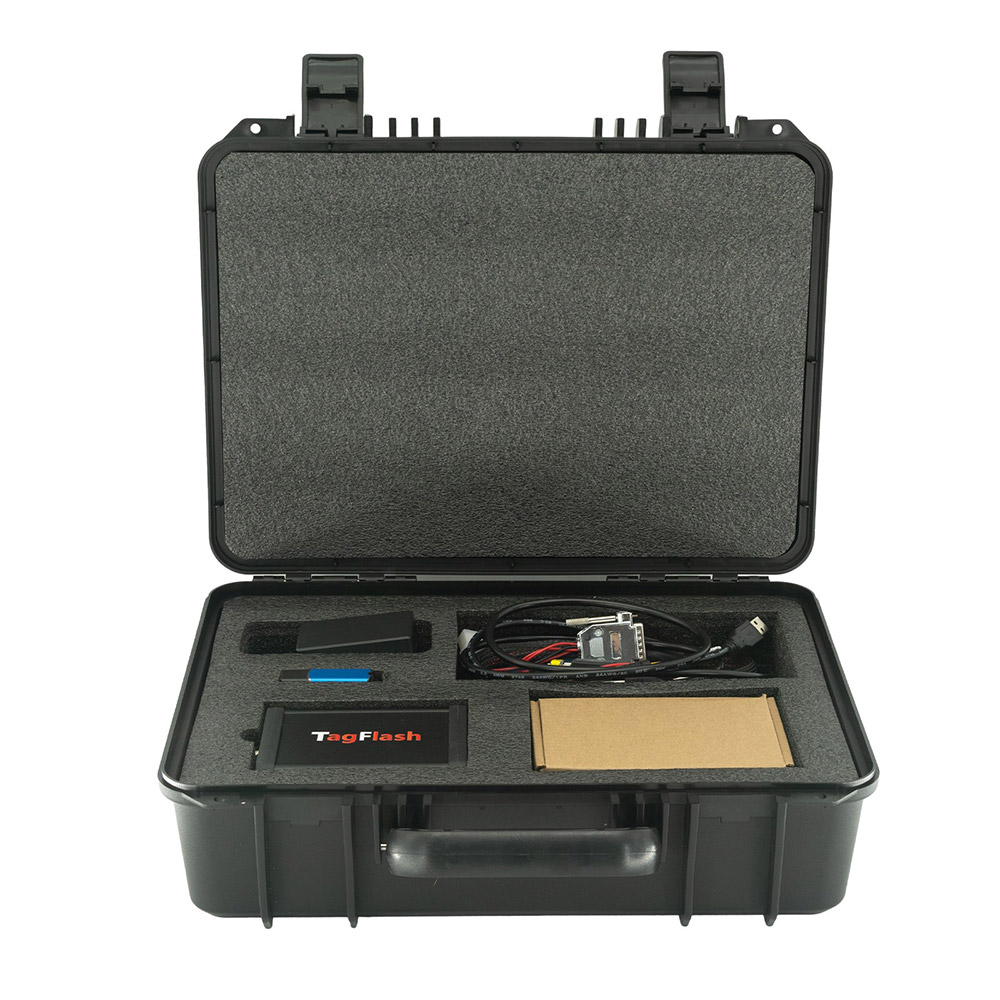

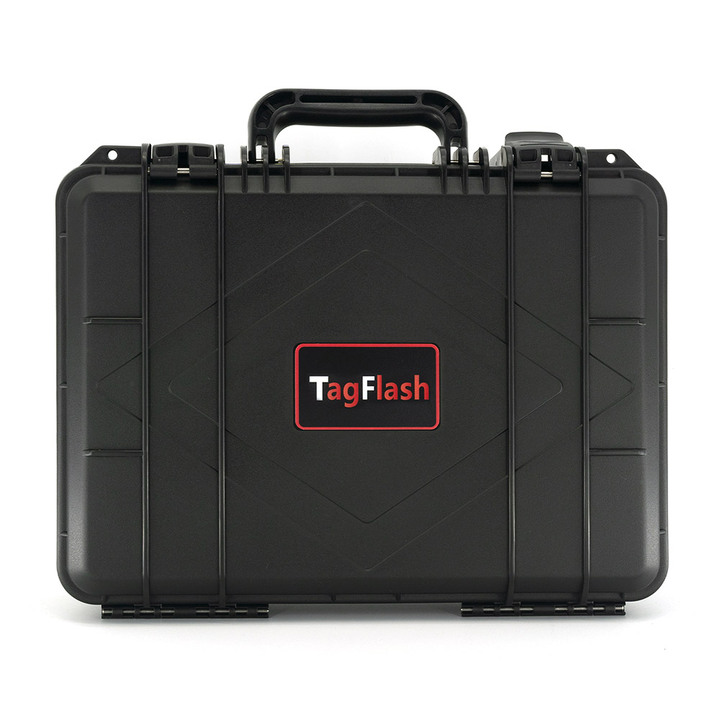

1. A suitcase

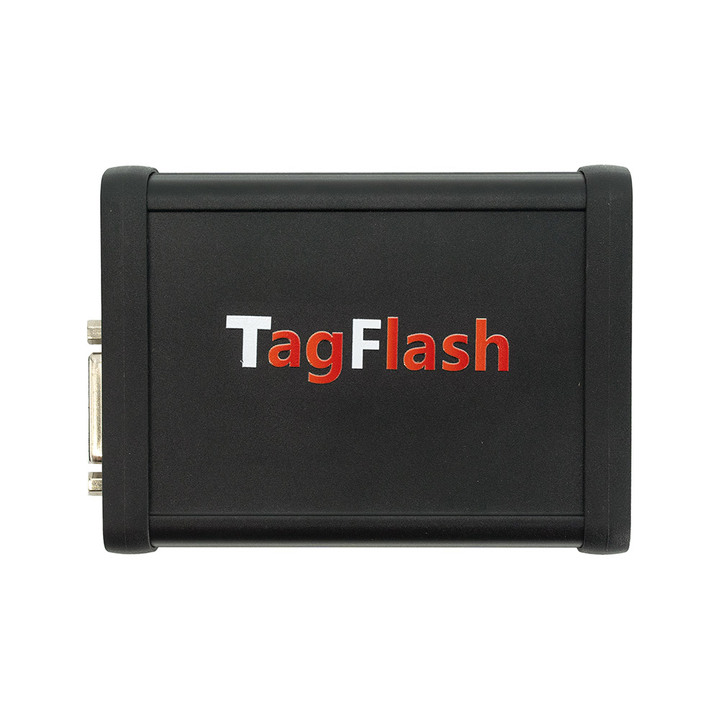

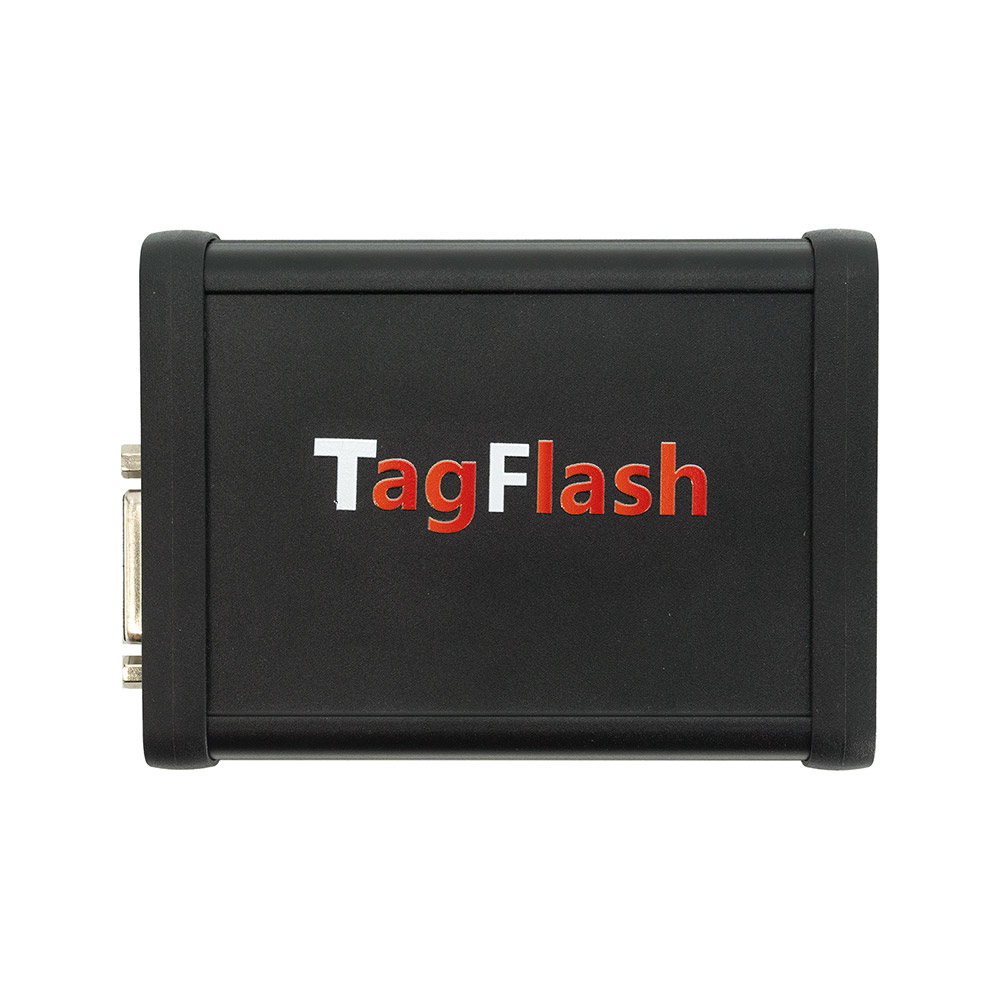

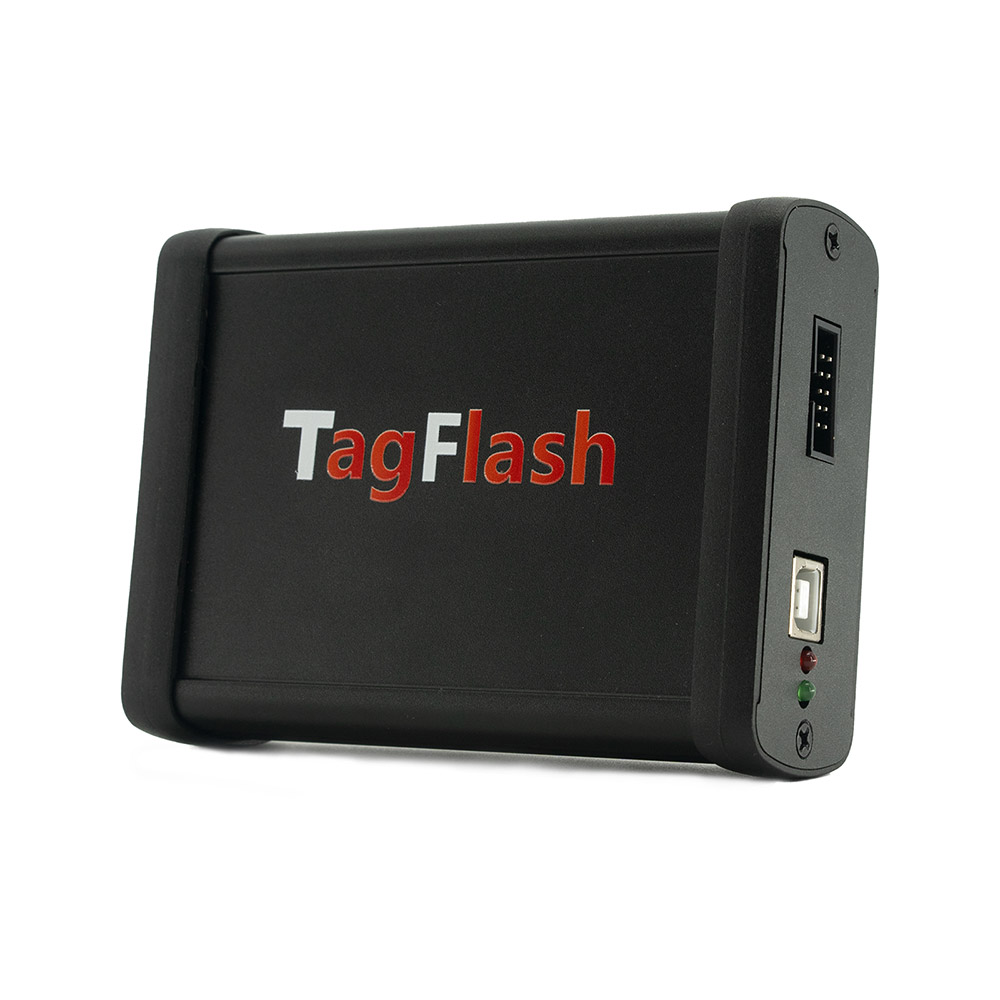

2.Main Unit /Host
3.Offline Dongle: for runing software offline

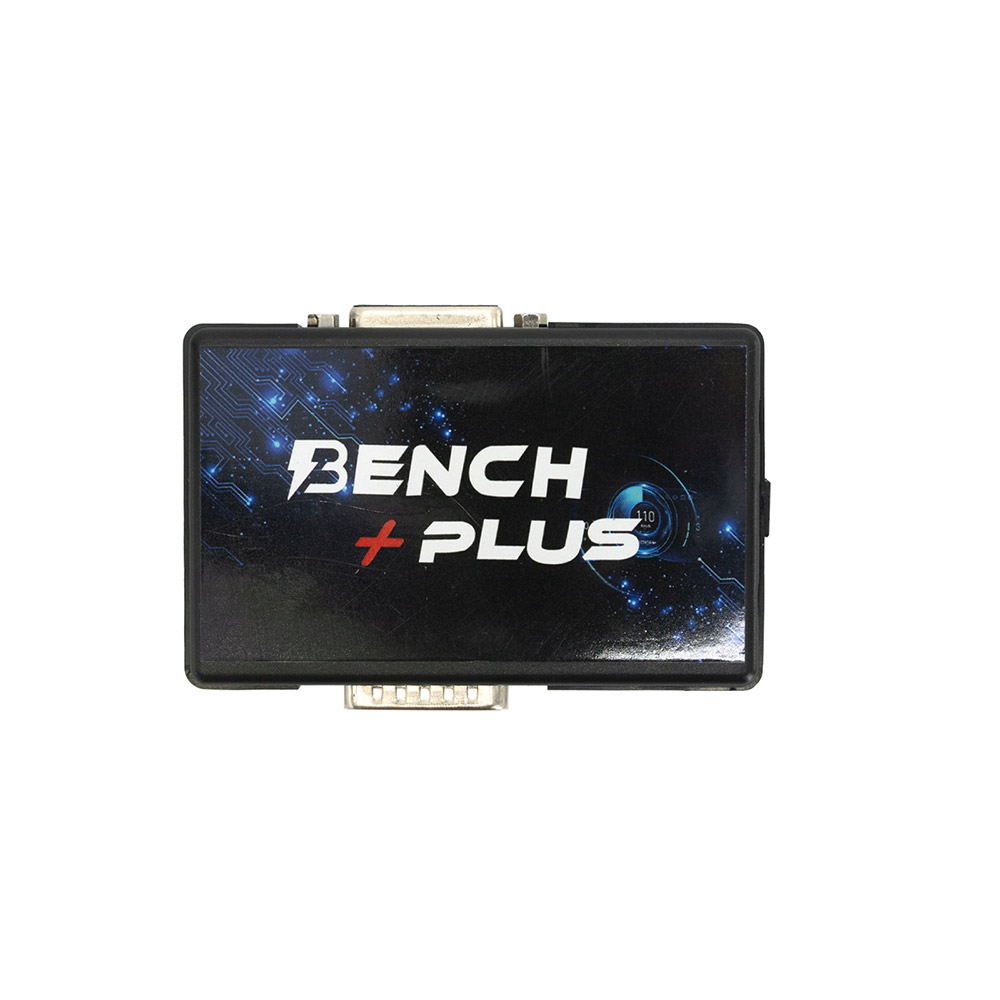

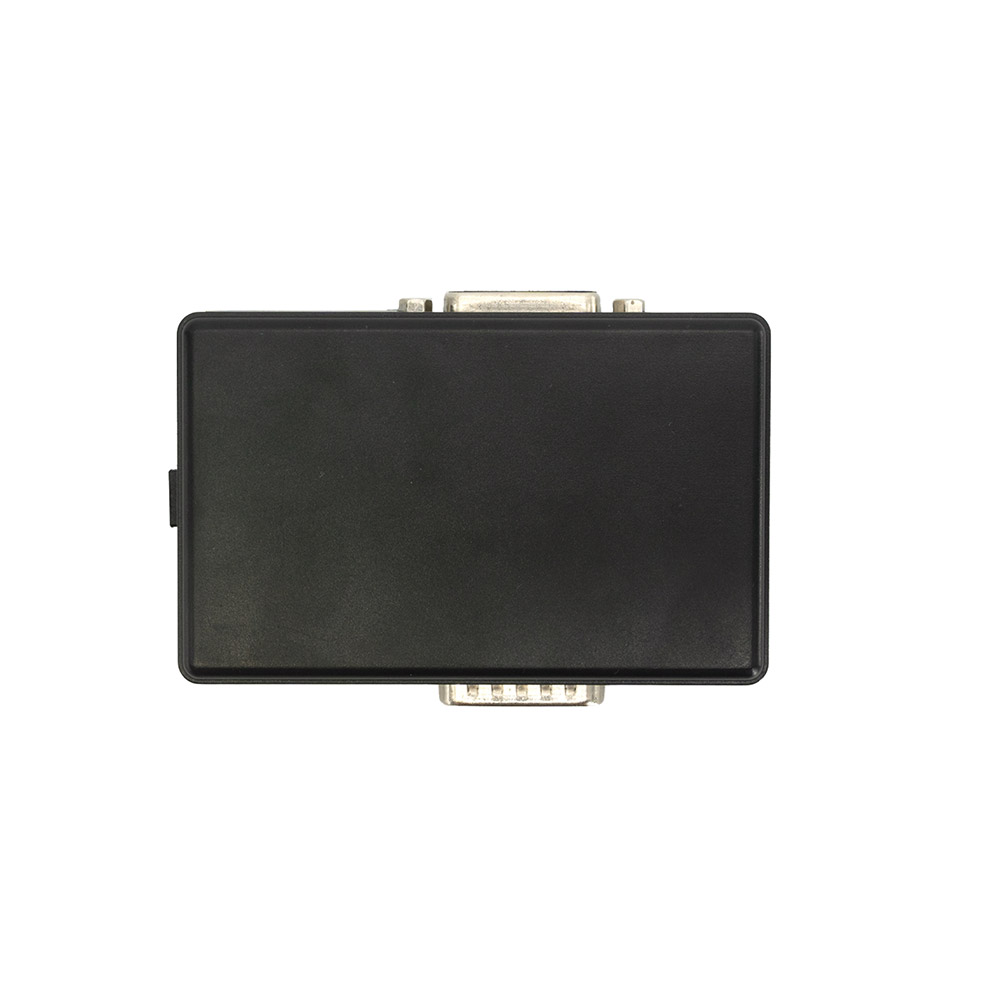

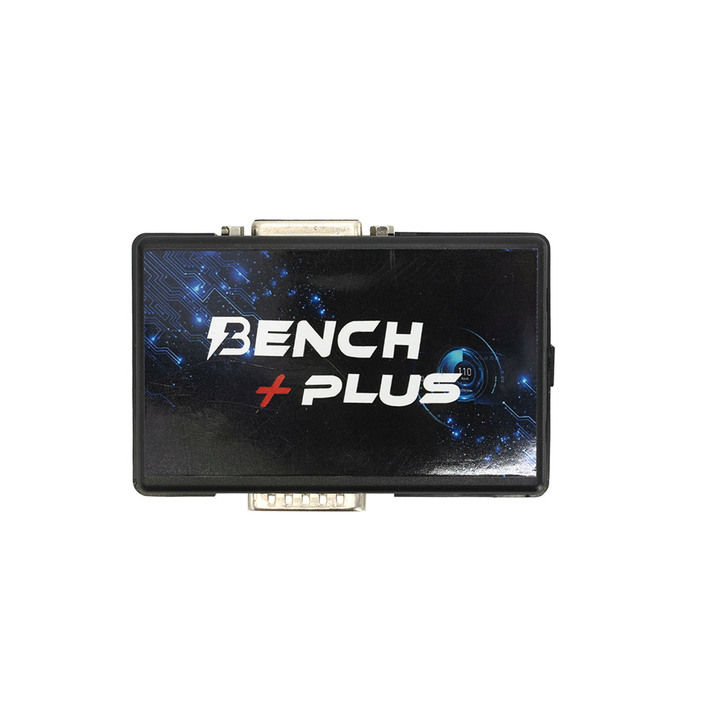

4.Bench Box
5.Volvo Truck OBD Plug: For VOLVO truck reading by OBD

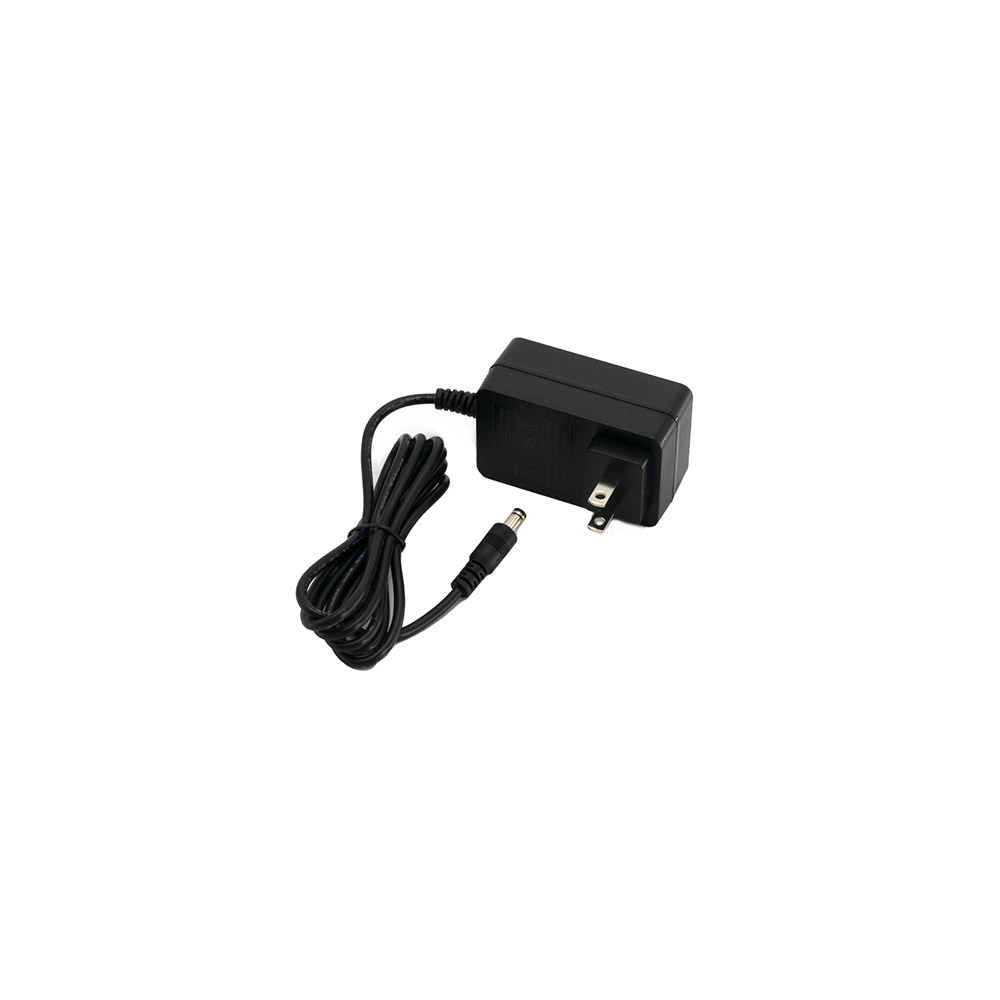

6.Power Adapter: 12V/3A power out

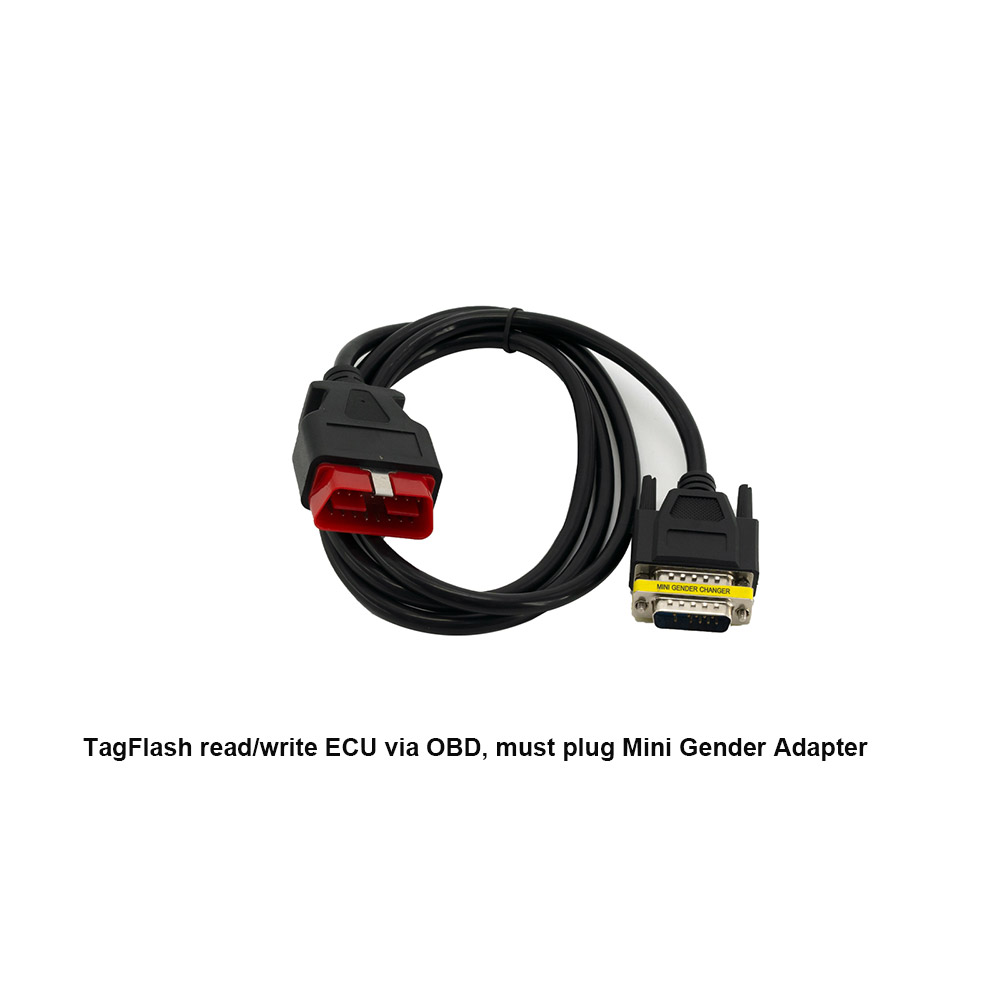

7.OBDII Cable: for ecu reding by OBD

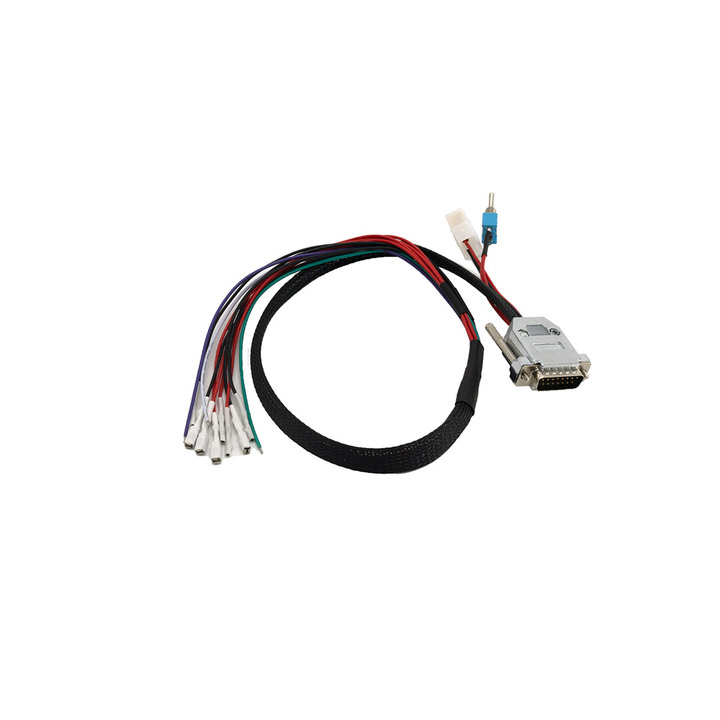

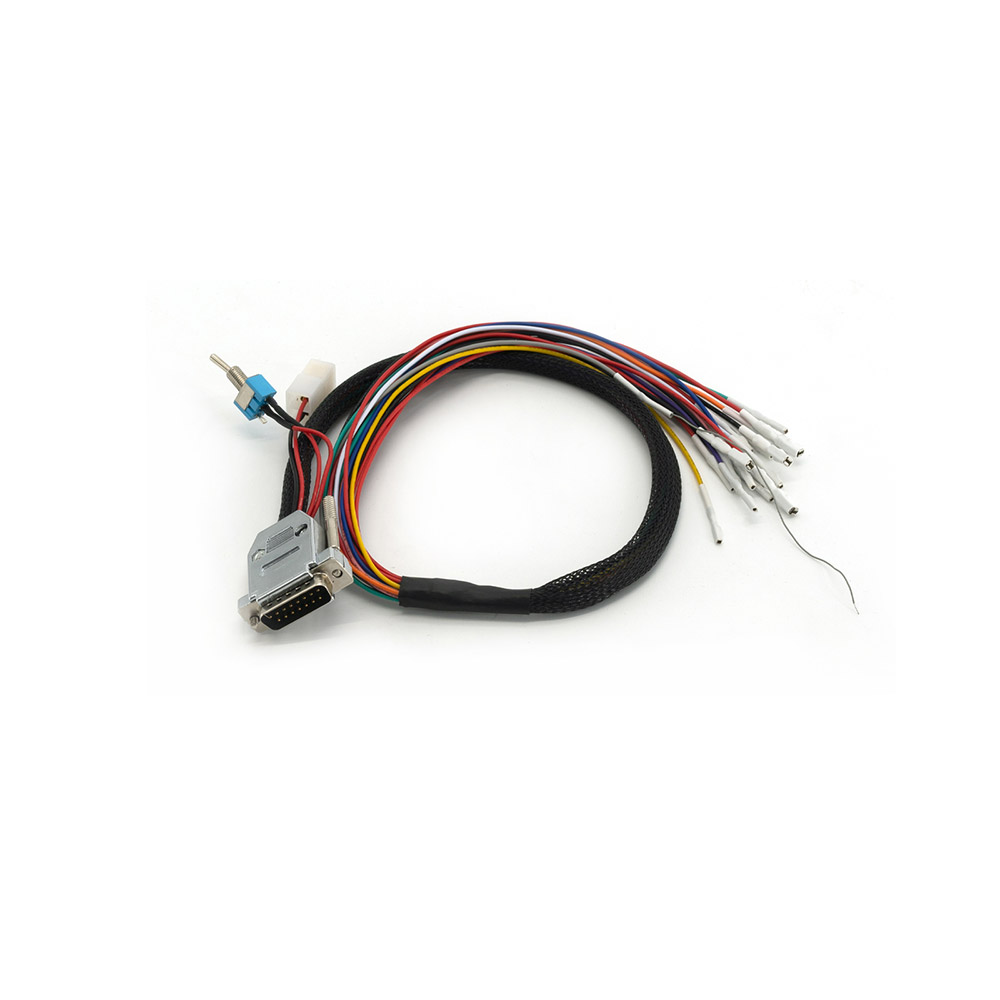

8.Multifunction Cable: for ecu reding by bench/boot/pinout
9.Mitsubishi Cable: for mitsubshi reading in boot
10.Flat cable: for BDM/JTAG function
11.BDM Cable: for BDM function
12.Resistance
13.BDM adapter: in BDM function

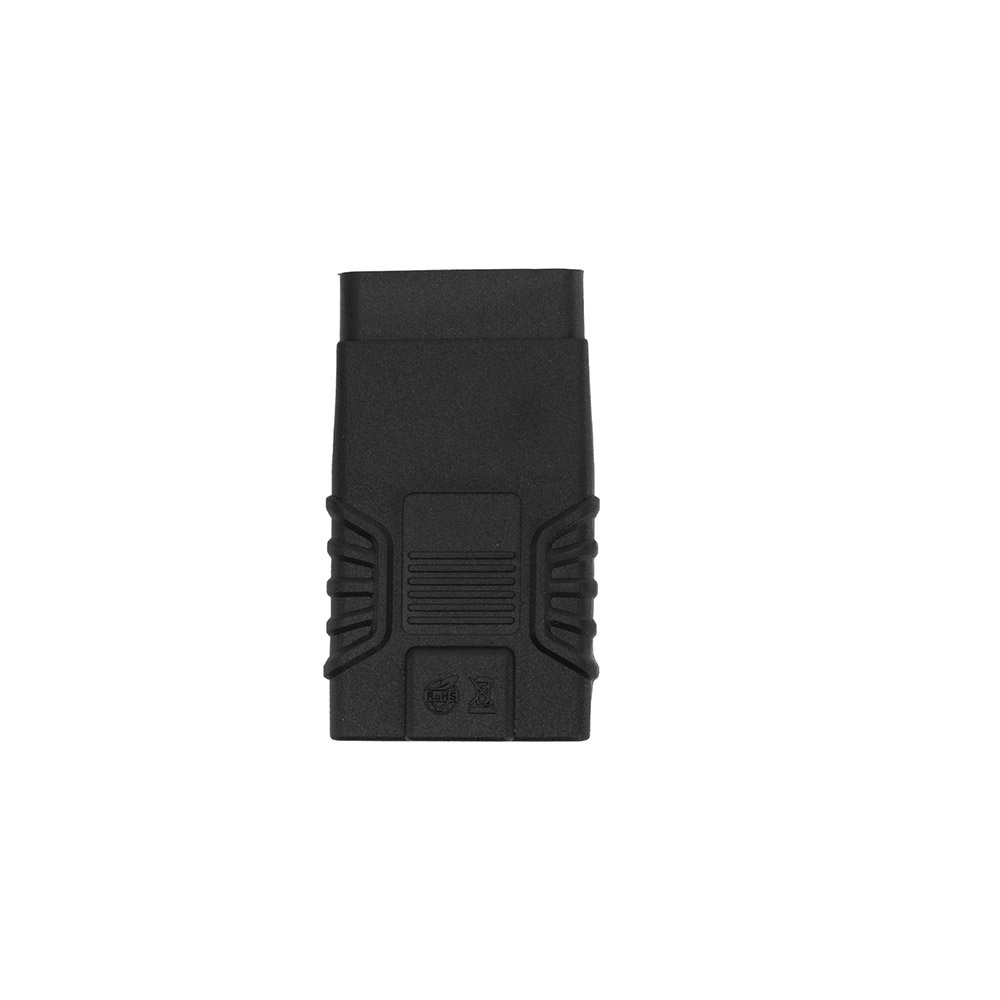

14. Mini Gender Changer: when read/write ECU via OBD, plug Mini Gender Changer.


->>Maybe you are interested in Lextoyo Toyota Lexus BDM Solder-Free Adapter, no soldering is needed when TagFlash reads/writes Toyota Lexus ECU in BDM/Jtag mode.



---

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.

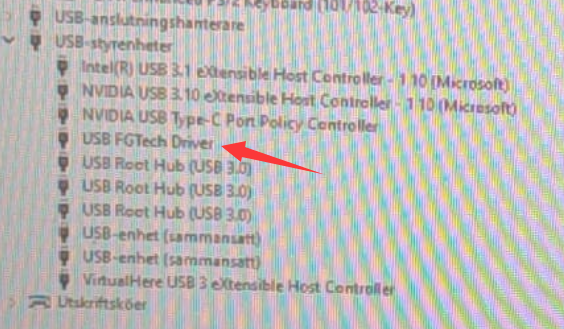

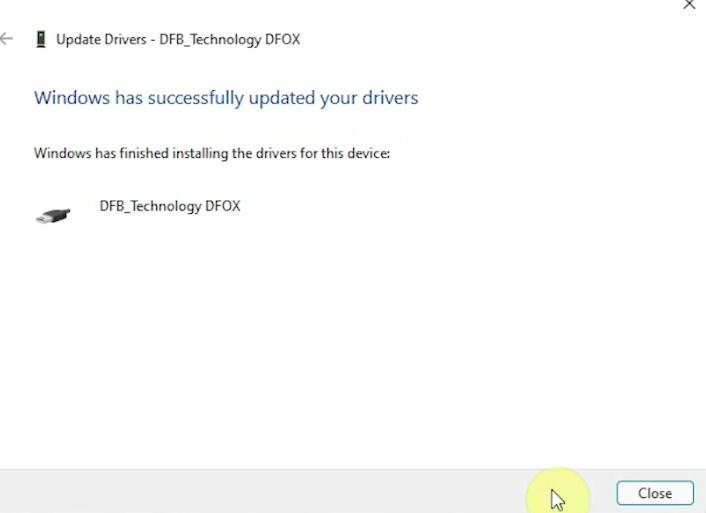

Confirmed: It's entirely possible to have both KT200 and TagFlash installed on a single computer or PC, but need to switch the driver. Also TagFlash can be installed with other ECU programmers and also need to switch the driver.  Each software requires its dedicated driver to work.

Therefore, there is no need to buy new computer, If your PC is compatible with KT200 and has successfully run it in the past, it will undoubtedly support TagFlash as well.

With relay click sound will work normal as my device did, If not succeed you try uninstall both kt200 & tagflash driver.
