[Add PowerBox] ECUHELP HTprog ECU Programmer / ECU Clone Tool etc Support on Bench / Boot / BDM

[Add Power Box] HTprog Update on August 1st, 2023

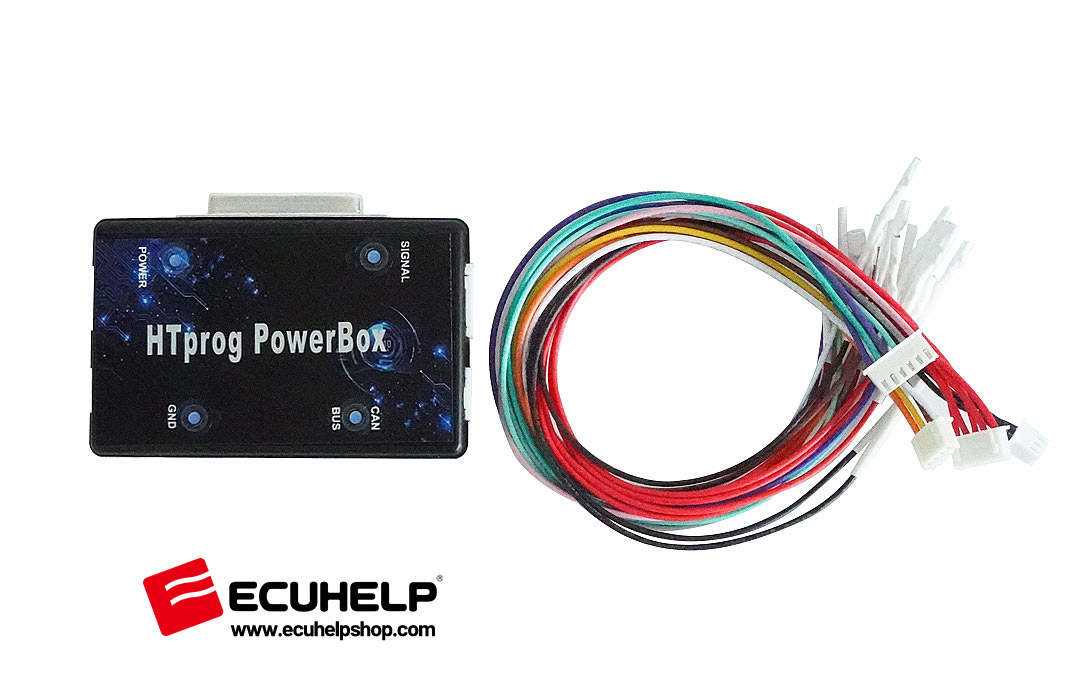

Add one Power Box (shown below):
If you want one HTprog PowerBox, please message Oliver WhatsApp: http://wa.me/8618205996549


[Upgraded Version] HTprog Update on June 25, 2023:
The hardware is reworked
Some bugs are fixed

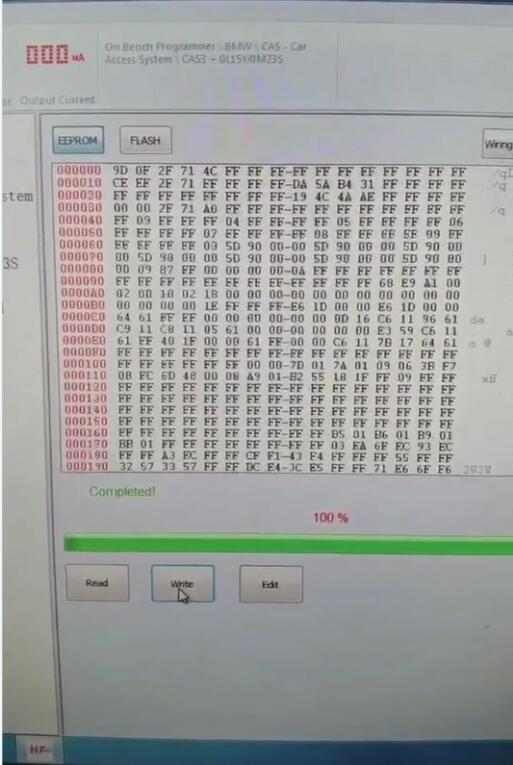

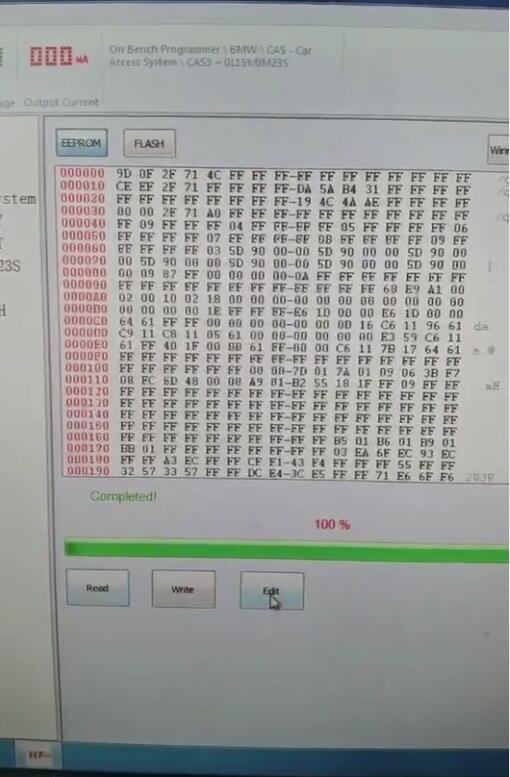

BMW CAS3 0L15Y0M23S p-flash Read: OK
BMW CAS3+ Vin Edit, eeprom &flash read/write: OK
BMW 080D0WQ eeprom read/write, mileage edit: OK
Jtag function is working fine
M35080 is working
......

KT200 Kit Test Reports:
I successfully tested the KT200 with HTprog Clone Adapter on a CAS3+ 0L15Y-15 with a 100% success rate.

ECUHELP KT200 + HTprog is tested without any issues on an EDC17CP49 BMW X4 from 2016， read P-Flash, D-Flash and read Long ISN.

HTprog and ECUHELP KT200 read/write EDC17CP45 without any problems.

successfully read and write an EDC17C55.

I have used HTprog with KT200 for various BMW models:
EDC17C45: Successful operation.
EDC17C50: Successful operation.
EDC17C49: Successful operation.
read and write tunning file except the second edc17c45, first was ok, but the second has written the file, no changes to the car, I tried 2 times with 2 different files,  but the same results. i think is something with the checksum correction made by HT, i will try also with manual checksum.

HTprog Feedback:
I tested HTprog on several MED17 ECUs, and all were successfully read.

The BMW MSS60L ECU was tested without encountering any issues.

HTprog successfully read and write ECU SID803A in boot mode.

Reading MED17.5.25 and MED17.5.5 ECUs was successful.

EDC17C55 was read successfully.

SIMOS 18.10 was read successfully.

EDC16 VAG C2-MB was read and written without any problems.

EDC17CP20 and EDC17CP46 were read and written to without any issues.

FRM2 repair was successful.

Read/write EDC17C60 was successful. I do not make Tprot off on c60 using this. I simply connect and read / rewrite.

HTprog successfully read EDC17C60.

HTprog read/write EDC17C10, EDC16C34, and EDC16C3 without any issues.

What is ECUHELP HTprog?
HTprog is the latest programming equipment for the automotive electronics industry.

Can do chip tuning,DTC removal, adblue removal EGR cancellation, DPF cancellation, hot start, speed limit release, IMMO off , etc . and make ECU-related operations by reading and writing ECU.

Can also read and write car body modules, such as CAS, SZL, FRM, AIRBAG, EZS, BCM, etc. With this function, you can easily deal with matching keys, unlocking anti-theft, adjusting instruments and repairing airbag computers, etc.

For the repair, calibration and replacement of automotive electronic modules.


ECUHELP HTprog support list:
1. HTprog ECU Clone Function List
2. HTprog on Bench Programmer Function List

The engineers at ECUHELPshop.com would like to remind users of a few important points:
1. It is advised to uninstall any antivirus software and disable the firewall before using the ECUHELP HTprog.

2. It is important not to upgrade the software to avoid any potential damage to the hardware.

3. Activation of the HTprog is necessary and should be done using the user's registered email address.
What this video on how to activate the HTprog:


4. Install software version: 1.0.45, free download HTProg software

5. Works online with an internet connection every time;

6. No need to connect with ECUHELP KT200

HTprog Functions:
Chip Tuning / ECU Cloning
With HTprog you can read and write P-Flash,D-Flash, External Flash and external EEPROM with the option of automatically checksum correction, you will have many methods in most of ECUS :

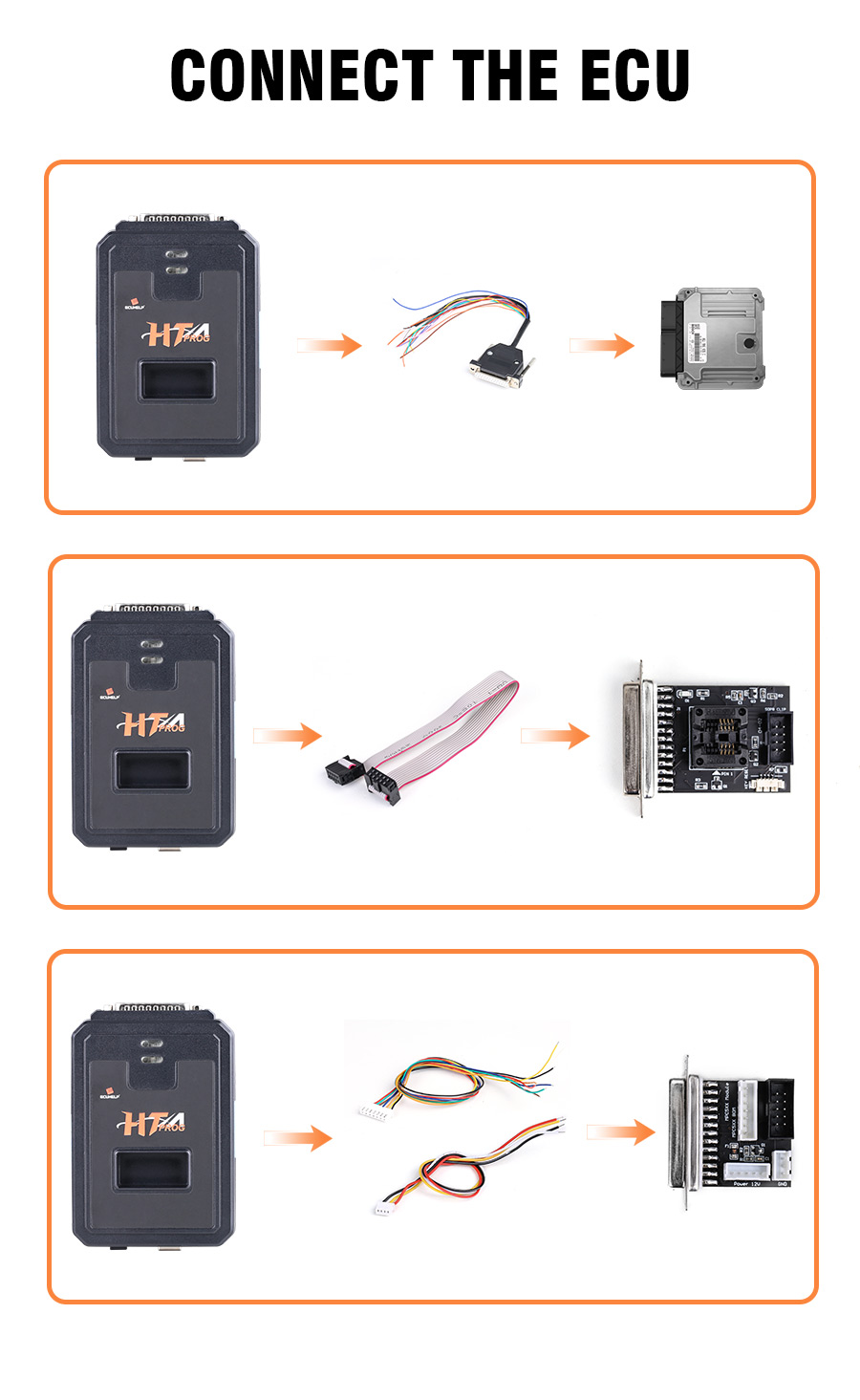

1. Factory mode (On Bench for most of ECU/TCU): with this option you don't have to open the ECU cover. Just plug some wires for power and signals and you are ready to go.

2.Tricore Boot Mode for all Tricore ECU: Opening the ECU is mandatory to connect the boot wire on the ECU board.This method is useful when the ECU is not responding

3.BDM (Background debug mode)

4.JTAG for Renesas and Freescale


BDM Read / Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW. EIZ / EIS in Mercedes Benz. BCM in Volkswagen and Porsche.etc.

Built in Editors
With HTprog you can edit many Flash data like:

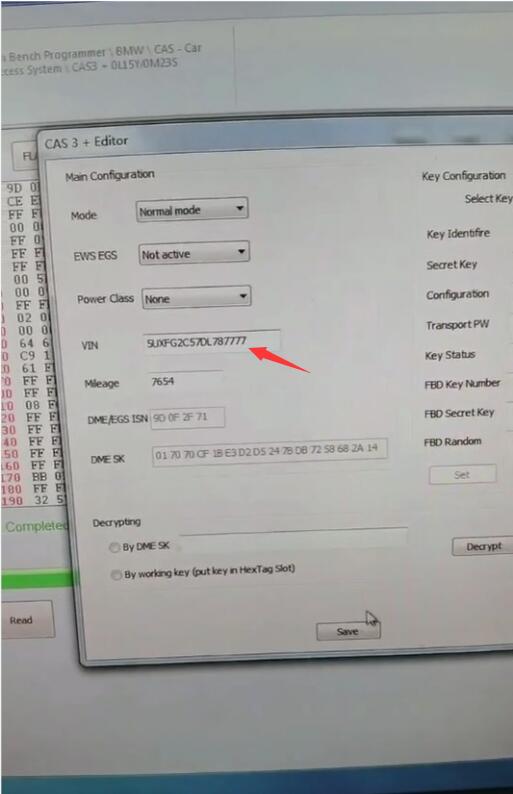

Edit CAS3+ VIN, ISN
Edit CAS4,CAS4+ VIN,and ISN

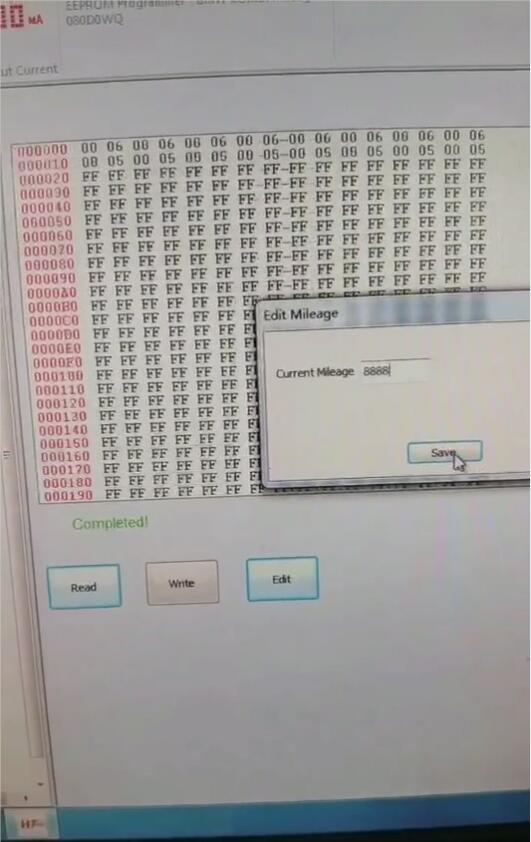

Edit mileage for BMW instrument clusters


Key Features
Master version. One License for all protocols on bench.
Supports one of the largest ECU/TCU list in Cars and Trucks for ECU cloning and Chip Tuning. Supports both old and latest ECU / TCUs from Bosch,Continental, Delphi, Marelli,Denso, Tenic,TRW and Valeo.etc.
Reads all BMW long ISN from BMW DME and DDE including MD1 and MG in F/G series

IMMO BDM Read/Write
With HTprog you are able to break the protection of immobilizers like CAS in BMW, EIZ / EIS in Mercedes Benz.BCM in Volkswagen and Porsche...etc.

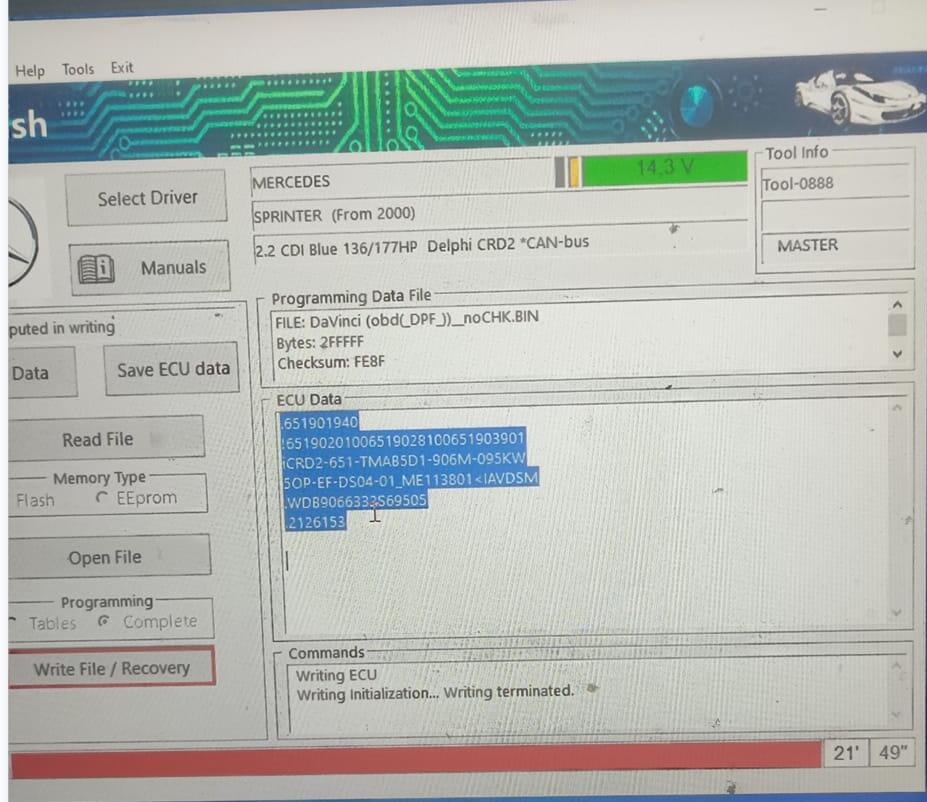

Attach 3 images showing HTprog read/write P-Flash of EDC17C53 with no issue:

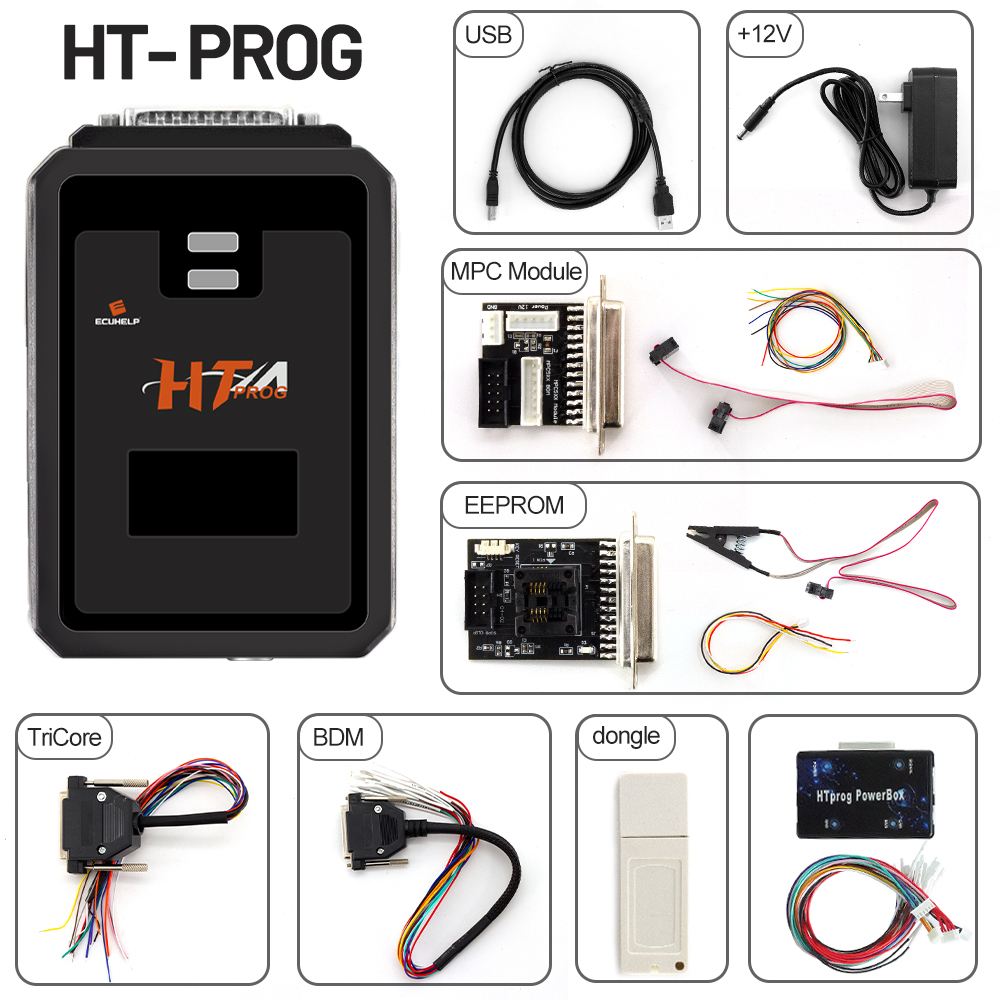

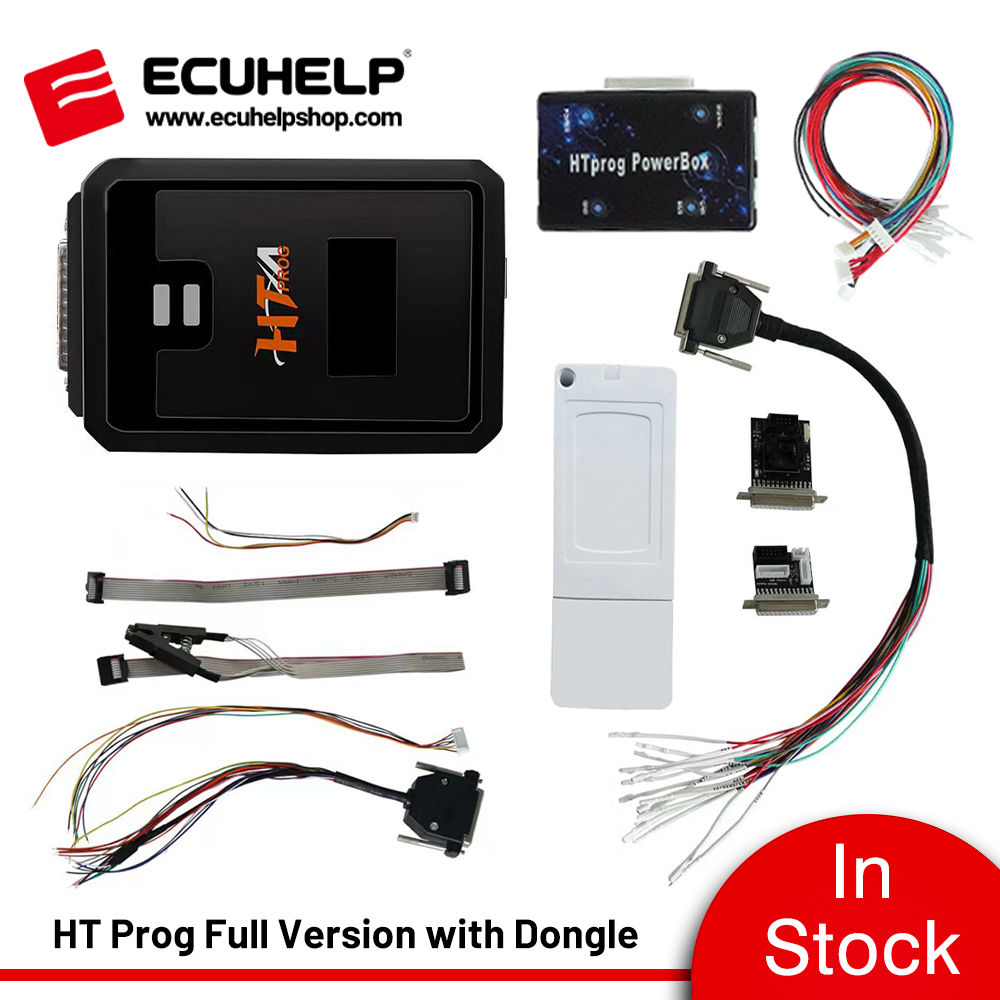

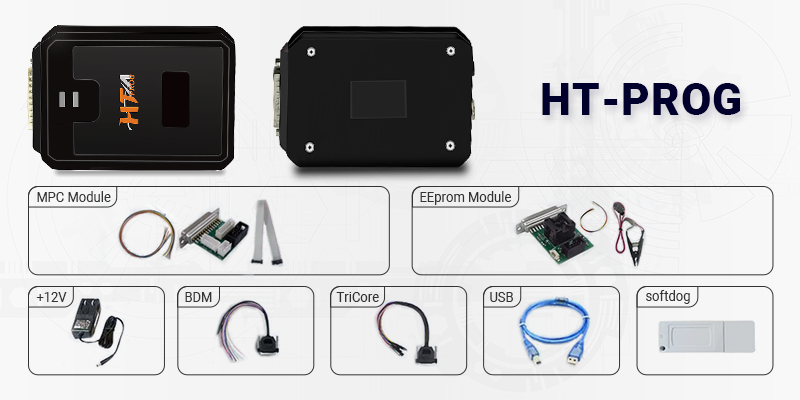

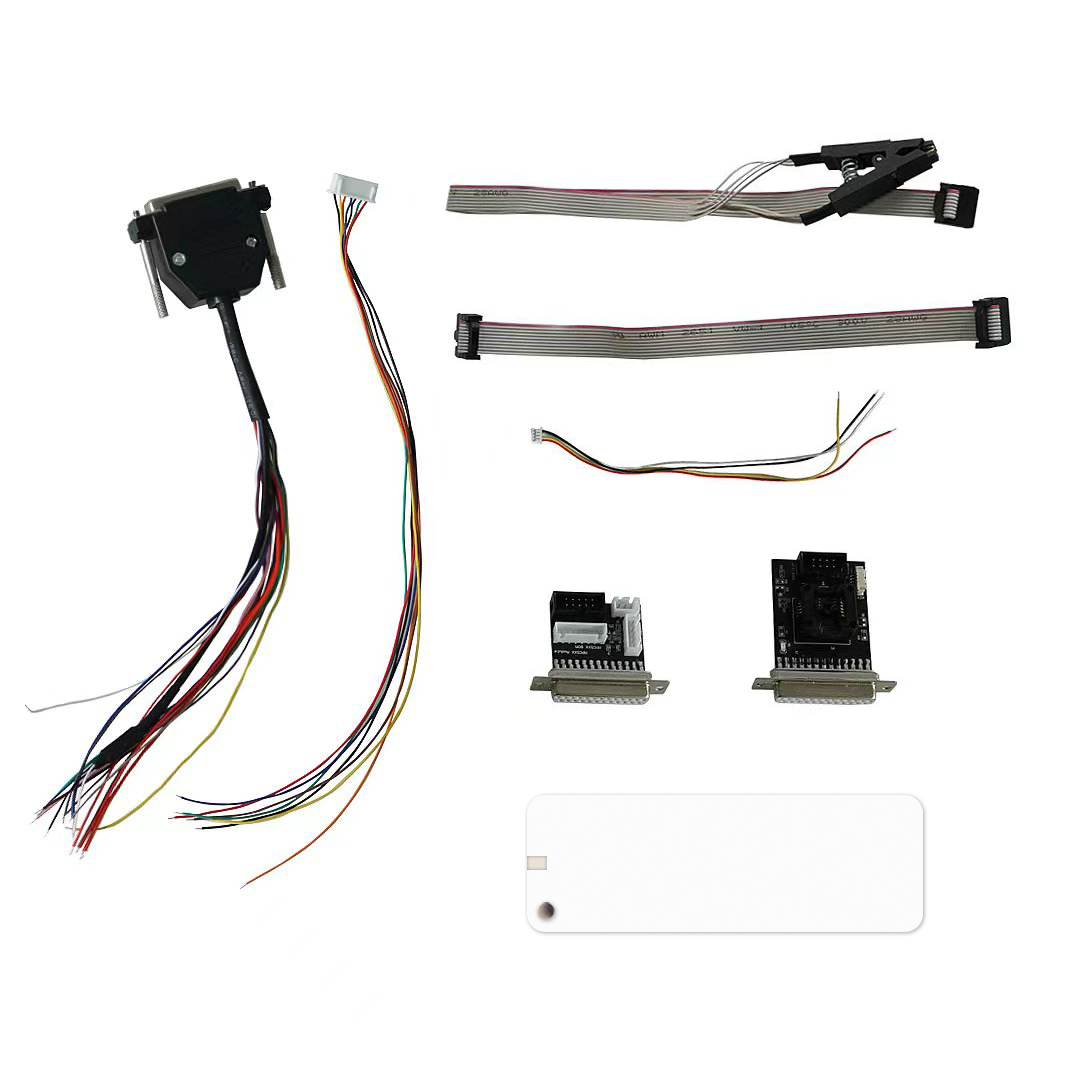

ECUhelp HTprog Package List:
1pc x MPC Module
1pc x EEPROM module
1pc x +12V Power Supply
1pc x BDM adapter
1pc x Tricore adapter
1pc x USB
1pc x Software Dongle
1pc x Power Box




---

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




ECUHELP HTprog Full Version activation steps

1. Plug HTprog and the dongle into your computer.

2. Download the HTprog software needed for the adapter.

3. Install the software on your computer.

4. When the HTprog software starts, it will prompt you to enter your email address.

5. Enter your email address and wait for the activation link to be sent to you.

That's it! If you have any questions or issues during the activation process, don't hesitate to reach out to the HTprog support team for assistance.
Whatsapp: http://wa.me/8618205996549


The differences and similarities of HTprog VS HTprog Clone adapter

• HTprog can work alone, it comes with a full set of cables, and an encrypted dongle.
• HTprog Clone Adapter is required to work together with KT200 ECU Programmer.
• HTprog Full Version needs to activate via Email, HTprog Clone Adapter is not needed.



Item	HTprog	HTprog Clone Adapter
Works alone	Yes	No, need to connect ECUHELP KT200
Package	a clone adapter, cables, an encrypted dongle	A clone adapter
Function	Read and Write eeprom and flash Clone ECU Read and write car body modules, such as CAS, SZL, FRM, AIRBAG, EZS, BCM, etc.  Refresh the key	Read and Write eeprom and flash Clone ECU Read and write car body modules, such as CAS, SZL, FRM, AIRBAG, EZS, BCM, etc.  Refresh the key
Price	€249	€135

HTprog ECU clone support list
HTprog on Bench support list

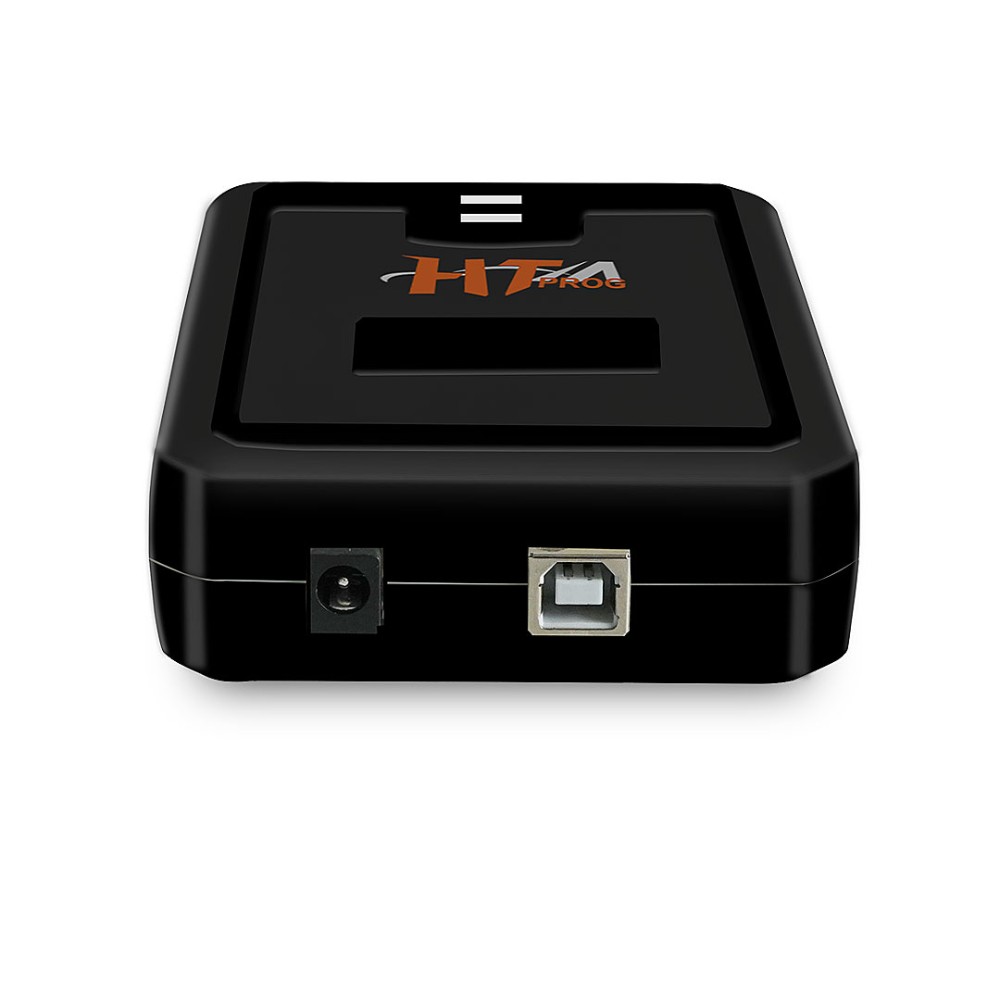

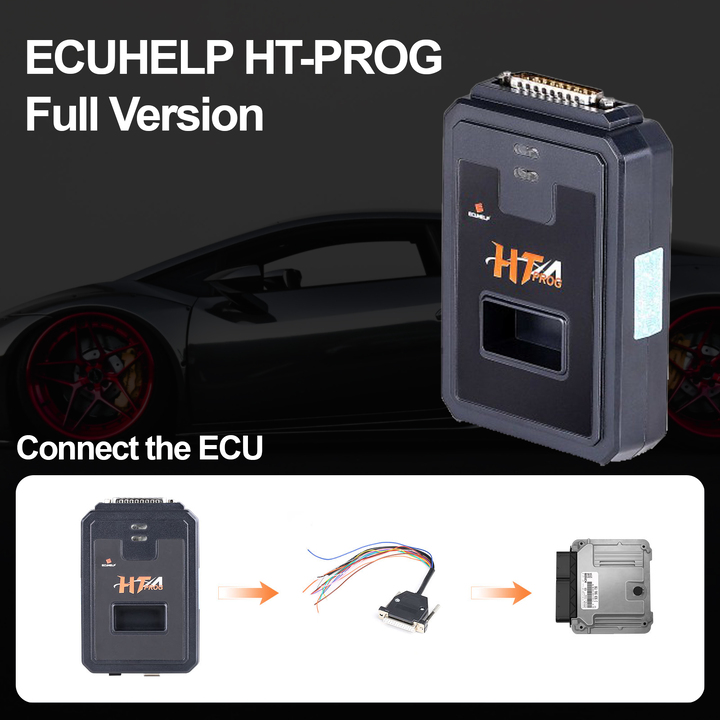

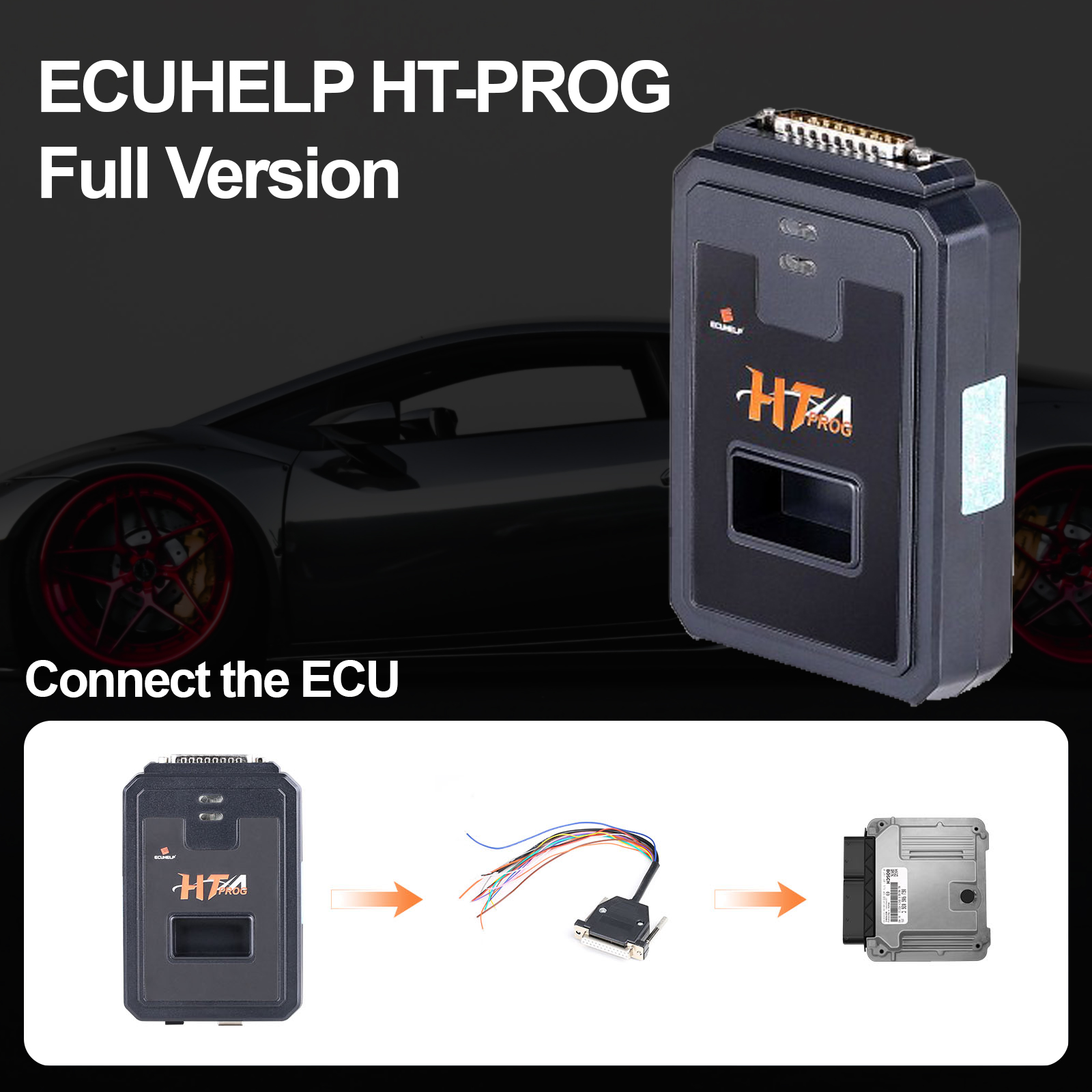

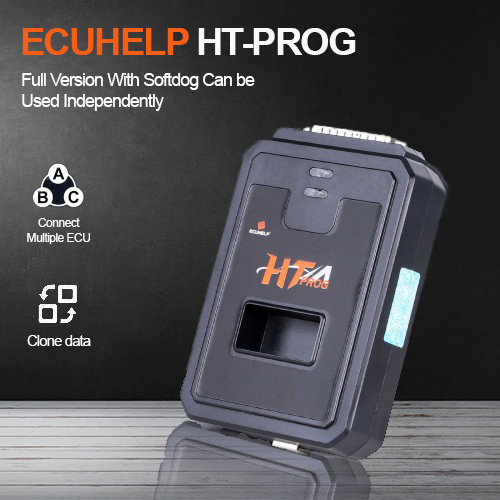

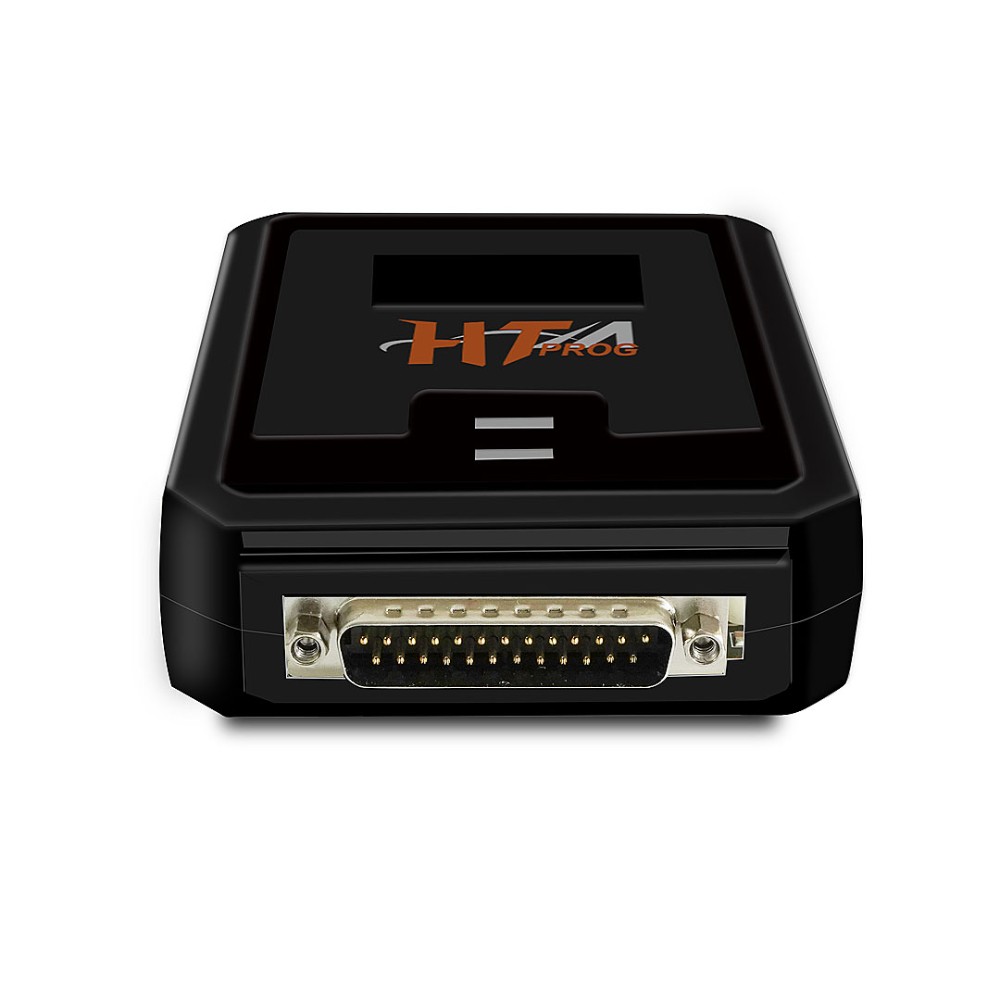

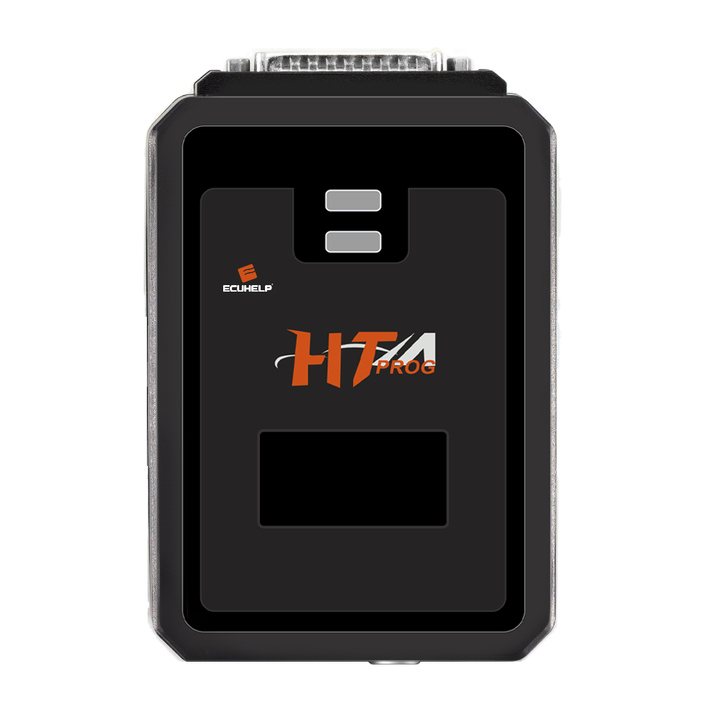

Look at the image of HTprog:



Look at the image of the HTprog Clone Adapter:

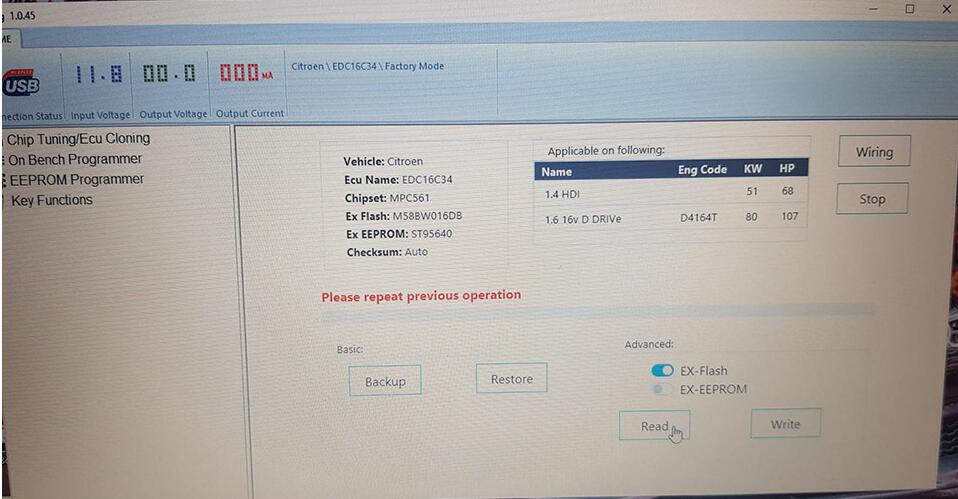

Question: What is the problem with Htprog?

A: You need to repeat the operation, Or check again pin connection.
