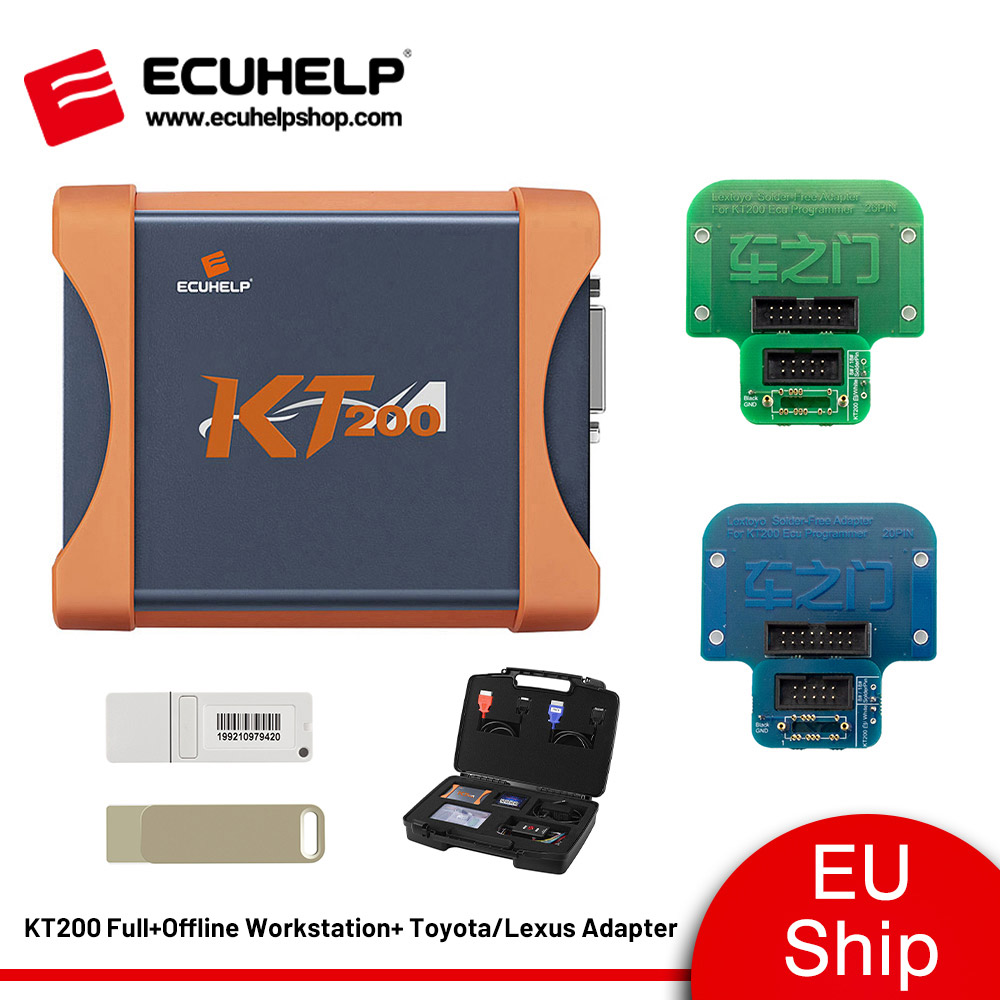

ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
KT200FUl+Offline+ Adapter

ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]

679Was 85921% OFF
SKU: EP-KT200F-J+EP-KT200DG+EP-LEXAP20+EP-LEXAP26 Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-10 Working Days
Returns Return for refund within 30 days, buyer pays return shipping.
2 Version: Full version+ Offline+Adapter ECUHELP KT200 Offline Workstation + Toyota Lexus BDM / Jtag Adapter [with Suitcase]
Features
  • ECUHELP KT200 offline workstation Boot read / write Toyota / Lexus without desoldering in offline mode.
  • Toyota Lexus BDM / Jtag solder-free adapter,easy and fast to use.
  • Supports Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gear.
  • Support Checksum Calculation.
  • Additional TCU package available for Automatic Transmissions for free.

Product Description

[EU Ship] Full Package of 2023.02.01 ECUHELP KT200 ECU Programmer Full Version+Offline Workstation +Toyota Lexus BDM / JTAG Solder-free Adapter [with Suitcase]

Part 1. Toyota Lexus BDM Adapter 20 pin + 26 Pin
Part 2. KT200 Offline Dongle Support KT200 Full Version
Part 3. 2023.02.01 ECUHELP KT200 ECU Programmer Full Version Highlights

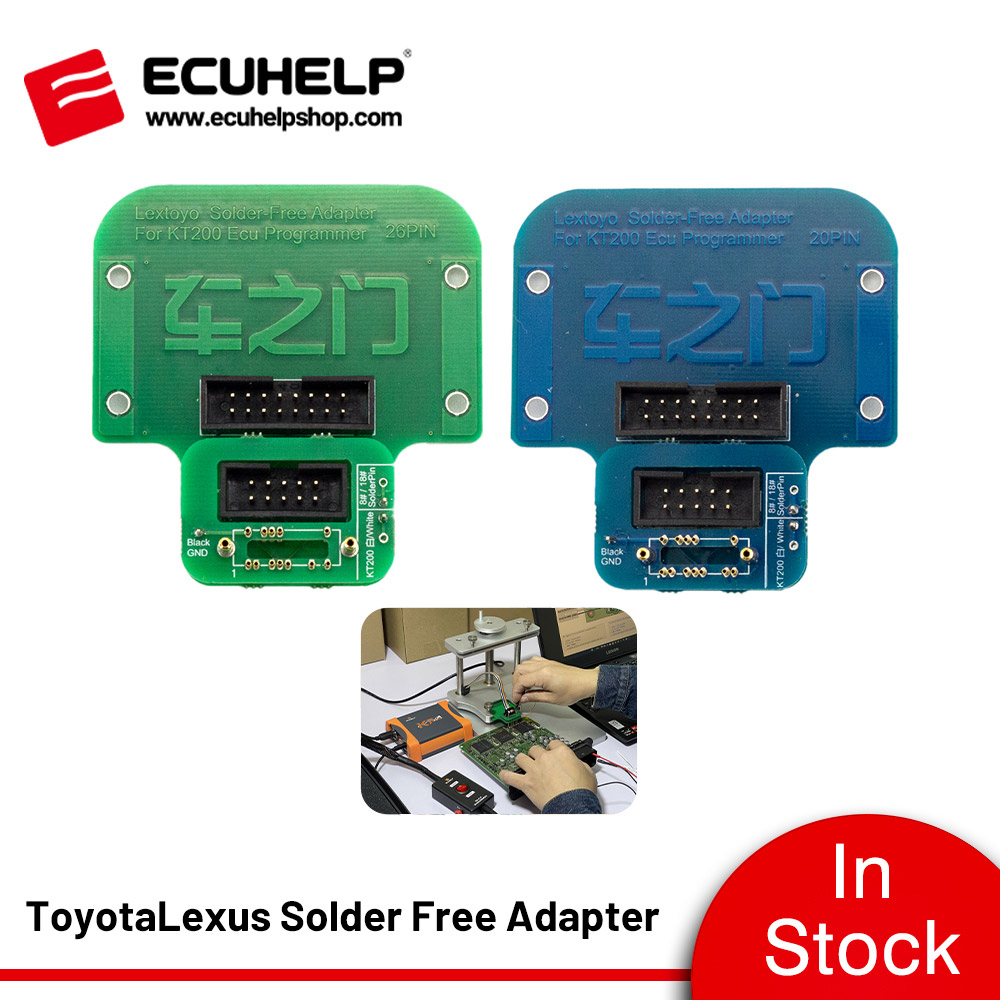

Part 1. Toyota Lexus BDM Adapter 20 pin + 26 Pin
DIY board with positioning pins
No need soldering when using ECUHELP KT200 to read and write Toyota / Lexus in BDM / JTAG mode.

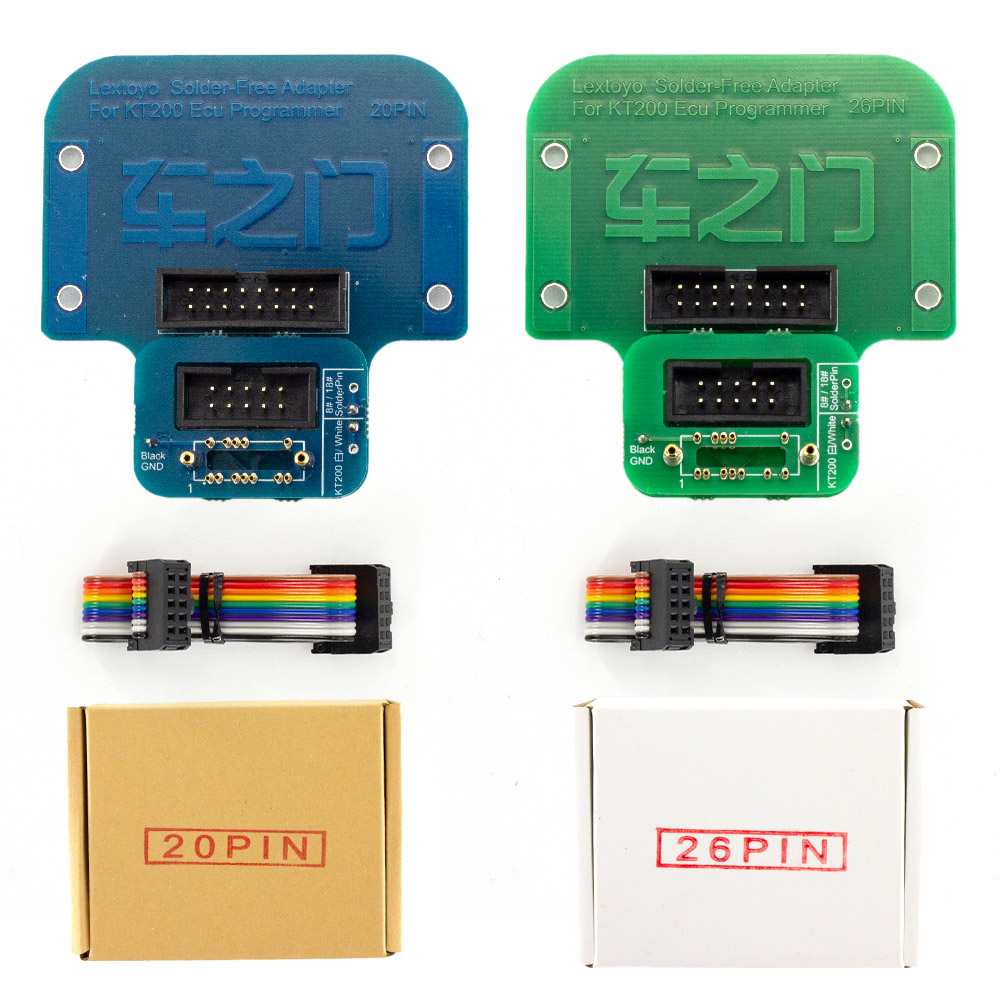

26PIN and 20PIN available
Works with ECUHELP KT200 / KTAG / KESS V3 / DIMSPORT

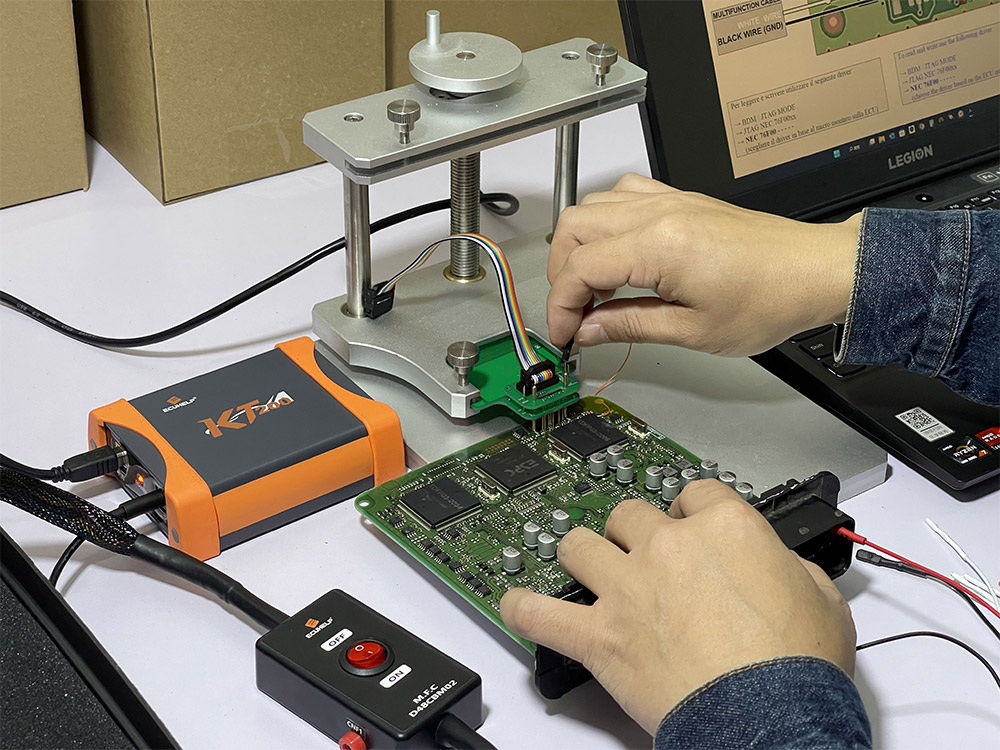

How to use the solder-free adapter with ECUHELP KT200:



Part 2. KT200 Offline Dongle Support KT200 Full Version:

The advantage of ECUHELP KT200 Full Version Offline WorkStation

Offline workstation for ECUHELP KT200. No internet connection required. Simply insert the USB dongle (as shown), and KT200 performs ECU/TCU reading and writing via OBD/Bench/Boot/BDM/Jtag flawlessly, just like the online version.

The KT200 offline workstation is ideal for outdoor ECU tuning when internet access is unavailable or signal strength is weak. Simplify ECU tuning with KT200 offline workstation.


Package:
The black one:  includes software and installation instructions.
kt200 offline dongle installation
The white one: dongle for offline functionality with KT200 full version.
kt200 dongle-02

Online installation is necessary before offline operation.


Part 3. 2023.02.01 ECUHELP KT200 ECU Programmer Full Version Highlights:
1. KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gearbox.
 ecuhelp kt200 full version car truck boat tractor motorbike

2. Free VR files and Damaos files available from ECUHelp V3.0

3. Free update and no annual fee (If you want to add new modules in the future, need to pay for new modules, for example HTprog clone adapter)

4. Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

5. 1-year warranty period, after-sales service guarantee

KT200 ECU Programmer is a complete tool for reading and programming ECU (engine control units) and TCU via OBD / Bench / Boot mode, the BDM / Jtag systems are also available.
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.

Supports Checksum Calculation

Additional TCU package available for Automatic Transmissions for free
Full read and write TCU (Micro + EEPROM)
TCU Clone
TCU Coding

Covering up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e / SQ100, Jeep 9H28 TCUs)

Supports Simos PCR2.1 unlock by OBD CAN.

Can perform a full backup of edc15 (flash + eeprom) by pinout. No need to open and boot mode which is a rare feature.

We provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on. Please contact at Whatsapp http: / / wa.me / 8618205996549

kt200 function
kt200 function
kt200 function-02


Ecuhelp KT200 2023 software update(02 / 01 / 2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.

The software does not need to register and activate.
Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11
Minimum Recommended Requirements: CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB

ECUHELP KT200 installation tips:
1. Make sure good internet (for online version)
2. Go to Service to change a server (any of China, Germany and Hongkong)
3. Set time and timezone auto
4. Turn off windows defence
5. Set timezone to the same as server
6. Use V-P-N and set V-P-N to where server is at
7. Restart PC
8. Make sure tool is plugged in
9. Good battery voltage.

How To Install KT200 New Software 2023.02?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the " Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the " Wiring diagram " to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the " Diagnosis" button in KT200 service software first for detection.

KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42


Product Function:

EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.


ECUHELP KT200 support list:
Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17 / ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)
Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC
BDM JTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx
JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085
BOOT MODEC16729Fxxx:
BOOT MODE ST K-LINE / RX-TX / CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296
BOOT Mode Tricore for micro:
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
BOOT Mode Renesas:
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
BOOT Mode Mitsubishi:
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
BOOT BAM System MOTOROLA:
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi

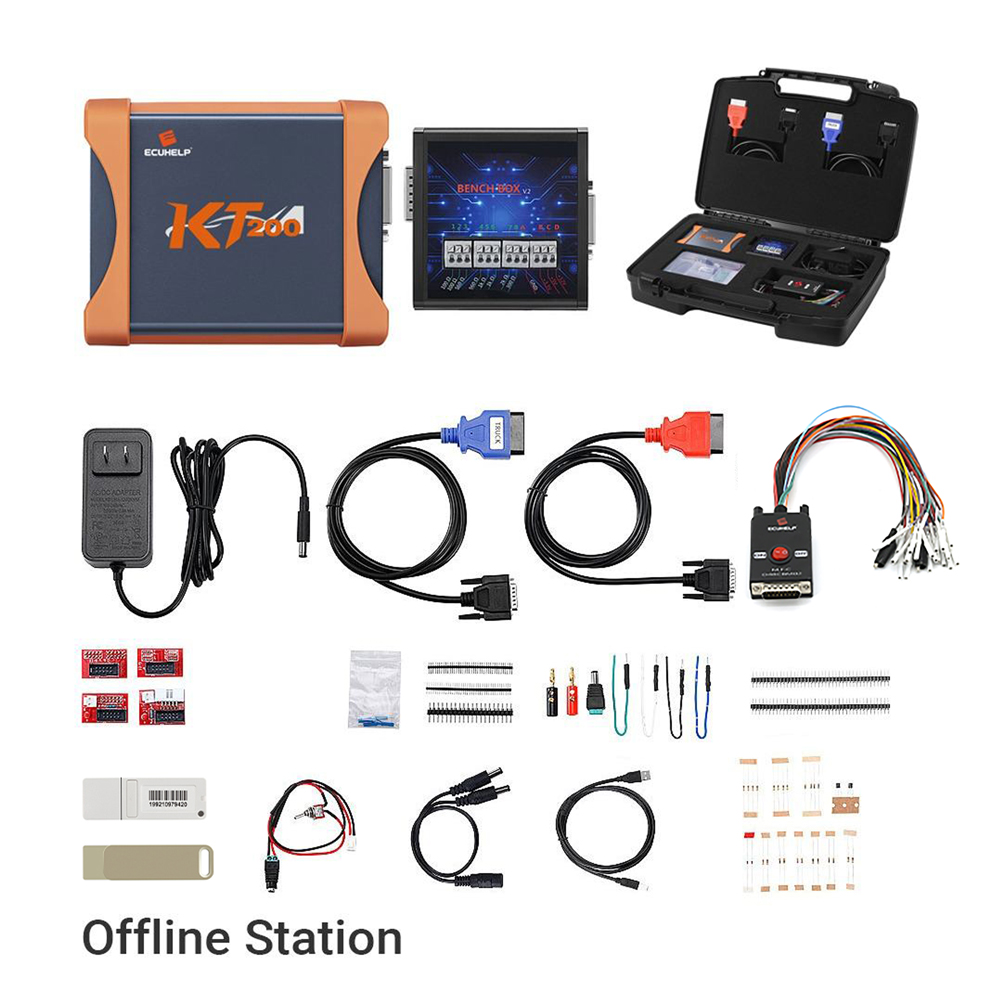

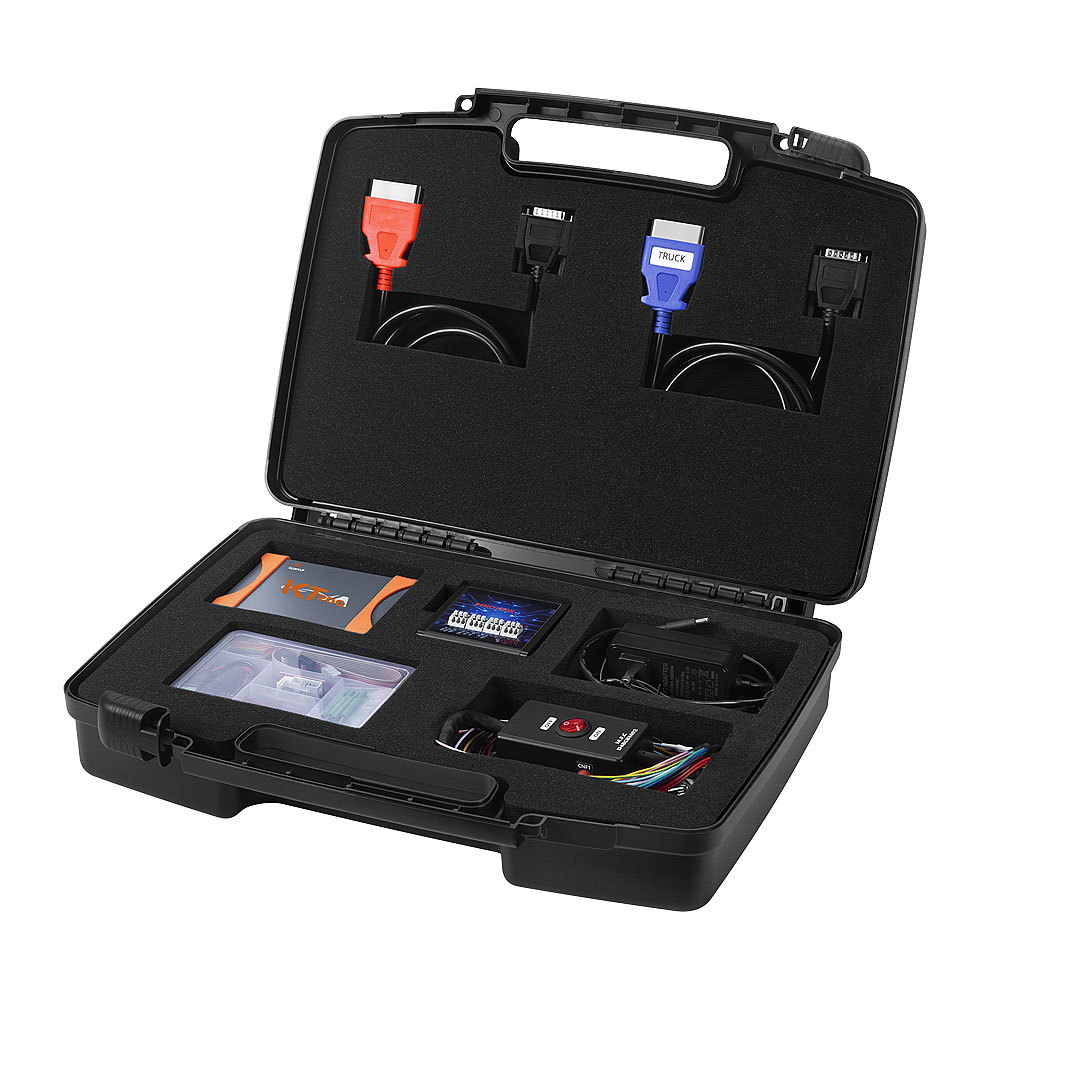

Package Includes:
1pc x Master
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
1pc x 20pin Toyota Lexus adapter
1pc x 26pin Toyota Lexus adapter
