ECUHLEP KT200 ECU Programmer read Isuzu Transtron 4Jxx in JTAG and write in boot.
Isuzu Transtron 4Jxx read write by KT200 ECU Programmer
February 22, 2023
Connect multifunction cable as follows:

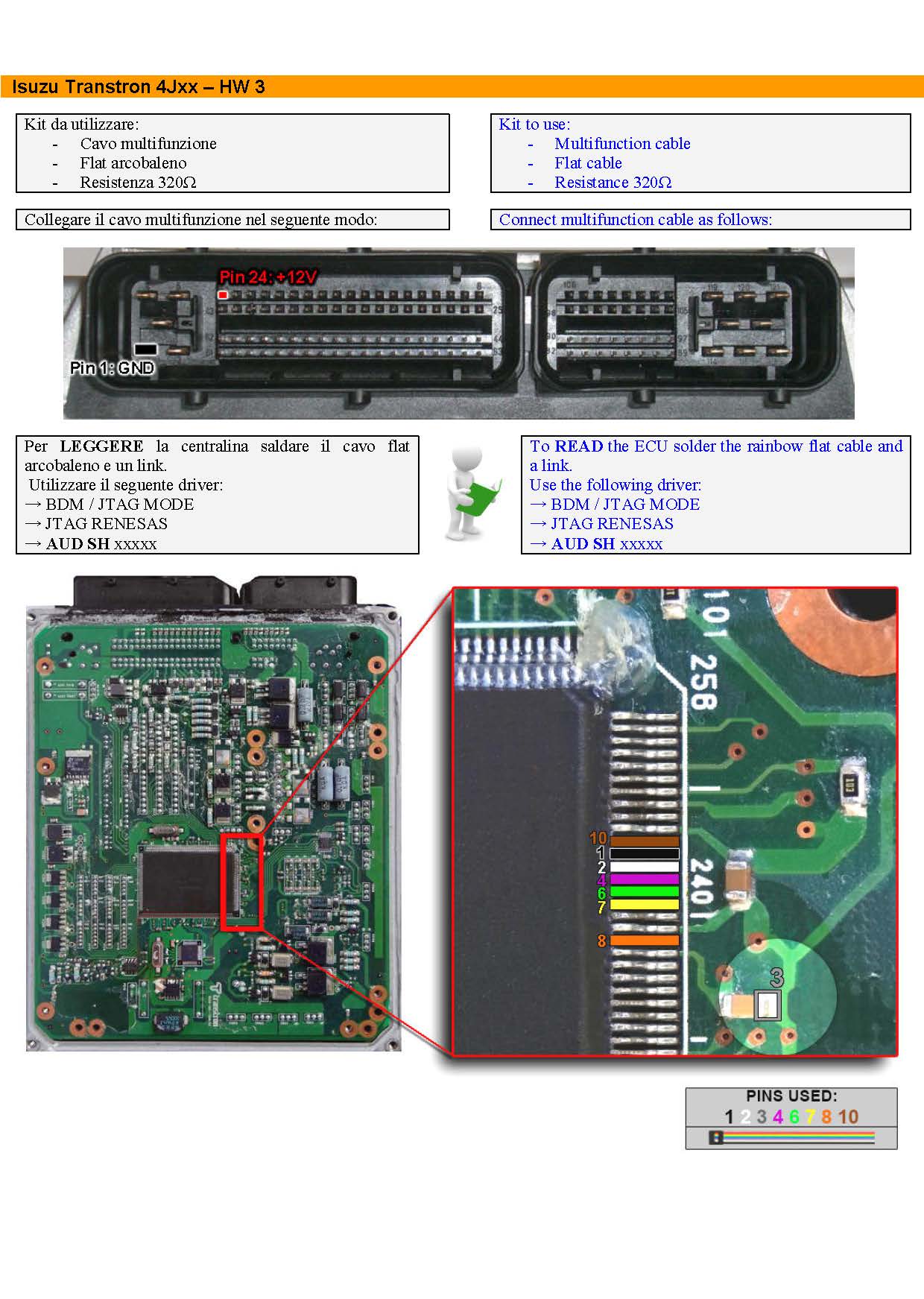

To READ the ECU solder the rainbow flat cable and a link. Use the following driver:
→ BDM / JTAG MODE → JTAG RENESAS → AUD SH xxxxx

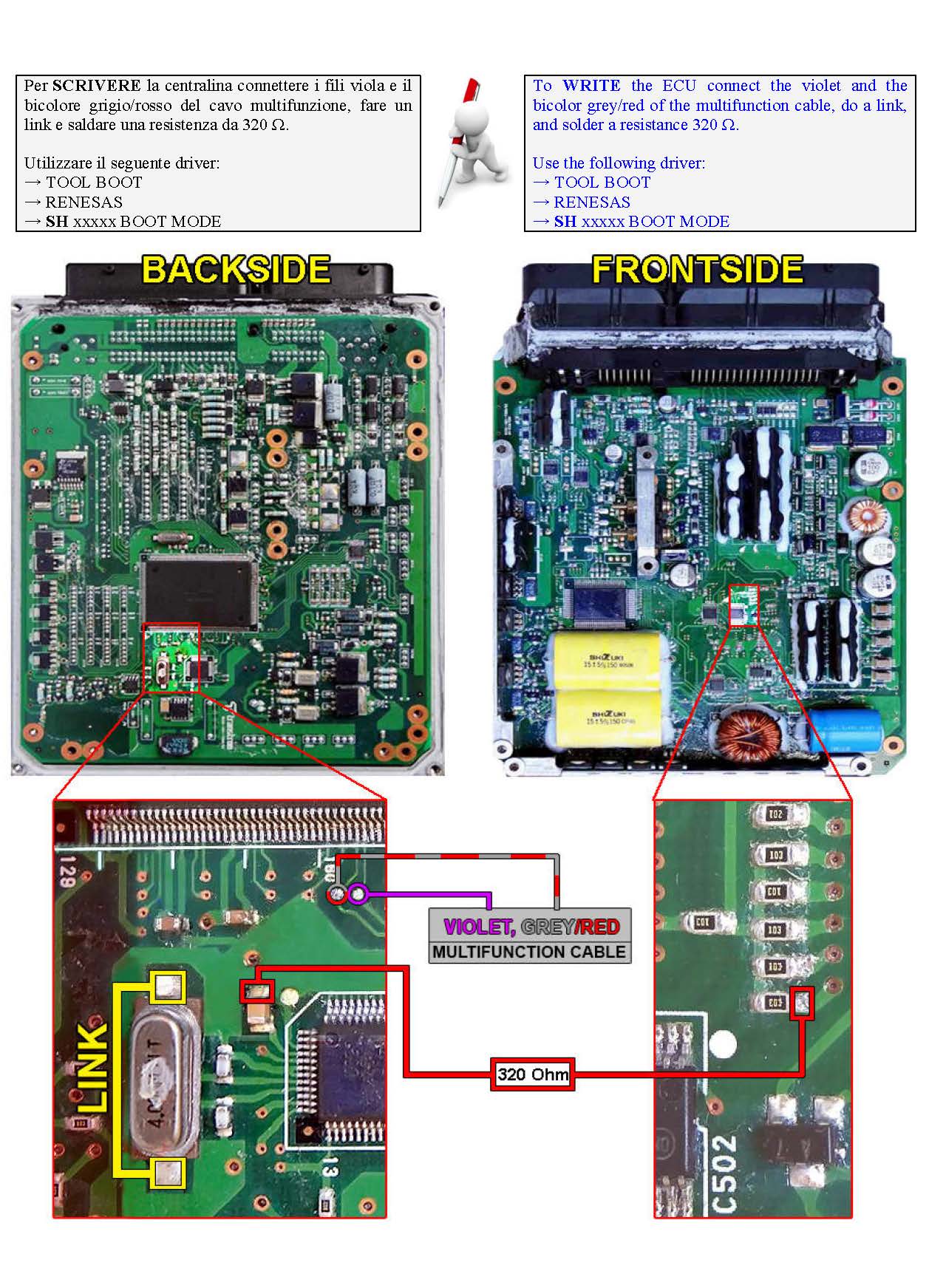

To WRITE the ECU connect the violet and the bicolor grey/red of the multifunction cable, do a link, and solder a resistance 320 Ω.
Use the following driver: → TOOL BOOT → RENESAS → SH xxxxx BOOT MODE
