BMW SIEMENS MSD87 in Boot by ECUHELP KT200 ECU Programmer
February 21, 2023
BMW SIEMENS MSD87 Boot Mode Read and Write using ECUHELP KT200
Kit to use:
To begin the process, gather the necessary tools including the multifunction cable, 3 resistances of 1000 Ω, and an OBD cable(if password is searched on car)
To search for the password, establish an OBD connection with the car.
Utilize the following driver options: "TOOLS BOOT MODE," "INFINEON TRICORE Tool Password," and "OBD PASSWORD MSD80/81/85/87 BMW." Click on "Find Password" and carefully follow the instructions provided by the software.

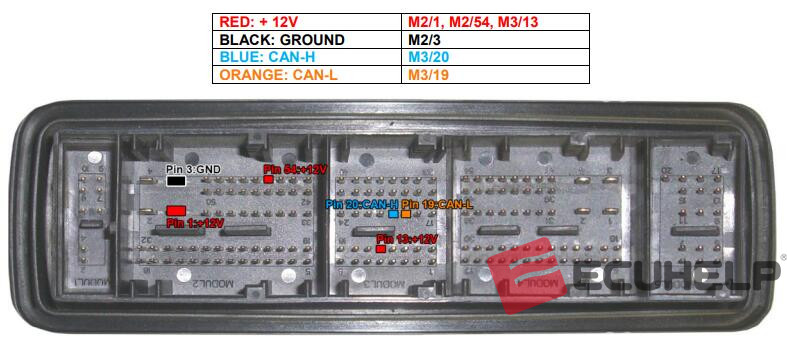

Alternatively, the password can be located by connecting the designated pinout on the desk.
READ AND WRITE ECU BMW SIEMENS MSD87:
Once the password is obtained, proceed to read and write the control unit. Follow these steps:

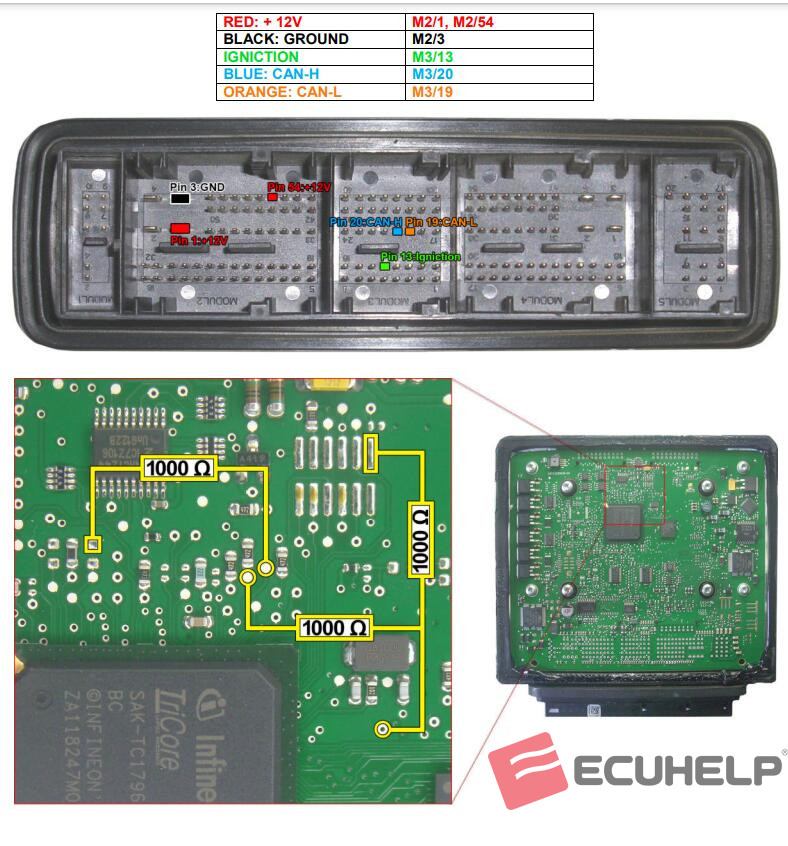

Connect the multifunction cable using the provided pinout and the corresponding boot configuration.
Select the driver options: "TOOLS BOOT MODE," "INFINEON TRICORE Boot," and "SAK TC1796."
With ECUHELP KT200 ECU Programmer, you can confidently perform read and write operations on your BMW SIEMENS MSD87 ECU, and elevate your driving experience with the power and versatility of ECUHELP KT200.
