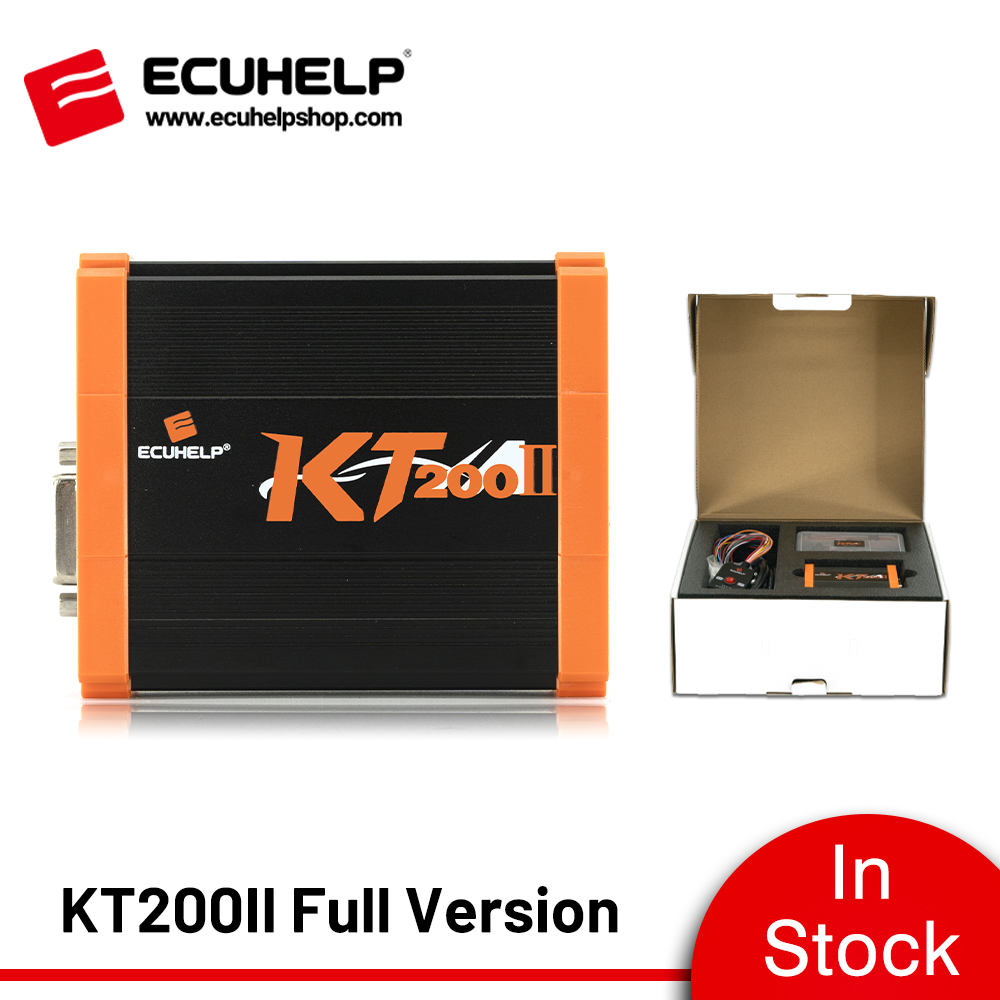

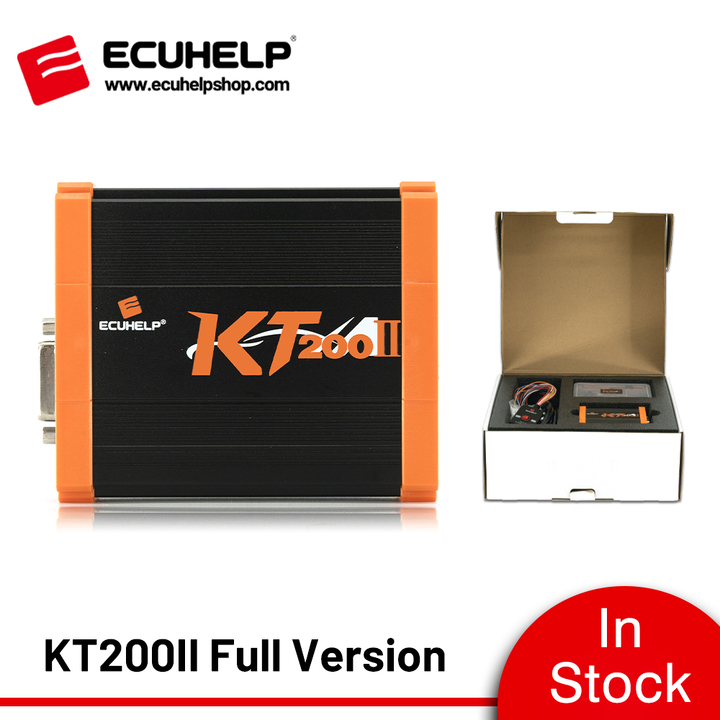

[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat
[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat
[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat
[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat
[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat

[Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat

709
SKU: EP-KT200IIF-Z Available: In Stock
Express Shipping Service, Estimated delivery time: 5-10 Working Days
Item Weight 2 kg
Returns Return for refund within 30 days, buyer pays return shipping.
3 Version: Full Version [Carton Box] ECUHELP KT200II ECU TCU Programmer Full Version for Car Truck Motorbike Tractor Boat
Features
  • KT200II upgrades new protocols and commits to regularly updating more.
  • Fix the automatic checksum issues found in the KT200, enhancing read/write efficiency.
  • A significant increase in virtual files available on the server.
  • Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.
  • Faster and more efficient server connectivity.

Product Description

ECUHELP KT200II Full Version for Car Truck Motorbike Tractor Boat, Upgrade More ECU Protocols and Fix Checksum Bugs Over KT200

What is KT200II?

Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data, read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Remova, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Ho start or Cold Start Vmax , and so on.

ECUHELP Service:
You can obtain ECUHELP service software ECUHELP for free. All functions on the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.
ECUHELP ECU service


Key Features and Enhancements of ECUHELP KT200II:

Continuously upgrades new protocols and commits to regular updates.
Resolves automatic checksum issues found in the KT200, enhancing read/write efficiency.
A significant increase in virtual files available on the server.
Includes immediate alerts for operational errors, ensuring safer usage.
Faster and more efficient server connectivity.
Ensures reliable reading and writing via OBD.
Now supports DELPHI DCM7.24 ECU.
Compatible with HTProg Clone Adapter.
Introduces the Tricore Clone feature for advanced operations.
KT200II functions

List the Customers' Feedback on why KT200II / KT200 is Preferred:
1. KT200 doesn't need BS activating and has 3 servers (China, Germany, Hongkong).
2. KT200 works perfectly with less dropout and a higher chance of not losing the server. It has an offline dongle that will still work if servers ever get shut down.
KT200 works offline, tested by users, 90% of the work was done offline without any flaws.
3.The software is not locked to 3 or 4 computers. You own the hardware and can use it wherever you want.
4. KT200 does VR reads (Download ECUHELP 3.03 for VR files)..
5. The software is stable, and the cable is of good quality.

ECUHELP KT200II Free Update January 8th, 2023.
Software download:
Available in the " Downloads” section.
Important: Disable your antivirus and turn off Windows Defender before installation.

Update Information:
Suzuki Denso 3390-76xx Bench mode.
DCU17 DV51 JCB OBD Mode.
TCU FCA 62TE Boot mode.
TCU 9G Tronic VGS-NAG3 Bench mode.
TCU 7G Tronic VGS-NAG2 Bench mode.
ME17 ECUs of DR, Baic, Chery from 2020.
PSA Delphi DCM7.1A via OBD.
Nissan Renault EDC17C45 via OBD.
PSA SID807/ SID807EVO.
Siemens / CONT. TCU 7G Tronic VGS-NAG2 Bench mode.
Bosch TCU 9G Tronic VGS-NAG3 Bench mode.
Continental TCU FCA 62TE Boot mode.
Bosch DCU17 DV51 JCB OBD Mode.
Suzuki Denso 33920-76xx Bench mode.
Detailed information available in the pdf file.

Free Download:
KT200II Software (Online)

Notes:
1. KT200II software is not compatible with KT200.
2. KT200II Full Version operates online (with an internet connection).
3. Compatible operating systems: Windows 7, Windows 8/8.1, Windows 10, Windows 11.
4. Minimum recommended requirements: CPU > 2.5 GHz (Intel i5, i7), RAM 8GB.
5. KT200II Language support: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish.

Troubleshooting:
Question: Installed KT200II software on Windows 10, but the app cannot start.
Answer:
Install the USB driver from your installation.
Restart the computer, temporarily disable Windows Defender and firewall.
Plug the device into USB and power.
Open the app and wait... It can take up to 1 minute to connect to the server.

KT200II Support List:
KT200 ECU Support List
KT200 TCU Support List
Plus the Newly Upgraded ECU Protocols List

The Enabled Software of ECUHELP KT200II Full Version :
Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.Full System, BDM / JTAG, TOOL BOOT, Bench Mode, TCU Gear
***Choose KT200II Auto version to have no the software: Tractor OBD, Boat OBD, Motorbike OBD

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums
KT200II Update for DELCO OPEL/CHEVROLET/GM ECUs
KT200II Update for Opel GM

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52
KT200II Update for TRICORE CLONE
NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
KT200II Update Bosch 6L80

KT200II Update Bosch 6L90
KT200II Update Bosch 6L80
NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
KT200II Update NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
KT200II BOOT MODE FOR SIEMENS SIM2K-305 ECUs

NEW BENCH MODE FOR MG1CA007 ECU
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcyle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums
KT200II update NEW BENCH MODE FOR MG1CA007 ECU

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums
KT200II update for NEW OBD DRIVER FOR DELPHI DCM7.24 ECU
NEW OBD DRIVER FOR PHOENIX L40 ECU!
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing is carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding
KT200II OBD DRIVER FOR PHOENIX L40 ECU
NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums

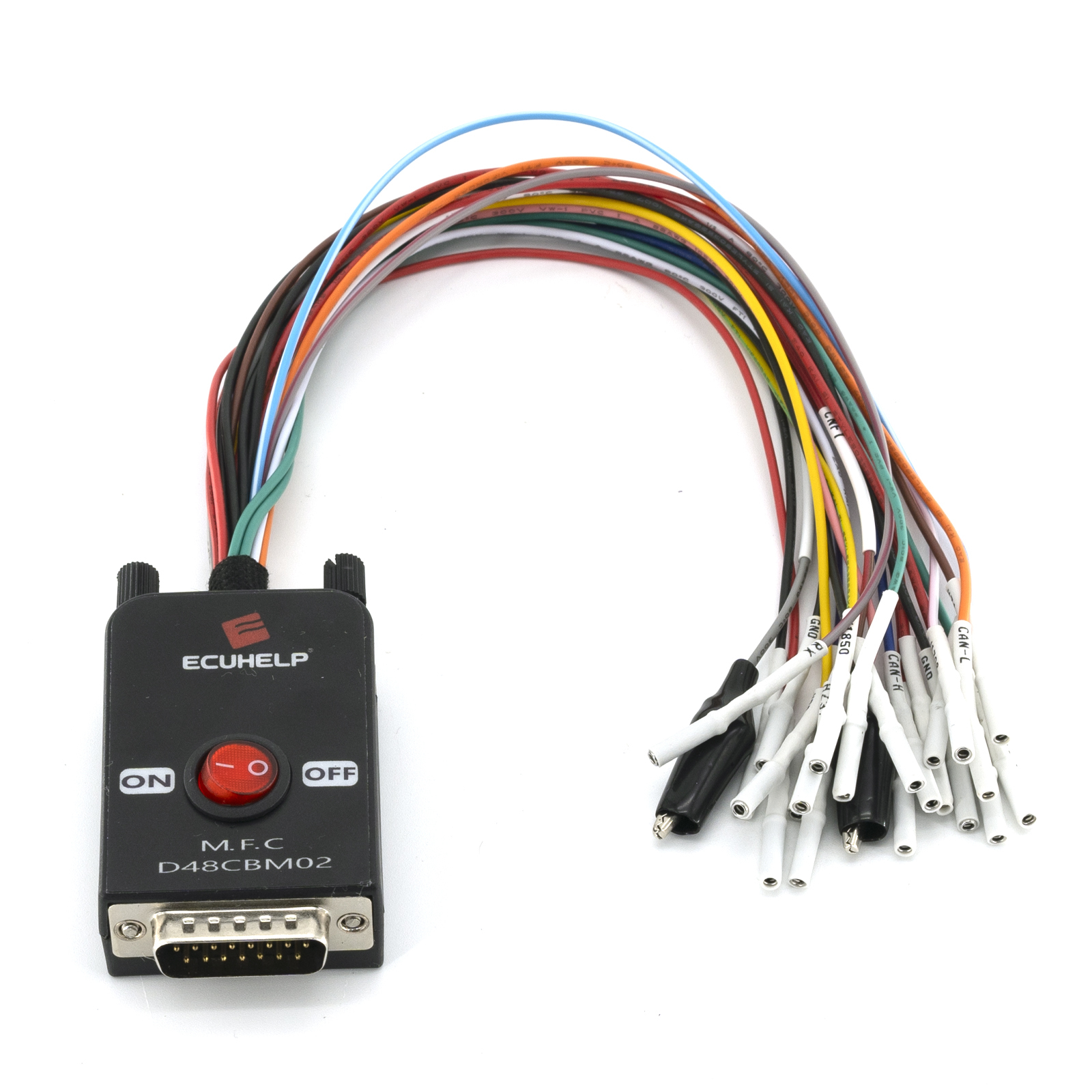

It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2 / 3/4 cable.
KT200II NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.
KT200II OBD DRIVER FOR BOSCH EDC17 C11

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.
KT200II NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE

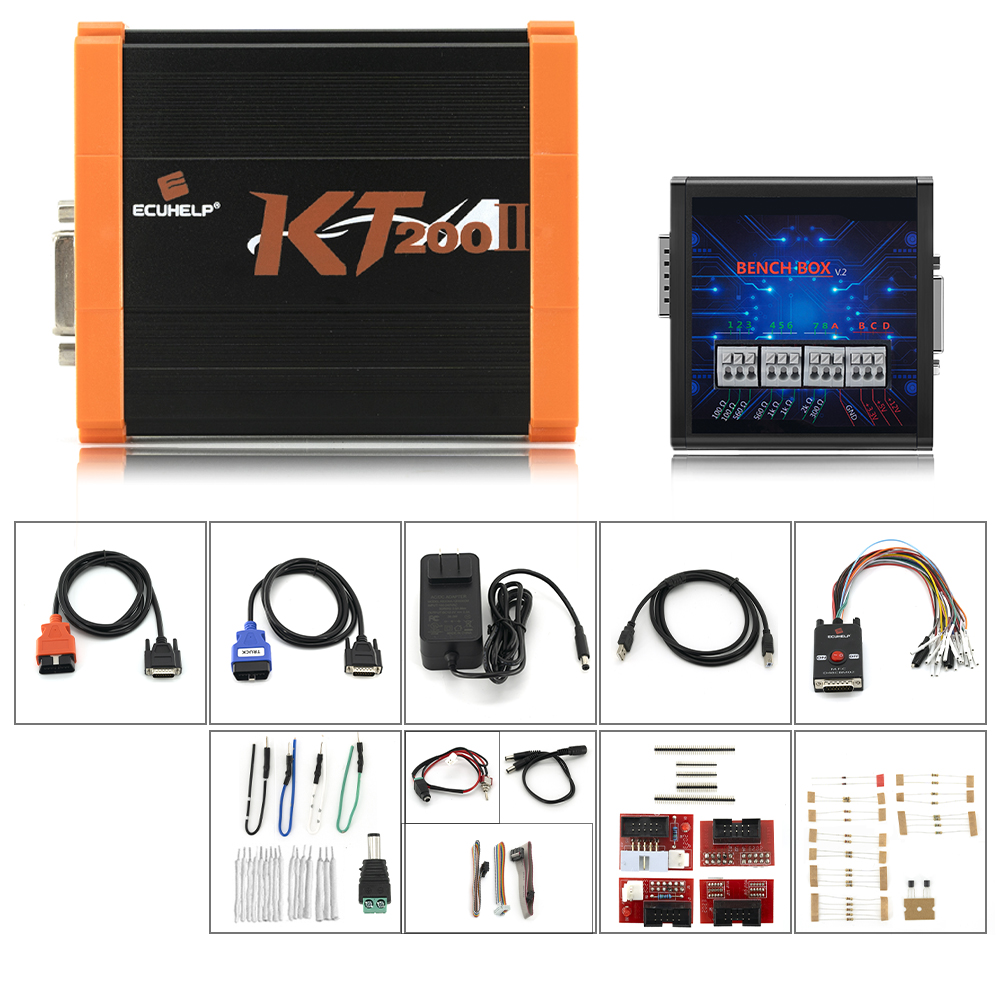

ECUHELP KT200II Full Version Package Includes:
1pc x Master
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters

Package: 55*35*25cm, 2.5kg


Frequently Asked Questions:
What' s New in KT200II?

For a detailed list of the new protocols added in KT200II, please refer to the updated protocol list.

Can the Loyal Users Exchange KT200II?
Yes. To upgrade:
1. While awaiting the shipment of your KT200II, you can continue using KT200. Upon receiving your KT200II, please provide us with the serial numbers of both the KT200 and KT200II. Following this, we will lock your KT200 and activate your new KT200II.
2. If you have KT200 full version + offline dongle, you will recieve KT200II host and one offline dongle.

Are the Accessories and Bench Box of KT200 Compatible with KT200II?
Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?
No, they are not compatible.

Where Can I Find Test Results for KT200II?
For test results and demonstrations, subscribe to the ECUHELPshop YouTube channel for a series of informative videos.


We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.
