ECUHELP KT200 II ECU Programmer release the new update in June, 2024. This article will include What does it Update? Where to download the software, how to update?

Please be informed:
1.The KT200 II June Update only supports the online version (both Auto Version and Full Version). KT200II Offline workstation is not supported yet.
2. Need to buy and replace one Encryption Board and one Jumper (2P spacing 2.54), meanwhile need to run the new software "ECUHELP KT200 II setup June (new board need)" [from ECUHELPshop.com "Downloads"].
3. After receiving the board and jumper, please upgrade KT200II by following this video:

Now you will have some more ECU protocols.

What does KT200 II Update?
Read Delphi DCM6.2V via Pinout without opening the control unit, while it could VR read and write before.


R/W Isuzu and Saic Bosch MD1CS089 on Bench.

Bench mode R/W DeuTz, Isuzu and Manitou Bosch MD1CC878.


Bench mode R/W Kubota Tractor AD-Blue Denso 2760xx.


BOSCH ME17/EDC17 > 2021 (TPROT V14) Control units with new TPROT V14 protections
for vehicle models from 2021 onwards for ECUs with TC1724 and TC1793 processors.
ME17.3.0 and EDC17C69 mounted on the FCA group


Bench mode R/W Suzuki Marelli 8DS.


Where to download the newest software for KT200II?
Please go to  the Downloads”section, click on “ECUHELP KT200 II setup0520 (Update May,2024)” to download.

How to update KT200 II?

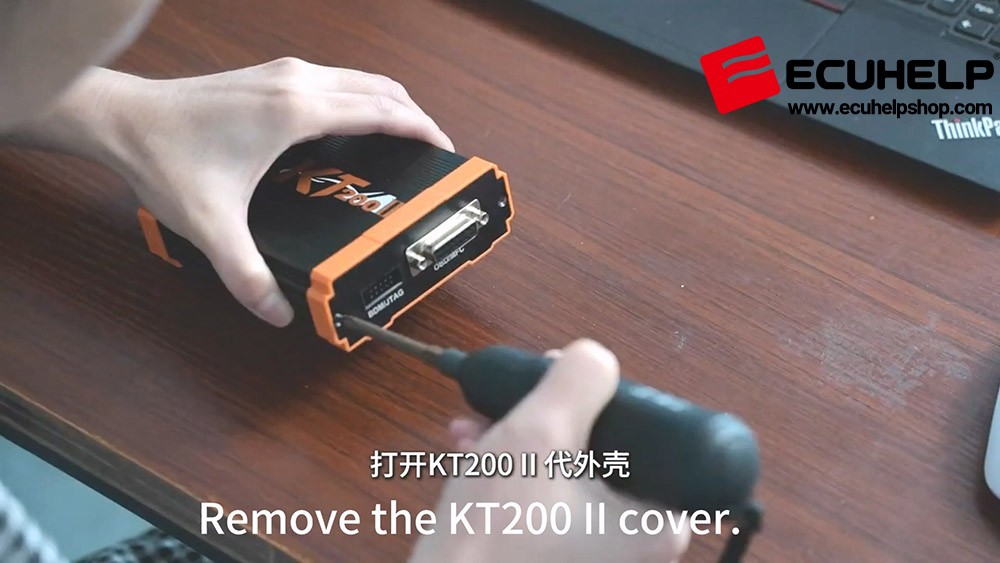

Remove the KT200 II cover.

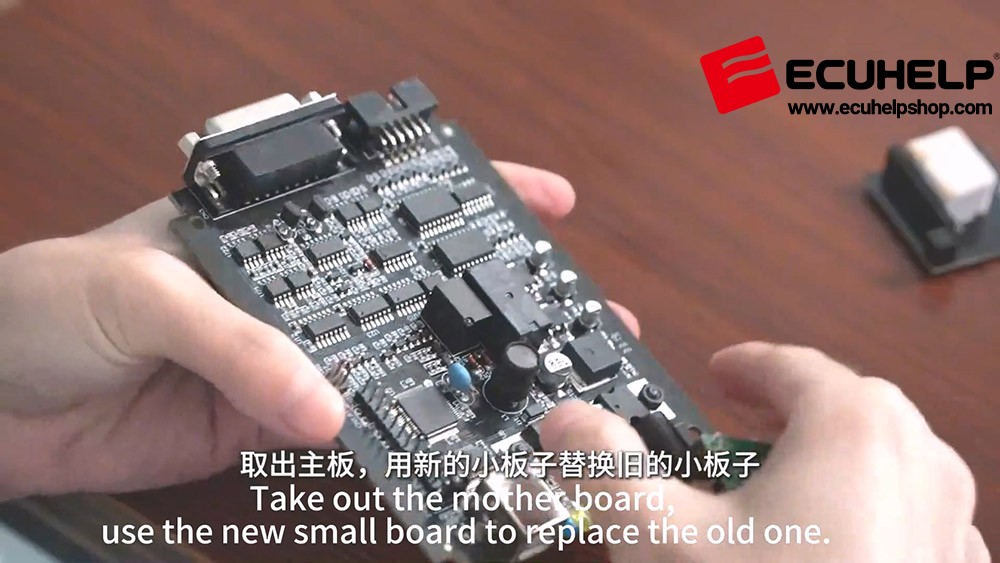

Take out the main board, use the new small board to replace the old one.

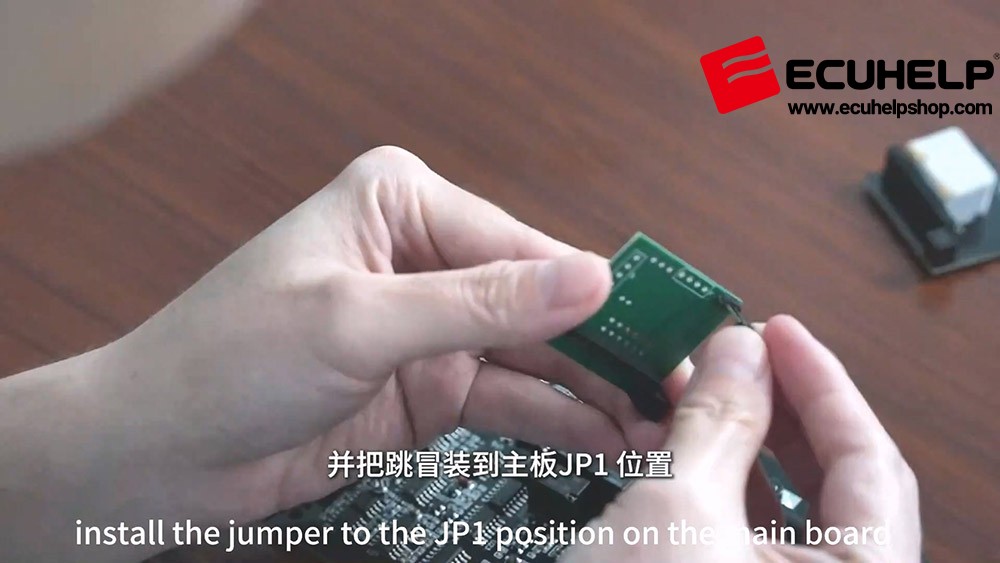

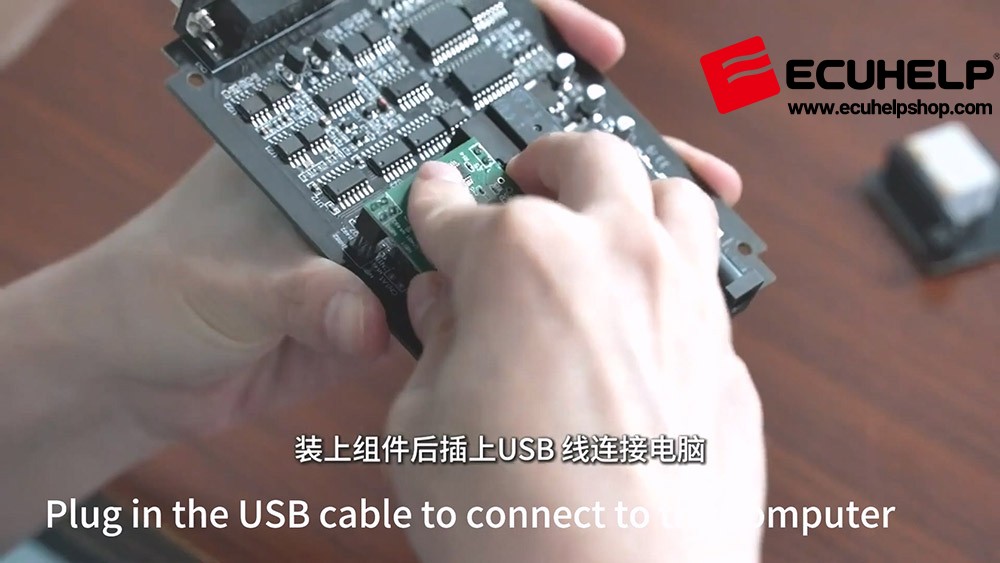

And install the jumper to the JP1 position on the main board, another jumper is next to J1 on the small board.

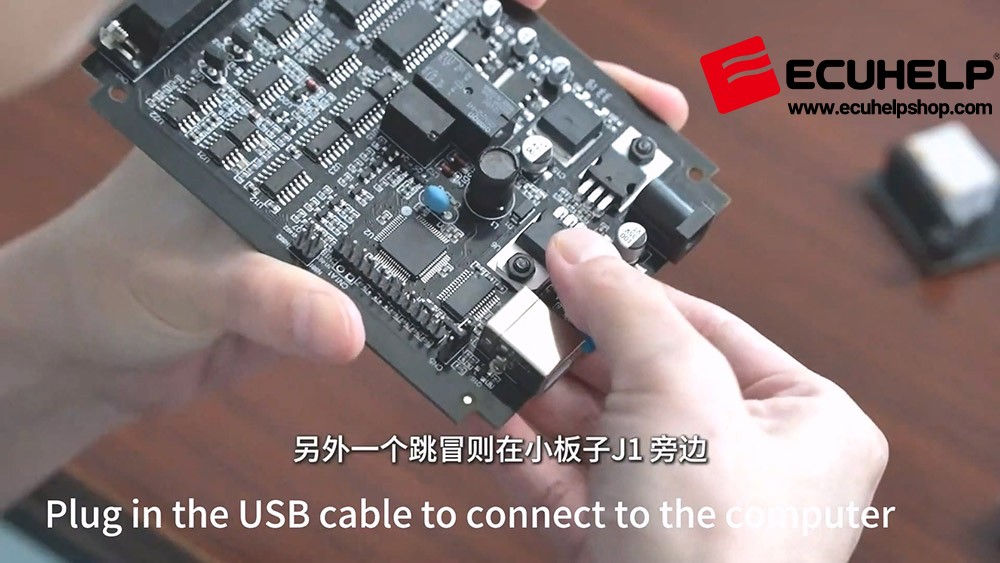

Plug in the USB cable to connect to the computer.

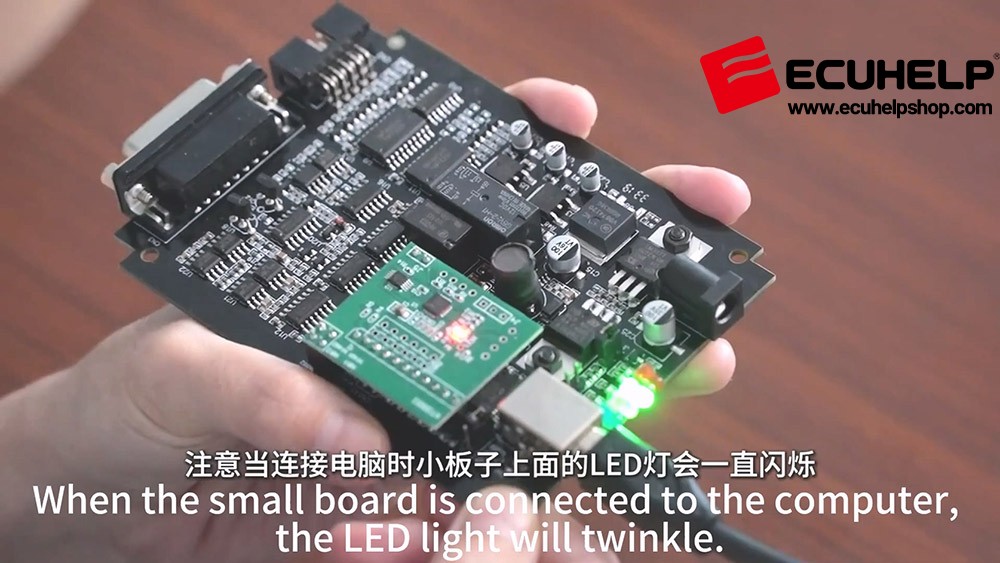

Attention, when the small board is connected to the computer, the LED light will twinkle. It means the main board is upgrading, please do not unplug the USB cable, just wait until the light stops twinkling.

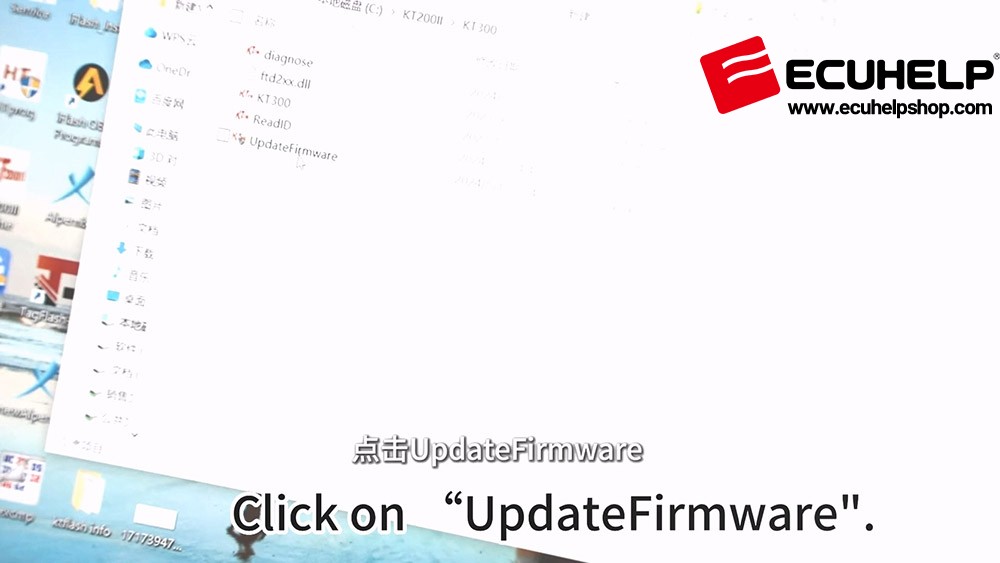

Go to C drive, open the KT200II folder and then open KT300 folder, click on “UpdateFirmware”, then wait until the screen pops up KT200II update successfully.

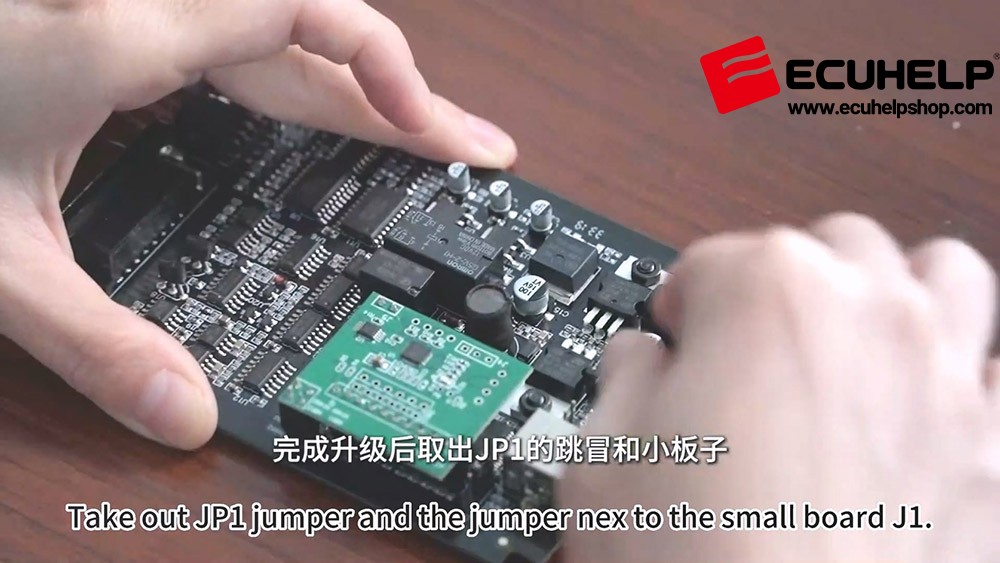

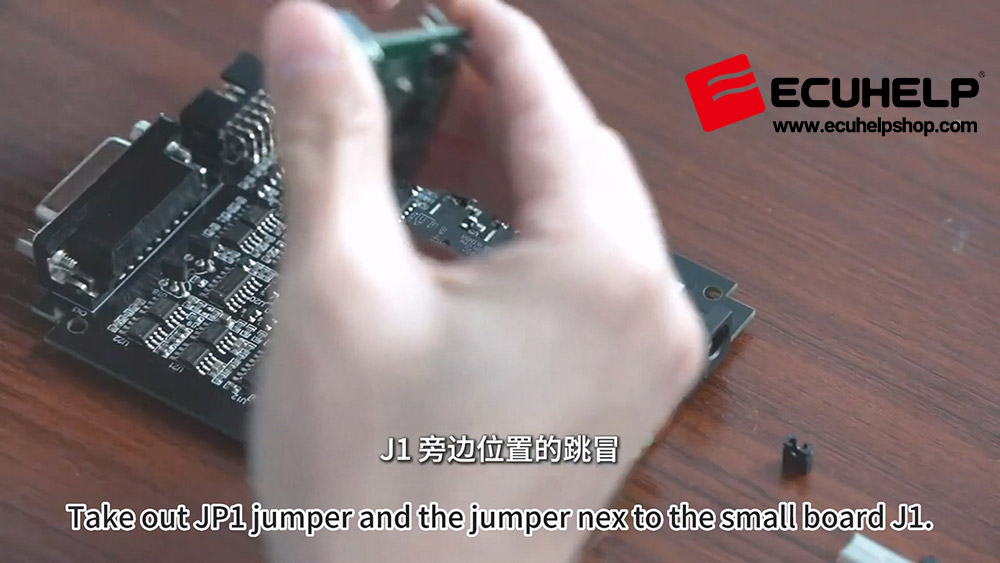

Now, take out JP1 jumper and the jumper next to the small board J1.
