ECUHELP KT200 2 ECU Programmer is tested successfully to read and write Mitsubishi L200 Denso SH7059 full system mode, also Fap/EGR off ok.

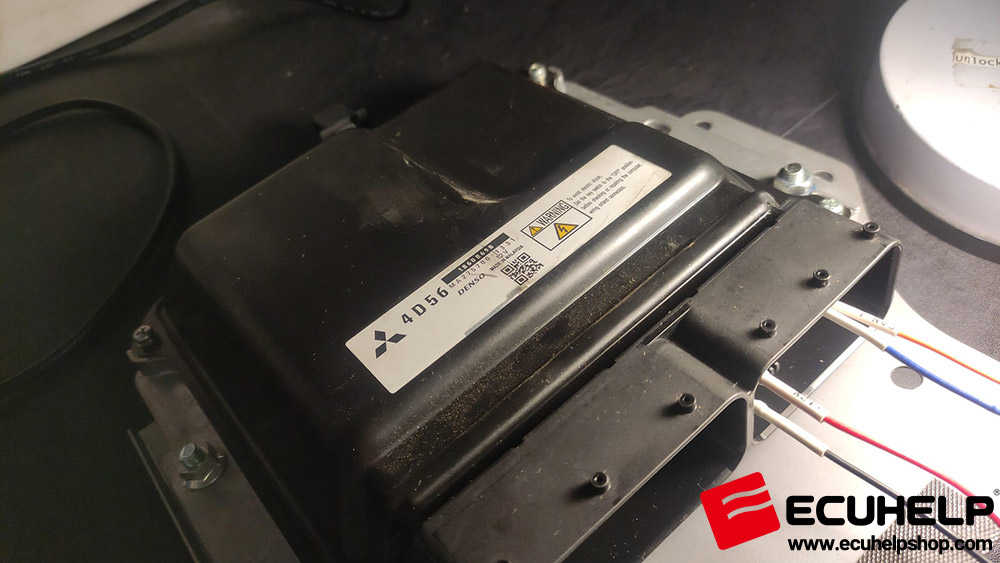

Connect KT200 II to Denso SH7059 full system mode, refer to the image 1-2.

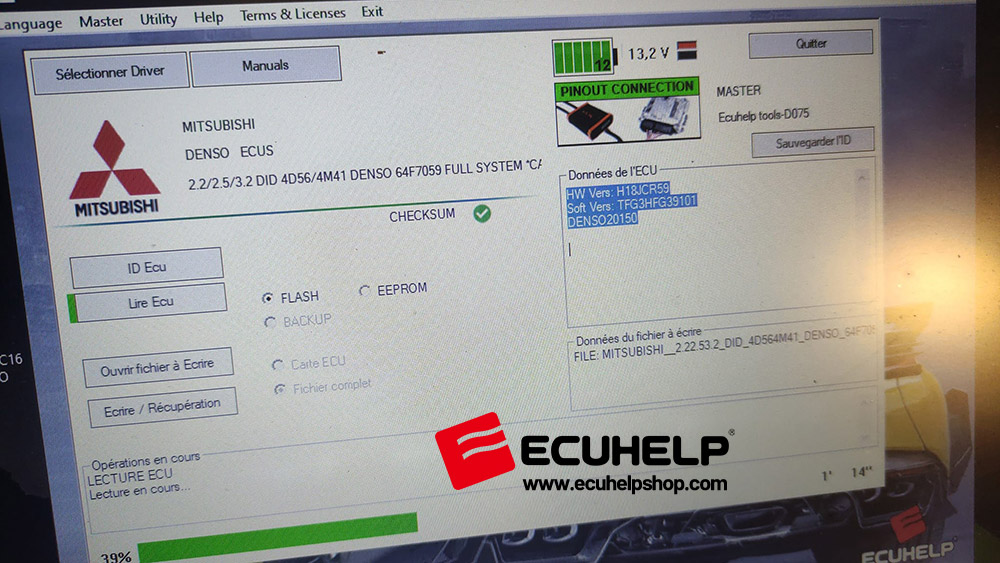

Reading Denso SH7059 until 100% ok, refer to the image 3.

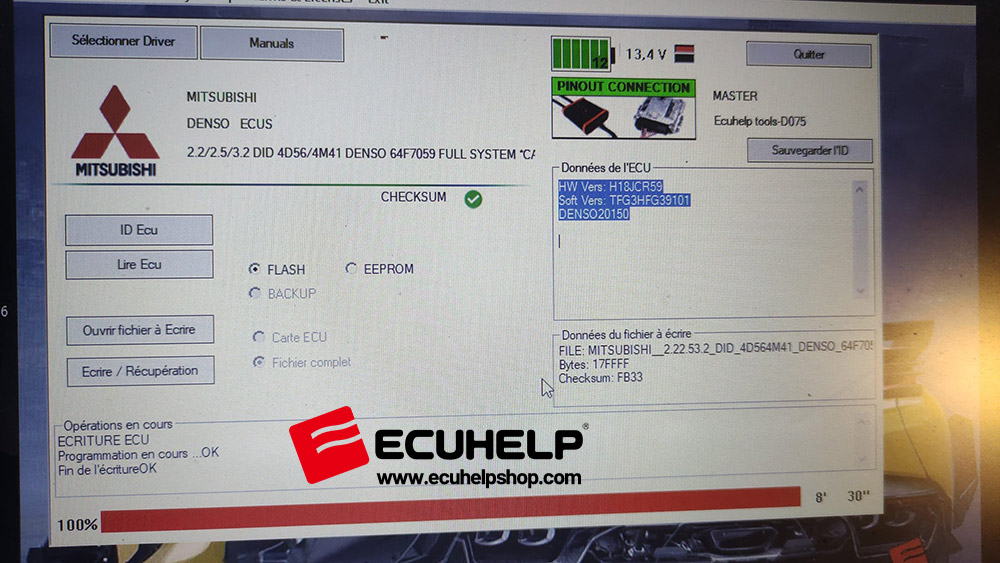

Writing Denso SH7059 until 100% ok, refer to the image 4.

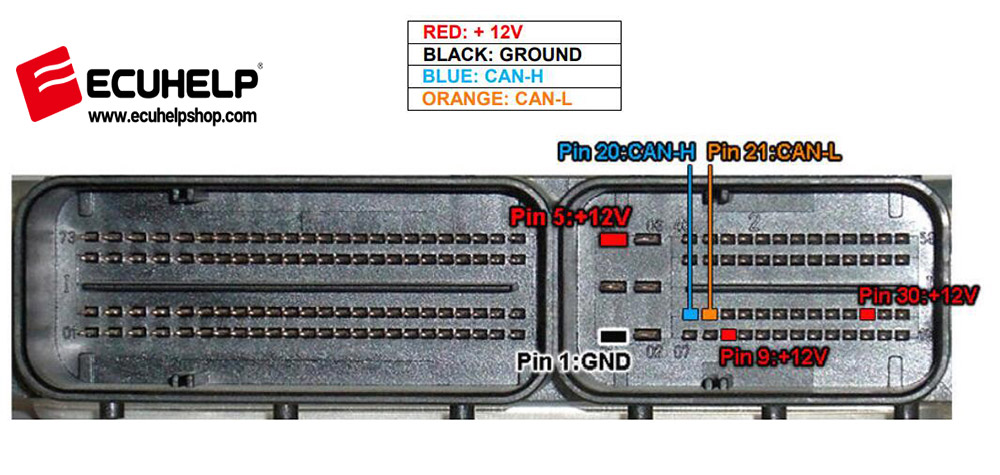

Please refer to the KT200 2 wiring diagram of DENSO MB275800 SH7058/9:
To connect to the control unit use:
- Multifunction cable


Conclusion
ECUHELP KT200 2 demonstrates its reliability and efficiency in reading and writing the Mitsubishi L200 Denso SH7059 ECU full system mode. With clear wiring instructions, it is a valuable ECU Programmer for both tuning and maintenance of the vehicle's ECU system.
