ECUHELP KT200 II Read/Write EDC17C06/CP06 BMW on Bench
June 16, 2024
ECUHELP KT200 II is tested to read and write the EDC17C06/CP06 ECU of a BMW 118D (143hp, 2011, N47 engine). This article details the successful bench mode read and write process and the encountered challenges with OBD writing.
BMW 118D, 143cv, 2011, N47 engine
EDC17C06/CP06
Bench read and write ok (40seconds bench writing, done with alim lab stabilized)
Attempted OBD Writing:
An attempt was made to perform OBD writing, but it was unsuccessful due to an incorrect file size error.
Visual Guide:

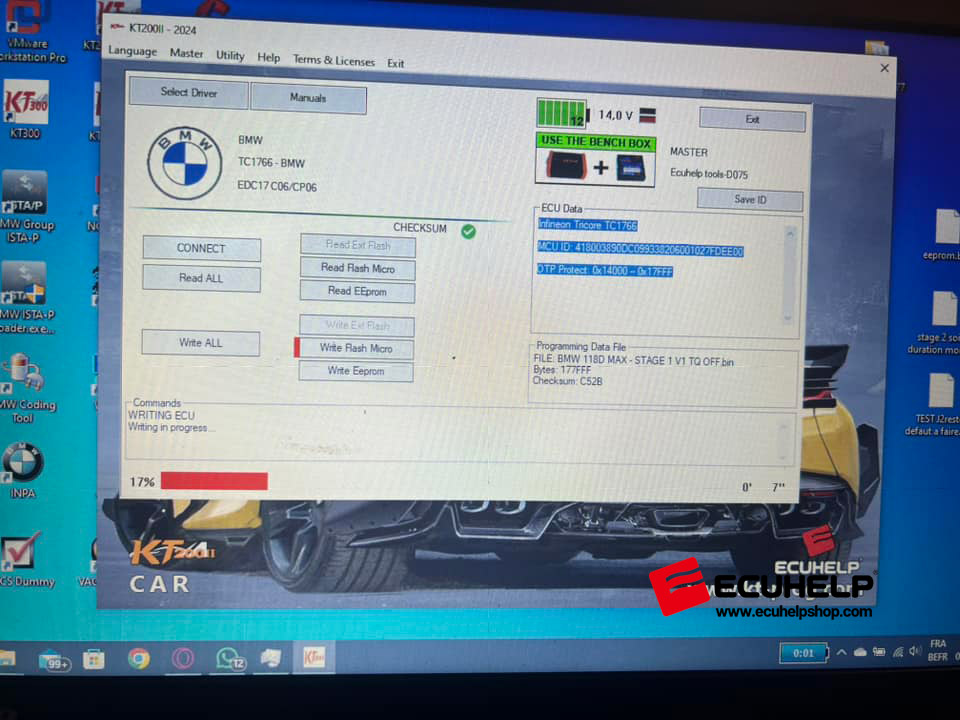

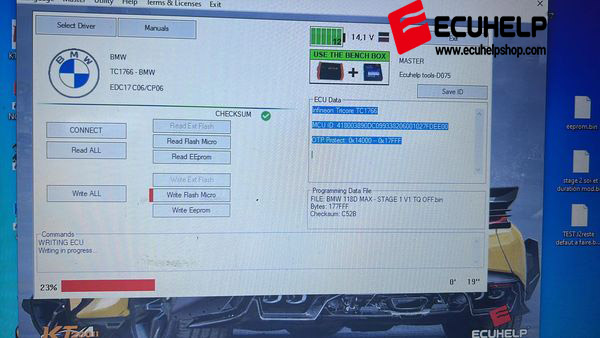

Below are images illustrating the KT200 II writing process:

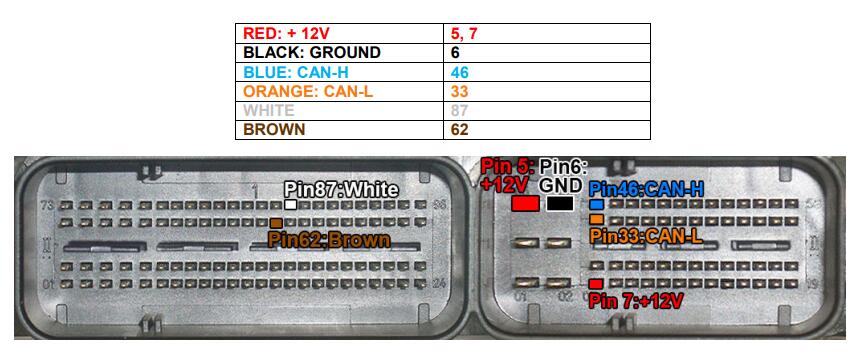

The wiring diagram for the BOSCH EDC17 CP06 [1766] – BMW [Diesel]
Connection Instructions:
Connect the multifunction cable as described in the wiring diagram.
KT200 II read and write use the following driver:
→ BENCH TRICORE
→ BMW
→ TC1766 – BMW
→ EDC17 CP06
Conclusion:
ECUHELP
KT200 II proves to be effective for reading and writing the EDC17C06/CP06 ECU bench mode, despite challenges with OBD writing due to file size discrepancies. The detailed wiring diagram and driver instructions ensure a streamlined process for users.
