VAG Gearbox Adapter for DQ250 DQ200 VL381 VL300 DQ500 DL501 VL382 for Pcmflash

NOTICE : The Gearbox Adapter and Powerbox CANNOT work alone , without software . it need work with K-T-M-FLA-SH ECU Programmer.

K-T-M flash Functions:
1.Read the Chinese car via OBD.
2.Read the BOOT mode according to the chip model.
3.Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)
4. Support cars made in China with ME17 TC1728/1767 for data reading & writting and password reading.

Workable Transmission Model:
VAG: DQ200 (0AM)
VAG: DQ200MQB/G2 (0CW)
VAG: DQ250C (02E) K-Line
VAG: DQ250E/F (02E)
VAG: DQ250MQB (0D9)
VAG: VL300/V30 (01J/0AN) K-Line
VAG: VL300/V30 (01J/0AN)
VAG: VL381 (0AW)
VAG: DQ500 (0BH/0BT)
VAG: DL501/G2 (0B5)
VAG: DQ200/MQB Boot (MICRO)
VAG: DQ200/MQB Boot (EEPROM)
VAG: DQ200G2 Boot (MICRO)
VAG: DQ200G2 Boot (EEPROM)
VAG: DQ250E/F/MQB Boot (MICRO)
VAG: DQ250E/F/MQB Boot (EEPROM)
VAG: VL300/V30 BSL (FLASH)
VAG: VL300/V30 BSL (EEPROM)
VAG: VL381 Boot (MICRO)
VAG: VL381 Boot (EEPROM)
VAG: DL501 Boot (MICRO)
VAG: DL501 Boot (EEPROM)
VAG: DL501G2 Boot (MICRO)
VAG: DL501G2 Boot (EEPROM)

Read Chinese car via OBD:
China: Chery, Great Wall, Lifan, SAIC ME17 (ME17.8.8)
China: Chery, Great Wall, Lifan MT80 K-Line Calibration (De-lphi MT80)
China: Chery, Great Wall, Lifan MT80 CAN-bus (Del-phi MT80)

Read the BOOT mode according to the chip model:
Infi-neon: TC1762/TC1766 MICRO (1504KB)
Infi-neon: TC1762/TC1766 EEPROM (32KB)
Infi-neon: TC1792/TC1796 MICRO (2048KB)
Infi-neon: TC1796 MICRO+EXT (4096KB/6144KB)
Infi-neon: TC1796 EXT (2048KB/4096KB)
Infi-neon: TC1796 EEPROM (128KB)
Infi-neon: TC1792 EEPROM (64KB)
Infi-neon: TC1738/TC1767 MICRO (2048KB)
Infi-neon: TC1738/TC1767 EEPROM (64KB)
Infi-neon: TC1797 MICRO (4096KB)
Infi-neon: TC1797 MICRO+EXT (6144KB/8192KB)
Infi-neon: TC1797 EXT (2048KB/4096KB)
Infi-neon: TC1797 EEPROM (64KB)
Infi-neon: TC1724/TC1728 MICRO (1536KB)
Infi-neon: TC1724/TC1728 EEPROM (64KB)
Infi-neon: TC1782/TC1784 MICRO (2560KB)
Infi-neon: TC1782/TC1784 EEPROM (128KB)
Infi-neon: TC1793/TC1798 MICRO (4096KB)
Infi-neon: TC1793/TC1798 MICRO+EXT (6144KB/8192KB)
Infi-neon: TC1793/TC1798 EXT (2048KB/4096KB)
Infi-neon: TC1793/TC1798 EEPROM (192KB)

Read the encrypted ECU password (Read the password of encrypted ECU first, then read data):
Bo-sch: Support Chinese car ME17 TC1728/1767 data reading & writing and password reading
Bo-sch: BM-W/MB/VAG GPT
Bo-sch: Fo-rd/Op-el/Vo-lvo GPT
Bo-sch: BM-W TPROT8+
Bo-sch: VAG TPROT8+
Bo-sch: Kia/Hyundai/Honda TPROT8+
Bo-sch: Chry-sler/Je-ep/Do-dge/F-iat TPROT8+ [Test]
Bo-sch: VAZ/UAZ ME17.9.71
Conti-nental: Ki-a/Hyun-dai/Ssa-ngYong SIM2K-24X/C201
Conti-nental: Fo-rd EMS2204
Conti-nental: Fo-rd EMS2207
Conti-nental: Fo-rd EMS2211
Conti-nental: Fo-rd SID208
Conti-nental: Fo-rd SID209
Conti-nental: Fo-rd Mondeo 4 SID807EVO
Conti-nental: Fo-rd Focus 3/Transit Connect SID807EVO
Conti-nental: Citr-oen/Peu-geot SID208
Ki-a/Hy-undai: De-lphi MT86 EEPROM (16KB)
Mer-cedes-Be-nz: Del-phi CRD3.1 EEPROM (32KB)

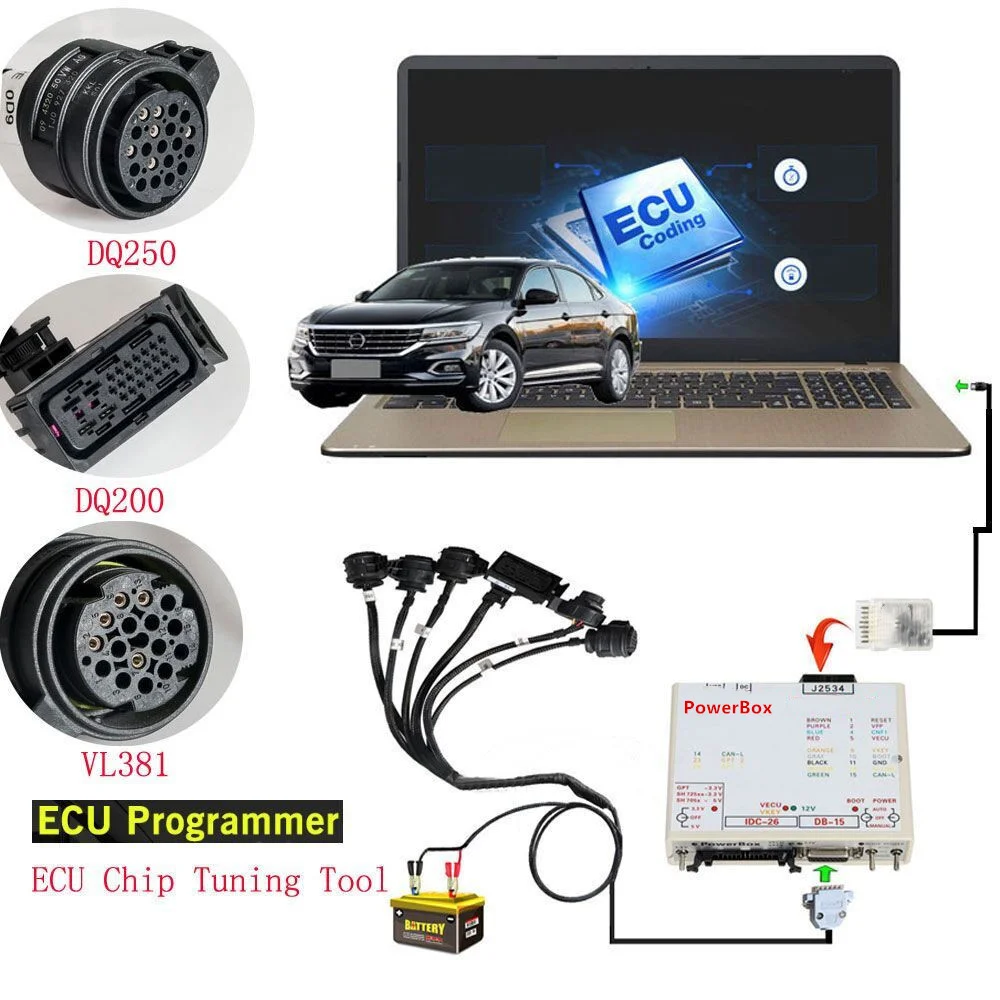

How to connect V-A-G VW Au-di Gearbox Adapter

Packing List

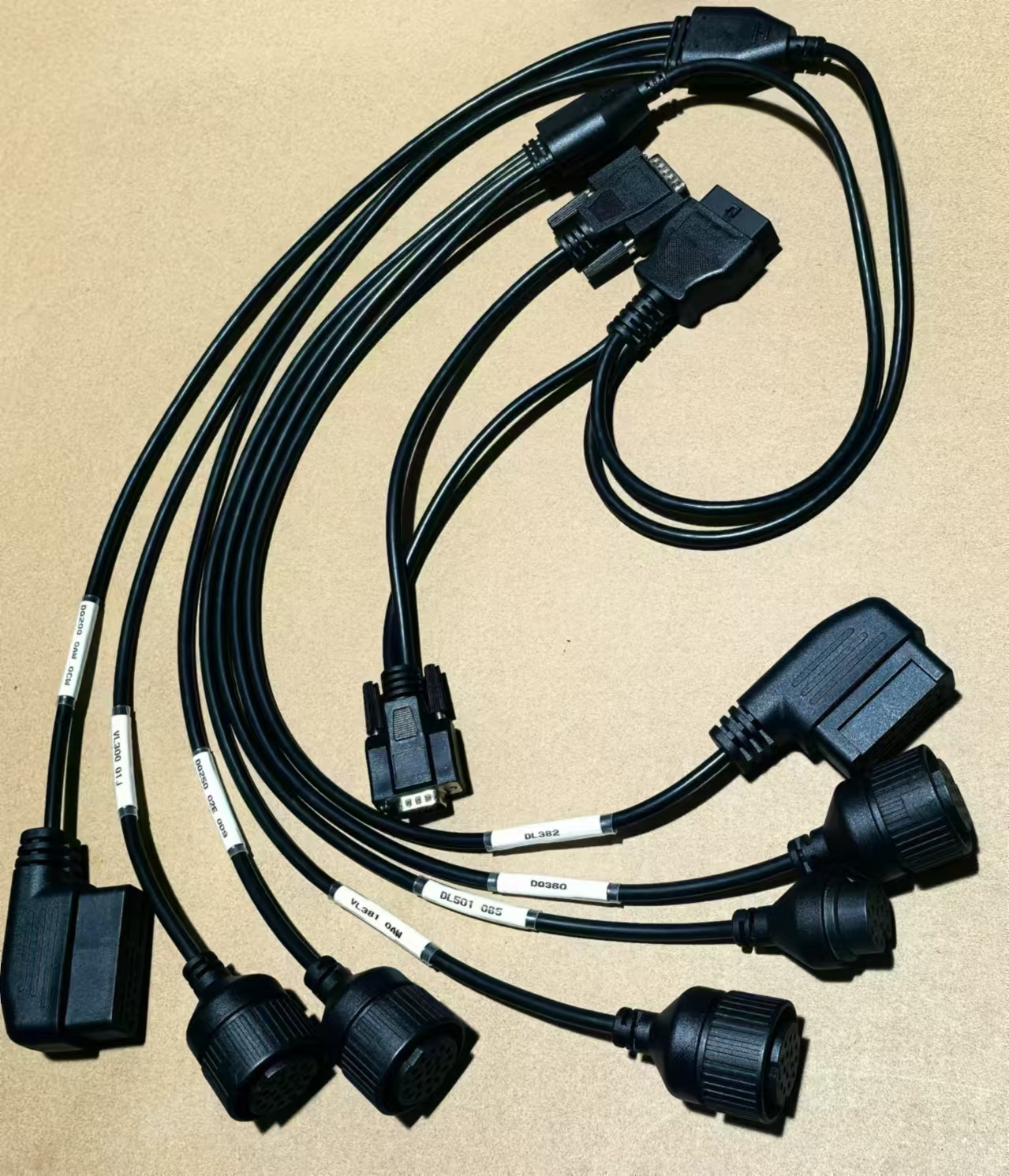

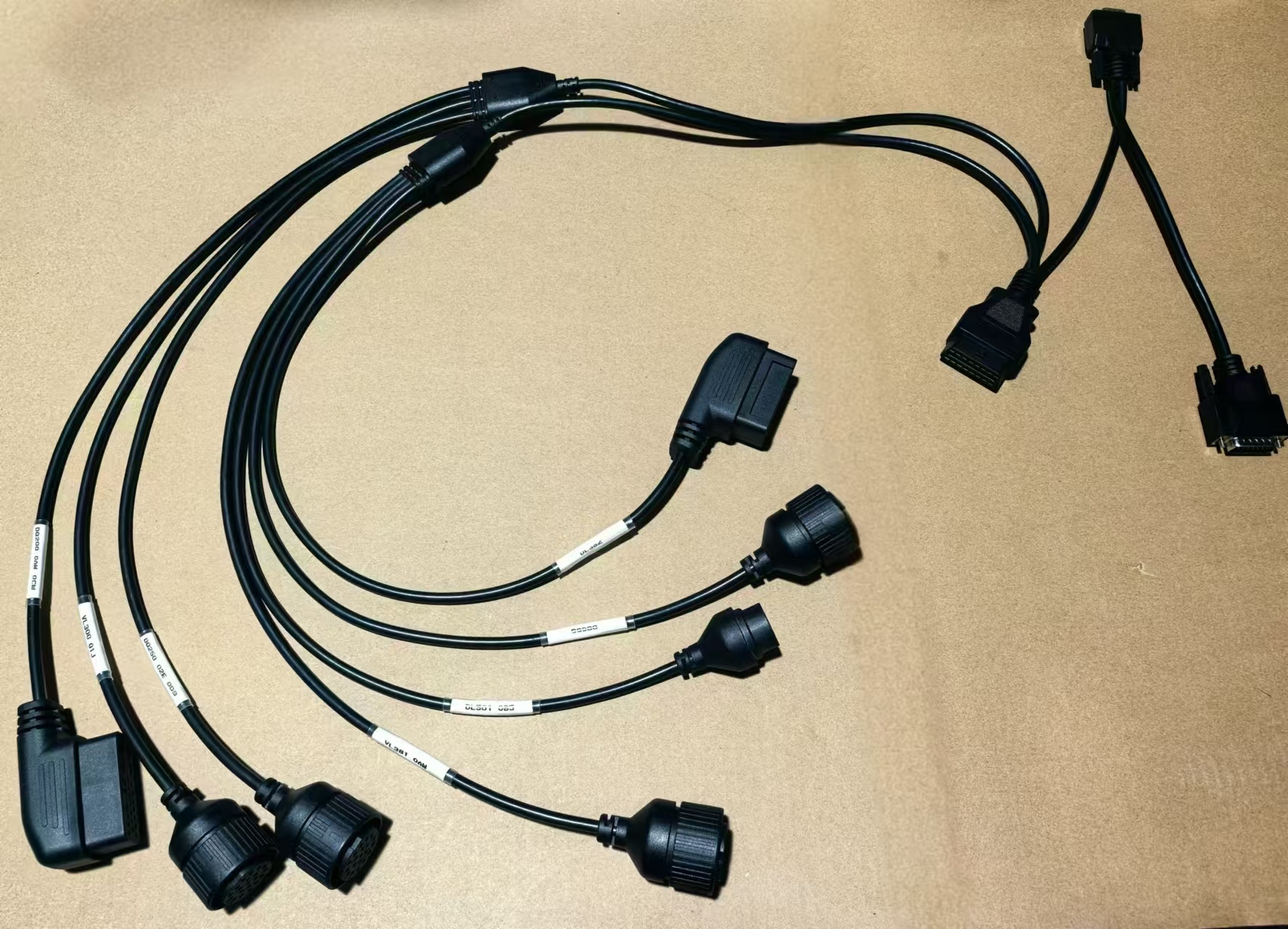

V-A-G Au-di Gearbox Adapter

Notice:
1. Software language: English
2. Windows XP System

---
