Product Description
New update for OTB, OTB 2.0 is ready, look at what is added! ! !
Adapter only, hardware is not included.
For KT200 / KT200II programme . Don' t need to connect with bench box.

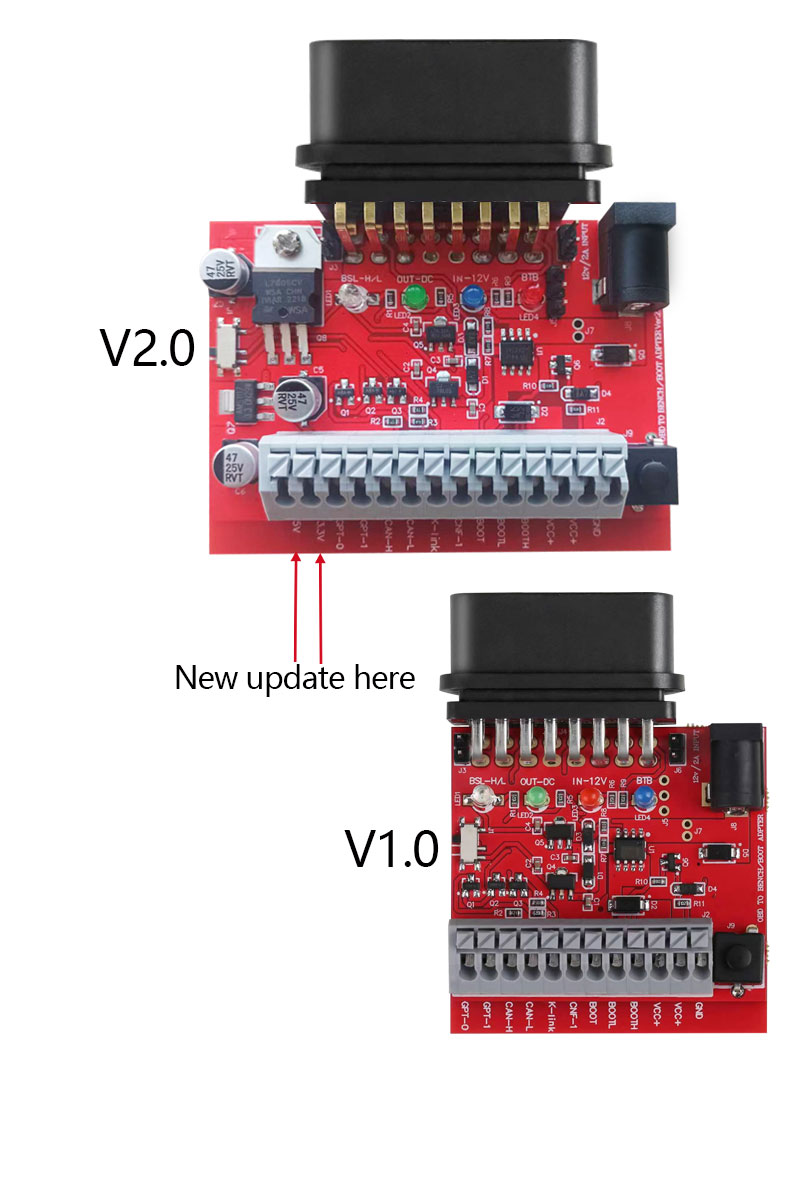

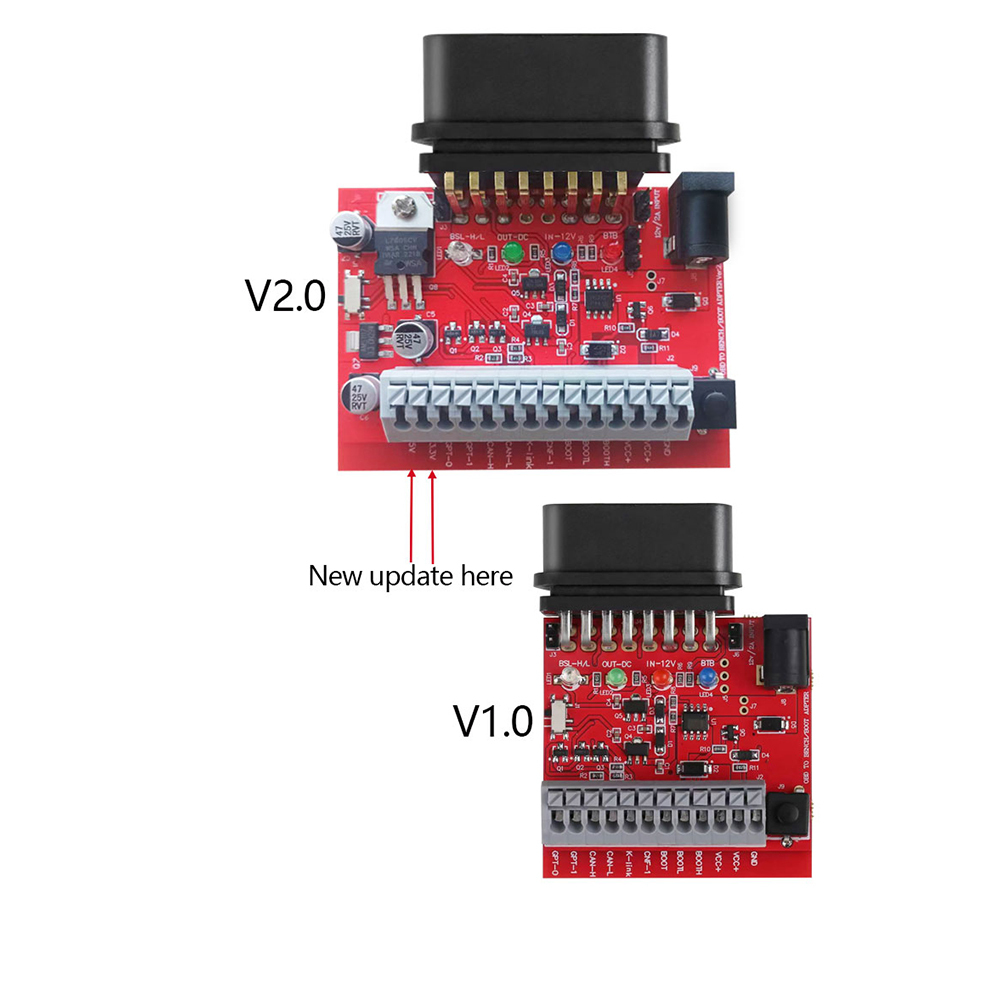

The yellow part below is the upgrade part, it is extra more then 1.0

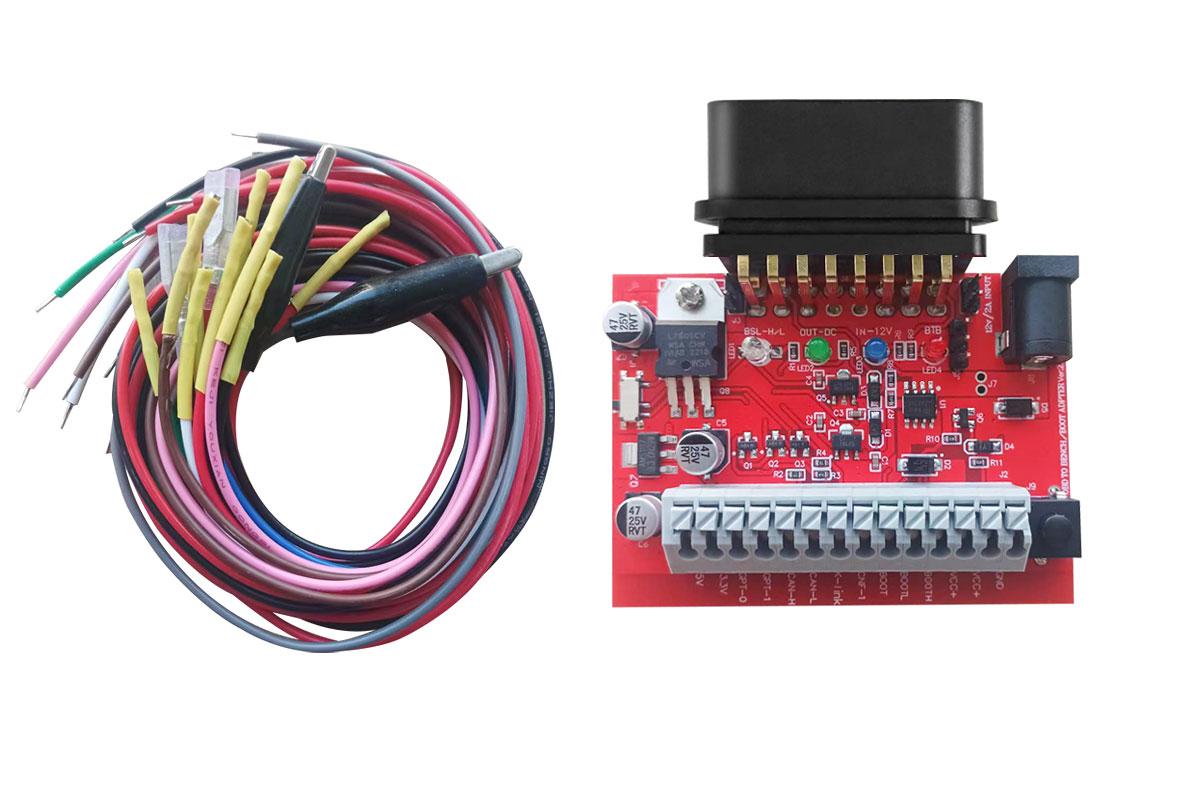

OTB 2.0 Adapter OBD on Bench Mode Adapter work for KT200 / KT200II
Product Description:
OTB2.0 adapter is suitable for KT200 / KT200II extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules. Ensure that KT200 / KT200II can be expanded to the OTB mode of BENCH PLUS in any OBD working mode.
OTB Adapter design purpose:
1: Ensure that KT200 / KT200II can be expanded to the OTB mode of BENCH PLUS in any OBD working mode
2: Achieve high-speed reading and writing
3: Ensure communication security and prevent the possibility of ECU brick due to voltage instability.
4: OTB reading and writing in OBD offline mode
5: ECM, TCM, ACM, DCM direct desktop mode reading and writing
6:Add external power supply for ECU / TCU, you need not use excess stabilized power supply to do it.
OTB Adapter Supported functions:
1: Dual-channel high-speed CAN
2: Three-way BOOT
3: Dual VCC power supply
4: GPT encryption and decryption function
5: Adaptive resistance
6: Adaptive CNF signal adjustment
7: Improve the reading and writing speed of some OBD drivers
8: A 3.3v power output port
9: A 5v power output port
Question: Can otb 2.0 adapter be used with tagflash? Or can it only be used with kt200?
Answer: It can be used with KT200, TagFlash. We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help! Email:Sales@ECUHELPshop.com Whatsapp:+86-18205996549 Skype:Sales@ECUHELPshop.com Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.
Customer Questions & Answers
1 votes
Q:Question:Hi! Where can I find a description of how to use it, say in case of edc17c46 ecu? Answer this question
A:Answer:
Just check his CAN H, CAN L, VCC, GND then back to OBD driver connect with OTB. Don’t need to connect GPT.
Q:Question:Does any GODIAG adapters can substitute the New OTB 2.0 Adapter (OBD on Bench Adapter) for KT200 KT200II Tagflash Programmer? Answer this question
A:Answer:
unsupport
By IrisSELLER
on April 24, 2024
1 votes
Q:Question:I did valeo v46.11 psa on bench not in obd, I killed the ecu in ecreture (I no longer communicated with the ecu), Is it using OTB that you can write on the bench without risk? Answer this question
A:Answer:
The operation manual indicates that OTB can be used, then it can
