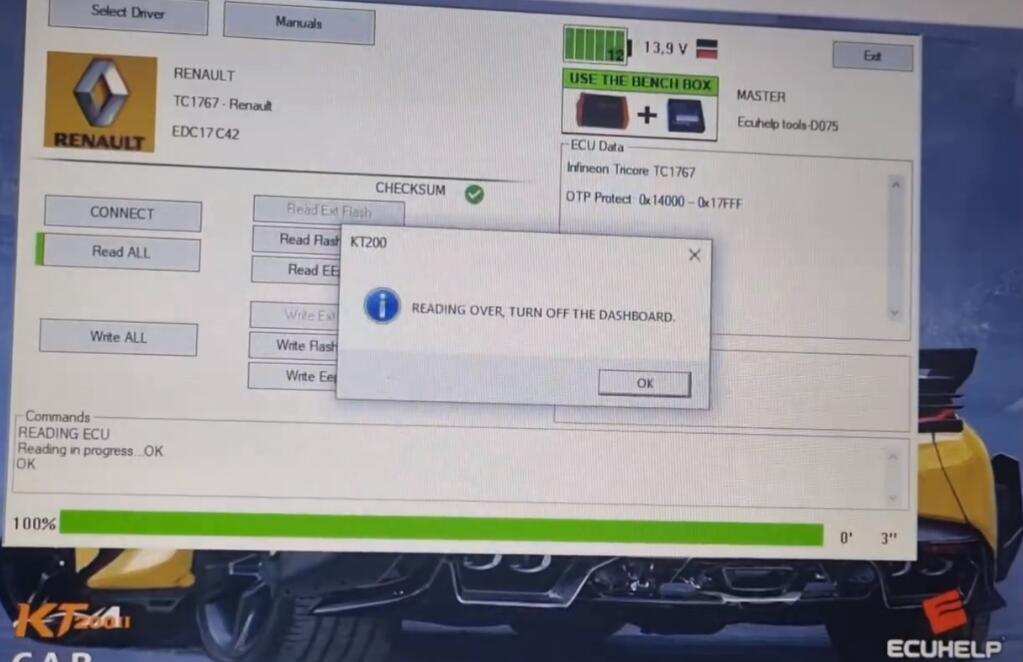

ECUHELP KT200II Offline Version is verified working perfectly when i put the userfiles to the online user folder. Let's use KT200II to work with Renault EDC17C42 TC1767, read and write ok Bench mode.

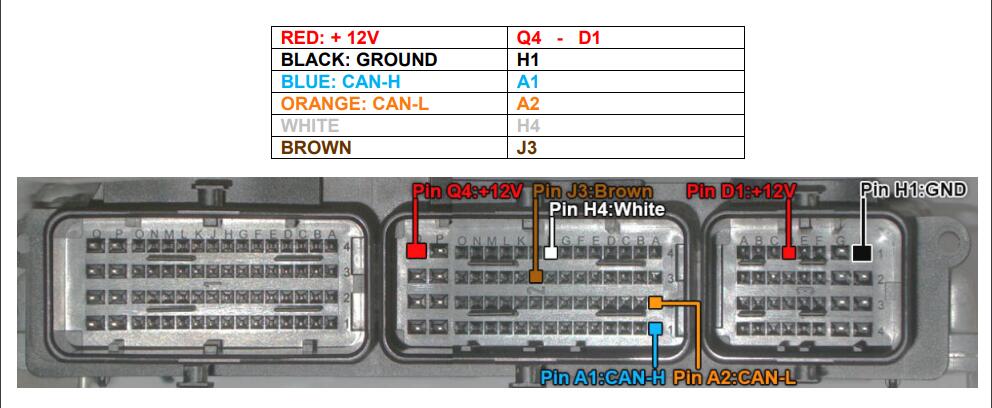

KT200II wiring diagram of BOSCH EDC17 C42 [ 1767 ] – Renault, Nissan [Diesel] :
Connect the multifunction cable as follows:


To read and write use the following driver:
→ BENCH TRICORE
→ RENAUT or NISSAN
→ TC1767 – RENAULT or NISSAN
→ EDC17 C42

KT200II also can read and write BOSCH EDC17 C42 [ TC1767 INT.F.] for Opel, Renault Boot mode.
You can follow the user manual to operate step by step.
