Buy KT200 or TagFlash?
Buy KT200 or TagFlash? this article writes downs the similarities and differences in the aspects of installation, checksum, VR fiile, TCU, ECU clone, support list and reviews.
KT200 or TagFlash?
Read/Write ECU:
TagFlash will read/write more ECU than KT200 (for example, Delco E84, md1cs018, dcm2.7ap by removing ECU, sid208-sid209 on Bench, dcm7.1b via obd, dcm6.2v via OBD. )
For some ECU, they both can work but in a different mode; (for example, TagFlash R/W sid807evo on Bench mode , KT200 R/W sid807evo in Boot mode or pinout mode)
Both KT200 and TagFlash read/write ECU for car/truck/tractor/Marine/Motorbike in the method of BENCH / OBD / BOOT / BDM / JTAG.
TagFlash Support List
KT200 ECU Support List
KT200 TCU List
Manufacturer:
KT200 is made and sold by ecuhelp. TagFlash is not made by ecuhelp.
Sychronize time:
TagFlash:unnecessary
KT200:needed.
On Bench Mode:
TagFlash R/W ECU by indentifying the chip type.
Installation:
TagFlash is easier.
For KT200 online/offline installation, there are videos to follow and tech support to remote assistance.
Checksum:
TagFlash do more checksum automatically and work stable.
Good news for sharing: ECUHELP will release one checksum software.
Alright, any question one checksum software, message Oliver via WhatsApp:
+ 8618205996549.
Recondition (remove speed):
TagFlash Yes
KT200 No
VR file:
KT200 is available now (download
ECUHELP 3.0),
TagFlash is not available yet but will be available soon.
TCU (Gear):
KT200 can read/write over 500 TCU (view the above TCU list).
TagFlash only read/write DQ200 TCU.
ECU Clone:
TagFlash supports only a little ECU clone, advise
67in1 PCM Tool to clone ECU.

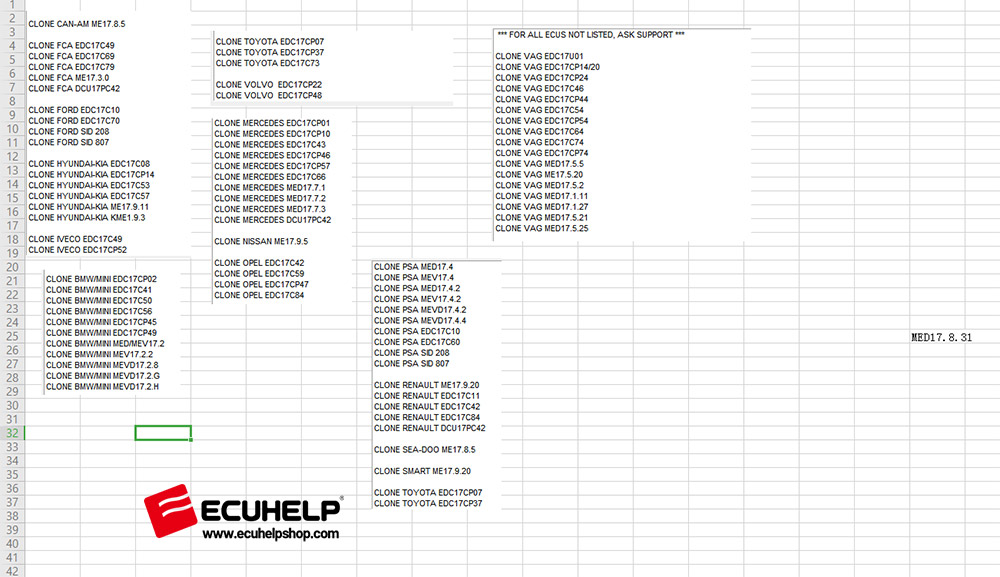

KT200 supports some VAG and a little BMW ECU clone, here is the list:
User's Feedback:
KT200 Test Reviews:
https://www.ecuhelpshop.com/pages/kt200-reviews/
TagFlash Test Reviews:
TagFlash is confirmed to read/write ECU on many ECU types such as:
DCM2.7AP yes
DCM2.7 yes
DCM3.7AP Hyundai Read ok via OBD, via Can bus.
MD1CS018 Yes: choose the chip type spc58 to read/write
sid208-sid209 read write on bench ok.
dcm7.1b can read via obd ok
dcm6.2v read via obd no problem
VOLVO EMS 2.2 Read OK with Tag Flash Waiting mod file to write in ....
MD1cs089 read/write no problem (after 2020 year, not ok)
Denso NEC76F0085 working
Edc16u1 written and read ok check correction obd.
SID310 MB written and read well.
DELPHI MPC555 READ no problem, for FORD / Ssangyong
Mitsubishi 4D56 RA6 ECU Read ok-- data checked,same with other tools read out.
MITSUBISHI 4D56, Denso RHF4A ecu read / write good, Perform EGR off.
SID807,SID208,SID209 read/write on Bench, boot, OBD.
MCM2.1 working well
dcm6.2v vag bootmod for cloning, Dcm6.2a possible too.
Phoenix L12 Caan Bus read ok.
Isuzu Dmax 2007 with Delphi ECU can read write by Can bus.
Toyota 89661-58130 for Vellfire Denso 175035-4520 with 76F0038AGD read/write ok, perform decat function fast & Stable.
DELPHI DMCI 3 socket type DAF HYUNDAI UD TRUCK READ OK-WRITE OK
Mercedes Benz MED17.7.3 BENCH MODE READ OK BENCH TRICOR3 SAK1797 awaiting stage 1 tune
PCR2.1 unlock obd only by vr file, please note that.
EDC16 UC40 fitted in Deutz, Kobelco etc. Read/write ok with TagFlash. Clone ECU as old one internal damaged, transfer data from old to new ECU.
Tagflash can read/write sdi8.
EMS2.2 yes.
TagFlash is not able to read/write:
Sim2k260 NO
DCM7.1AP No
